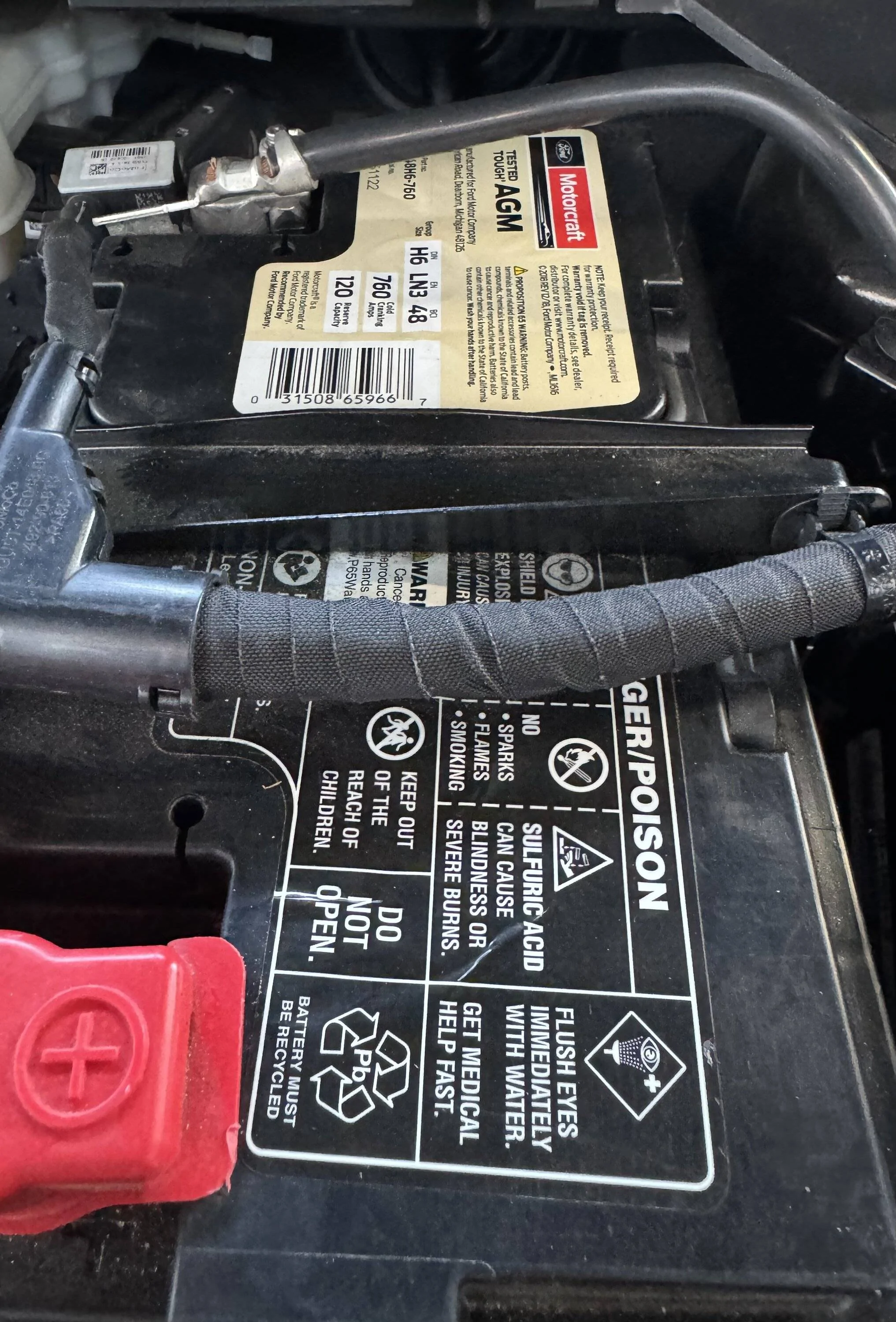

I'm thinking about changing the stock battery to a AGM type battery

wireman

Badlands
Well-Known Member
First Name
Steve
Joined
Jan 19, 2023
Threads
41
Messages
541
Reaction score
810
Location
Murrieta
Vehicle(s)
2021 Bronco Sport
When a battery is replaced, does the BMS have to be reset?

If so, does it have to be done by the dealer?
Sponsored



Dude

Badlands
Well-Known Member
Joined
Sep 20, 2022
Threads
34
Messages
1,975
Reaction score
2,018
Location
Arizona
Vehicle(s)
2022 Bronco Sport Badlands
When a battery is replaced, does the BMS have to be reset?

If so, does it have to be done by the dealer?
BMS does need to be reset after replacing the battery but anyone not just a dealership can do it:

Battery Sensor Reset (Battery Management System (BMS) Reset):

When you install a new battery, reset the battery sensor by doing the following:
1. Switch ignition on, and leave the engine off.
Note: Complete Steps 2 & 3 within 10 seconds.
2. Flash the high beam headlamps five times, ending with the high beams off.
3. Press and release the brake pedal 3 times.
The battery warning lamp flashes 3 times to confirm that the reset is successful.

OP
OP
rocks

rocks

Outer Banks
Well-Known Member
First Name
Joe
Joined
Jun 12, 2023
Threads
36
Messages
1,039
Reaction score
1,329
Location
SC
Vehicle(s)
OBX, '23 HR-V EX-L wife's
Do dealers have an electronic tool to save memory settings while changing the battery?


wireman

Badlands
Well-Known Member
First Name
Steve
Joined
Jan 19, 2023
Threads
41
Messages
541
Reaction score
810
Location
Murrieta
Vehicle(s)
2021 Bronco Sport
BMS does need to be reset after replacing the battery but anyone not just a dealership can do it:

Battery Sensor Reset (Battery Management System (BMS) Reset):

When you install a new battery, reset the battery sensor by doing the following:
1. Switch ignition on, and leave the engine off.
Note: Complete Steps 2 & 3 within 10 seconds.
2. Flash the high beam headlamps five times, ending with the high beams off.
3. Press and release the brake pedal 3 times.
The battery warning lamp flashes 3 times to confirm that the reset is successful.
Thanks. If I have to replace the battery on my own dime, I'll do it myself.

I had a 2018 Escape Titanium and I replaced the battery myself. What a PITA to do. The dealer wanted, if I remember correctly, around $150 to reset it.

I don't know if this procedure would have applied to the Escape at the time. I never reset the BMS and no ill effects. Sold it 6 months later.


Colonel Angus

Big Bend
Well-Known Member
First Name
Dean
Joined
Jul 12, 2023
Threads
8
Messages
371
Reaction score
720
Location
New York
Vehicle(s)
2023 Ford Bronco Sport, 2018 Ford F150 XLT
BMS does need to be reset after replacing the battery but anyone not just a dealership can do it:

Battery Sensor Reset (Battery Management System (BMS) Reset):

When you install a new battery, reset the battery sensor by doing the following:
1. Switch ignition on, and leave the engine off.
Note: Complete Steps 2 & 3 within 10 seconds.
2. Flash the high beam headlamps five times, ending with the high beams off.
3. Press and release the brake pedal 3 times.
The battery warning lamp flashes 3 times to confirm that the reset is successful.
You forgot one final step. :)
