Rear License Plate installation

bRONco Bowling

Big Bend
New Member
First Name
Ron
Joined
Jun 5, 2021
Messages
4
Reaction score
0
Location
Central KY
Vehicle(s)
2021 Bronco Sport
Could someone explain how to mount the bracket? Our plates just came in and the Bronco came with a plastic bracket, two bolts and three pointed pieces (not sure what i would call them).





Advertisement



kman779

Outer Banks
Member
Joined
Apr 29, 2021
Messages
13
Reaction score
9
Location
USA
Vehicle(s)
2021 Bronco Sport
Could someone explain how to mount the bracket? Our plates just came in and the Bronco came with a plastic bracket, two bolts and three pointed pieces (not sure what i would call them).
The rear license plate should just screw directly in with two screws. That's how mine is anyways. I believe the bracket you are mentioning is for the front bumper.

OP

bRONco Bowling

Big Bend
New Member
First Name
Ron
Joined
Jun 5, 2021
Messages
4
Reaction score
0
Location
Central KY
Vehicle(s)
2021 Bronco Sport
  • Thread starter
  • Thread Starter
  • #3
The rear license plate should just screw directly in with two screws. That's how mine is anyways. I believe the bracket you are mentioning is for the front bumper.
Thanks. I'll try that.


13MikeH

Badlands
Well-Known Member
First Name
May 17 schedule
Joined
Mar 26, 2021
Messages
752
Reaction score
844
Location
March 26 order
Vehicle(s)
Dodge Challenger
Yeah some states require front/rear plates while others (Michigan) do not. The mounting bracket is for the front bumper installation. The rear plate mounts to the plastic bumper cover. Should be two screws and a lot of dealers near me add a plastic plate trim piece for advertising.

OP

bRONco Bowling

Big Bend
New Member
First Name
Ron
Joined
Jun 5, 2021
Messages
4
Reaction score
0
Location
Central KY
Vehicle(s)
2021 Bronco Sport
  • Thread starter
  • Thread Starter
  • #5
Yeah some states require front/rear plates while others (Michigan) do not. The mounting bracket is for the front bumper installation. The rear plate mounts to the plastic bumper cover. Should be two screws and a lot of dealers near me add a plastic plate trim piece for advertising.
There is no plate trim from the dealer and i tried to install directly but the holes are not threaded and certainly not deep enough to accept the included machined screws. Not sure what the deal is.


fourthgear

Outer Banks
Well-Known Member
First Name
Michael
Joined
Jan 31, 2021
Messages
207
Reaction score
183
Location
florida
Vehicle(s)
2021 Ford Bronco Sport 2016 F250 Super Duty
Rear License Plate ,just two screws at the Top. The Nuts may be missing ,which are the pop in type . & why


johnardsg

Big Bend
Well-Known Member
First Name
johnard
Joined
May 10, 2021
Messages
153
Reaction score
91
Location
Oregon
Vehicle(s)
2021 BS BigBend/2011 v6 Rav4
dealers in OR place them as it’s mandatory here to have both plates mounted


Glamdring70

Badlands
Well-Known Member
First Name
Tim
Joined
Mar 26, 2021
Messages
125
Reaction score
126
Location
Oregon
Vehicle(s)
BL+BL

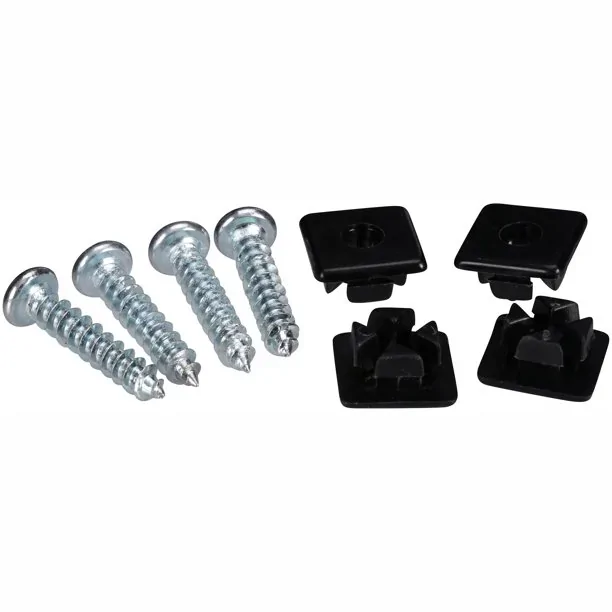

Here's what a typical license plate needs to install:

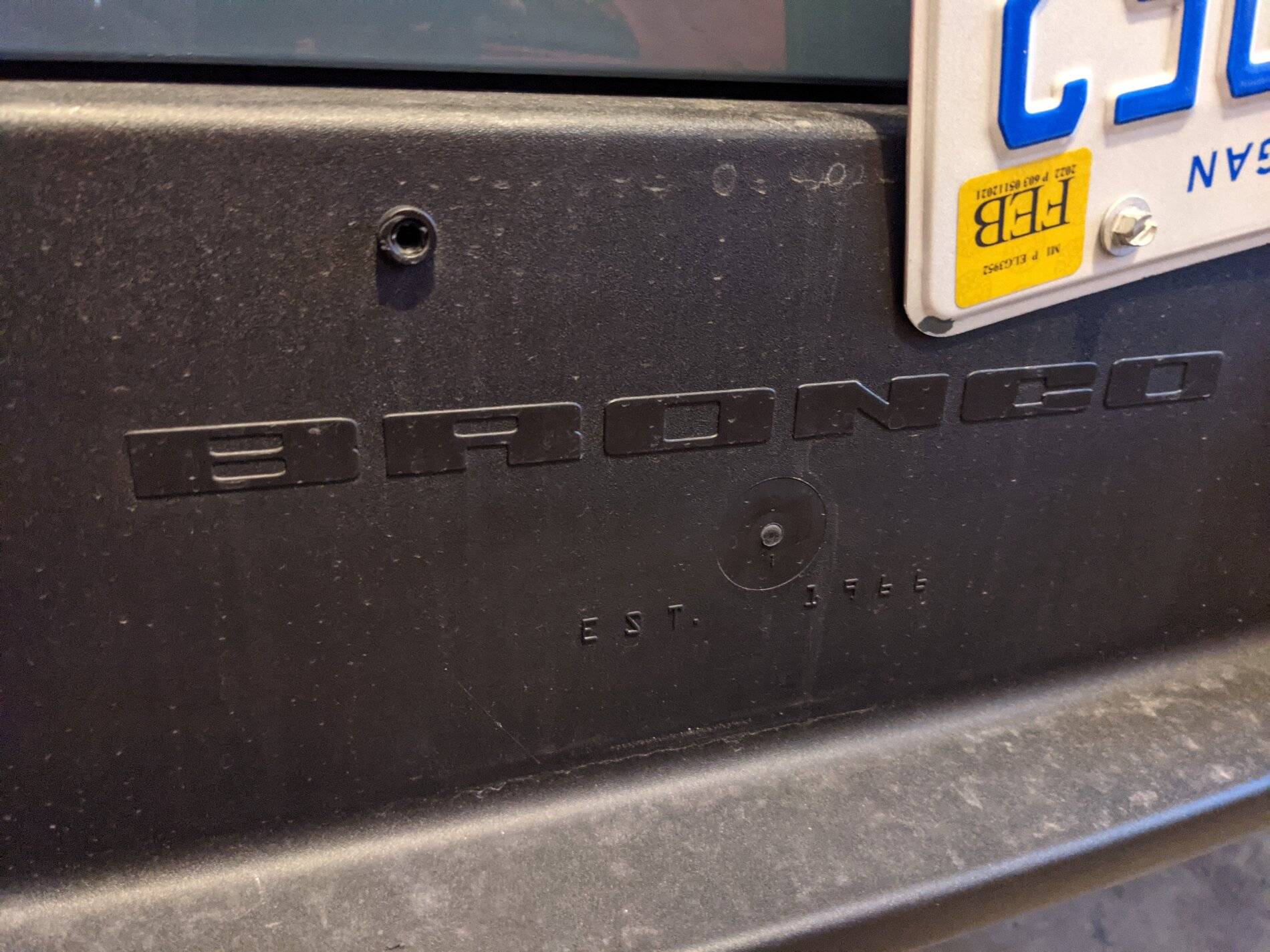

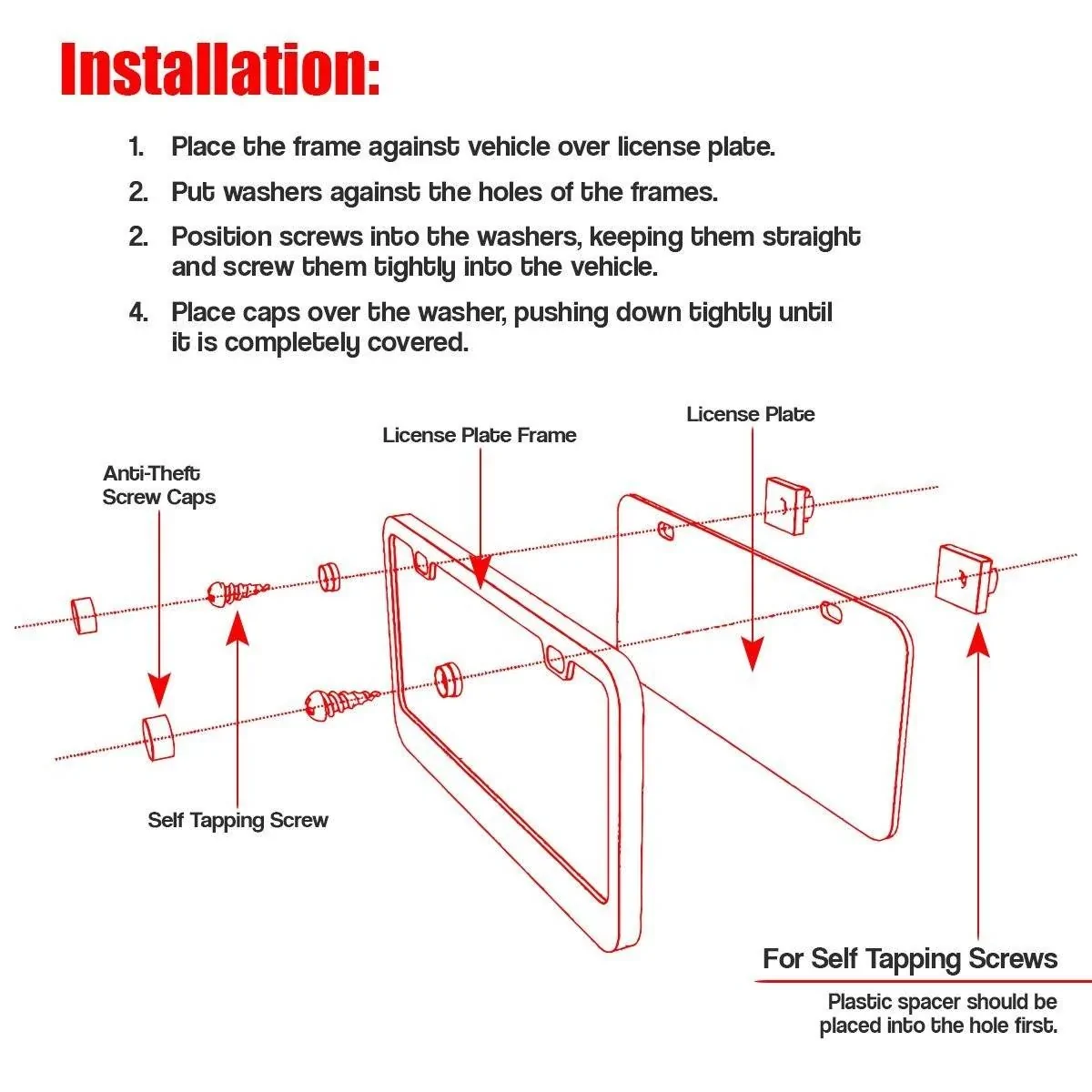

The rear plate just uses two appropriate screws that go into the two holes in the bumper. You don't need the spacer pieces on the right unless you create a larger hole and plug them into it. No need on the BS rear where we have two bumps to show where the screws belong. Yeah, they aren't threaded the first time. It takes effort for the self-tapping screw to go through. It will make threads as it works its way through the plastic. They go right on through and just protrude out the back, inside the bumper. From there you can choose to add in frames, beauty/theft caps, covers and backings. Like this:

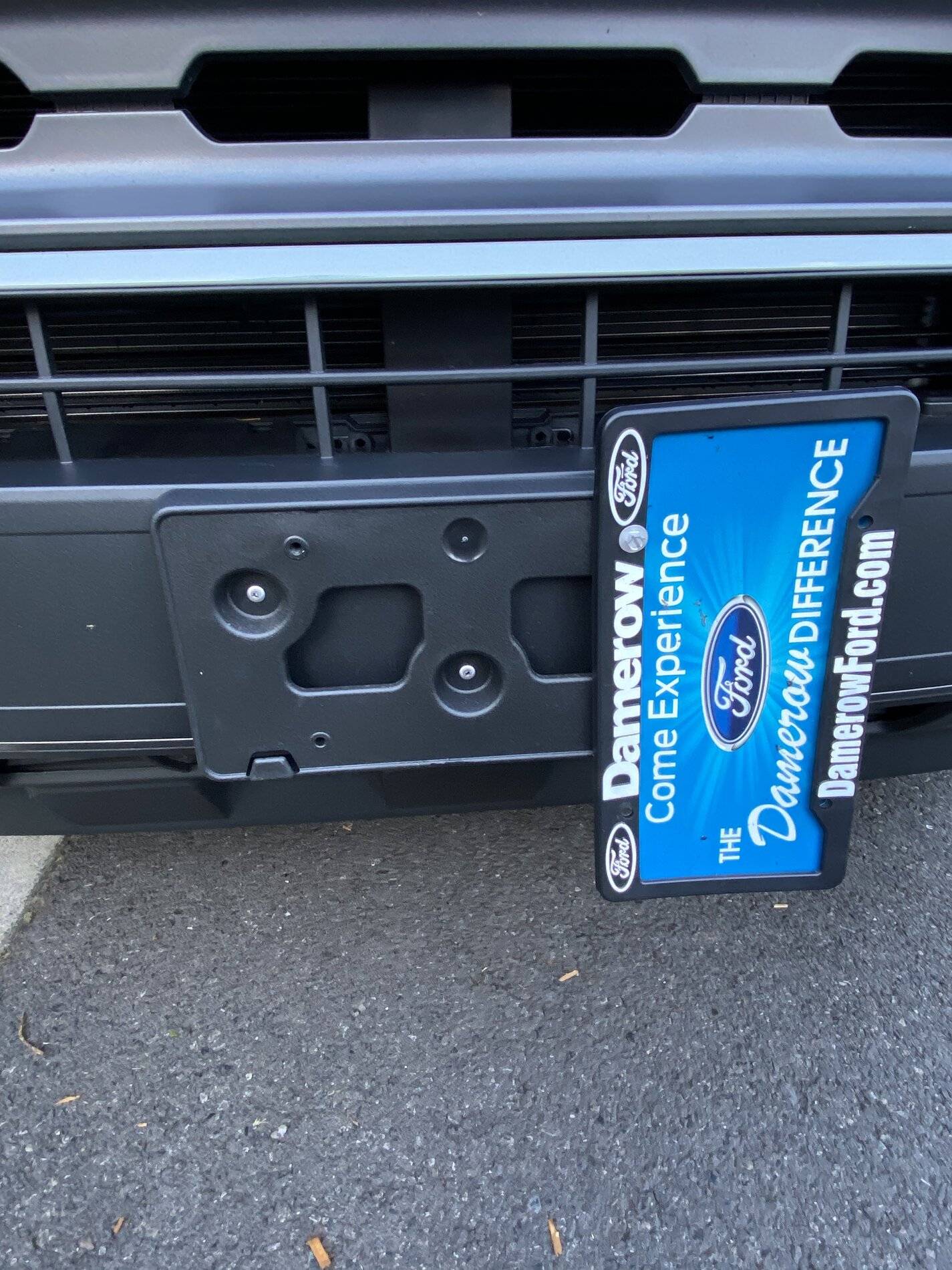

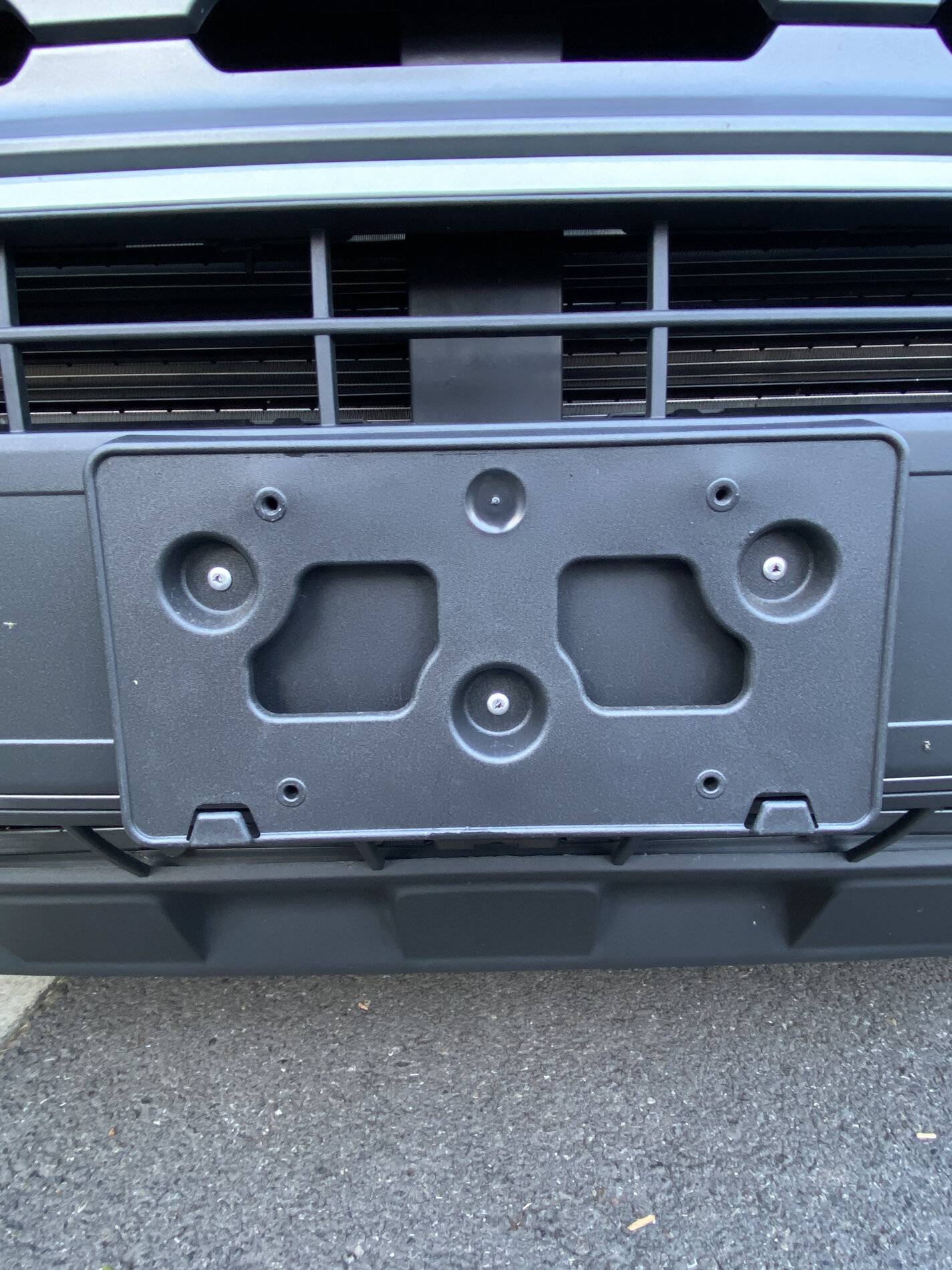

@jofer hit it on the mark with that link. They dropped the front frame and the rivets into your trunk and didn't install it. I see you're in Kentucky. A front plate isn't required in your state (a lot of people don't want them unless required). The front bracket is a DIO option (dealer installed) and that's their job. If you want a front plate, take it there and make them install it. A good dealership should help you out and put the plate in too. They'll probably have the drill and specialized pop rivet gun you need.


13MikeH

Badlands
Well-Known Member
First Name
May 17 schedule
Joined
Mar 26, 2021
Messages
752
Reaction score
844
Location
March 26 order
Vehicle(s)
Dodge Challenger
dealers in OR place them as it’s mandatory here to have both plates mounted
Really nice job. And here in Michigan it's not required, my dealer didn't even include one, and I didn't want one so it didn't matter.
