Didn't want to pay or use points for the official Ford bike carrier. One Amazon order, visit to a buddy's scrap wood pile and 15 minutes later, and I was all done.

I've got a Badlands with a Pirelli Scorpion spare, and I'm not planning on removing the passenger seat cushion. That means even with the safari roof, I have to drop the seat.
Ford Bronco Sport DIY Interior Bike Rack PXL_20231208_183006080


The fork holder (on left) was less than $20, the wheel holder was $27 or so. Wood was free. The wheel holder is offset because the wheel needs to clear the bike handlebars.

Ford Bronco Sport DIY Interior Bike Rack PXL_20231208_183120126


See why there's an offset?

You can skip the wheel holder if you just want to toss the wheel back there somewhere, I like it to know it isn't moving around while I'm driving.

Bike in the Bronco, it'll fit on either side with one car seat up. Seat has been lowered-- I've got a quick release lever on the seat tube.

Ford Bronco Sport DIY Interior Bike Rack PXL_20231208_184444119


The wood base is large enough that the bike doesn't need to be be tied down, it won't tip over in turns or even on a rutted dirt road.

Ford Bronco Sport DIY Interior Bike Rack PXL_20231208_184504828


Fits in with a couple inches clear front and back. The rear tire is 100% behind the passenger seat, it doesn't intrude between the 2 front seats.
Sponsored



Dude

Badlands
Well-Known Member
Joined
Sep 20, 2022
Threads
19
Messages
1,356
Reaction score
1,269
Location
Arizona
Vehicle(s)
2022 Bronco Sport
Didn't want to pay or use points for the official Ford bike carrier.

Fits in with a couple inches clear front and back. The rear tire is 100% behind the passenger seat, it doesn't intrude between the 2 front seats.
Your design is the best for that bike!


Escape2Bronco

Badlands
Well-Known Member
First Name
Steve
Joined
Oct 9, 2021
Threads
4
Messages
2,607
Reaction score
3,239
Location
Wisconsin
Vehicle(s)
2013 Lexus, 2022 Bronco Sport, 2023 Heritage 2 dr
Nice job.

Here is my inside bike rack. Requires 4 large bungees, 4 small bungees, and a 3 ft. 5/16 threaded rod and 4 5/16 wing nuts. It all stores under the back cargo mat.

Ford Bronco Sport DIY Interior Bike Rack IMG_1857

Last edited:

Oso Fell

Badlands
Well-Known Member
First Name
Oso
Joined
Oct 24, 2023
Threads
17
Messages
100
Reaction score
172
Location
NYC
Vehicle(s)
23 Bronco Sport
Nice job.

Here is my inside bike rack. Requires 4bungees, 4 small bundgees, and a 3 ft. 5/16 threaded rod and 4 5/16 wing nuts. It all stores under the back cargo mat.

Ford Bronco Sport DIY Interior Bike Rack IMG_1857
MacGyver couldn’t have done any better. Cheers to ingenuity.
Are your front wheels “quick-release”? All my the MTN bikes I had used quick-releases. None of the bikes I own now have quick-releases and one of them happens to be a Cannondale that has a “Lefty” fork. Can’t use an axle based holder with that one. Besides, I don’t like loosening/tightening axle nuts too much so I’m relegated to an outboard bike rack.



Escape2Bronco

Badlands
Well-Known Member
First Name
Steve
Joined
Oct 9, 2021
Threads
4
Messages
2,607
Reaction score
3,239
Location
Wisconsin
Vehicle(s)
2013 Lexus, 2022 Bronco Sport, 2023 Heritage 2 dr
MacGyver couldn’t have done any better. Cheers to ingenuity.
Are your front wheels “quick-release”? All my the MTN bikes I had used quick-releases. None of the bikes I own now have quick-releases and one of them happens to be a Cannondale that has a “Lefty” fork. Can’t use an axle based holder with that one. Besides, I don’t like loosening/tightening axle nuts too much so I’m relegated to an outboard bike rack.
Still old school quick release. I bought one of the Yakima versions but this stores easily and sets up in no time. I use the small bungees to hold the rear tires to the child seat tethers and the other two to hold the front wheels to the frame. She ain’t pretty but she works well. We can get a weeks worth of food and gear still between everything.

Last edited:

Goodland

Badlands
Active Member
First Name
Jake
Joined
Oct 17, 2023
Threads
5
Messages
39
Reaction score
85
Location
CA
Vehicle(s)
2022 Bronco Sport
Nice. Seems like a modern FS just doesn't really fit to me. I have a stumpjumper, and the distance from the bottom of the fork to the top of the bars is too tall to set the bike upright on the floor. Maybe with the full sized spare removed and the floor in the lower position it would work, but as it is, back to the hitch rack for me.


SeaJay

Outer Banks
Well-Known Member
Joined
May 20, 2023
Threads
0
Messages
117
Reaction score
221
Location
Georgia
Vehicle(s)
2023 OBX Sport, Area 51, Hitch, Assist++
Nice job.

Here is my inside bike rack. Requires 4bungees, 4 small bundgees, and a 3 ft. 5/16 threaded rod and 4 5/16 wing nuts. It all stores under the back cargo mat.

Ford Bronco Sport DIY Interior Bike Rack IMG_1857
That is a minimalist marvel. It looked insane at first and then when I understood it I was pretty impressed. A single threaded rod and some bungee cords. Wow.


Escape2Bronco

Badlands
Well-Known Member
First Name
Steve
Joined
Oct 9, 2021
Threads
4
Messages
2,607
Reaction score
3,239
Location
Wisconsin
Vehicle(s)
2013 Lexus, 2022 Bronco Sport, 2023 Heritage 2 dr
Thanks. It works way better than it looks. I used it for years with my Escape. I bought a Yakima insider rack when I bought the Bronco. I found my homemade version was way better in actual use. Super fast to install and easy to undo the bungees to get access to stuff in the back. We normally have two suit cases,two coolers, several collapsible crates, folding chairs, a case or two of beer and god knows what else stuffed in there on our trips.

One thing I learned early on was to use wing nuts and arrange the bungees to prevent the nuts from coming loose.

The OP’s looks way nicer than mine, that’s for sure!

Last edited:
OP
OP
SBGrad

SBGrad

Badlands
Well-Known Member
Joined
Jun 27, 2023
Threads
2
Messages
65
Reaction score
154
Location
on the beach
Vehicle(s)
Bronco Sport Badlands
You might consider a means to secure the base. It appears the handlebars might contact the liftgate window if the bike shifts.
Part of the reason for this design vice the official Ford solution is that it is very easy to remove it when the bike is not back there. I accept the ease of use vs risk trade off. If I want to, I can always add bungees (always carried in spare tire space) for tie downs.



Escape2Bronco

Badlands
Well-Known Member
First Name
Steve
Joined
Oct 9, 2021
Threads
4
Messages
2,607
Reaction score
3,239
Location
Wisconsin
Vehicle(s)
2013 Lexus, 2022 Bronco Sport, 2023 Heritage 2 dr
Part of the reason for this design vice the official Ford solution is that it is very easy to remove it when the bike is not back there. I accept the ease of use vs risk trade off. If I want to, I can always add bungees (always carried in spare tire space) for tie downs.
I found the Yakima solution to be a PITA too. I thought it would be better than my DYI but sadly it wasn't IMO.


CactusBS

Big Bend
Well-Known Member
First Name
Will
Joined
Mar 17, 2023
Threads
3
Messages
63
Reaction score
99
Location
Greenville, South Carolina
Vehicle(s)
2021 Bronco Sport
Nice. Seems like a modern FS just doesn't really fit to me. I have a stumpjumper, and the distance from the bottom of the fork to the top of the bars is too tall to set the bike upright on the floor. Maybe with the full sized spare removed and the floor in the lower position it would work, but as it is, back to the hitch rack for me.

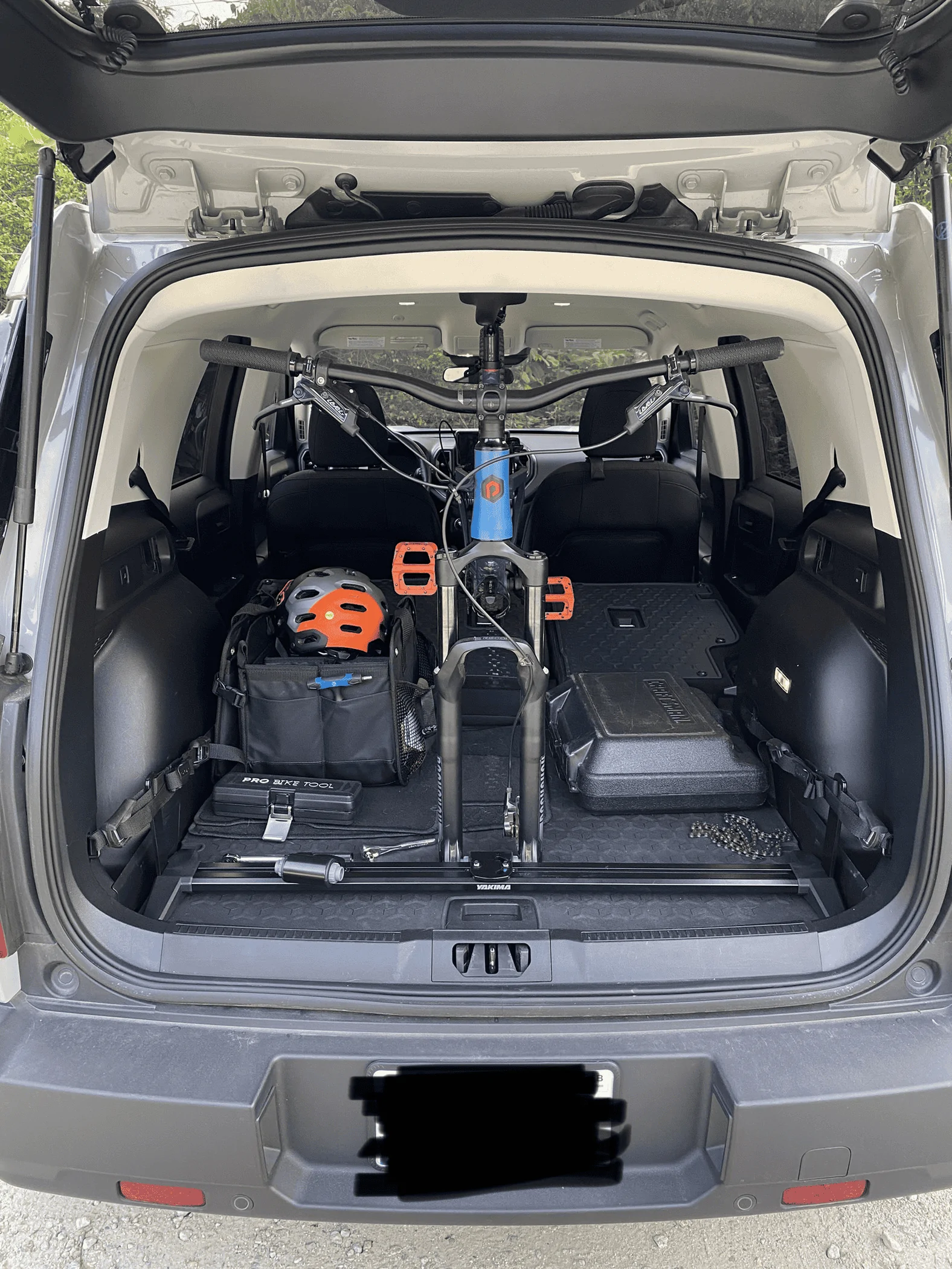

I have a FS and mine does fit if I drop the seat, I also flipped the mounting bracket at the fork so it's inverted. It gave me that little bit of extra clearance for the bars (see pic below)
Ford Bronco Sport DIY Interior Bike Rack 1704720284672
