Cargo Management System [updated with how-to-use video]

[fastlax16]

anyone have the part numbers for the interior panels and the shelf? you have to be able to order them through the parts department even if they aren't accessories. popping the interior panels off and snapping new ones on cant be too difficult

Sponsored



[13MikeH]

weathertech cargo solutions
Not sure if this helps anyone without the cargo system. Looks pretty simple and for $35 maybe a good solution?



[Kq100]

Anyone know measurements with the CMS shelf installed? (height from floor to shelf)



[SLJ]

Once again, the cargo management system is not available through the parts department. It is only available as an option at time ordering. If your vehicle did not come with it built in from the factory, it can not be ordered and installed later without also replacing the inner walls of the cargo area. $$$$ if the parts are even available.



[Y2Dre]

Anyone know measurements with the CMS shelf installed? (height from floor to shelf)

It's about 9.5 to 10 inches depending on if you have the cargo mat installed.



[DakotaTimber]



[Slewis95407]

It's about 9.5 to 10 inches depending on if you have the cargo mat installed.

9 in with cargo mat



[Rinzler]

9 in with cargo mat

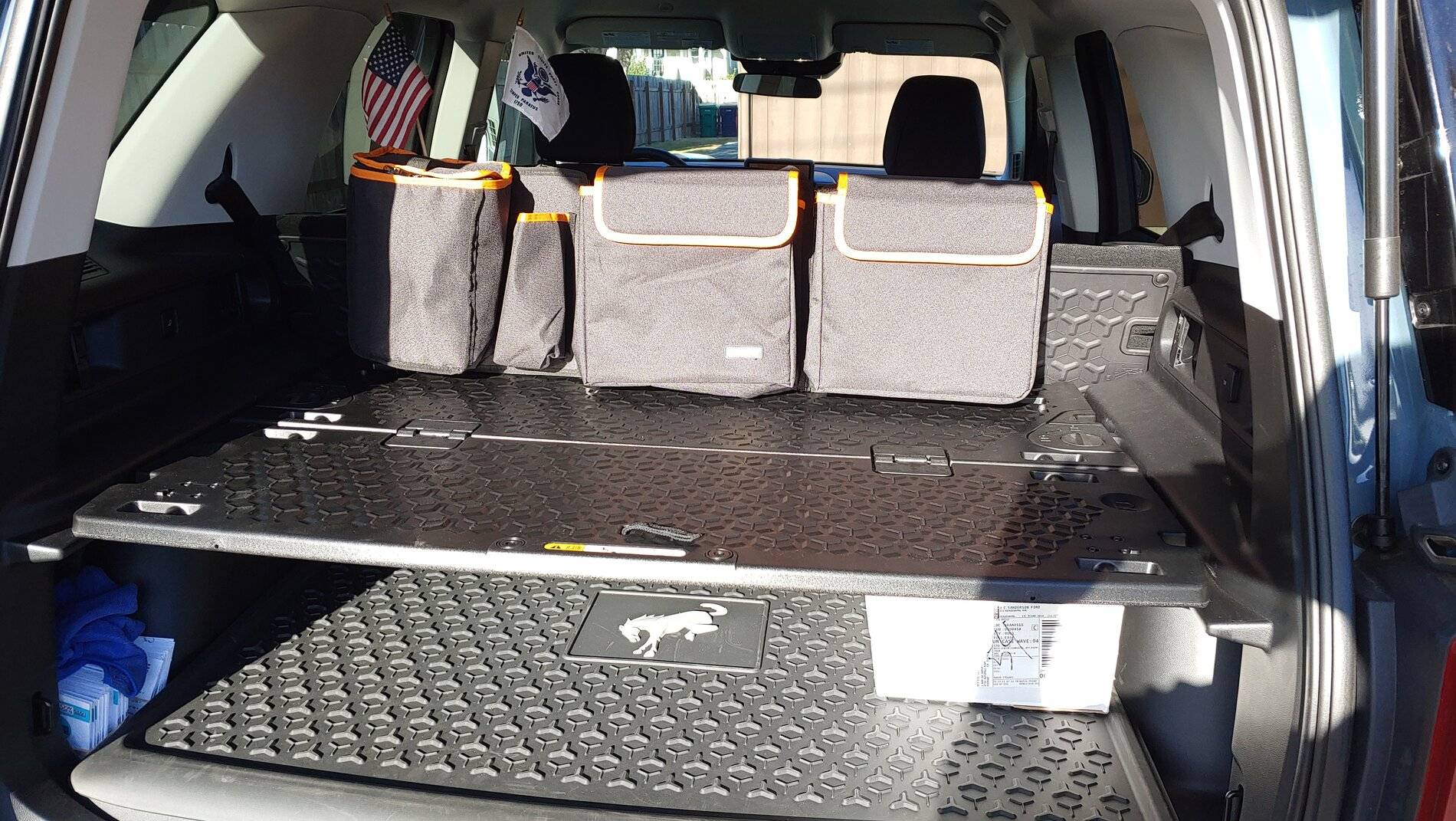

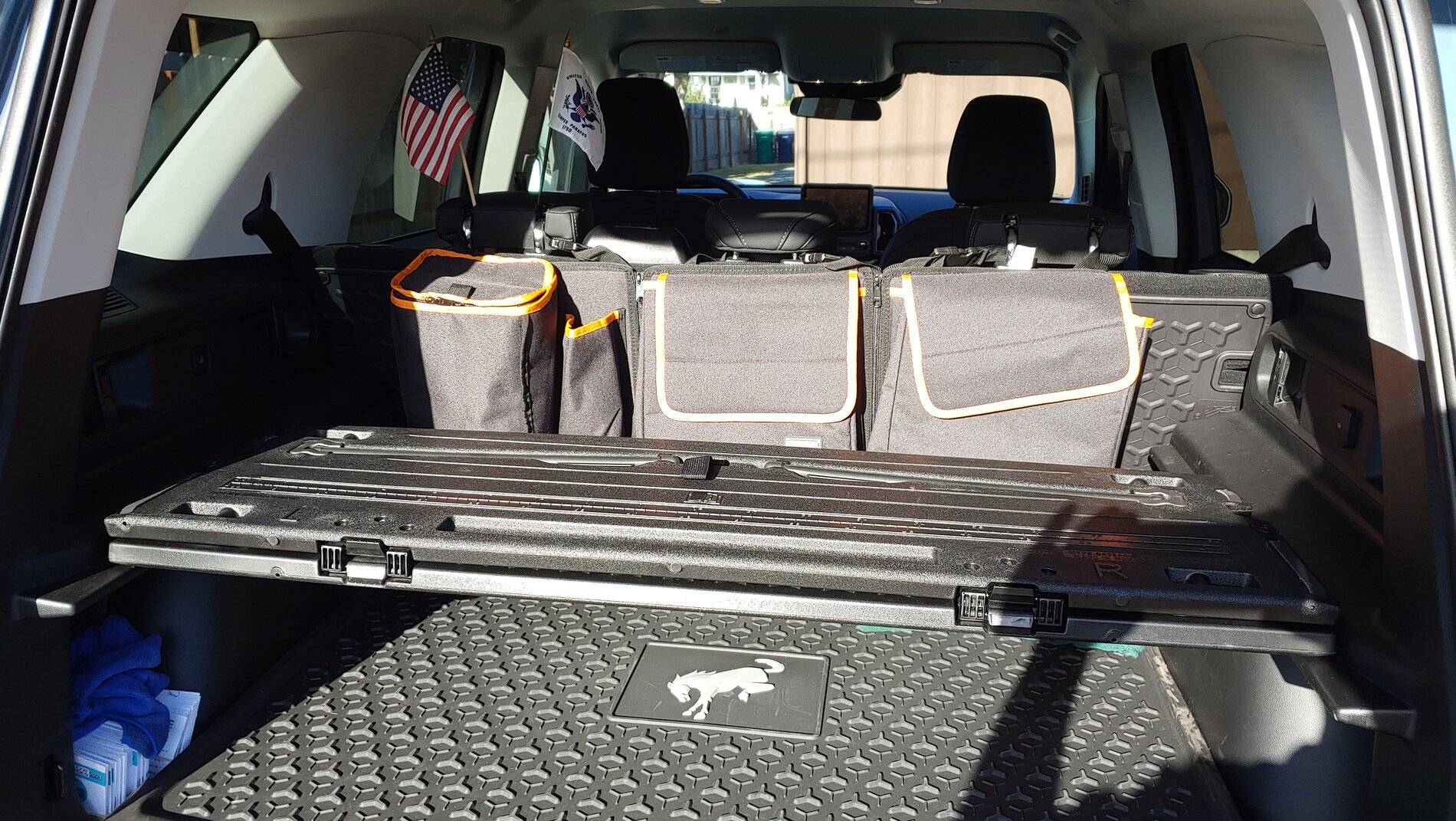

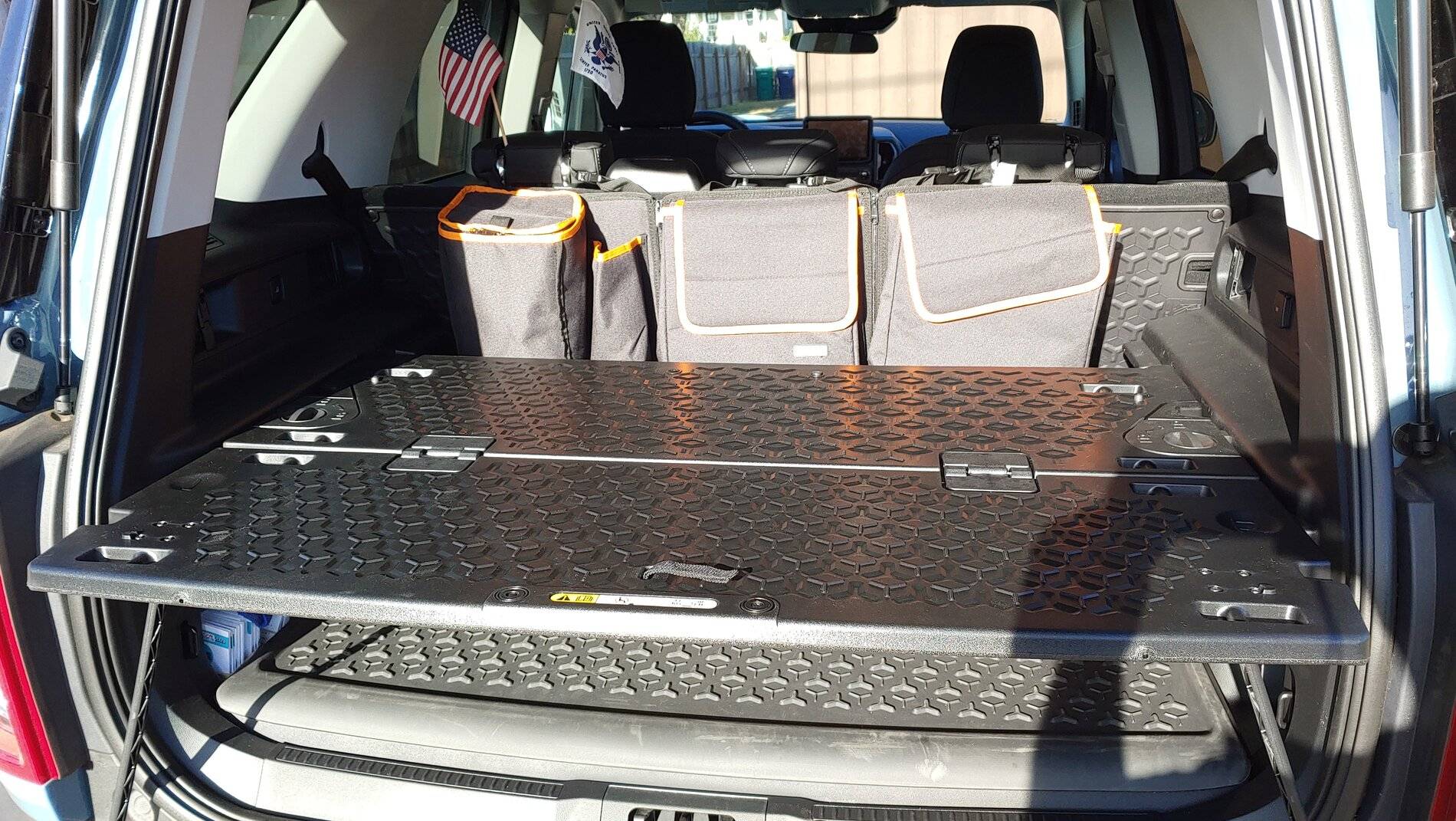

Thanks for sharing these pics. My dealer order (BS BL) is coming with some things I was unsure of. I saw the cargo management system vid awhile back. Now, seeing it with the cargo mat, makes me feel better with these additions for wear and tear and organizational concerns as well as having a cool table!



[ambermarie1127]

If anyone had the cargo management system. How does it work when you put the seats down?



[Slewis95407]

If anyone had the cargo management system. How does it work when you put the seats down?

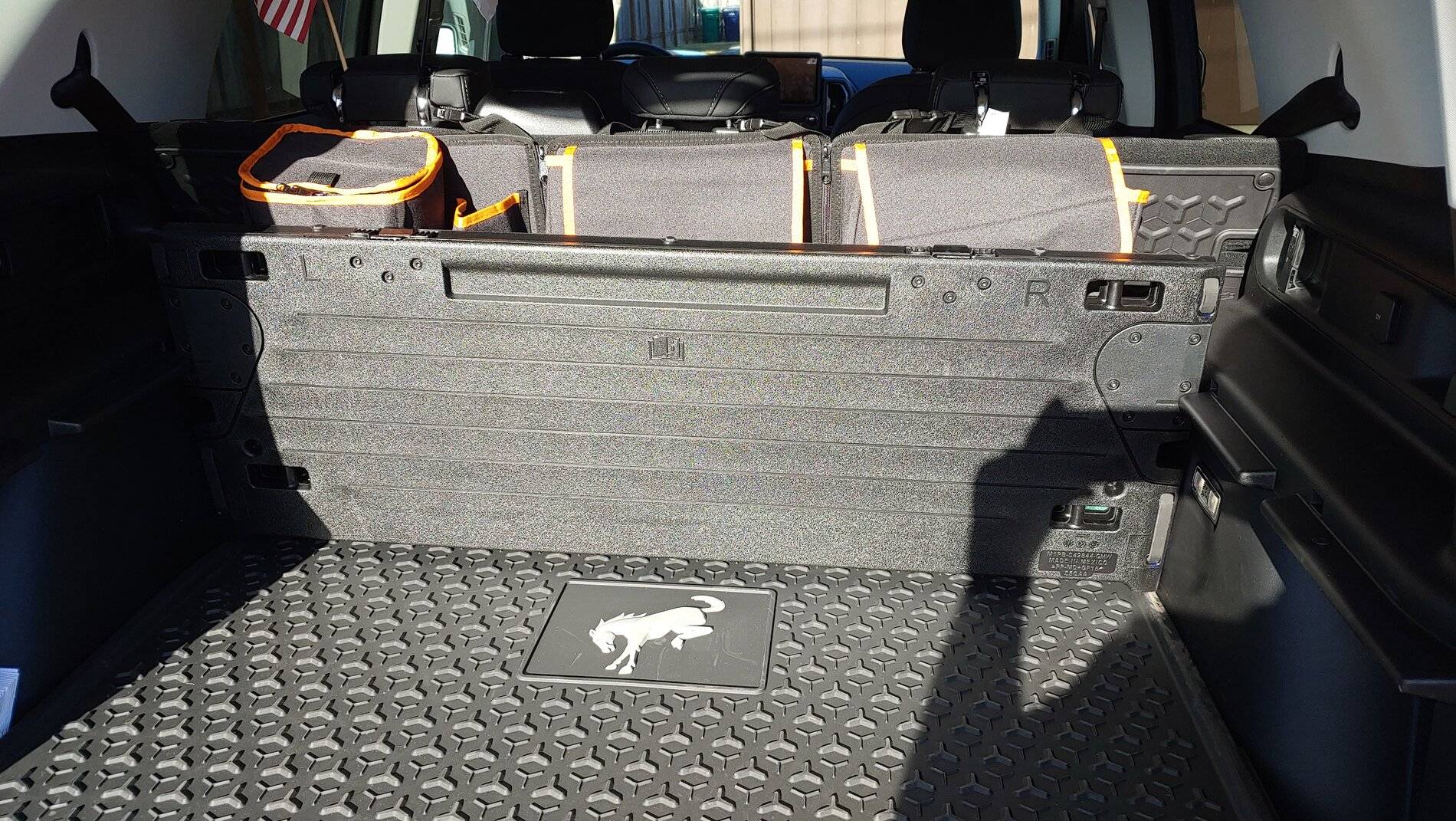

There are two locations to use the folded platform as a divider. With the seats down I use the forward position. My ice chests sit there. Lets me load everything else without encroaching upon that space. It can also be placed behind the front seats. There also a position to store folded behind the rear seat.



[Escape2Bronco]

Does the lower cargo cover come out completely since it won’t open all the way to get the spare out?



[Escape2Bronco]

There are two locations to use the folded platform as a divider. With the seats down I use the forward position. My ice chests sit there. Lets me load everything else without encroaching upon that space. It can also be placed behind the front seats. There also a position to store folded behind the rear seat.

How is noisy is it when not loaded up with stuff? Does it rattle when just used as a cover?



[SM05]

How is noise when not loaded up with stuff? Does it rattle when just used as a cover?

Nada. Mine is pretty much quiet.



[DakotaTimber]

Does the lower cargo cover come out completely since it won’t open all the way to get the spare out?

Yes it does



[Fordfan]

You lock it in place…..no noise
