2025 bumper mount rally lights with custom bracket

[The_Jimmer]

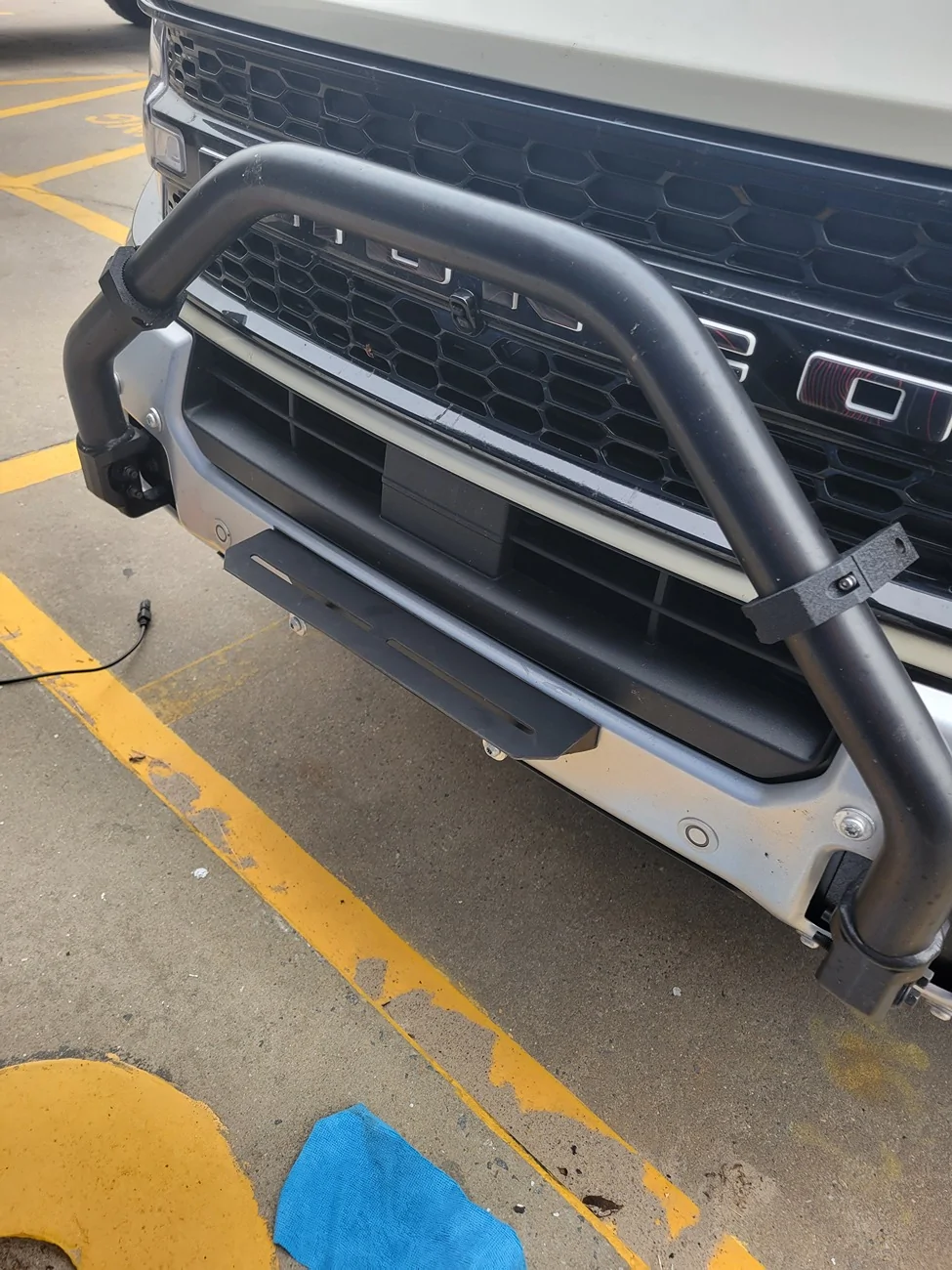

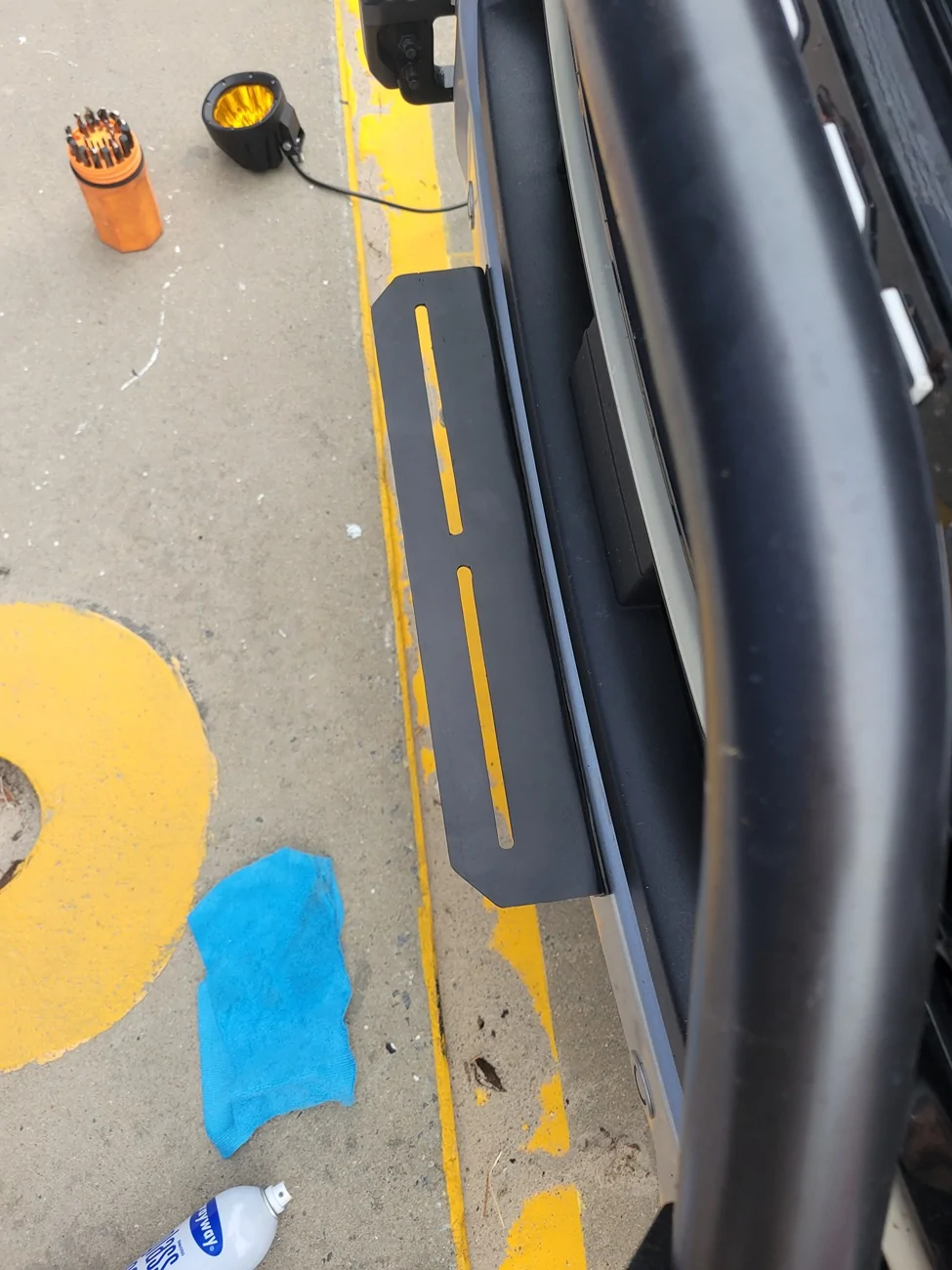

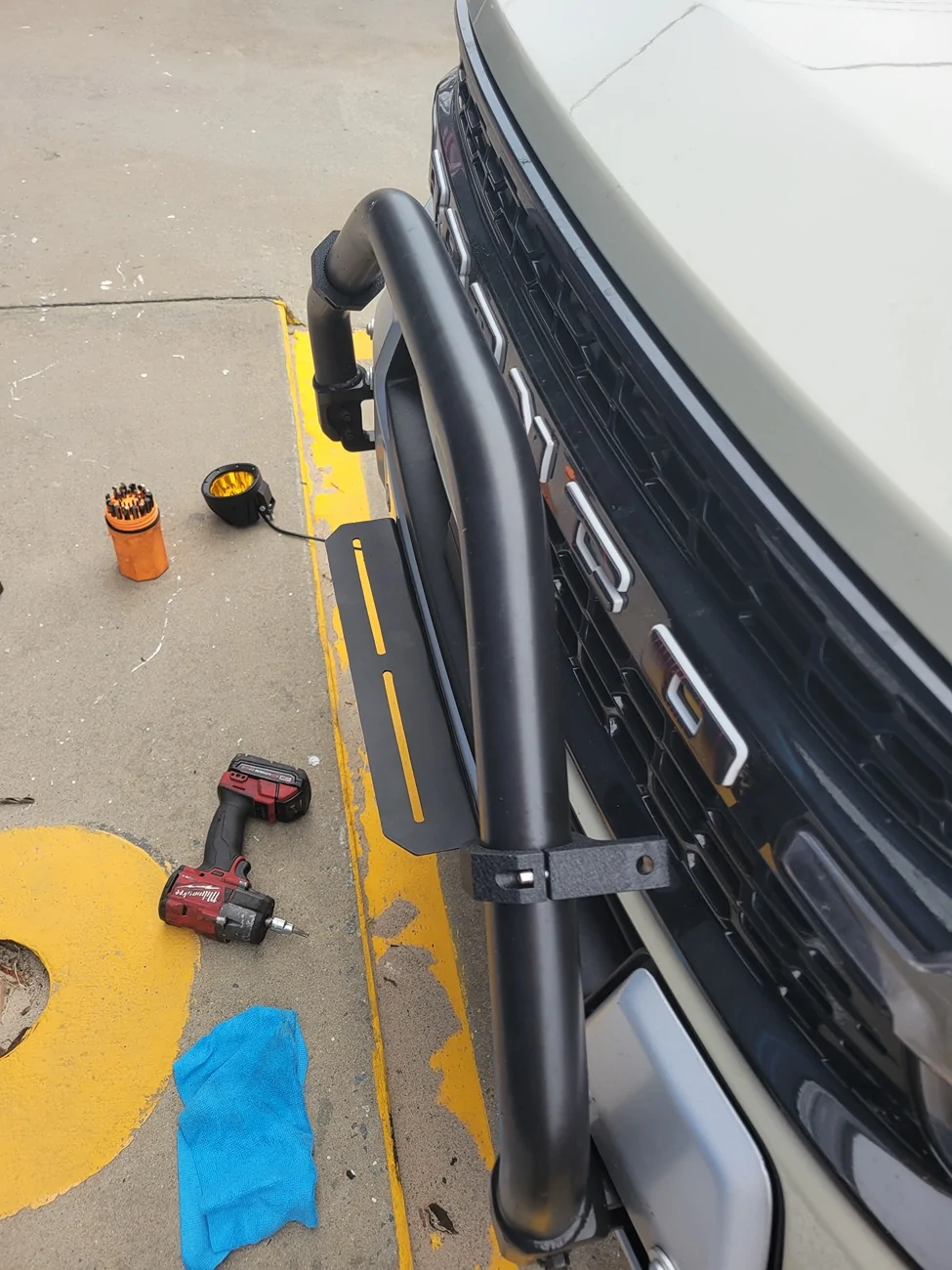

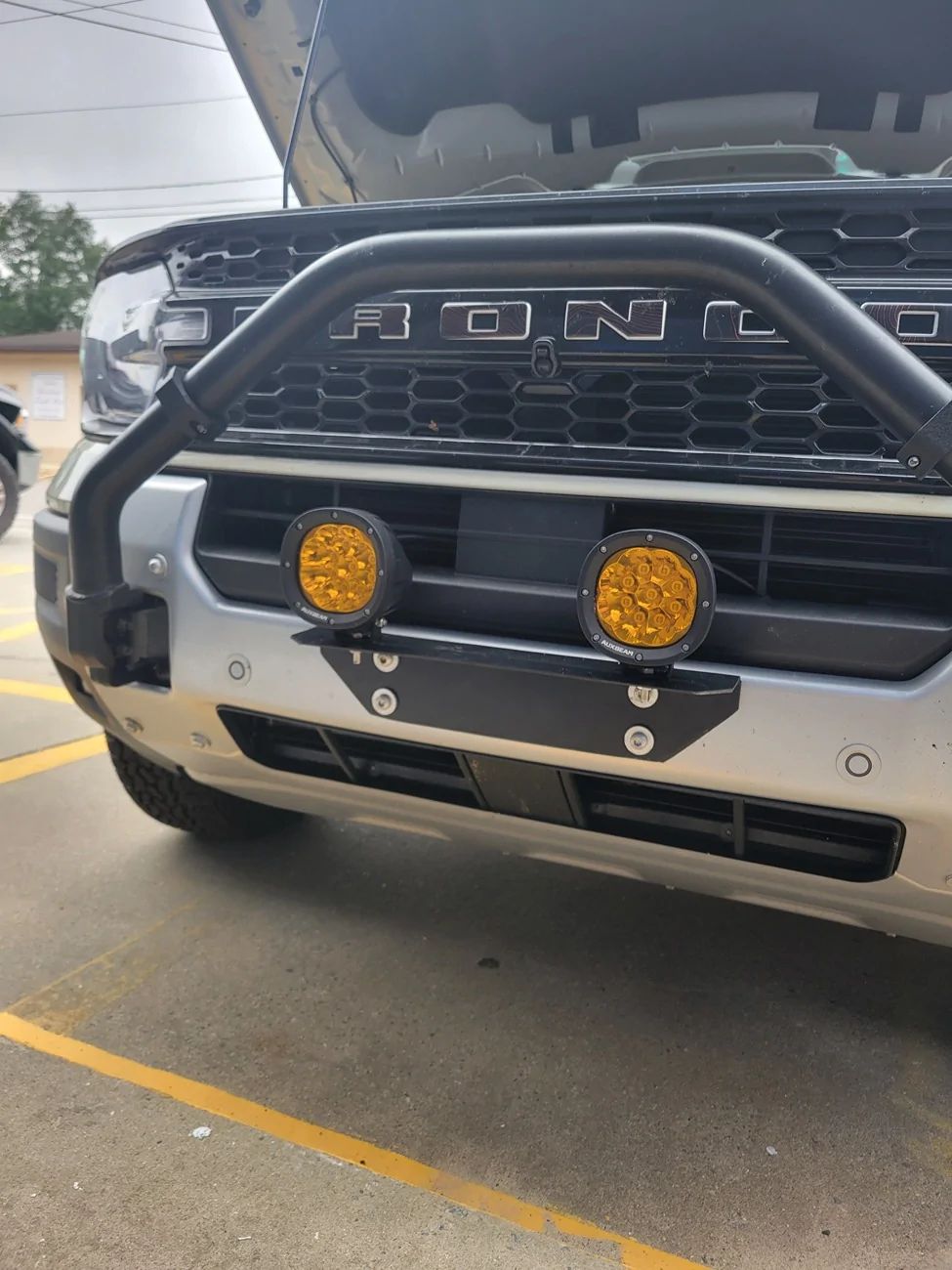

Had a custom light bracket made by a local shop mounting directly to the existing bronco bolts. Had them put channel grooves in the top to mount thru so lights can be adjusted left and right as preferred. Used silicone gasket behind the mount to preserve the metal on the bumper. Can confirm that the exposed green wire just inside the front left fender well is a hot wire to toggle switch #2. Just connect the lights hot wire there and ground the other.​



[jkernitzki]

Had a custom light bracket made by a local shop mounting directly to the existing bronco bolts. Had them put channel grooves in the top to mount thru so lights can be adjusted left and right as preferred. Used silicone gasket behind the mount to preserve the metal on the bumper. Can confirm that the exposed green wire just inside the front left fender well is a hot wire to toggle switch #2. Just connect the lights hot wire there and ground the other.​

Very nice, easily reversible approach. If your fab shop has dimensions or drawings, it’d be nice for those wanting to replicate it.



[Dude]

@The_Jimmer which auxbeam part # are those lights?



[The_Jimmer]

@The_Jimmer which auxbeam part # are those lights?

https://www.amazon.com/Auxbeam-Lights-Offroad-Driving-Wrangler/dp/B08N68P68G?pd_rd_w=8hpVV&content-id=amzn1.sym.4af096b2-fb5d-43d2-a23c-ac48118349a2&pf_rd_p=4af096b2-fb5d-43d2-a23c-ac48118349a2&pf_rd_r=MHXYT042CCJ6KJ1VQR6N&pd_rd_wg=M5y5A&pd_rd_r=348d4f8c-f01d-42a1-9352-4edb5e5b8cd3&pd_rd_i=B08N68P68G&ref_=pd_basp_d_rpt_ba_s_1_cp_t&th=1

These lights come with a prewired switch in the harness. Rather than cut it out of the harness I left it in place and leave the harness switch in the "on" position zip wired in a neat bundle right inside the left fender well. When the power is off there is no juice running to it so no worries on battery drain. If you ever decide to take it out you still have an intake harness to sell or use elsewhere. There is a small opening just beside the left headlight you can run your wires through easily.



[The_Jimmer]

Very nice, easily reversible approach. If your fab shop has dimensions or drawings, it’d be nice for those wanting to replicate it.

I can take some measurements, but I'll see if he can get me the CAD for it.



[Uncle Buck]

Very nice!
