Lightbar Wiring with Aux Switch issues.

[Thylacine76]

Let me preface this by saying that I've read through the different threads on here, and posts on Reddit and find what I'm really looking for.

I installed my 40" RC lightbar on my Yucca Mfg roof rack. I ran all wiring through the vehicle. Yes, I took my time and followed the directions that Ford had for the Rigid lightbar.

I'm at a point where the wiring is coming down the A pillar. My BSOBX has the accessory ready wiring on the A pillar, and below/behind the headlight switch panel. The accessory ready wiring is only 2 wires, while the light bar is 3 wires (coming off the light and into the switch). I am not using the circular switch that came with the light bar. I will be using RC's LED Rocker Switch. The switches will be installed not far under the headlight switch. I am installing two switches, one as a spare, for when I add more lighting.

If I don't or can't use the accessory ready wiring, my dilemma is getting the wires through the firewall. I see other posts about having to remove the battery and the airbox, but I would prefer not to do that. Does anyone else have any other suggestions?

Sponsored



[dakman]

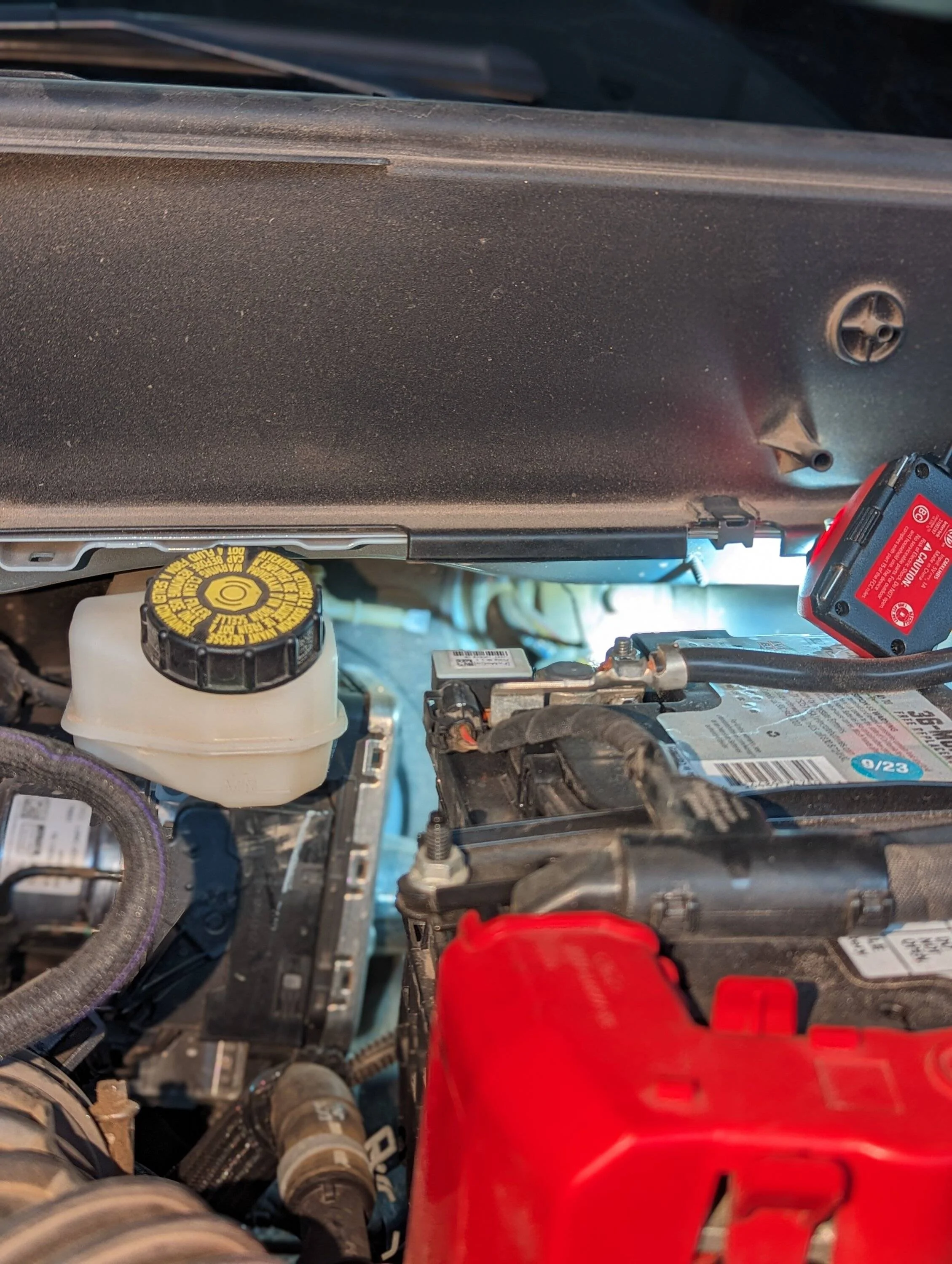

The prob is there is no room to get your hands where they need to be without removing the battery. There is a nice big empty space behind that battery. The airbox is not bad. Loosen the intake clamp,take lid and filter off, airbox pulls straight up and out, maybe a sensor you need to unplug. Battery is a bitch but only need to slide it back some to get around it. Iran two harnesses thru there.



[Thylacine76]

The prob is there is no room to get your hands where they need to be without removing the battery. There is a nice big empty space behind that battery. The airbox is not bad. Loosen the intake clamp,take lid and filter off, airbox pulls straight up and out, maybe a sensor you need to unplug. Battery is a bitch but only need to slide it back some to get around it. Iran two harnesses thru there.

That's a big help! Thanks!
A few questions:

• What did use to push the wires through the grommet?
• Did you have the seal any holes you made?
• Any error codes pop up after you put everything back together?
• How long was the battery and airbox removal process?



[dakman]

That's a big help! Thanks!
A few questions:

• What did use to push the wires through the grommet?
• Did you have the seal any holes you made?
• Any error codes pop up after you put everything back together?
• How long was the battery and airbox removal process?

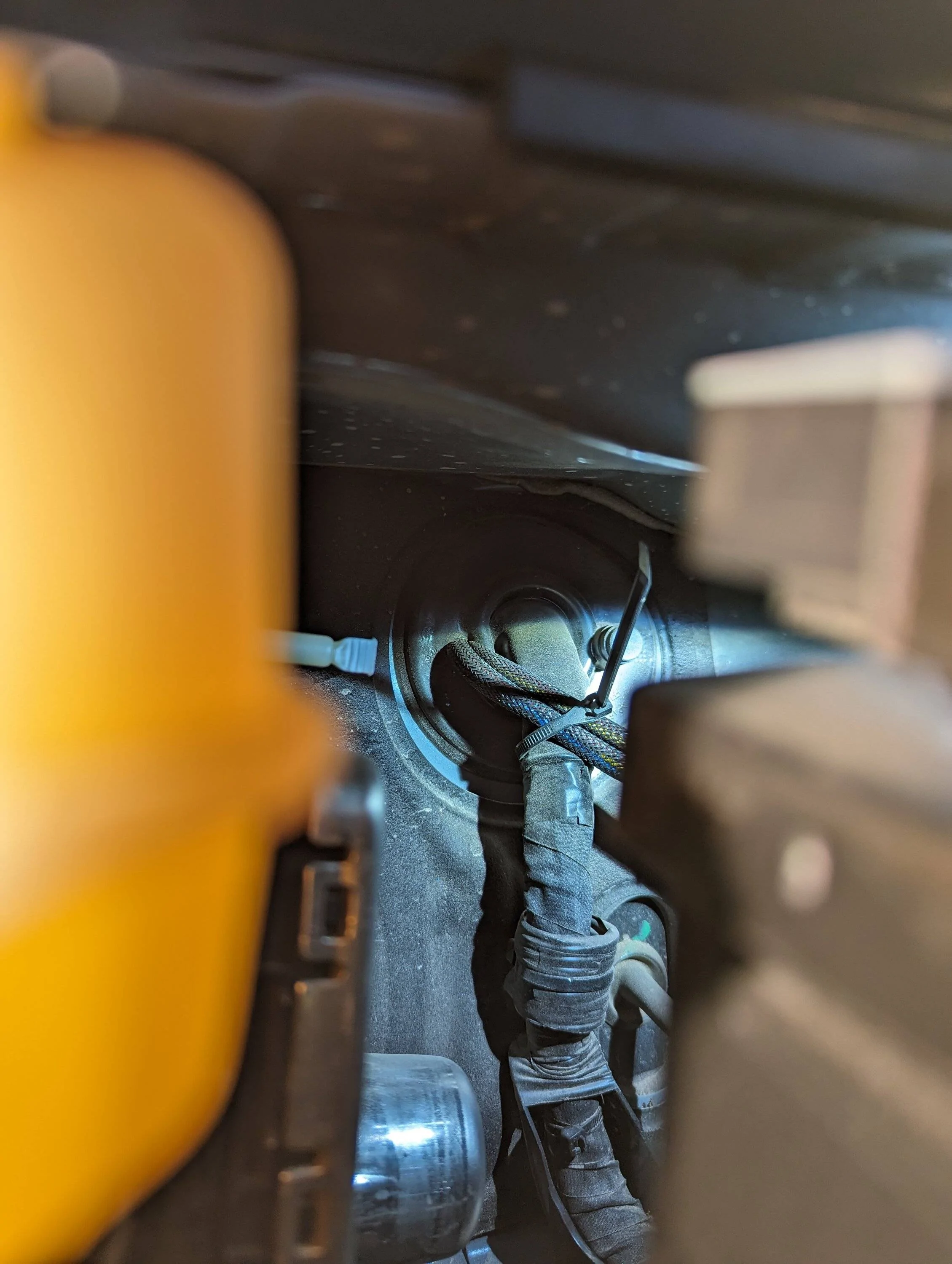

I used a very sharp small rod to poke a hole after exploring under the dash and then used a coat hanger to pull the wires thru.
I used no sealant of any kind. I didn't slit the grommet, and the two harnesses created a very tight fit thru that little hole. I would recommend prob putting a little sealant on it especially if it rains a lot and you have winters. I also ran a trigger wire the same thru the passenger side.
No codes or any kind or problems with my lights, I love them.
I think it took about 30 minutes the first time taking my time figuring it out. It was a similar process as my ST but man what happened to a simple positive and negative cable to take off. You need some kind of degree to work this battery management system. I think the second time I took it out (new battery) it only took about 15 minutes.



[FordBroncoLifts]

I use this setup. No need for wires through firewall. https://www.autozone.com/exterior-lighting/miscellaneous-accessories/p/blazer-international-wireless-remote/181960_0_0?cmpid=LIA:US:EN:AD:NL:1000000:PAC:19486091225&&CATARGETID=120054150001288926&CADevice=m&gad_source=1&gbraid=0AAAAADkcoVvOF-fDOb8FEWaJQzrfN5cLm&gclid=Cj0KCQiAmNeqBhD4ARIsADsYfTcxOzqMFQAbfW5cWyyJtk32WiGu9b2tLCWuVwEPtNdTly6G1tikYcsaAnMjEALw_wcB&gclsrc=aw.ds
