Canister destroyed AND cables teared from valves / solenod

[Mcgiver4x4]

Need help identifying the order of the cable connection in the canister área

Sponsored



[Mcgiver4x4]

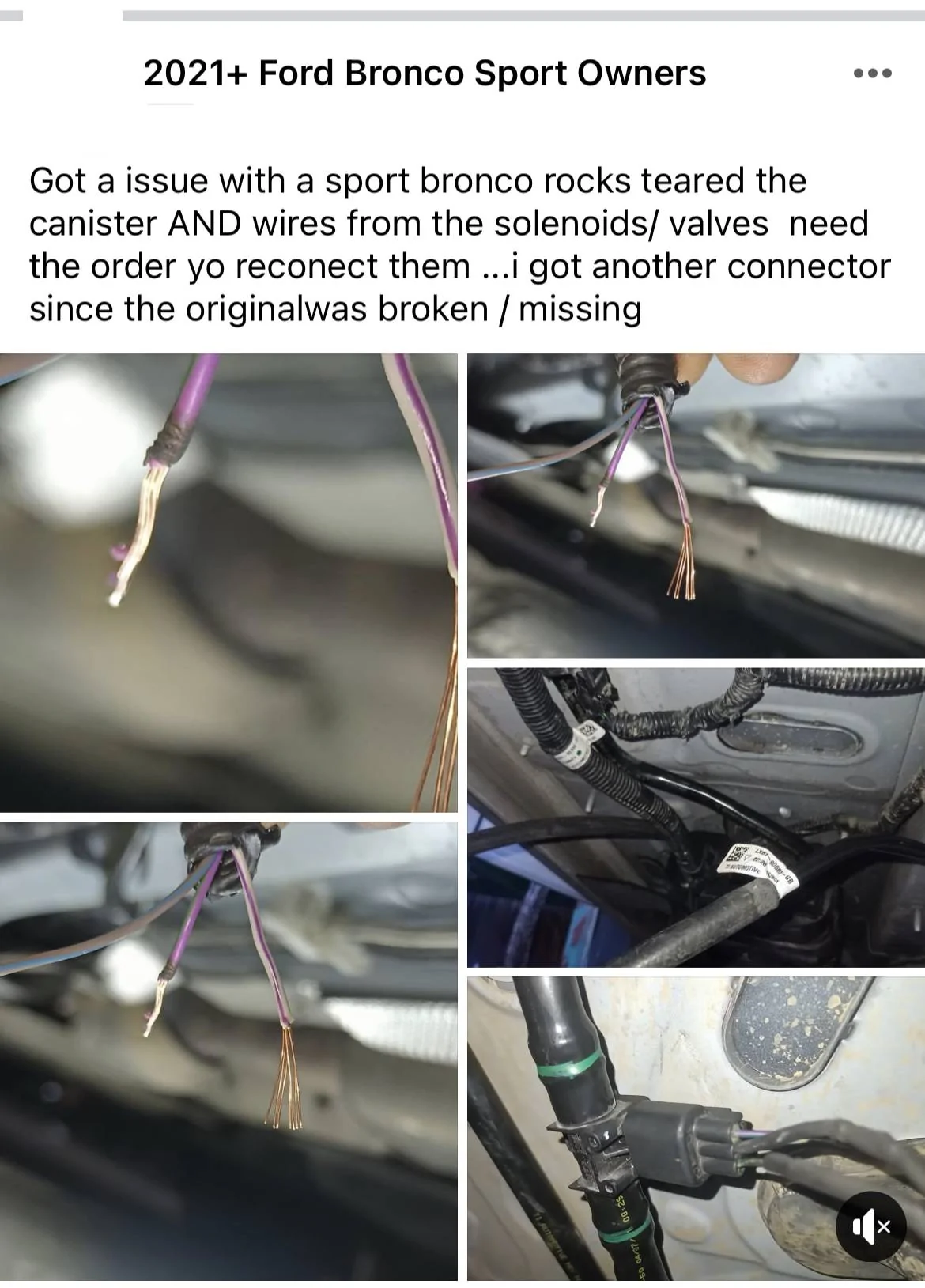

Trying yo reconect them 3 wire connector one its wihte with Violet striper , other blue with brown striper AND the last one Violet with Green stripe need the order in the connector so i can put It back to work



[Mark S.]

You're going to need to post a lot more detail if you want help. I consider myself to be pretty savvy mechanically, but I have no idea what you're talking about.



[jkeaton]

You're going to need to post a lot more detail if you want help. I consider myself to be pretty savvy mechanically, but I have no idea what you're talking about.

This ^^



[Robins21]

Same, pictures would be a very big help also.



[Bucko]

I'm at a loss as well as to what the OP is asking help on.



[Dude]

You're going to need to post a lot more detail if you want help. I consider myself to be pretty savvy mechanically, but I have no idea what you're talking about.

Perhaps this?

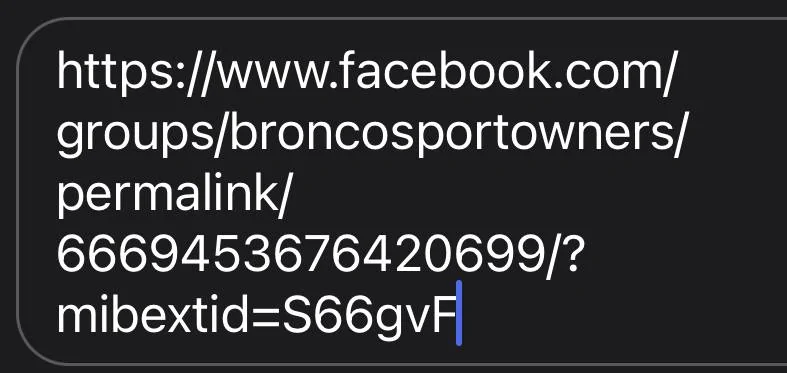

this forum won’t allow me to post only the link but this pic contains the link



[Glamdring70]

Perhaps this post or thread will help you? Otherwise, you need a schematic.

https://www.broncosportforum.com/forum/threads/evap-leak.1756/post-123417



[Mark S.]

Perhaps this?

this forum won’t allow me to post only the link but this pic contains the link

Looks like that's what he's talking about, but I don't have a Facebook acct...



[Dude]

There’s currently no other info on Fb other than what is shown in the pic but another person responded with a bronco sport forum link and the wiring in the Fb post seems different than the pics shown in the bronco sport forum link .



[Dude]

The OPs questions with the canister, wiring, etc. were resolved: “We have got the order of the wires AND fixed the conector AND the bronco ITS working again”. Sounds like his issue is resolved or nearly resolved now.
