Auxillary Switch wiring Location

[`Stress01]

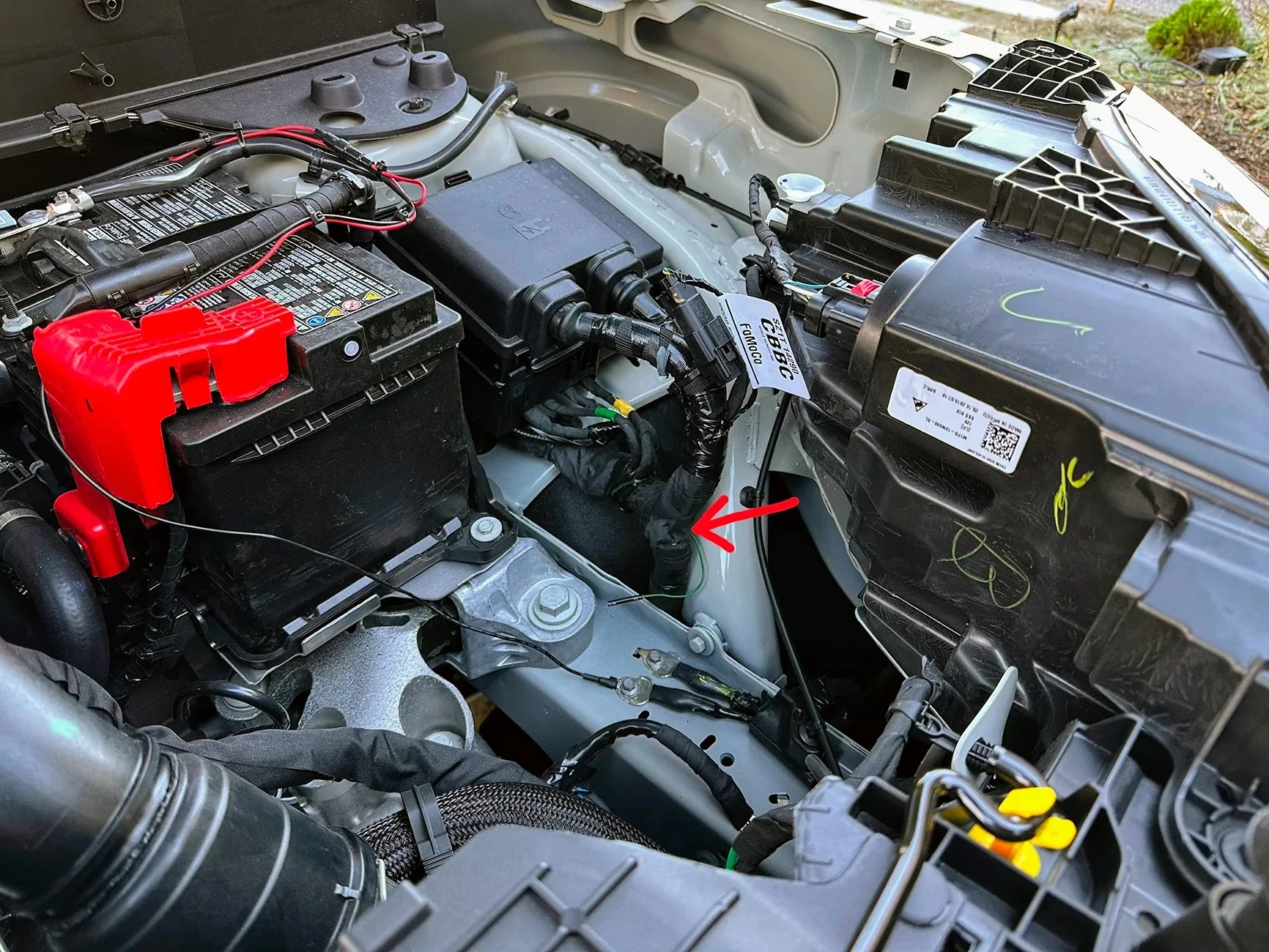

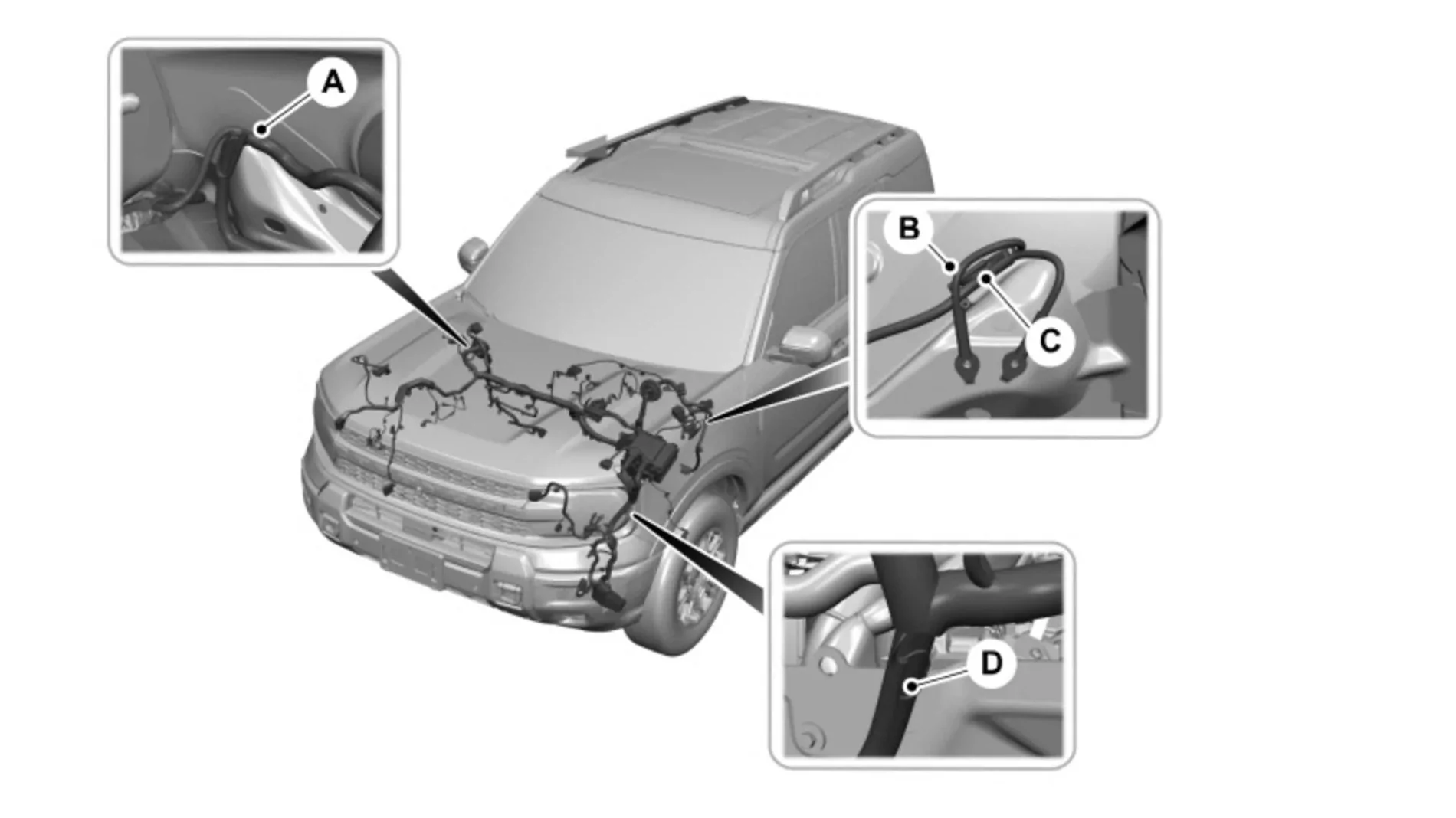

I know this has been discussed several times but I’m going nuts trying to find the wires. I found the wire at location A, which in Brown not yellow and goes to Aux 4 not Aux 1. Ialso found the wire at location D, which is green/brown not green/violet and goes to Aux 2. I have these hooked up now. Aux 4 to my fog lights, and Aux 2 to my ditch lights. For the life of me I can not find the wires at locations B and C. One of these should be the 30A switch I would guess. I need to find these to hook up my driving lights and my future Roof light bar. Why couldn’t Ford hook the up to a junction box where all you would have to do is attach the positive and negative wires from the aftermarket lights and be done. Looking for these wires is a pain in the ***. Oh, I have a 25 BS Badlands Sasquatch.

Sponsored



[jkernitzki]

Aux 1 is 30A. The rest are 10A



[Whpony96]



[jlpskydive]

Taggin to keep in my pocket for later.



[Whpony96]

Taggin to keep in my pocket for later.

Right Click "Save Picture As..."



[`Stress01]

I realize that, my problem is the location of the wire for Aux 1. I can’t seem to find it.

I



[Whpony96]

I realize that, my problem is the location of the wire for Aux 1. I can’t seem to find it.

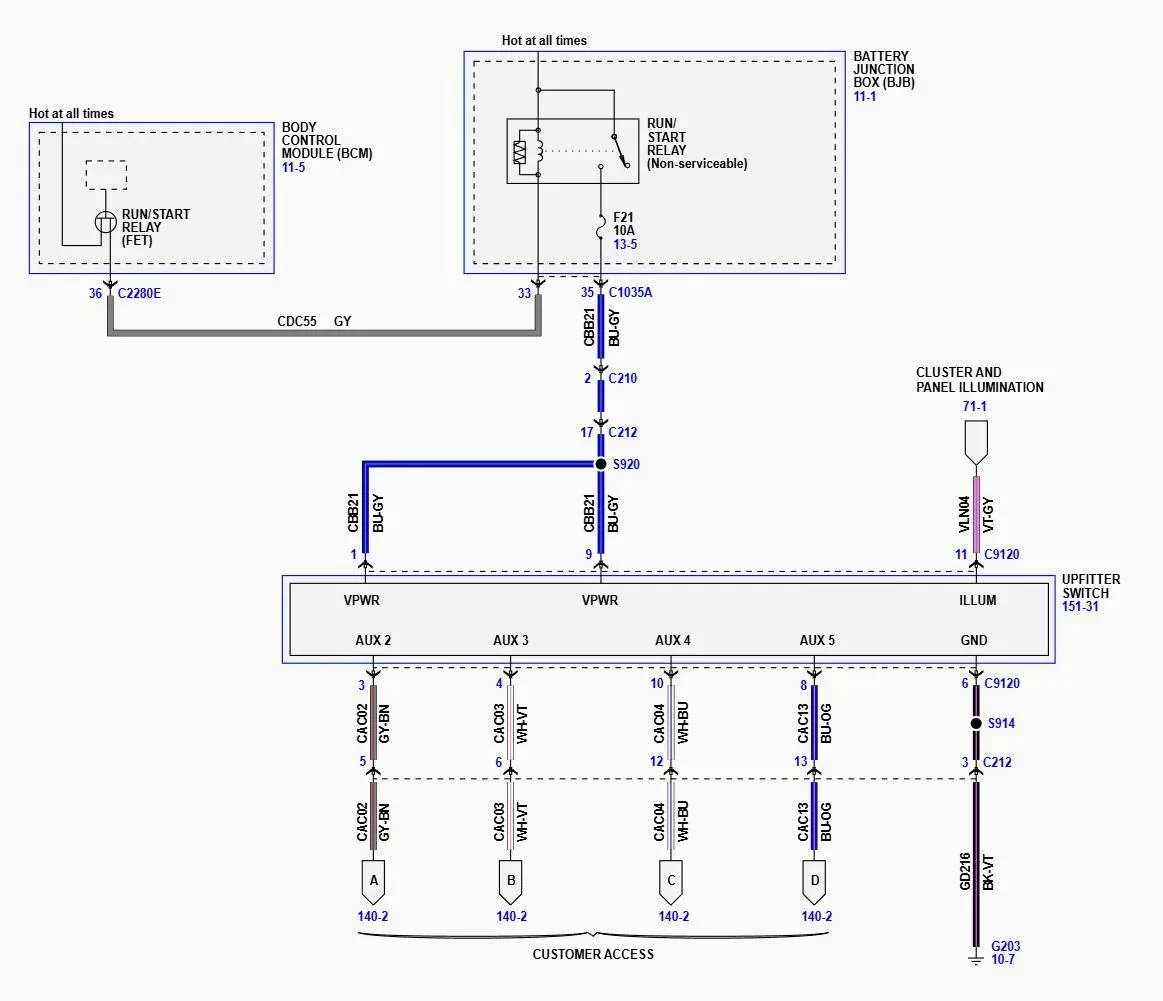

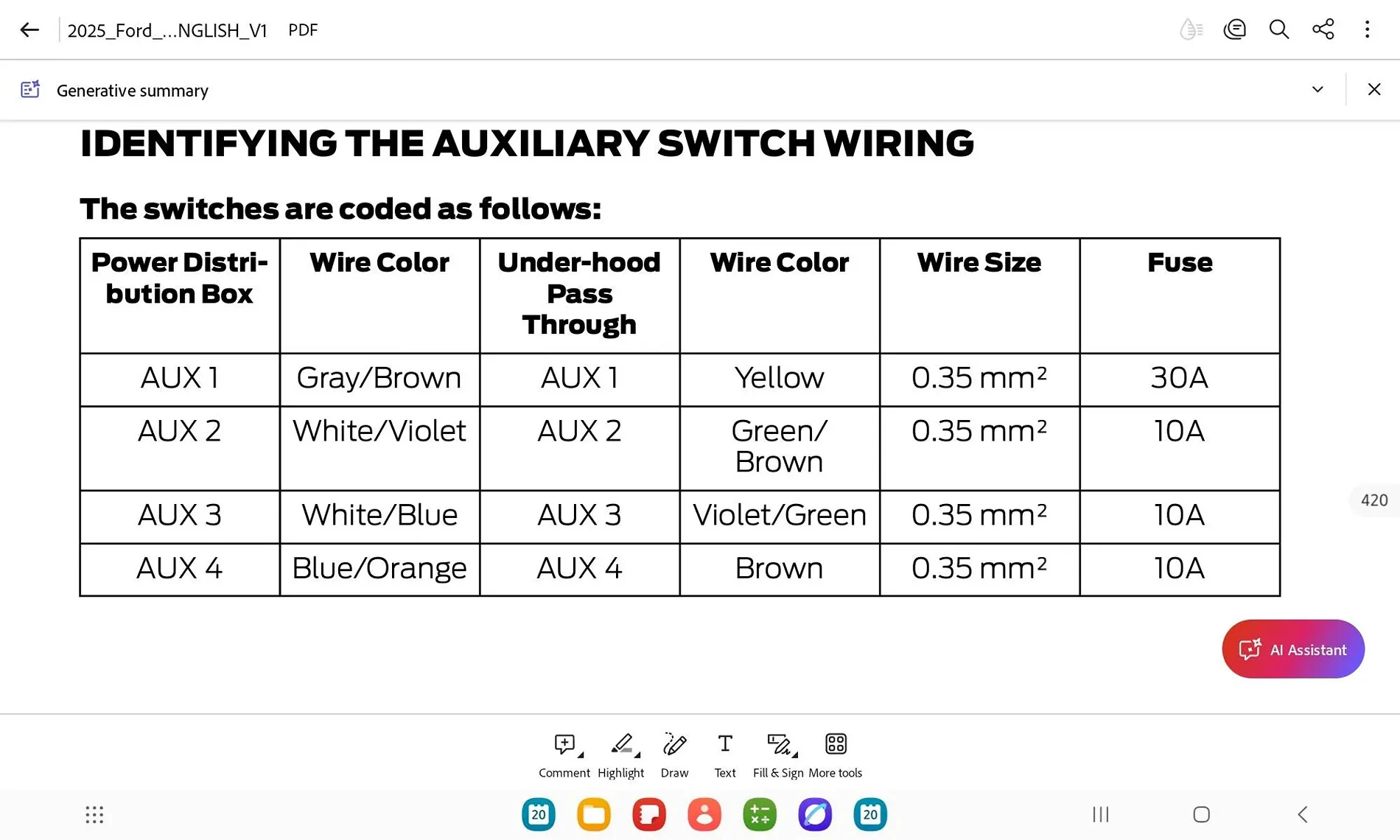

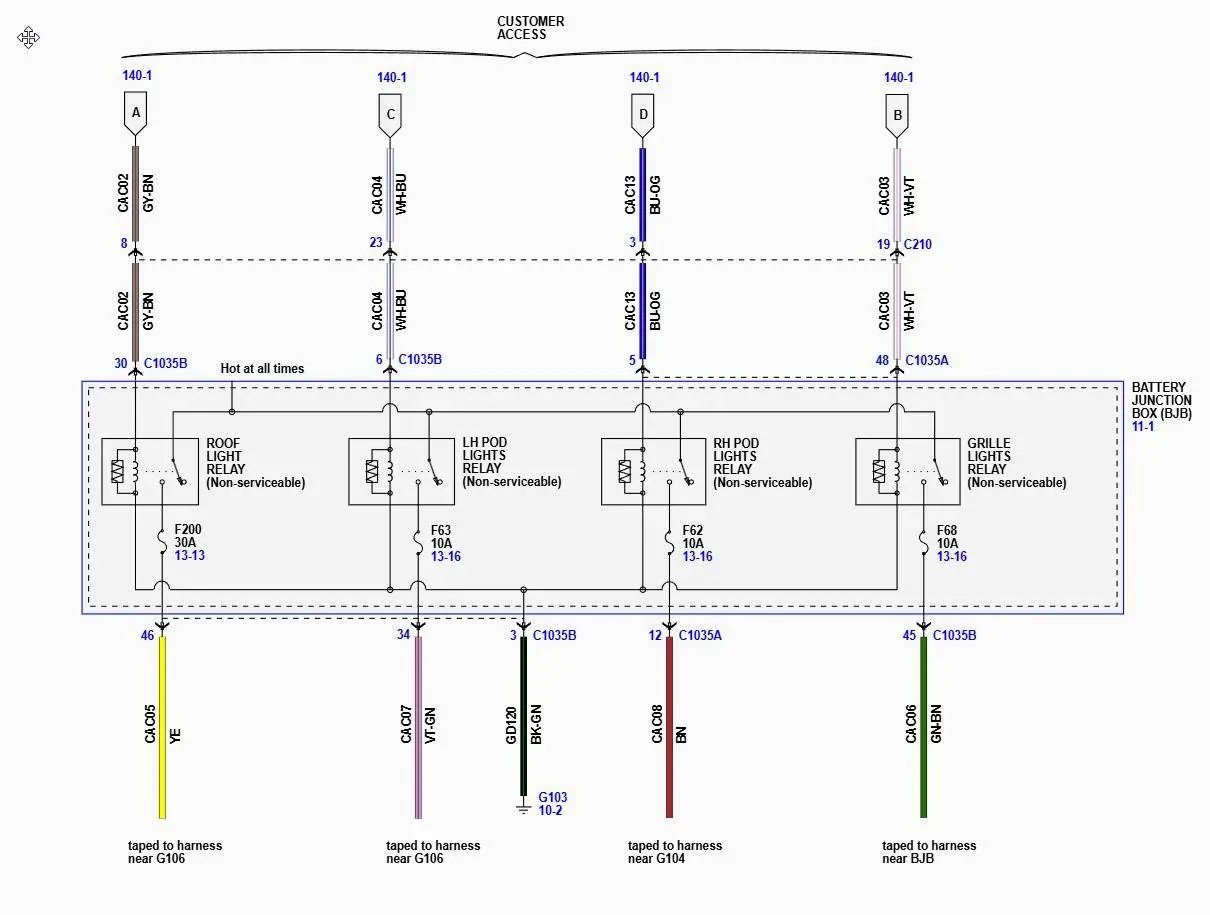

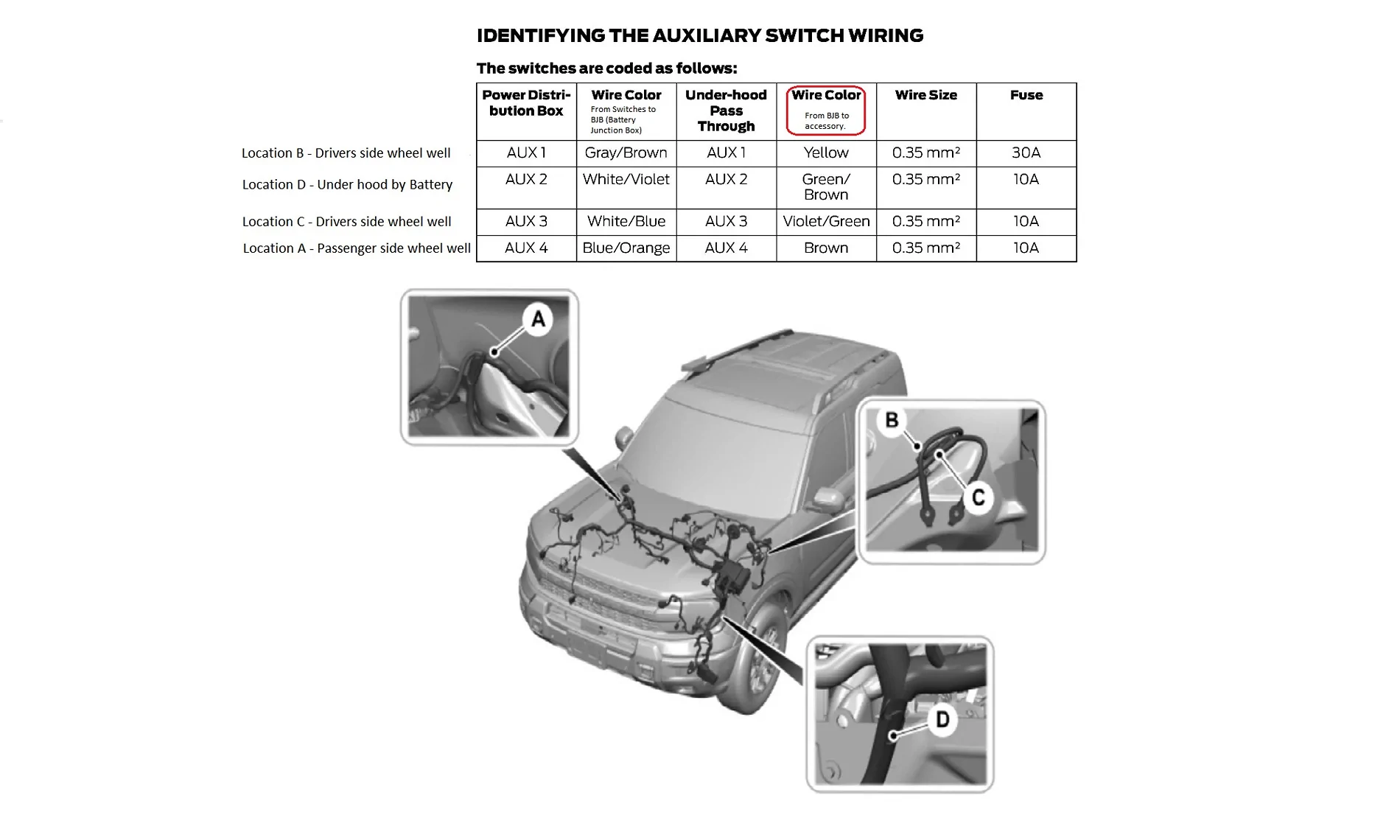

Does this help? The wires you are looking for are in the red circled column.

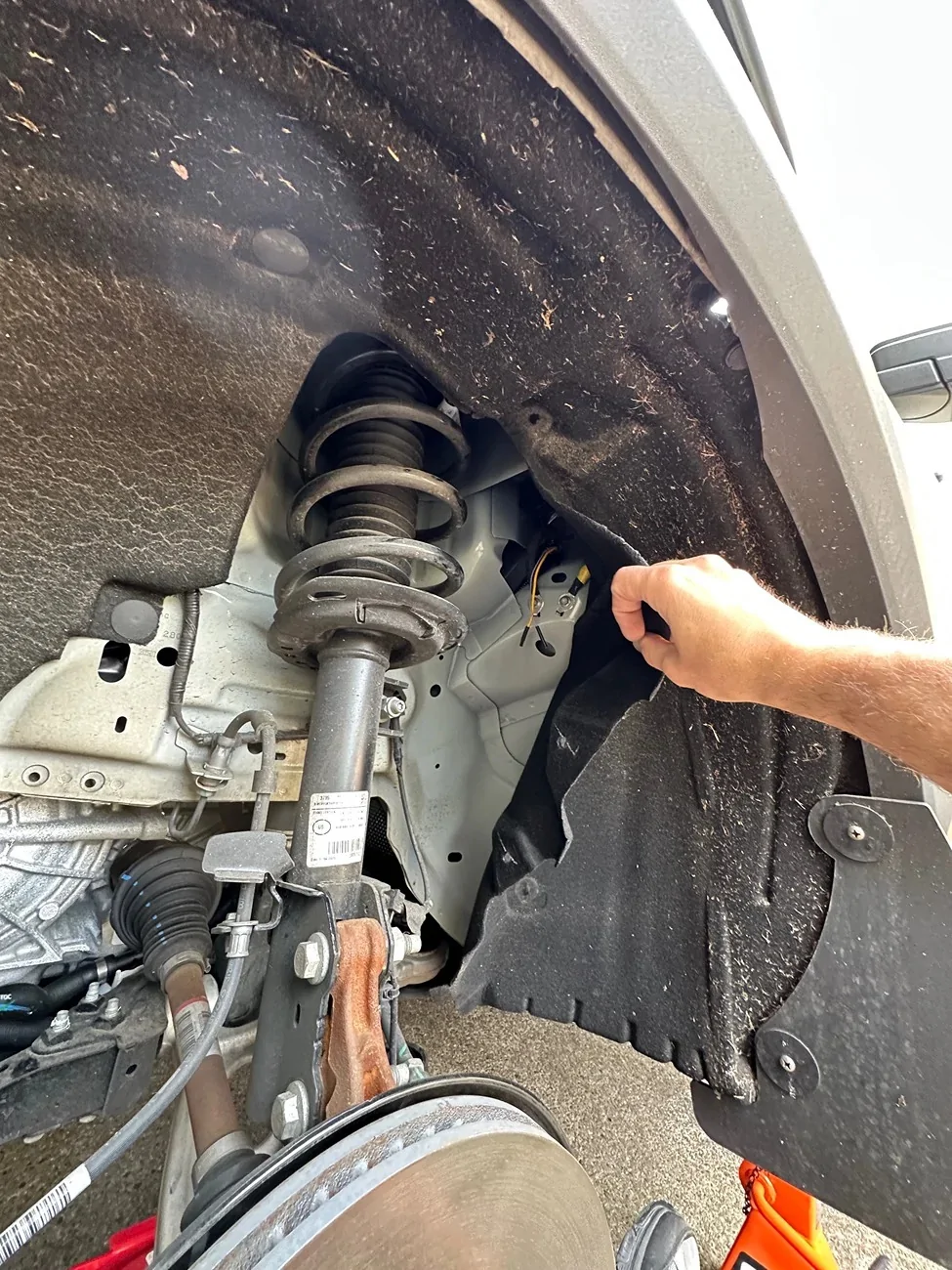

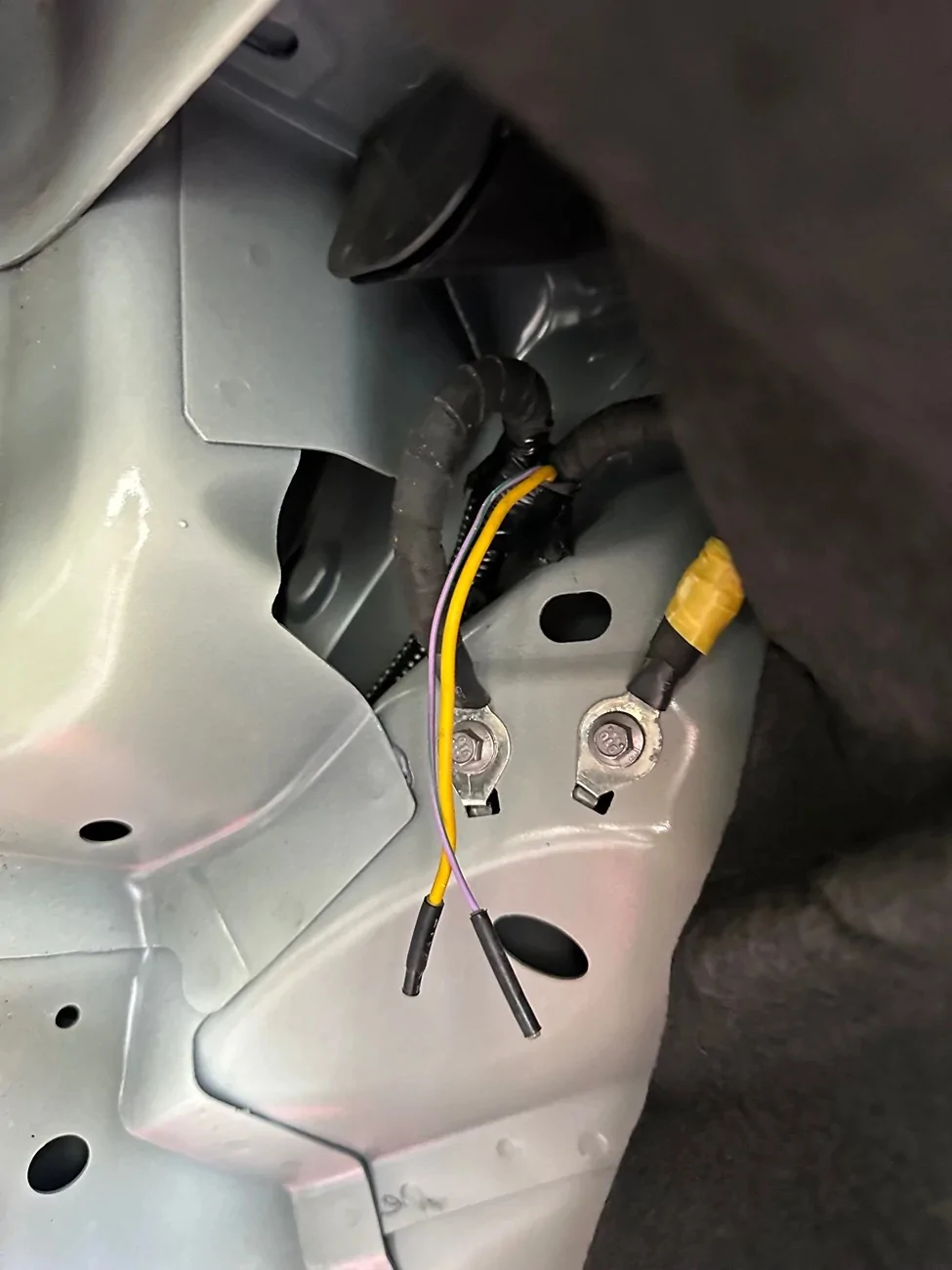

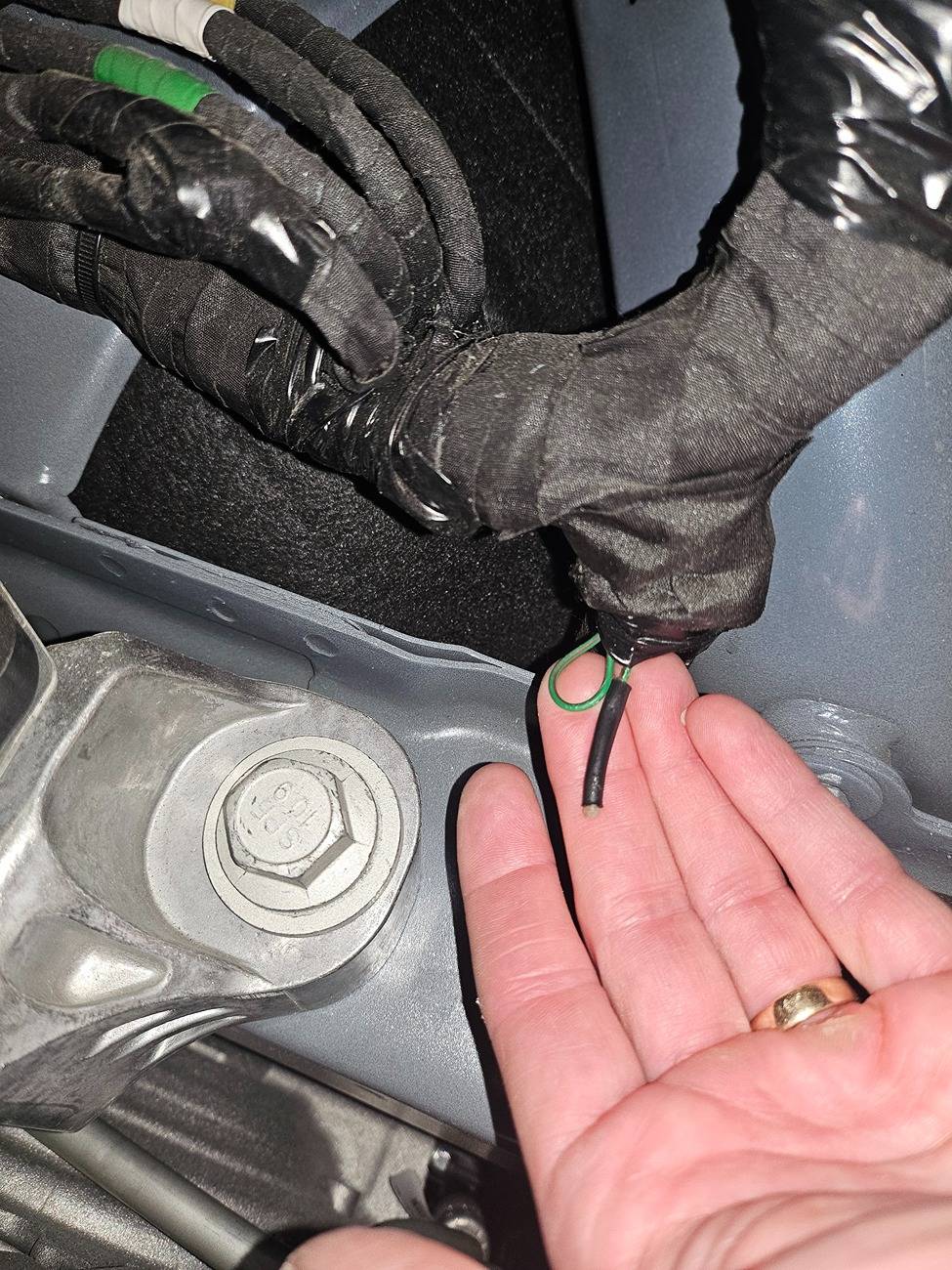

Behind the wheel well liner drivers side. Top RH area closest to firewall. You should remove the driver side front tire you access it. (Location B+C)
