Automatic folding mirror project
- Thread starter pantera155
- Start date
- Watchers 8
OP
OP
- Thread starter
- #17

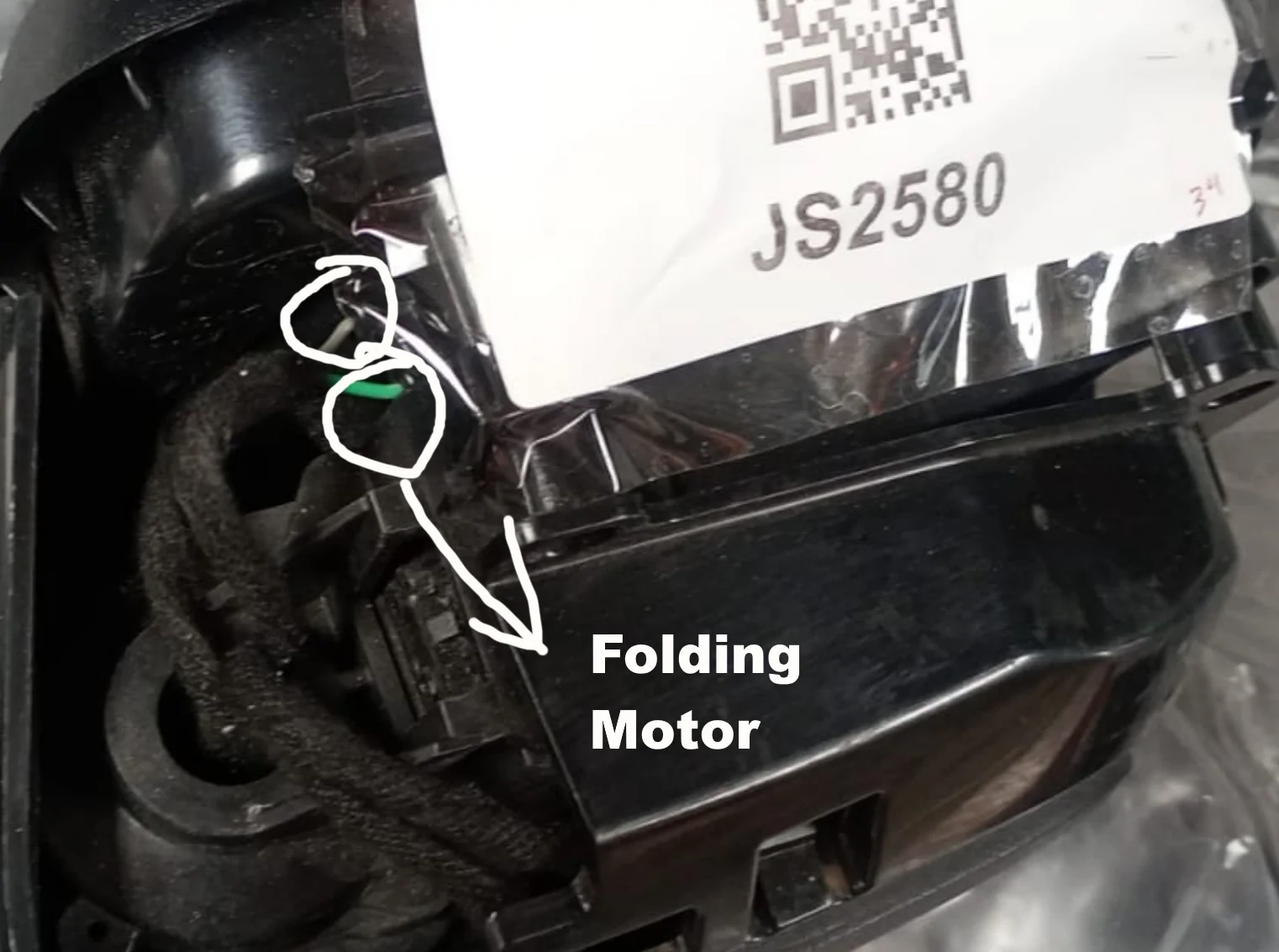

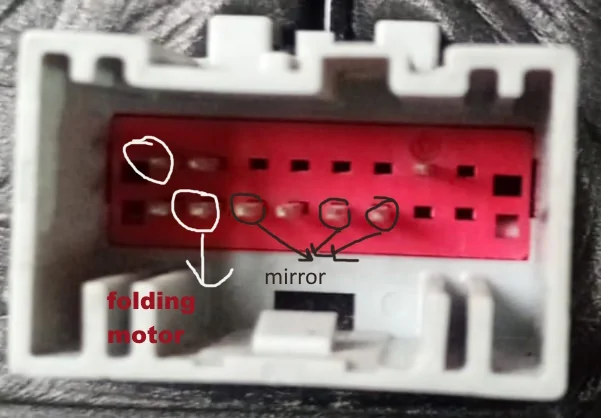

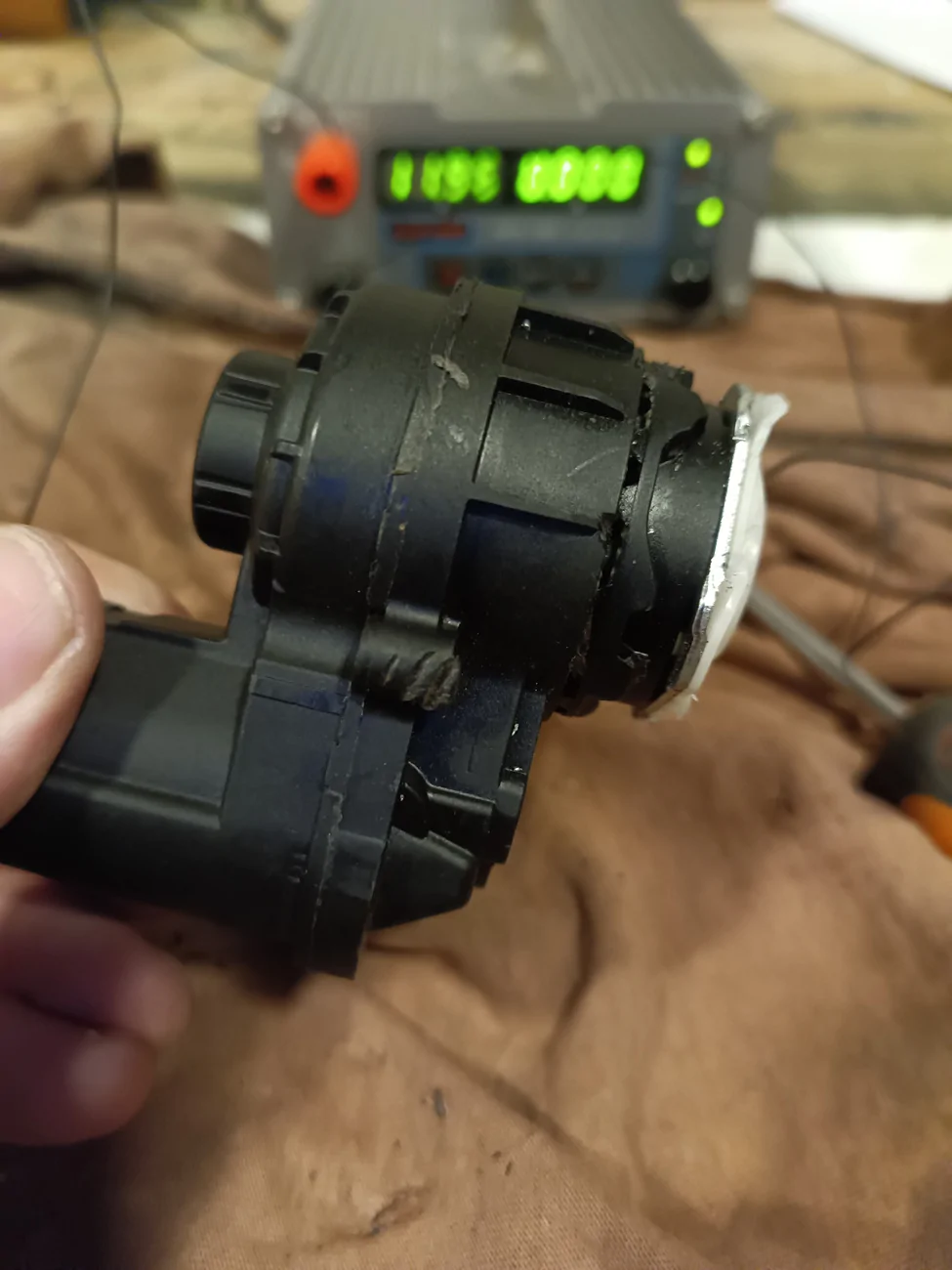

It took a lot of research and a lot of work to find the parts and also to put everything together. But I was able to do it with the left one
It's not connected to anything yet. I would need the electrical diagram to see where it connects, or I'd need to buy a generic circuit and adapt it.
I don't know which module would control them!
It's not connected to anything yet. I would need the electrical diagram to see where it connects, or I'd need to buy a generic circuit and adapt it.
I don't know which module would control them!
- First Name
- Jeremy
- Joined
- Jan 15, 2026
- Threads
- 2
- Messages
- 16
- Reaction score
- 36
- Location
- London, UK
- Vehicle(s)
- 2022 Ford Bronco Sport Wildtrak
So I have power folding mirrors on my 2022 BS Wildtrak LatAm spec. The folding is done via the push button switch on the mirror control panel on the door. Folding mirror appears as an option on the vehicle setup screen, using Forscan I checked and the folding mirror was enabled. It doesn't work, any ideas why? Maybe there are different wing mirror motors?
OP
OP
- Thread starter
- #19
Where did you buy your BS that came with electric folding mirrors?
I still need to buy the left one, but I can't find it anywhere! You have to check the IPC.
- First Name
- Jeremy
- Joined
- Jan 15, 2026
- Threads
- 2
- Messages
- 16
- Reaction score
- 36
- Location
- London, UK
- Vehicle(s)
- 2022 Ford Bronco Sport Wildtrak
My BS Wildcat is a LatAm spec car originally built for the Columbian market in Ford’s Hermosillo, never sold until auctioned off by Ford in 2025, ending up at a specialist American car dealer in the UK where I bought it.
OP
OP
- Thread starter
- #21
How lucky you were!
And you drive with the steering wheel on the other side?
- First Name
- Jeremy
- Joined
- Jan 15, 2026
- Threads
- 2
- Messages
- 16
- Reaction score
- 36
- Location
- London, UK
- Vehicle(s)
- 2022 Ford Bronco Sport Wildtrak
Yes it’s not a problem, as I often drive to France and Spain it’s very useful!
OP
OP
- Thread starter
- #23
Getting back to this project...
I bought the right mirror and have it installed.
Now I just need to know how the original connection is made to the driver's and passenger's side modules.

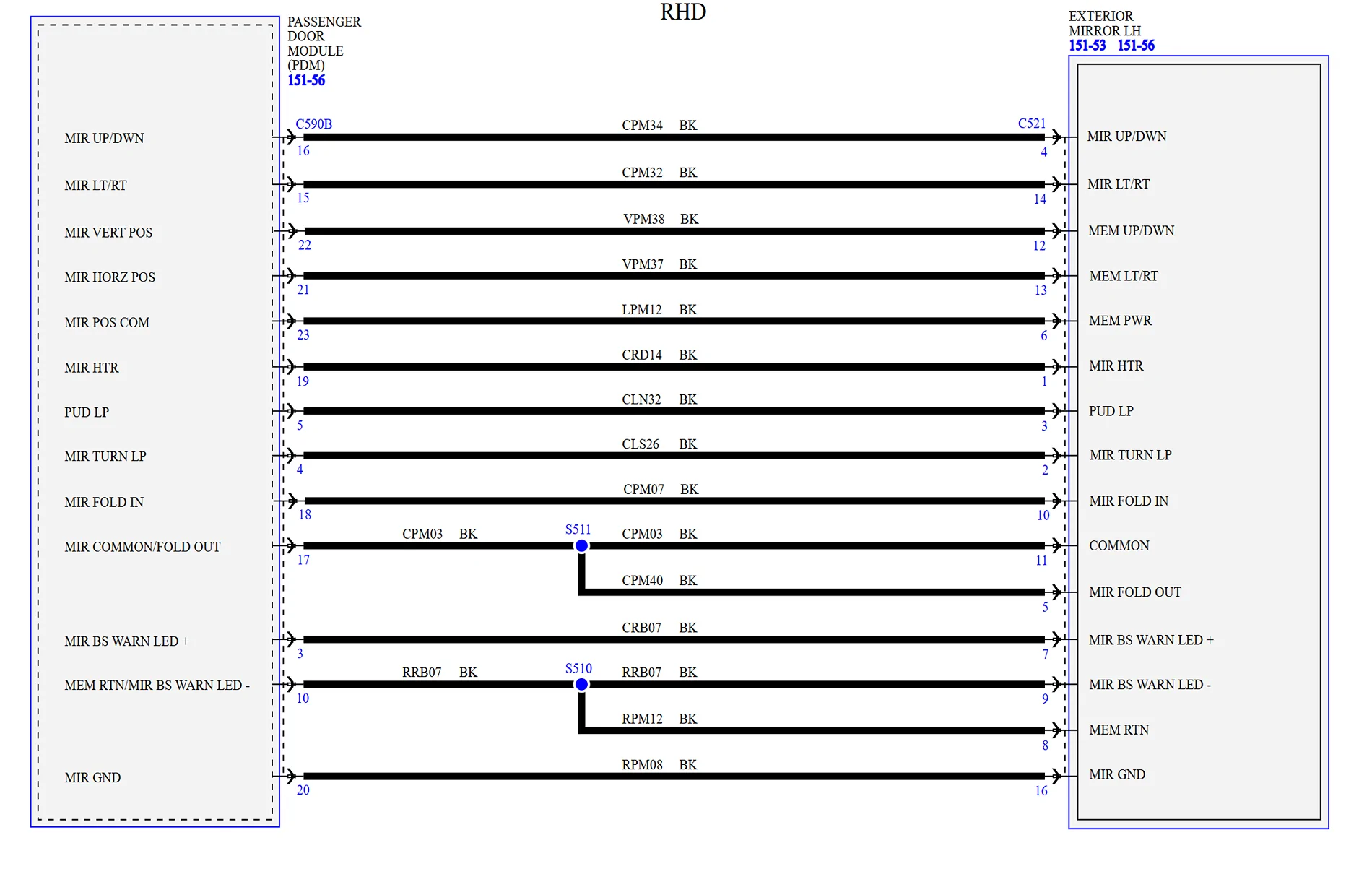

This diagram is for a 2020 Ford Kuga. It would be great to get the diagram for the BS model with folding mirrors!
I bought the right mirror and have it installed.
Now I just need to know how the original connection is made to the driver's and passenger's side modules.
This diagram is for a 2020 Ford Kuga. It would be great to get the diagram for the BS model with folding mirrors!
Here you go:Getting back to this project...
I bought the right mirror and have it installed.
Now I just need to know how the original connection is made to the driver's and passenger's side modules.
This diagram is for a 2020 Ford Kuga. It would be great to get the diagram for the BS model with folding mirrors!
OP
OP
- Thread starter
- #25

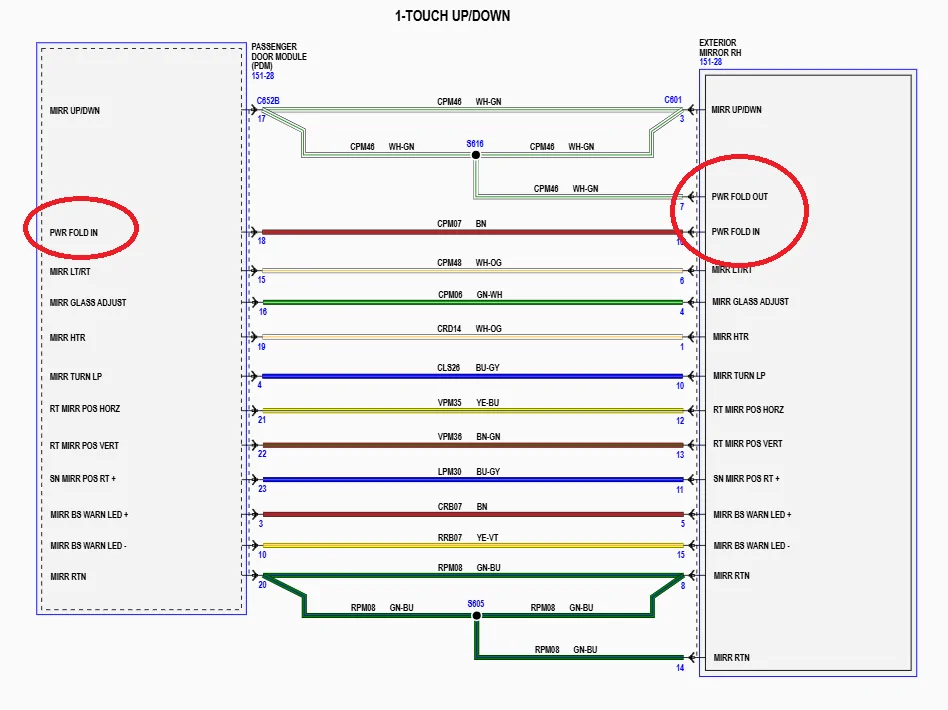

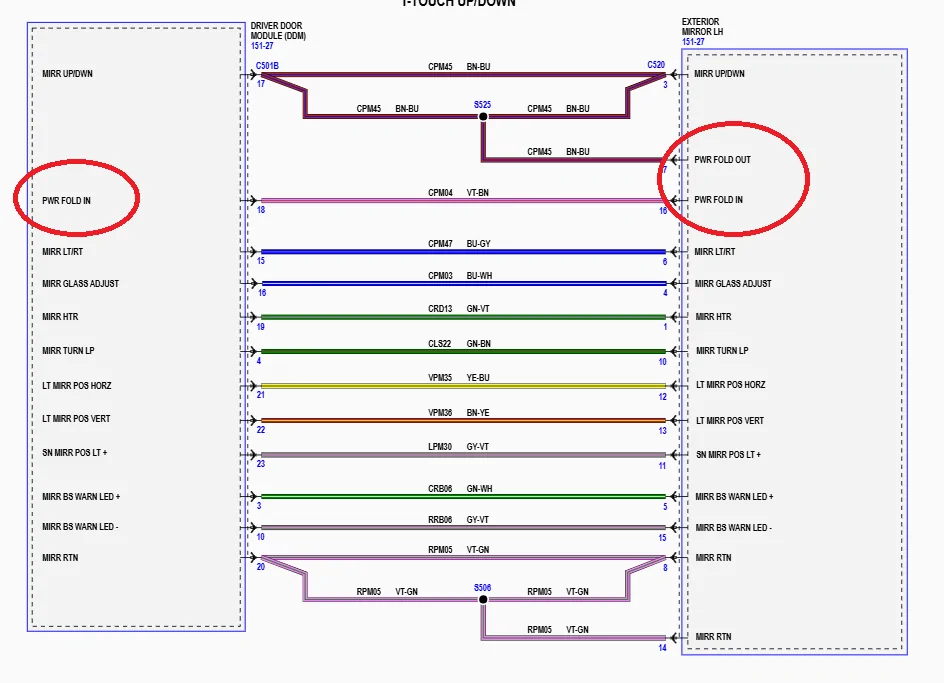

Very thanks!Here you go:
Everything is connected but nothing happens
I suspect I'm missing some configuration in DDM and PDM.
I'll keep trying until I succeed with this project!
OP
OP
- Thread starter
- #26
Can you check the AS BUILT configuration of the DDM or PDM to see if there is anything related to the word "folding" or "Fold"?Here you go:
Very thanks!
For the door modules, I have been using the FORScan sheet for the Sync 3 Mavericks as that is the vehicle I have seen that seems to be the most similiar to the BS. I see this. This is the DDM, so the same changes would need to be made to the PDM which I think is the 741-xx-xx locations.
There's also this, but not sure how relevant it is for it to actually work:
I don't remember what year yours is. Is it 12-24 or 2025+? If it is a 2025, then I would need to look through the newer Maverick on Sync 4 to see if there are any differences.
