Hello fellow Bronco lovers.

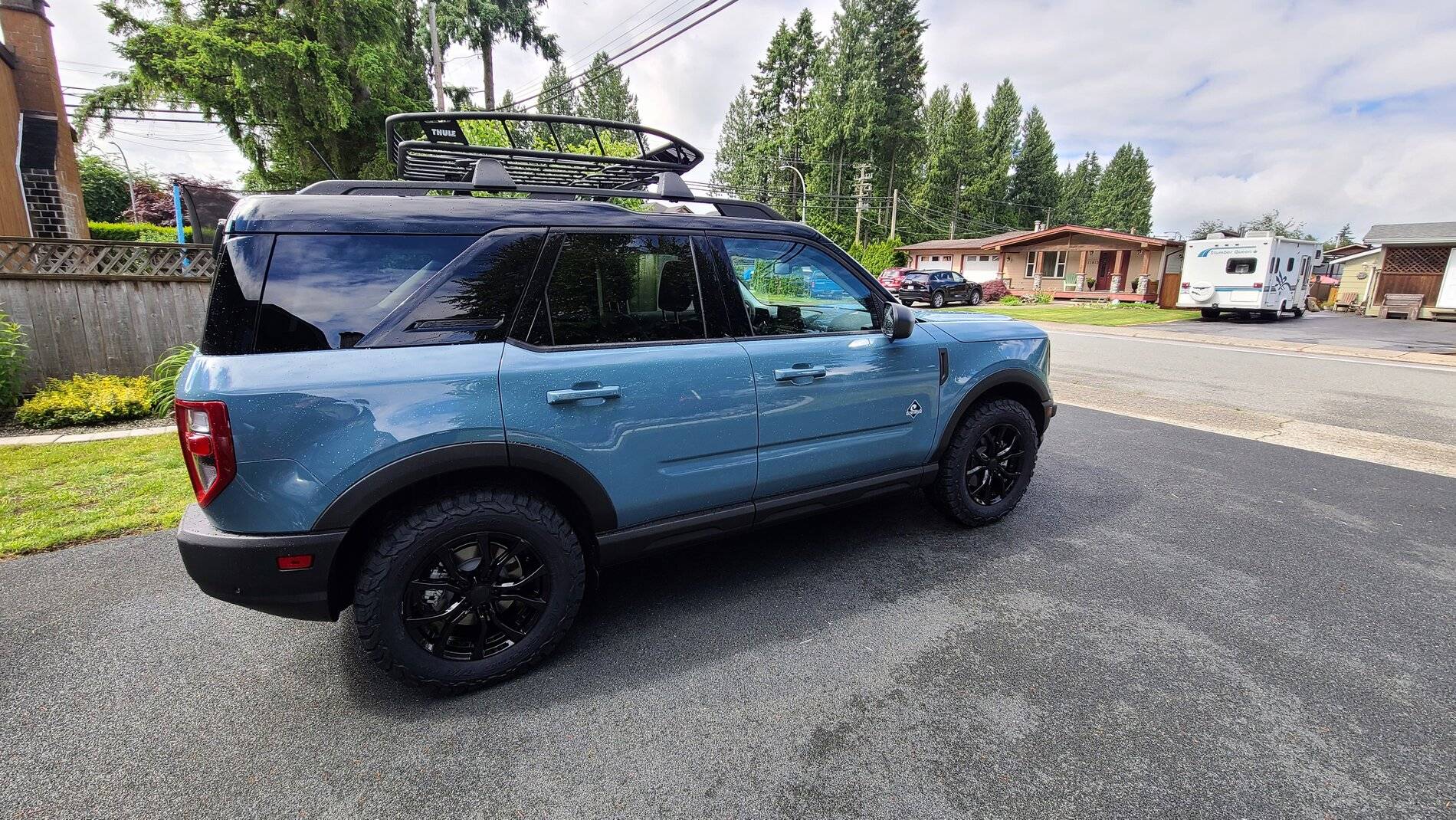

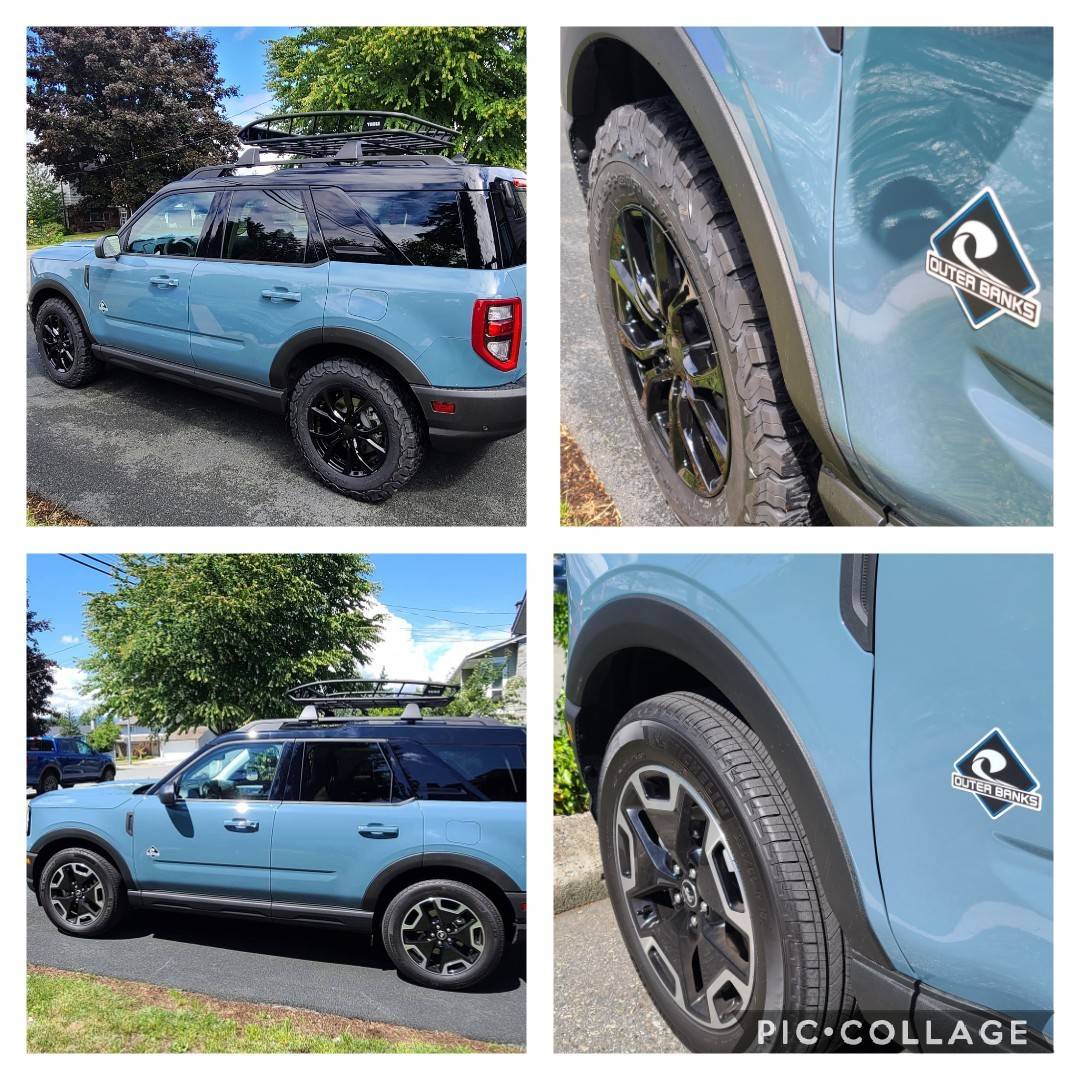

Yesterday we removed the stock wheels from our Outer Banks and replaced with BFGoodrich KO2 235/65/17 and RWC rims. The transformation was unbelievable and really this is the way they should come out of the factory. If you are searching for new rims and were told there are no after market rims available, like we were, well there are many. I searched for wheel size and not for particular vehicle.

The rims specs for the Bronco Sport Outer Banks are as follows:
Center hub 63.4
Bolt pattern 5x108mm same as 5x 4.25
Offset 37.5 to 50

I chose a 40 offset because we did not want to stray far from the factory offset of 37.5.

We had zero issues of rubbing with the wider tire and they were installed at reputable tire center and they actually said the replacement was extremely easy.

As for the KO2's there is a slight hum from the road noise in the cabin, well worth it for the look. We have not test off road yet but speaking with all my pals that have them, they absolutely love them.

We have also added the Ford accessory cross bars (if you have Base, Big Bend or Outer Banks do not order "off road" version they will not fit) and a Thule basket. Next is the Rough County 1.5in leveling kit.










Advertisement


Last edited:
First Name
nathan
Joined
Jun 2, 2021
Messages
11
Reaction score
13
Location
US
Vehicle(s)
Bronco Sport
Hello fellow Bronco lovers.

Yesterday we removed the stock wheels from our Outer Banks and replaced with BFGoodrich KO2 235/60/17 and RWC rims. The transformation was unbelievable and really this is the way they should come out of the factory. If you are searching for new rims and were told there are no after market rims available, like we were, well there are many. I searched for wheel size and not for particular vehicle.
The rims specs for the Bronco Sport Outer Banks are as follows:
Center hub 63.4
Bolt pattern 5x108mm same as 5x 4.25
Offset 37.5 to 50

I chose a 40 offset because we did not want to stray far from the factory offset of 37.5.

We had zero issues of rubbing with the wider tire and they were installed at reputable tire center and they actually said the replacement was extremely easy.

As for the KO2's there is a slight hum from the road noise in the cabin, well worth it for the look. We have not test off road yet but speaking with all my pals that have them, they absolutely love them.

We have also added the Ford accessory cross bars (if you have Base, Big Bend or Outer Banks do not order "off road" version they will not fit) and a Thule basket. Next is the Rough County 1.5in leveling kit.




New tires and wheels just put the BS over the top. I don’t know what you have seen about the RC lift kit but the reports of poor build quality convinced me to hold out…

OP
HisandHerBroncos
First Name
Chris
Joined
May 16, 2021
Messages
14
Reaction score
22
Location
Pitt Meadows BC Canada
Vehicle(s)
Bronco Sport
  • Thread starter
  • Thread Starter
  • #3
New tires and wheels just put the BS over the top. I don’t know what you have seen about the RC lift kit but the reports of poor build quality convinced me to hold out…
Thanks for the information on that I will do some more research.


ElBronc

First Edition
Well-Known Member
Joined
Dec 31, 2020
Messages
48
Reaction score
47
Location
WA
Vehicle(s)
Bronco Sport
235/60R17? Or 70 series?


13.

Badlands
Member
First Name
Chris
Joined
Jun 5, 2021
Messages
5
Reaction score
1
Location
LINY
Vehicle(s)
‘21 Bronco Sport
Looks great! That center bore number is correct? Reason I ask is I have seen spacers that are 63.3 or 64.4.


thesavo

Outer Banks
Well-Known Member
First Name
savo
Joined
Jul 17, 2020
Messages
109
Reaction score
44
Location
Albany NY
Vehicle(s)
2014 Edge SEL, 2014 Patriot, 2021 Bronco Sport OB
I was thinking that 18s would be expensive for snows when I need them. Thanks for the research.

OP
HisandHerBroncos
First Name
Chris
Joined
May 16, 2021
Messages
14
Reaction score
22
Location
Pitt Meadows BC Canada
Vehicle(s)
Bronco Sport
  • Thread starter
  • Thread Starter
  • #8
Looks great! That center bore number is correct? Reason I ask is I have seen spacers that are 63.3 or 64.4.
From all of my searching the centre bore is 63.4mm the installation centre did not need any spacers.

  • Like
Reactions: 13.

Eddie W.

Outer Banks
New Member
First Name
Eddie
Joined
Jun 16, 2021
Messages
2
Reaction score
0
Location
Mahwah, NJ
Vehicle(s)
2021 Bronco Sport
Hello fellow Bronco lovers.

Yesterday we removed the stock wheels from our Outer Banks and replaced with BFGoodrich KO2 235/65/17 and RWC rims. The transformation was unbelievable and really this is the way they should come out of the factory. If you are searching for new rims and were told there are no after market rims available, like we were, well there are many. I searched for wheel size and not for particular vehicle.

The rims specs for the Bronco Sport Outer Banks are as follows:
Center hub 63.4
Bolt pattern 5x108mm same as 5x 4.25
Offset 37.5 to 50

I chose a 40 offset because we did not want to stray far from the factory offset of 37.5.

We had zero issues of rubbing with the wider tire and they were installed at reputable tire center and they actually said the replacement was extremely easy.

As for the KO2's there is a slight hum from the road noise in the cabin, well worth it for the look. We have not test off road yet but speaking with all my pals that have them, they absolutely love them.

We have also added the Ford accessory cross bars (if you have Base, Big Bend or Outer Banks do not order "off road" version they will not fit) and a Thule basket. Next is the Rough County 1.5in leveling kit.

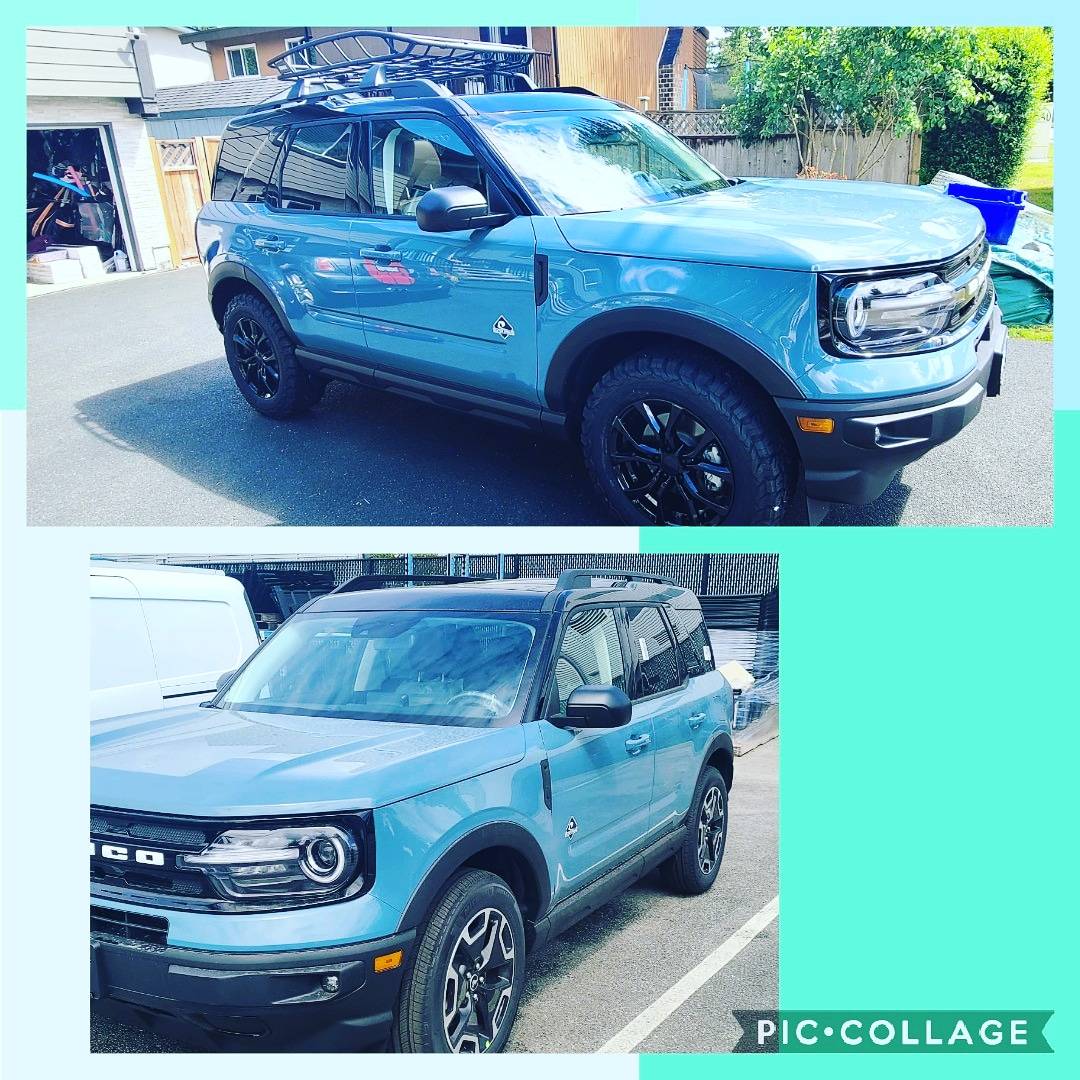

Thanks for all the info, His&Hers. Very well done before & after pix! Are you getting any noise to speak of from the Thule basket? Thanks much, Eddie W.

OP
HisandHerBroncos
First Name
Chris
Joined
May 16, 2021
Messages
14
Reaction score
22
Location
Pitt Meadows BC Canada
Vehicle(s)
Bronco Sport
  • Thread starter
  • Thread Starter
  • #12
Thanks for all the info, His&Hers. Very well done before & after pix! Are you getting any noise to speak of from the Thule basket? Thanks much, Eddie W.
There is definitely a wind noise associated with it and much more noticeable when the sunroof is open. We just turn up the B&O louder!!!


Durf

First Edition
New Member
First Name
Jason
Joined
Jun 17, 2021
Messages
3
Reaction score
2
Location
Arkansa
Vehicle(s)
2021 Bronco Sport
I was going to do the same to my outer banks but decided to sell it back to dealer for $2500 more than I paid then buy a fe with falken wildpeak tires already on. I agree the more aggressive tires plus lift changes everything


Central Jersey

Big Bend
Well-Known Member
First Name
Mordechai
Joined
Jan 24, 2021
Messages
183
Reaction score
194
Location
NJ
Vehicle(s)
Bronco sport big Bend
Thanks for the information on that I will do some more research.
Have you seen the 2” lift kit being sold by forum member @FordBroncoLifts
they are of much better quality than RC. I will be having one installed in mid July.
Robbie if you see this can you let me know if my lift kit is in production yet ?
