21 - 24 Rubigrid Mount side profile

[Catlicker1989]

Hi,

I have a 22’ big bend and ordered the Rubigrid for mounting a few particular things. As I’m waiting to get it, I was wondering if anyone has a picture of it from both the left and right side and also a picture of the back as if your looking at it threw the windshield. Mostly all pictures I see are of overtop or if your looking at the radio. Or a standard photo without it being installed.
Thank you so much!

Sponsored



[jkernitzki]

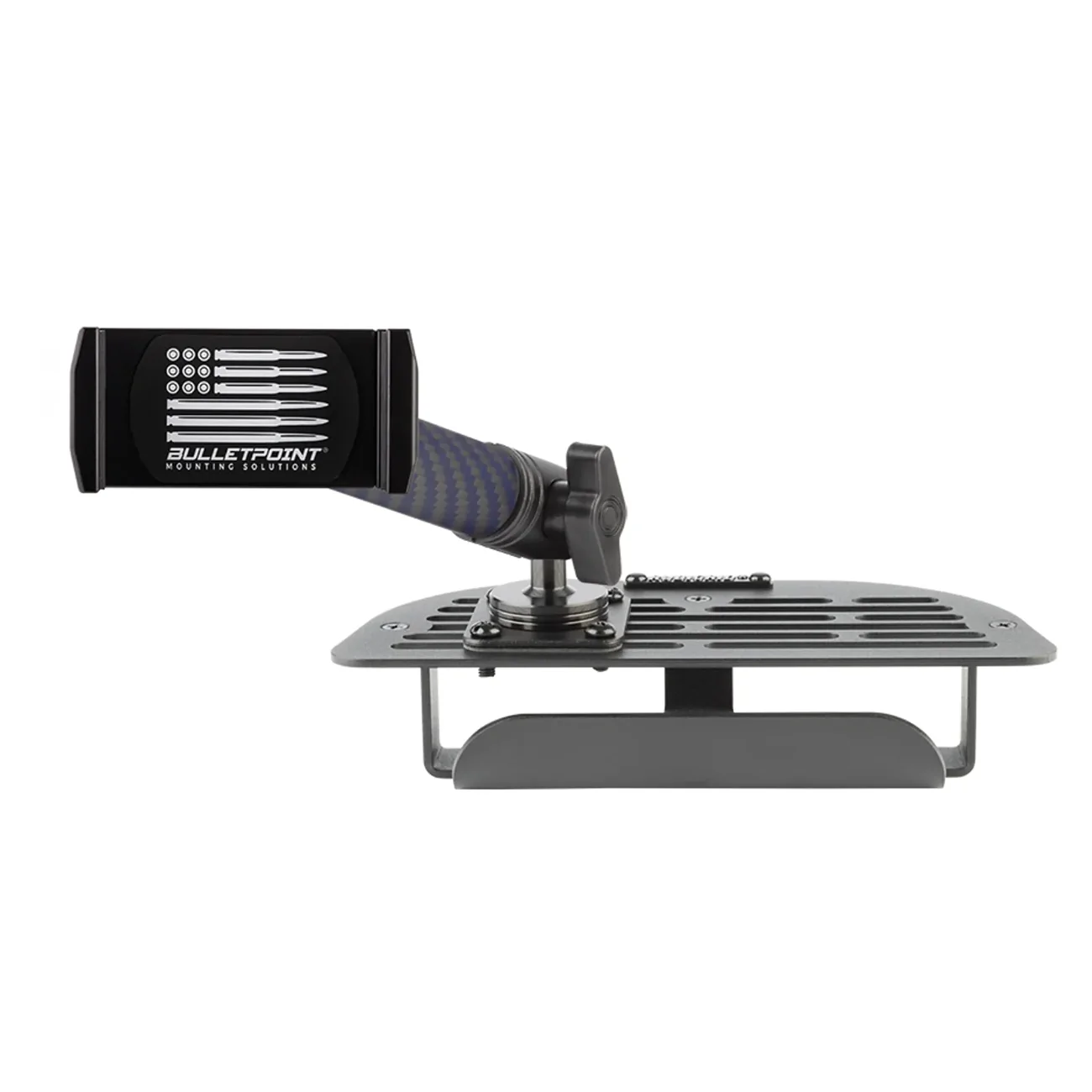

From the Bulletpoint site for '21-'24, should give an idea of the upper & lower sections (the actual grid is separate from the base, you can see the three machine screws holding the two pieces together):



[Catlicker1989]

That’s the picture that I seen. Just tring to judge the left arm that goes from the bottom to the grid, how wide and what thickness and how far it sits back from the front of the screen. I’m making a custom mount to attach to the Rubigrid and might incorporate that into my design



[SapphireCat]

I can take a pic of mine tomorrow if that would be helpful.
