2021 Bronco sport lower control arm removal

[Chambr]

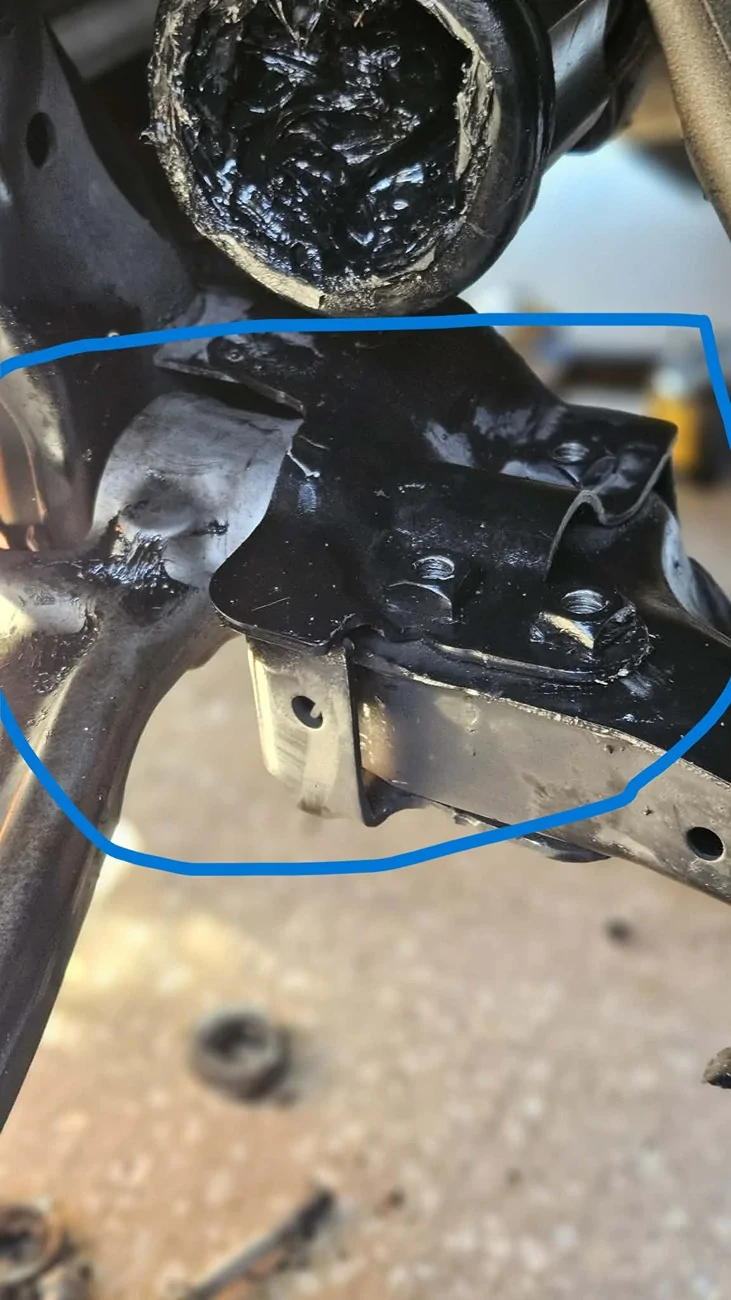

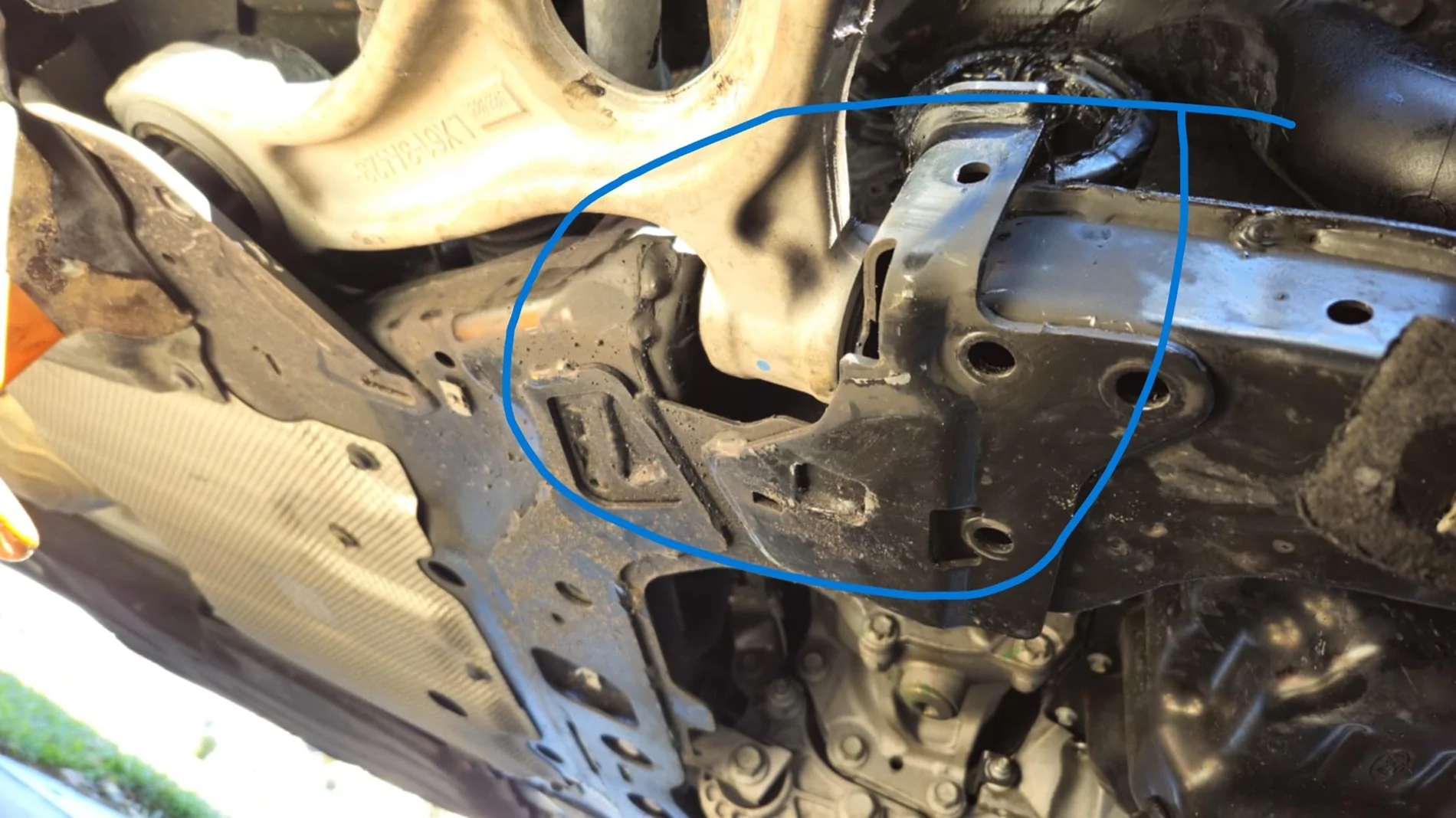

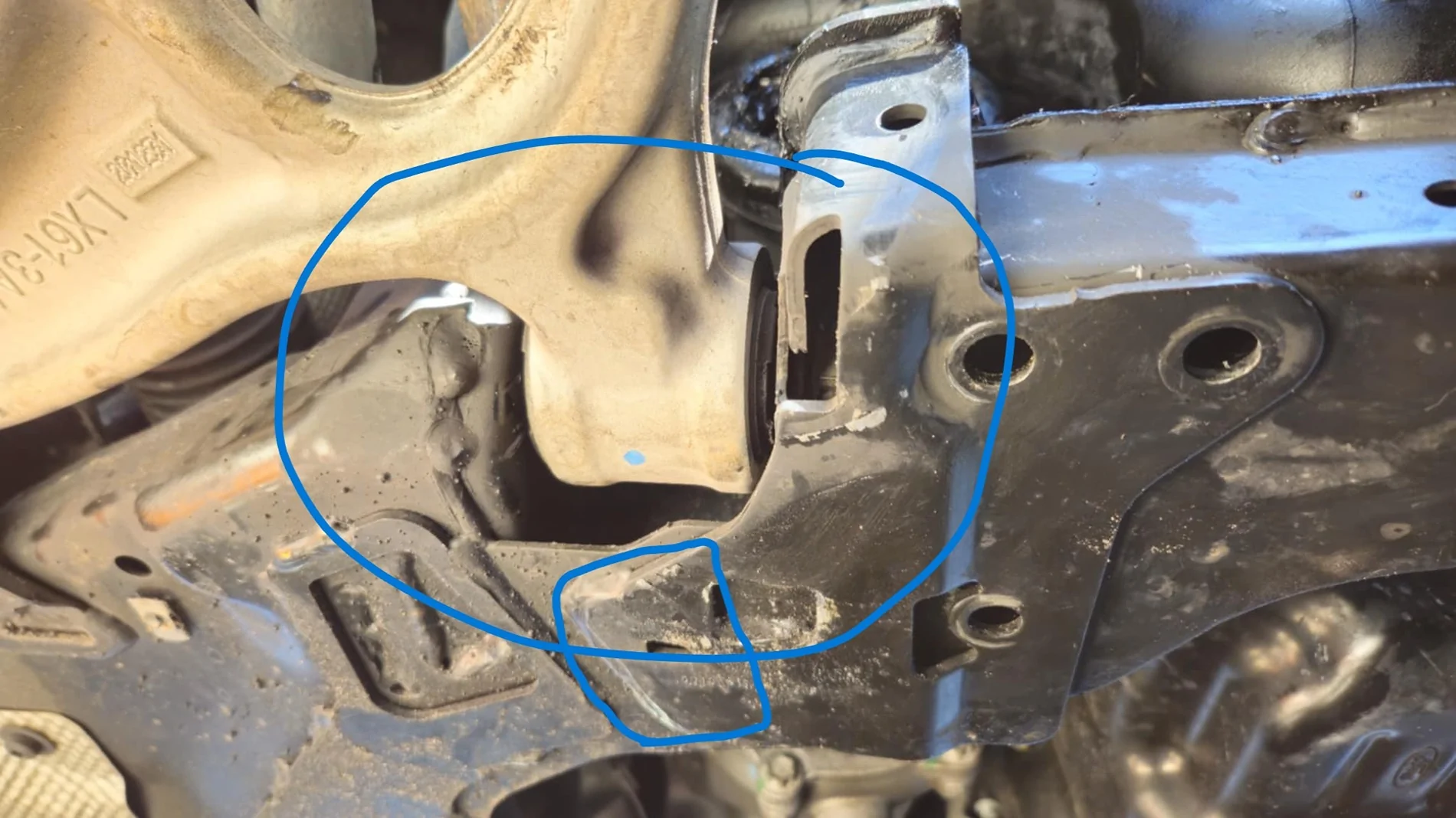

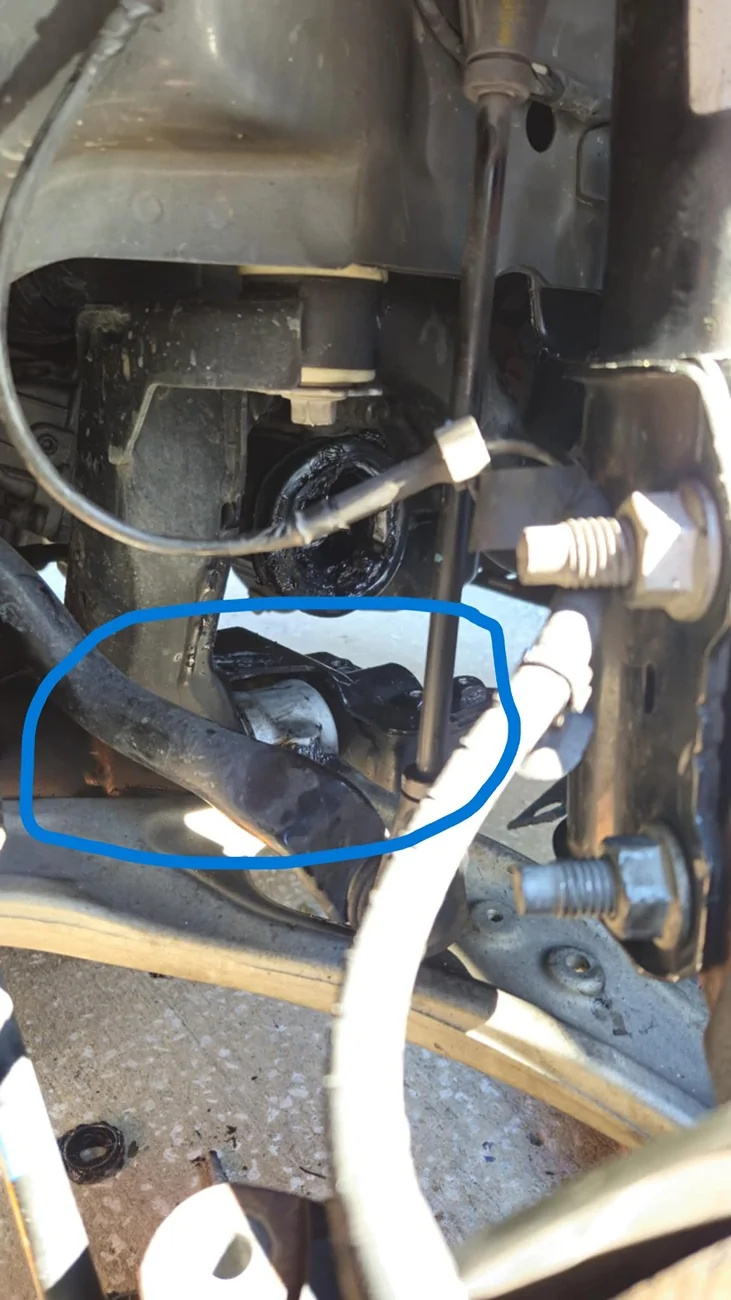

Having a heck of a time getting this control arm out ... appears that a bolt that is supposed to go thru the arm is covered by a box frame of sorts ... cant even see a bolt in there (although there has to be) ... took as much apart as i could think of and yet no movement ..... If theres a trick i am missing let me know



-Mike-



[Dude]

See if this post helps
https://www.broncosportforum.com/forum/threads/need-help-figuring-out-how-to-get-the-front-bearings-off-a-front-lower-control-arm-on-bronco-sport-big-bend-2024.18917/



[Chambr]

See if this post helps
https://www.broncosportforum.com/forum/threads/need-help-figuring-out-how-to-get-the-front-bearings-off-a-front-lower-control-arm-on-bronco-sport-big-bend-2024.18917/

It did in the fact that the bolt I am trying to get to is Captive



[RSH]

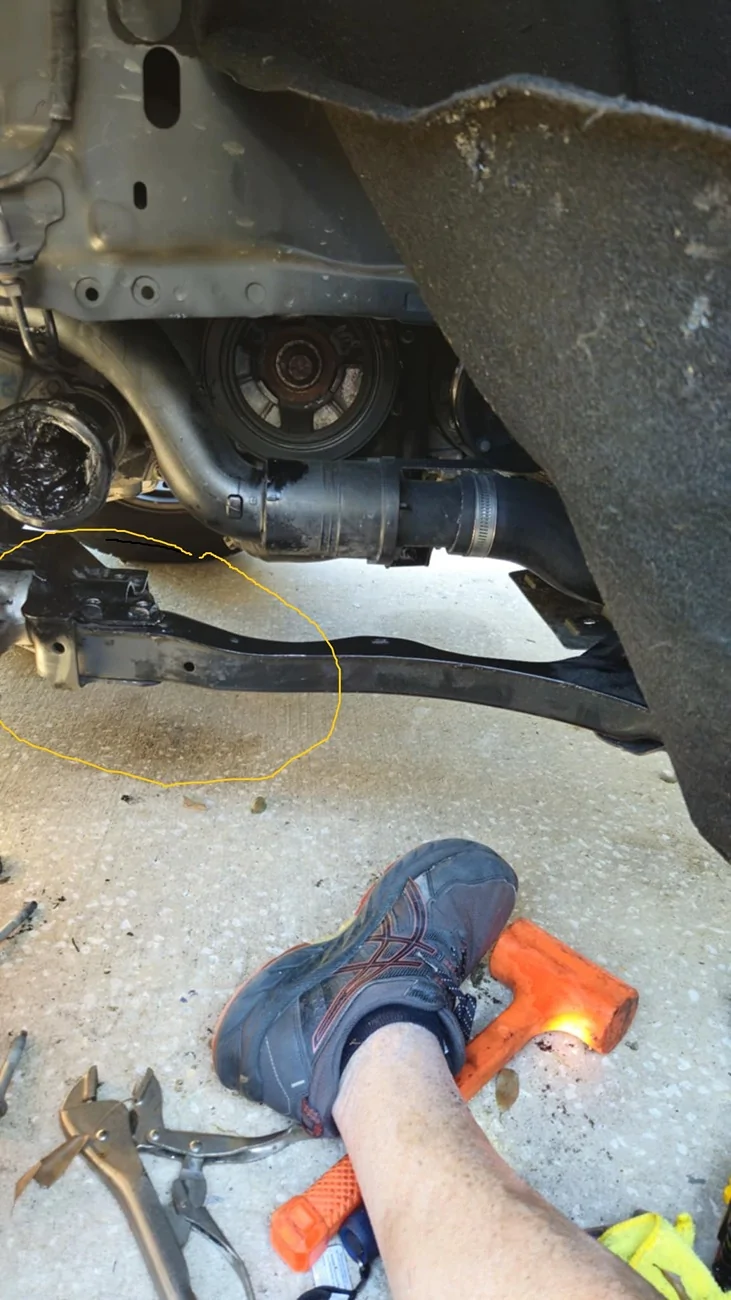

In your last photo the outer side member is still in place
Did you remove the front cross member so the outer side member can be removed.
In the photo I see you have 3 of the 4 bolts removed that attach the outer side member.

Once the outer side member is removed you will have access to the "captive bolt head"
