Where to run the harness for the Rough Country roof light bar.

drsnutz46

Big Bend
New Member
First Name
Danny
Joined
Oct 6, 2021
Messages
3
Reaction score
4
Location
Nampa Idaho
Vehicle(s)
2021 Ford Bronco Sport

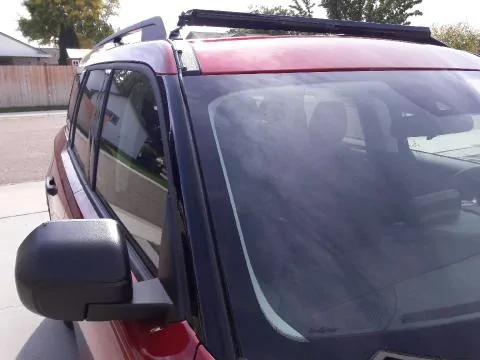

So I saw a lot of questions regarding where to run the wiring harness for the Rough Country roof light bar. This is what I came up with after much consideration, first and foremost I'm not drilling holes in the roof of my brand new truck so being a retired race car fabricator this is what I came up with, once you mount the light bar bring the harness 180 degrees toward the front of the truck, then you can tuck the harness in right next to the A-Pillar trim piece and run it all the way down to the engine bay. Once in the engine bay there's an air seal where it seals off the cowl from air and weather, I simply cut the air seal down the center and tucked the harness inside all the way over to the drivers side then silicone sealed the weather seal and it drops the entire wiring harness right next to the battery, here's a picture of the finished install, if you have any questions please feel free to hit me up.
Advertisement



VirtualJMills

Badlands
Well-Known Member
First Name
Jason
Joined
Sep 2, 2021
Messages
155
Reaction score
157
Location
California, US
Vehicle(s)
2021 Bronco Sport
So I saw a lot of questions regarding where to run the wiring harness for the Rough Country roof light bar. This is what I came up with after much consideration, first and foremost I'm not drilling holes in the roof of my brand new truck so being a retired race car fabricator this is what I came up with, once you mount the light bar bring the harness 180 degrees toward the front of the truck, then you can tuck the harness in right next to the A-Pillar trim piece and run it all the way down to the engine bay. Once in the engine bay there's an air seal where it seals off the cowl from air and weather, I simply cut the air seal down the center and tucked the harness inside all the way over to the drivers side then silicone sealed the weather seal and it drops the entire wiring harness right next to the battery, here's a picture of the finished install, if you have any questions please feel free to hit me up.

Did you still tap-into the appropriate wiring harness locations in the driver-side A-Pillar and under-dash areas, per the Ford install sheet?

Or was that a Badlands/First-Edition only pair of harnesses?


Benanza

Outer Banks
Well-Known Member
First Name
Ben
Joined
Aug 6, 2021
Messages
182
Reaction score
307
Location
Chatham, NJ
Vehicle(s)
Ford Bronco Sport
Did you still tap-into the appropriate wiring harness locations in the driver-side A-Pillar and under-dash areas, per the Ford install sheet?

Or was that a Badlands/First-Edition only pair of harnesses?
Wire harness for roof lights or dash cam are for BL/FE only

OP
OP

drsnutz46

Big Bend
New Member
First Name
Danny
Joined
Oct 6, 2021
Messages
3
Reaction score
4
Location
Nampa Idaho
Vehicle(s)
2021 Ford Bronco Sport
Wire harness for roof lights or dash cam are for BL/FE only
Wire harness for roof lights or dash cam are for BL/FE only
No with the Rough Country light bar you only have 3 wires to worry about, positive, negative and the switch, connected pos. and neg. to battery and mounted the relay on a box next to the battery then ran the switch through the fire wall where the main wiring harness feeds through.


John J

Big Bend
Active Member
First Name
John
Joined
May 2, 2021
Messages
34
Reaction score
40
Location
Cooperstown NY
Vehicle(s)
2021 Bronco Sport

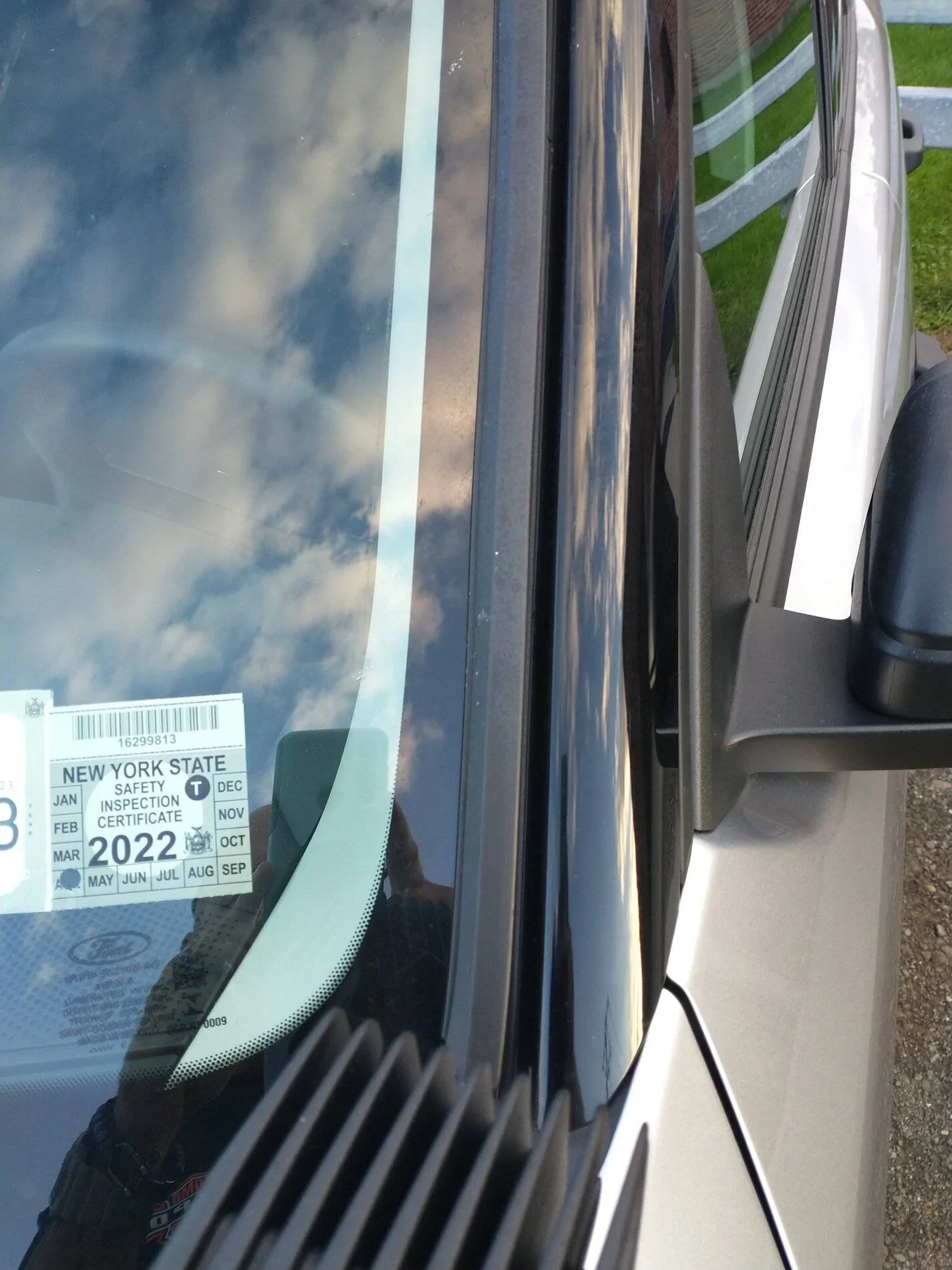

I used the KC Wire Hiding Kit. It runs right along the A-Pillar and it disappears when the beveled edge is put against the window frame. No drilling and no forcing the window gasket or molding.
