I installed the side marker install from Tectico today, it was a easy install 3 wires install and that's it. Red wire down to the courtesy side marker, to the blue wire. The yellow wire to the turn signal blue with green wire driver and yellow with purple passenger. Then just the a ground wire on both sides and that's it. They look good and well built















Last edited by a moderator:

kyle_conrad

Outer Banks
Well-Known Member
First Name
Kyle
Joined
Nov 29, 2021
Threads
6
Messages
198
Reaction score
242
Location
Richmond, VA
Website
kyleconrad.com
Vehicle(s)
2022 Bronco Sport Outer Banks
I really like these and was thinking of putting them on, but hadn't installed anything like this before - where is the wire cluster you're pointing to in those pics? About how long did it take you to install them? Any special tools / wire connectors I would need?

OP
OP
Wabarca2

Wabarca2

Badlands
Well-Known Member
First Name
Walter
Joined
Mar 27, 2021
Threads
8
Messages
123
Reaction score
192
Location
91367
Vehicle(s)
Bronco sport

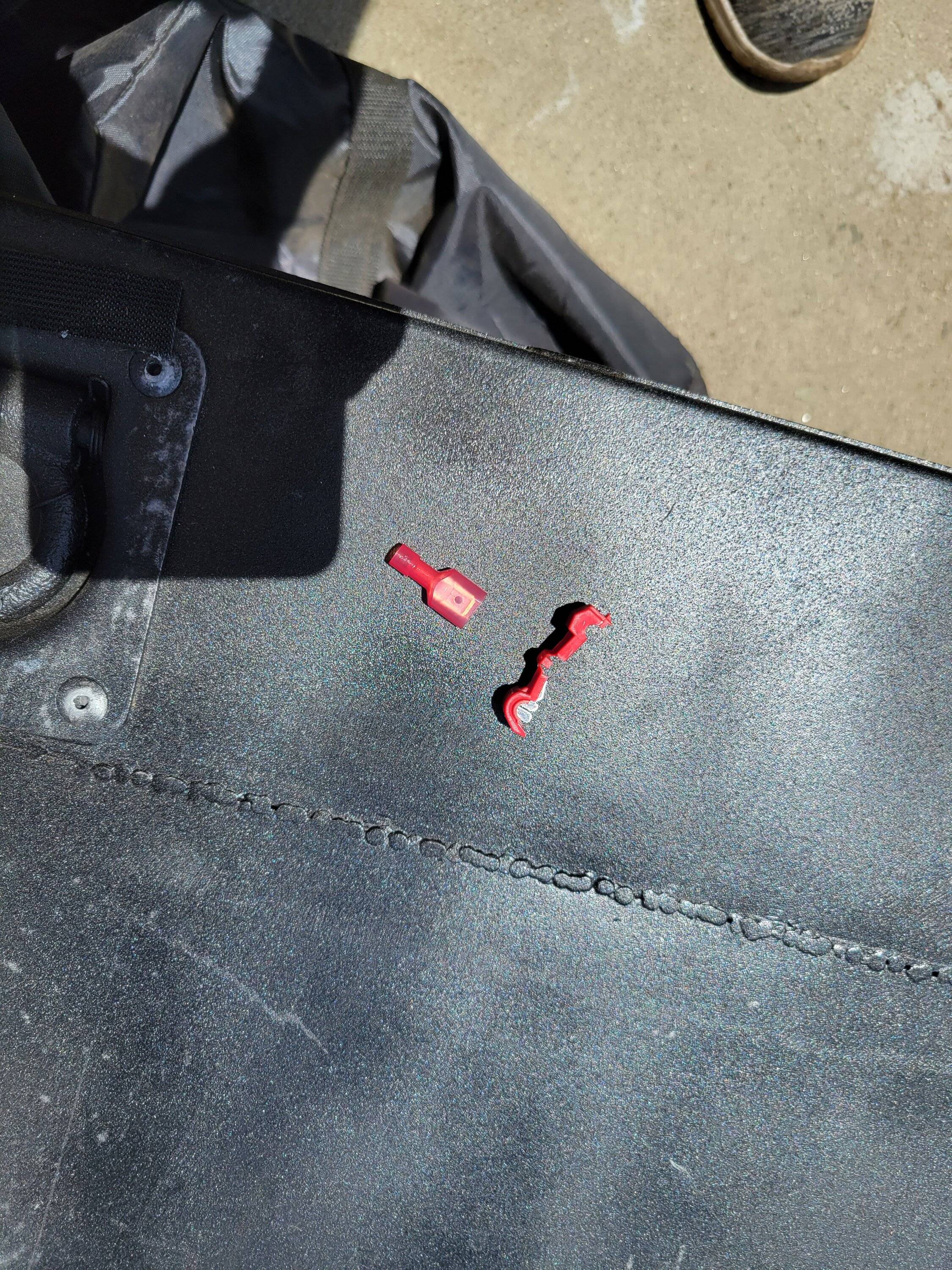

I used t connector that clamp on to the wire your tapping in to, the big wire cluster is the headlight wire harness, it only took about 30 ro 40 mins to install



kyle_conrad

Outer Banks
Well-Known Member
First Name
Kyle
Joined
Nov 29, 2021
Threads
6
Messages
198
Reaction score
242
Location
Richmond, VA
Website
kyleconrad.com
Vehicle(s)
2022 Bronco Sport Outer Banks
I used t connector that clamp on to the wire your tapping in to, the big wire cluster is the headlight wire harness, it only took about 30 ro 40 mins to install
So you basically just run the wires down the inside of body panel/engine to the front where the headlight wires are? Doesn't seem too bad - how hard is it to remove the existing little black plastic to replace it?

OP
OP
Wabarca2

Wabarca2

Badlands
Well-Known Member
First Name
Walter
Joined
Mar 27, 2021
Threads
8
Messages
123
Reaction score
192
Location
91367
Vehicle(s)
Bronco sport
It's not bad it has 3 tabs on it that you press in and it just comes out



Feint

Badlands
Well-Known Member
First Name
Jon
Joined
Jun 21, 2022
Threads
4
Messages
84
Reaction score
120
Location
Chicago
Vehicle(s)
2022 Badlands
Wire taps are sketchy and unreliable in my experience. So I went looking for an alternative. I found these posi taps that are used in the motorcycle community. They are waterproof and vibration proof.


I haven't used them yet but I ordered some and will use them on another wiring project I'm doing soon. Stay tuned.


Mark S.

Badlands
Well-Known Member
First Name
Mark
Joined
Oct 30, 2021
Threads
33
Messages
1,693
Reaction score
2,841
Location
St. Jacob, IL
Vehicle(s)
2021 Badlands | 2020 Escape
Wire taps are sketchy and unreliable in my experience. So I went looking for an alternative. I found these posi taps that are used in the motorcycle community. They are waterproof and vibration proof.
I'm not a fan of anything that punches a hole through the insulation, possibly damaging the wire strands inside. I would use a step-down butt connector with integrated heat shrink. Two wires go in one side, and a single wire goes in the other.


tburner

Badlands
Well-Known Member
First Name
Troy
Joined
Apr 10, 2021
Threads
10
Messages
180
Reaction score
260
Location
DFW, TX
Vehicle(s)
Bronco Sport
I'm not a fan of anything that punches a hole through the insulation, possibly damaging the wire strands inside. I would use a step-down butt connector with integrated heat shrink. Two wires go in one side, and a single wire goes in the other.
Agreed.

The important part of the splice linked above, for those that aren't aware, is the hot melt glue in the heat shrink (not explicitly stated in the product description, but shown in the photos). The hot melt is what provides an environmental seal.


Feint

Badlands
Well-Known Member
First Name
Jon
Joined
Jun 21, 2022
Threads
4
Messages
84
Reaction score
120
Location
Chicago
Vehicle(s)
2022 Badlands
I did order a bunch of those, but I don't want to cut the factory wire unless I have to since there's not a lot of wire slack to work with. The tap I linked to pierces the insulation and is perfectly centered on the wires. So it doesn't actually cut any of the original wires.



Escape2Bronco

Badlands
Well-Known Member
First Name
Steve
Joined
Oct 9, 2021
Threads
0
Messages
1,305
Reaction score
1,407
Location
USA
Vehicle(s)
2006 Ford Escape, 2022 Ford Bronco Sport
I did order a bunch of those, but I don't want to cut the factory wire unless I have to since there's not a lot of wire slack to work with. The tap I linked to pierces the insulation and is perfectly centered on the wires. So it doesn't actually cut any of the original wires.
Understand the issue regarding length but the main issue is that the wire strands can be really small and you can potentially damage a few of the strands. Maybe someone has found plug and play connectors like for towing wiring or better yet, even use those and run from the back instead.


kyle_conrad

Outer Banks
Well-Known Member
First Name
Kyle
Joined
Nov 29, 2021
Threads
6
Messages
198
Reaction score
242
Location
Richmond, VA
Website
kyleconrad.com
Vehicle(s)
2022 Bronco Sport Outer Banks
I installed the side marker install from Tectico today, it was a easy install 3 wires install and that's it. Red wire down to the courtesy side marker, to the blue wire. The yellow wire to the turn signal blue with green wire driver and yellow with purple passenger. Then just the a ground wire on both sides and that's it. They look good and well built
OK to verify connections (since the instructions that come with them are vague):

Driver
- Black: ground
- Red: blue
- Yellow: blue & green

Passenger
- Black: ground
- Red: blue
- Yellow: purple

OP
OP
Wabarca2

Wabarca2

Badlands
Well-Known Member
First Name
Walter
Joined
Mar 27, 2021
Threads
8
Messages
123
Reaction score
192
Location
91367
Vehicle(s)
Bronco sport
OK to verify connections (since the instructions that come with them are vague):

Driver
- Black: ground
- Red: blue
- Yellow: blue & green

Passenger
- Black: ground
- Red: blue
- Yellow: purple
Correct
