Since I haven’t seen too many mentions of Rhino Rack platforms on here I thought I’d post what I installed over the weekend. I wanted a lower profile platform rack that was still aluminum and light weight. Rhino rack has an option on their website for the BS but it runs the length of the roof and would cover the sunroof on my Badlands. After a lot of close measurements I figured I could mount the 52x49 and still have a full functioning sun roof. It’s close and took a little adjustment but here is the result!










Advertisement



jhbass

First Edition
Well-Known Member
First Name
James
Joined
Feb 24, 2021
Messages
141
Reaction score
111
Location
Central NY
Vehicle(s)
Bronco Sport
Since I haven’t seen too many mentions of Rhino Rack platforms on here I thought I’d post what I installed over the weekend. I wanted a lower profile platform rack that was still aluminum and light weight. Rhino rack has an option on their website for the BS but it runs the length of the roof and would cover the sunroof on my Badlands. After a lot of close measurements I figured I could mount the 52x49 and still have a full functioning sun roof. It’s close and took a little adjustment but here is the result!
That looks pretty good!
Do you have a link to that specific rack?
Thanks!


AzWildBronco

Badlands
Member
First Name
Dan
Joined
Apr 25, 2021
Messages
8
Reaction score
10
Location
Arizona
Vehicle(s)
Bronco Sport
That looks pretty good!
Do you have a link to that specific rack?
Thanks!
Since I haven’t seen too many mentions of Rhino Rack platforms on here I thought I’d post what I installed over the weekend. I wanted a lower profile platform rack that was still aluminum and light weight. Rhino rack has an option on their website for the BS but it runs the length of the roof and would cover the sunroof on my Badlands. After a lot of close measurements I figured I could mount the 52x49 and still have a full functioning sun roof. It’s close and took a little adjustment but here is the result!





Looks great! I installed a 60”x49” Pioneer Platform on my BL and like you say after several adjustments was able to get full clearance for the sunroof. Love how low profile it is, even with the standard spare tire mounted on top, still fits in my garage.











Laura

Active Member
First Name
Laura
Joined
Apr 21, 2021
Messages
32
Reaction score
40
Location
Texas
Vehicle(s)
Mazda
Since I haven’t seen too many mentions of Rhino Rack platforms on here I thought I’d post what I installed over the weekend. I wanted a lower profile platform rack that was still aluminum and light weight. Rhino rack has an option on their website for the BS but it runs the length of the roof and would cover the sunroof on my Badlands. After a lot of close measurements I figured I could mount the 52x49 and still have a full functioning sun roof. It’s close and took a little adjustment but here is the result!





The rack looks great, but I just wanted to let you know that I LOVE your pink vinyl!


AzWildBronco

Badlands
Member
First Name
Dan
Joined
Apr 25, 2021
Messages
8
Reaction score
10
Location
Arizona
Vehicle(s)
Bronco Sport
Nice rack. Link to the SKU?
So here is the link for the 60x49 inch on Rhino Rack site: https://www.rhinorack.com/en-us/products/roof/roof-racks/pioneer-platform/pioneer-platform-60-x-49-unassembled-with-sx-legs_jc-00784
I actually purchased my rack through eTrailer.com who had all the parts in stock. Super nice and great customer service! Here is the eTrailer link: https://www.etrailer.com/Roof-Rack/Rhino-Rack/RR77AB.html. Don’t be confused by eTrailer’s notice of it not fitting a Bronco Sport, just hasn’t been updated on the eTrailer site yet.


KAnoe

Badlands
Well-Known Member
First Name
Keith
Joined
Mar 8, 2021
Messages
52
Reaction score
47
Location
Maine, USA
Vehicle(s)
2020 Ford Ranger, 2017 Subaru Crosstrek
Since I haven’t seen too many mentions of Rhino Rack platforms on here I thought I’d post what I installed over the weekend. I wanted a lower profile platform rack that was still aluminum and light weight. Rhino rack has an option on their website for the BS but it runs the length of the roof and would cover the sunroof on my Badlands. After a lot of close measurements I figured I could mount the 52x49 and still have a full functioning sun roof. It’s close and took a little adjustment but here is the result!
Great information!! What is or is not the road noise like?

Thanks


Gooser

Badlands
Member
First Name
jimmy
Joined
Mar 16, 2021
Messages
19
Reaction score
17
Location
tn
Vehicle(s)
2021 Bronco Sport
Tint the front windows. Looks so good.


AzWildBronco

Badlands
Member
First Name
Dan
Joined
Apr 25, 2021
Messages
8
Reaction score
10
Location
Arizona
Vehicle(s)
Bronco Sport
Great information!! What is or is not the road noise like?

Thanks

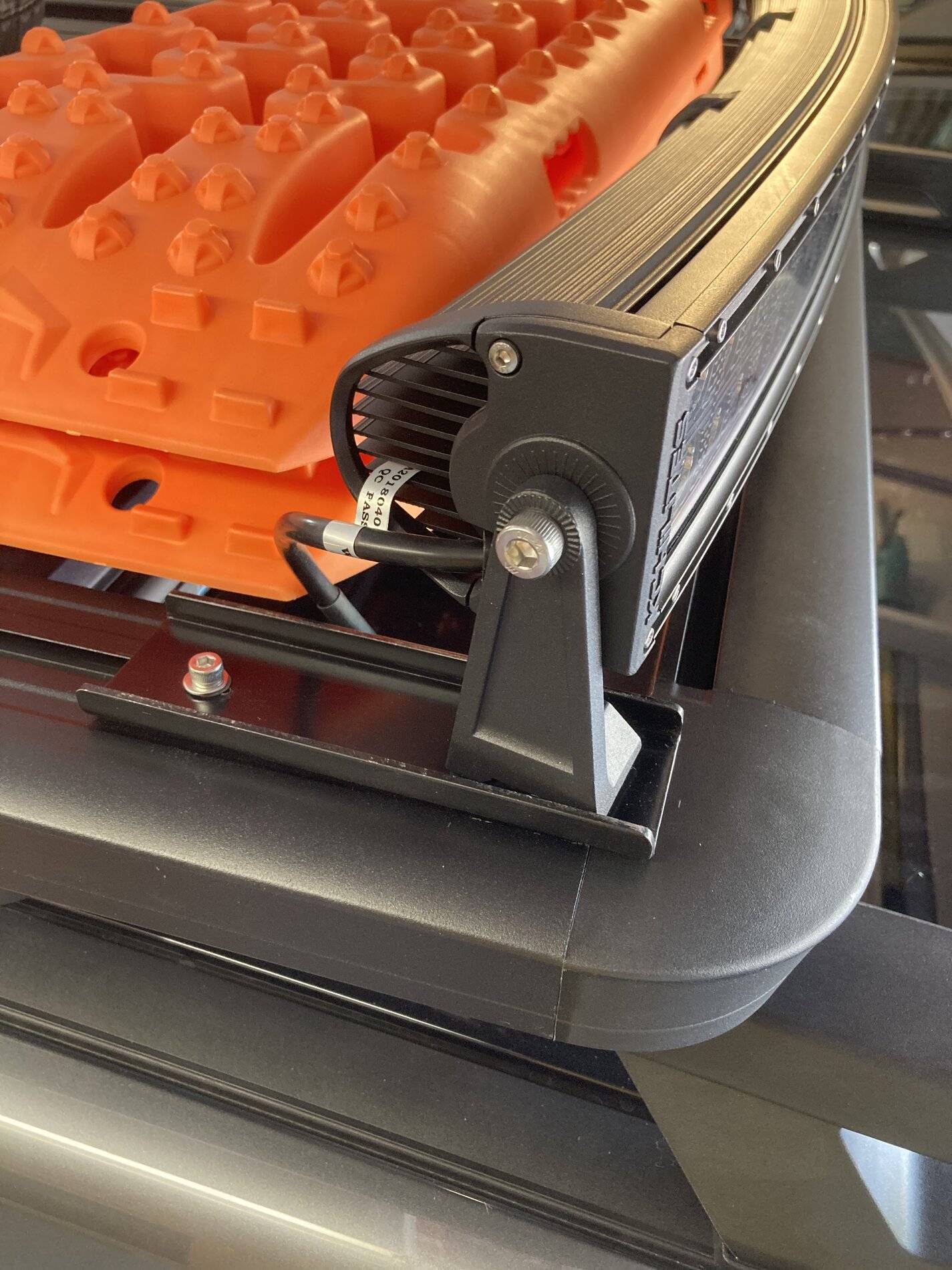

There is a bit of noticeable wind noise. Closing the moonroof curtain helps quite a bit. I have the Rhino Rack wind fairing ordered and will see how much that helps. I have the KC HiLites LED curved 45” light bar mounted to the Pioneer Platform also, and was surprised it didn’t much if any additional wind noise. By the way KC HiLites has this 45” light bar on clearance at a great price! The mount spacing matched the side slots perfectly on the 49” wide platform.
