Rear Windshield Washer Fluid Leak In Tailgate

Hanjoelo

Big Bend
Member
First Name
Joel
Joined
Jun 3, 2021
Threads
3
Messages
16
Reaction score
25
Location
Windsor, ON
Vehicle(s)
Bronco Sport
Was putting new license plate covers on today and noticed a washer nozzle under the rear camera. Thought to myself “huh, didn’t know I had this”. Had my wife come out and try the rear sprayer - nothing came out of the nozzle. Opened the tailgate and liquid was spilling from out of the Stryker opening. Noticed a little access hatch above the Stryker on the tailgate. I opened it up and found a line that appeared to be connected to nothing. Had my wife try the sprayer and low and behold it had been fully spraying on the inside of my tailgate since I bought the vehicle. I just booked a service appointment.

Are Big Bends supposed to have a sprayer for the camera? If not, why is there a disconnected line just spraying washer fluid in my tailgate?
Sponsored



Rincon

Badlands
Member
First Name
Laird
Joined
Aug 5, 2020
Threads
0
Messages
11
Reaction score
11
Location
Tucson
Vehicle(s)
Bronco Sport Badlands, Cactus Gray
Can you take a pic, would like to compare what your seeing to our BL. Interesting. Wonder if it’s just a line not connected.

OP
OP
Hanjoelo

Hanjoelo

Big Bend
Member
First Name
Joel
Joined
Jun 3, 2021
Threads
3
Messages
16
Reaction score
25
Location
Windsor, ON
Vehicle(s)
Bronco Sport
Can you take a pic, would like to compare what your seeing to our BL. Interesting. Wonder if it’s just a line not connected.

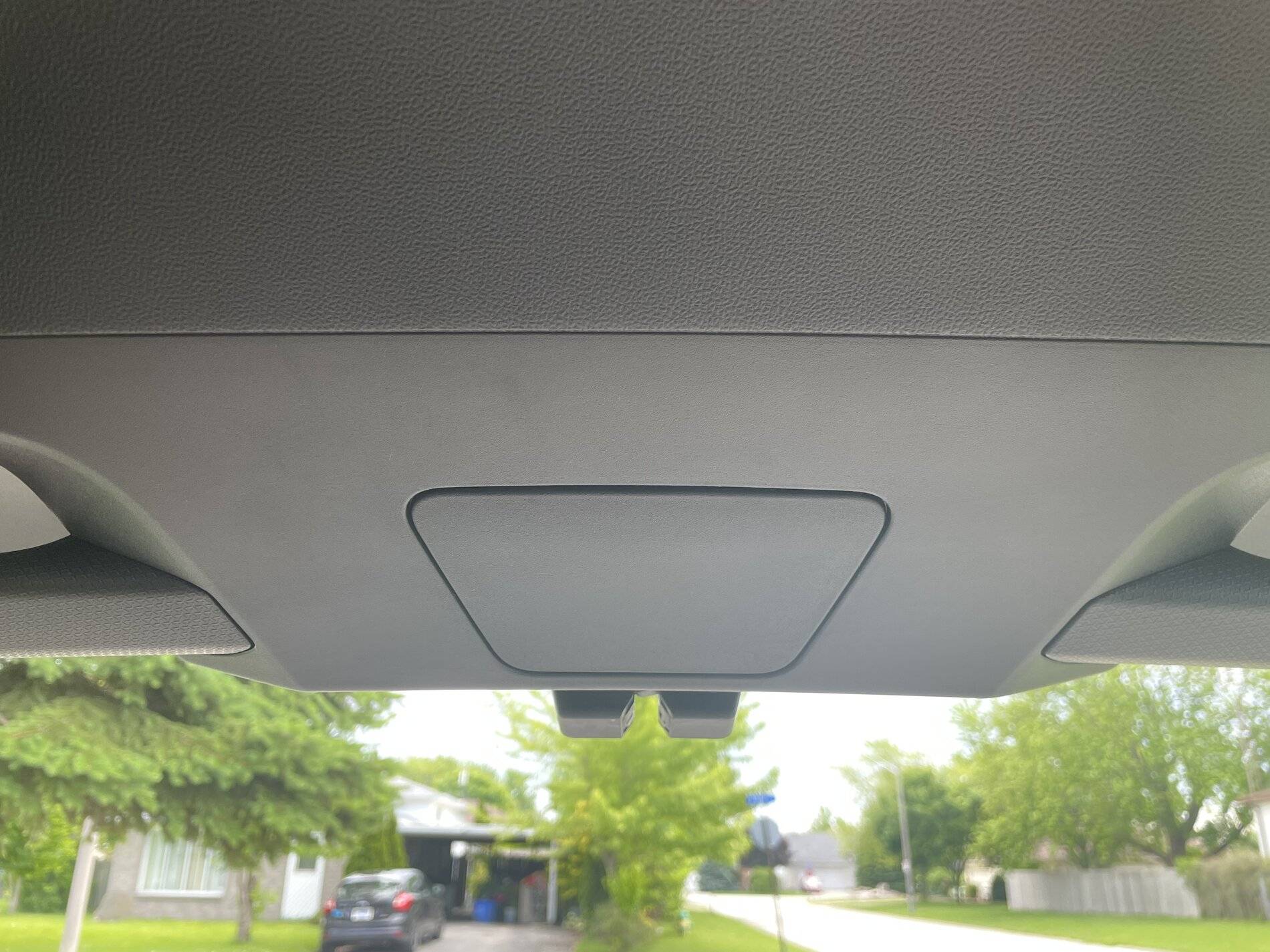

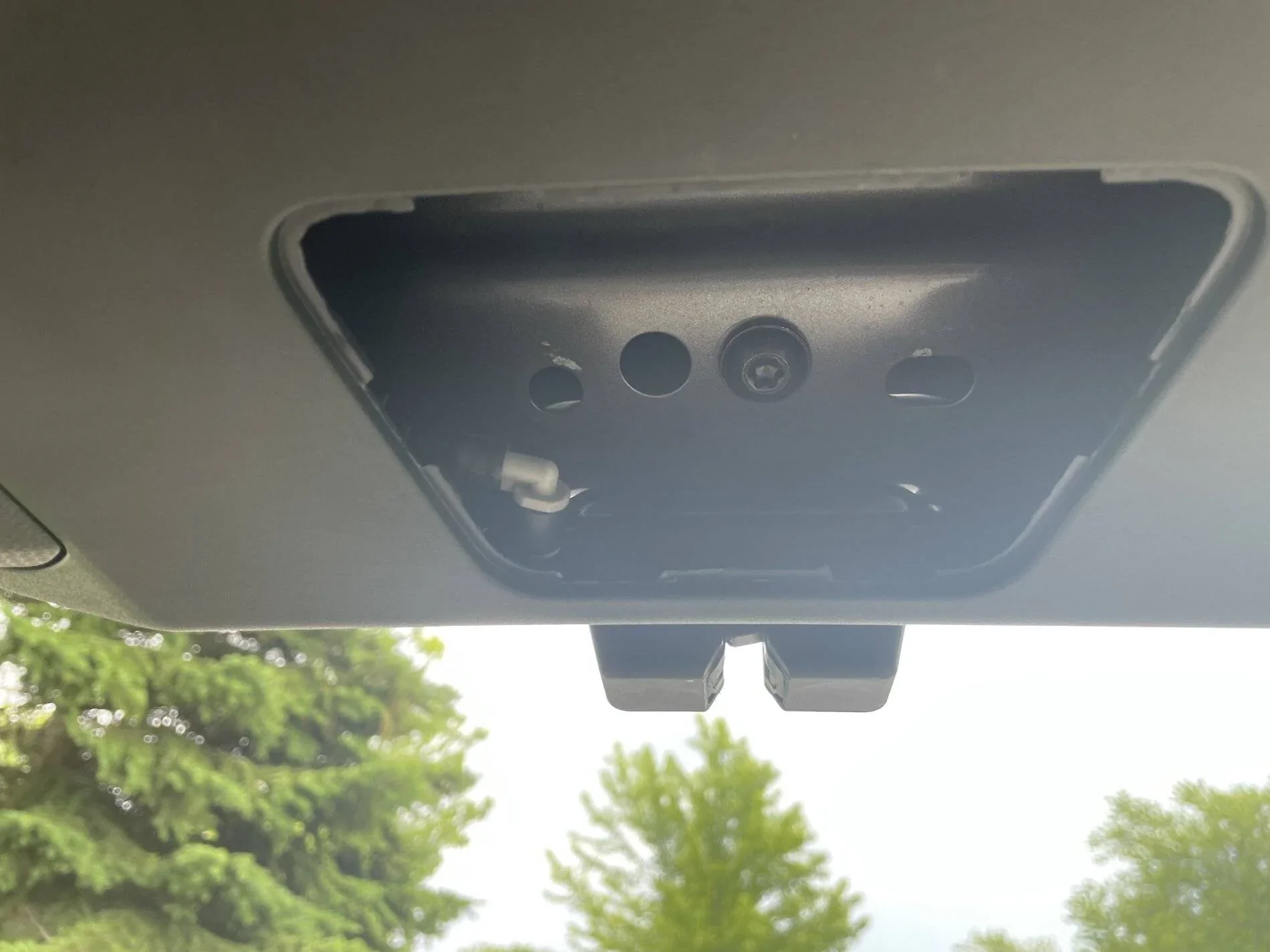

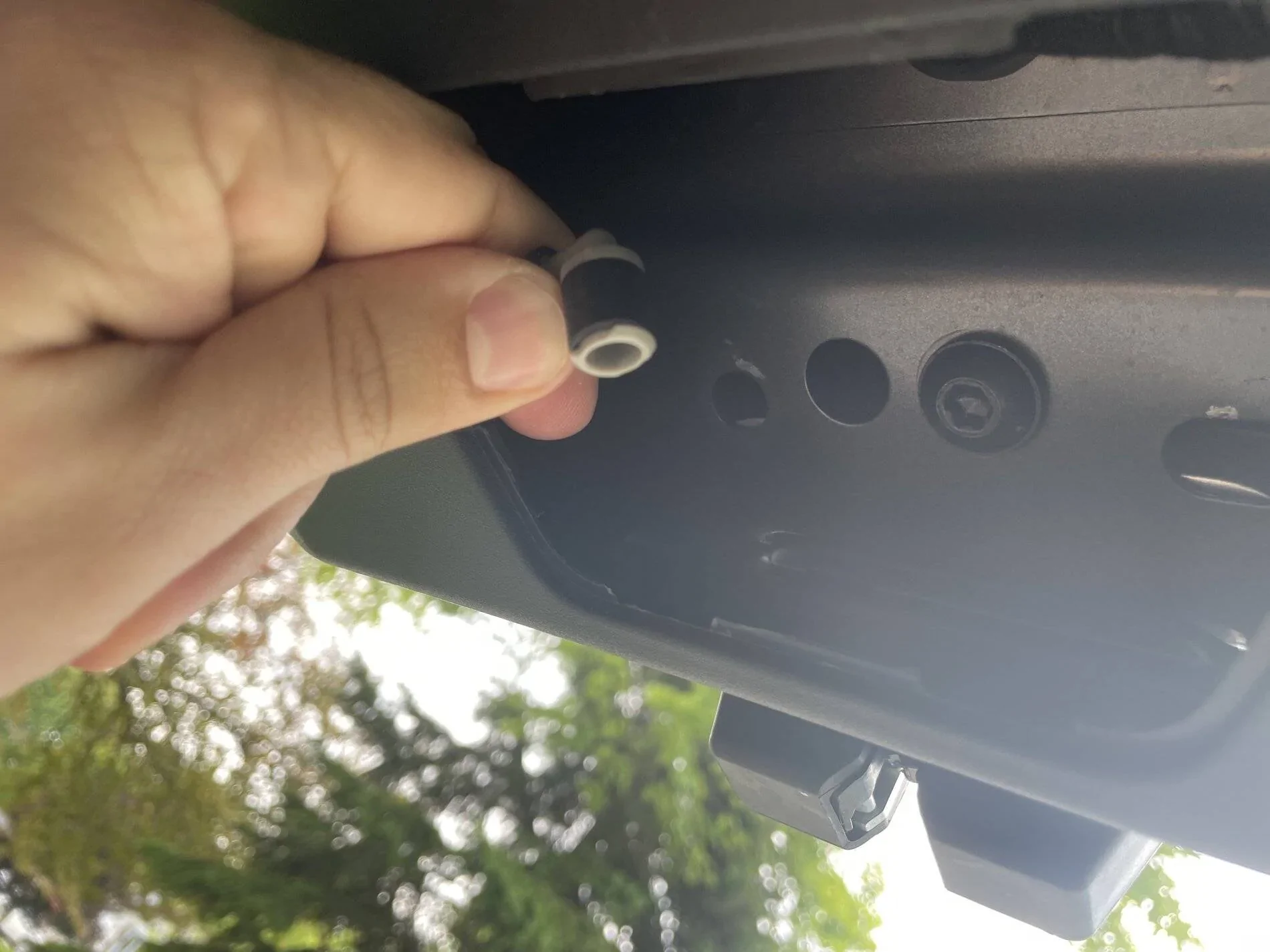

Sure - see attached. The gray thing in my fingers just sprays fluid all inside the door when I use the rear sprayer for the back windshield. I felt around looked in with a flashlight to no avail. I can find where it would have come disconnected from.
