MP3 music on a flash drive question

Glamdring70

Badlands
Well-Known Member
First Name
Tim
Joined
Mar 26, 2021
Messages
472
Reaction score
694
Location
Oregon
Vehicle(s)
BL+BL
What do you use to stream data to your other devices?

I use Plex and plexamp but am always looking at alternatives.
Nothing fancy at all. The music is stored on the PC Public folder and so it's available to consoles and devices that can work with Windows on the home network.
Advertisement


OP
OP
Kodiakbear

Kodiakbear

Outer Banks
Well-Known Member
First Name
Joe
Joined
Apr 15, 2021
Messages
160
Reaction score
306
Location
Southern New Hampshire
Vehicle(s)
2021 Bronco Sport Outer Banks
Well, thank you and much appreciated. Technology support has indeed been a big part of my career, so it's always nice to dust off the skills from time to time.

Sure. let's do a slightly deeper dive, beginning with Album Art.

Windows Media Player does/will create the album art automatically when ripping a CD, however for reasons that have always been a bit mysterious to me, the album art files are saved as hidden/system files during the rip. Because of this getting the album art copied over to a USB thumb drive involves a few more steps.

If you are comfortable with getting a 3rd party app, the most expedient way around this is to get a 3rd party file manager application from the Windows store called (appropriately enough) Files - File Manager for Windows:

Get Files - File Manager for Windows - Microsoft Store

Once you have downloaded that, you will need to change a few settings to see the album art (only once, the settings should "stick" unless you change them back): Launch the application and in the lower left-hand corner, click on settings:

Screenshot (385)_LI.jpg


On the settings page you will click on Files and Folders. On the Files and Folders page you will set "Show hidden files and folders" to On and "Hide protected operating system files" to Off.

Screenshot (387)_LI.jpg


Use the back arrow at the top left corner to return to the main menu, and then navigate to your music folder and files as you would typically do in File Explorer.

If you drill down into one of your Music Folders, you should now see several album art files and often a folder art file:

Screenshot (389)_LI.jpg

At this point if you do a copy of a folder to a USB drive, the album art will carry over to the USB drive and SYNC will read these files and display them correctly:



A few possible "gotchas":

I have on occasion run into an issue with Windows Media Player where it doesn't generate the album art, especially with more recent music releases. I submitted a bug report with Micrsoft a while back but given that WMP isn't used as much anymore, I don't think fixing it is a high priority for them. The workaround is fairly simple -- Launch the Groove Application after ripping new music. Groove is a better music player anyway and if it finds incomplete album information when scanning for new Music it will automatically do an online album match and add the album art as well.

If THAT fails (really rare, I've only had that fail for some very eclectic music in my library) there is a neat little open-source application called Album Art Downloader that can find and add almost any kind of album art you'd like. The link follows if anyone wants to play with it, but in the interests of keeping this somewhat simple I'm going to skip how to use that program for now:

Album Art Downloader download | SourceForge.net

One final P.S. - before someone points it out, I do know that it is possible to show hidden files and folders via the built-in Windows File Explorer. I prefer the above method for music moves, especially if one doesn't have some advanced Windows skills, because changing the settings to make those files and folders visible in File Explorer is a system-level change and does some odd things to your PC (such as making your system configuration files visible on your desktop) By using the Files - File Manager for Windows application, you don't run into that problem.

I'll see if I can cover how to edit track information (aka meta-data) a bit later.
Thanks Michael
Some "life things" have taken priority for now, but when I get back to this I will apply your teachings! I probably have a couple hundred cd's that I need to rip and put on a flash drive.
Thanks again,
Joe in NH


teschmann

First Edition
Active Member
First Name
Todd
Joined
Nov 20, 2020
Messages
36
Reaction score
80
Location
46033
Vehicle(s)
Ford
I found that if you copy all of your music folders and files into the root directory of a USB drive, Sync manages and displays the music correctly. If you try to put everything in a subfolder, like "All My Music." it doesn't read them. Just copy all your music files to the drive directly and it should work fine. I've used this process in a number of my Ford vehicles, including my BSFE, with no issues.


cgparsons1983

Badlands
New Member
First Name
Chris
Joined
Jan 3, 2022
Messages
2
Reaction score
5
Location
Boise, Idaho
Vehicle(s)
2022 Bronco Sport Badlands
Kudos to the WMP instructions above. This is the best way to do it for free. We ripped our audio CDs a long time ago into one large digital library so the receiver and computers and other devices can all play from it. I just copied those folders I wanted to a USB and the Ford did the rest. I can request a song by title or artist vocally. It is pretty good at figuring out what you told it.
I listen to a lot of death metal so I can't wait to say some of those band names out loud and seeing if my badlands understands me or disowns me.


Robins21

Big Bend
Well-Known Member
First Name
Mike
Joined
Nov 7, 2021
Messages
87
Reaction score
99
Location
Horse Pasture, Virginia
Vehicle(s)
21 Bronco Sport, 00 Ranger, 99 Explorer, 69 Stang
Please bear with me I am old & tech & computer challenged. You all talk about loading all your songs to a usb drive, after that what do you do with it so the sync system can play the music? :confused:


Andrezzi

First Edition
Well-Known Member
First Name
robert
Joined
Dec 3, 2020
Messages
53
Reaction score
32
Location
PA
Vehicle(s)
2021 Bronco Sport
Please bear with me I am old & tech & computer challenged. You all talk about loading all your songs to a usb drive, after that what do you do with it so the sync system can play the music? :confused:

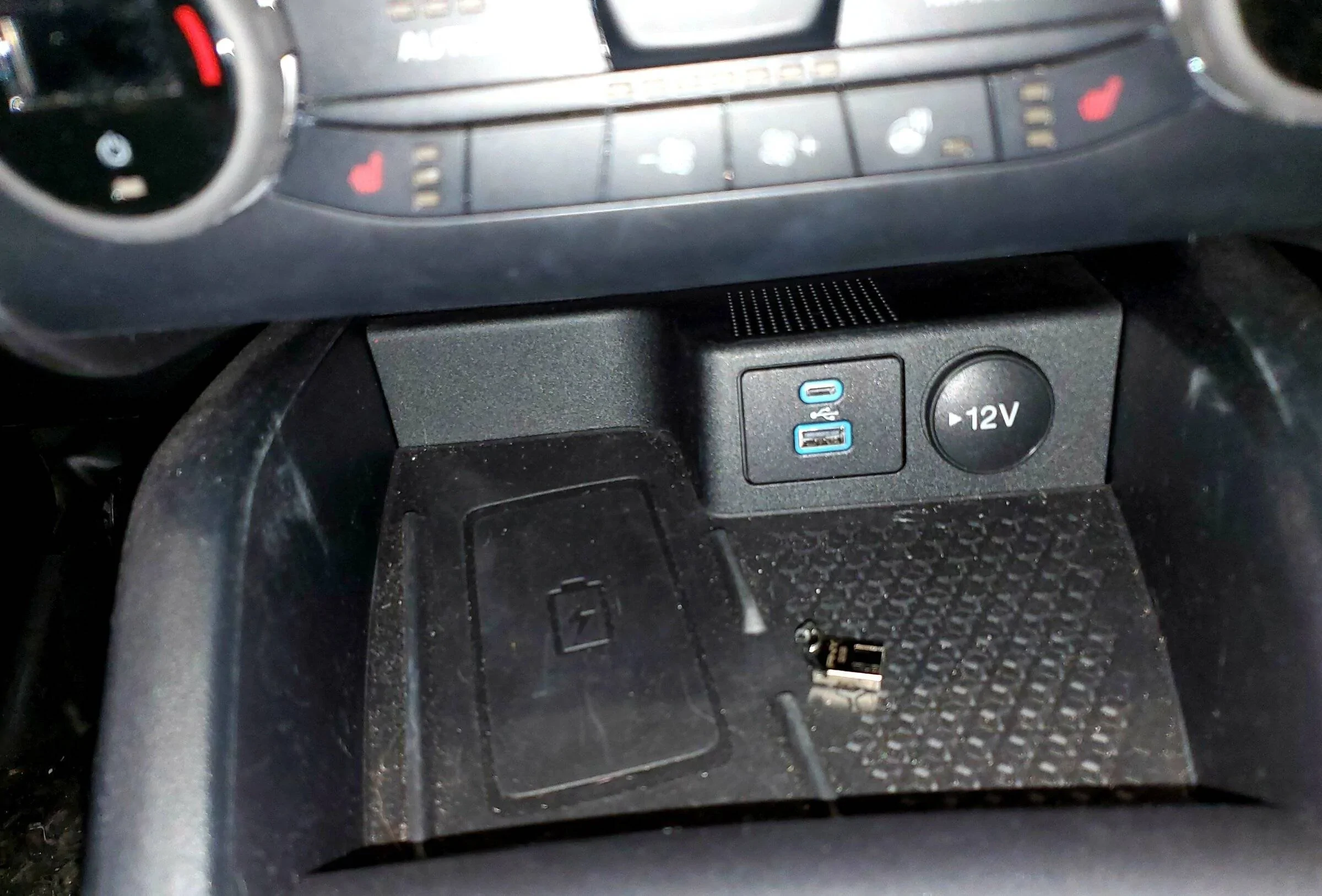

Plug it in to the port to the left of 12 volt outlet in the center section under heater controls


SWUKU

First Edition
Active Member
First Name
Gb
Joined
Nov 19, 2021
Messages
27
Reaction score
31
Location
KY
Vehicle(s)
Bronco Sport
The volume name of your USB thumb drive will show in the "Audio" "Sources" menu


SWUKU

First Edition
Active Member
First Name
Gb
Joined
Nov 19, 2021
Messages
27
Reaction score
31
Location
KY
Vehicle(s)
Bronco Sport
New (Large) USB Thumb drives can store many songs, but are not pre-formatted in FAT32.
Most car audio systems are designed to support up-to FAT 32, so reformatting the drive down to FAT 32 before loading songs may make the volume visible to you automobile


ZeroCool

Badlands
Well-Known Member
Joined
May 27, 2021
Messages
898
Reaction score
1,598
Location
Oh
Vehicle(s)
2021 Ford Bronco Sport
Hmm I haven’t thought about mp3 tagging since the early days of the iPod. I generally put music in the iPhone and just plug it in.
