MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors

VirtualJMills

Badlands
Well-Known Member
First Name
Jason
Joined
Sep 2, 2021
Threads
3
Messages
260
Reaction score
277
Location
California, US
Vehicle(s)
2021 Bronco Sport
I happened to have a bunch of MOLLE-Lok® hard connectors in various sizes handy, so I captured a few reference pictures. I like these connectors because they provide some structural rigidity to the connection, have a positive latch, and are drilled for screw-down hardware.

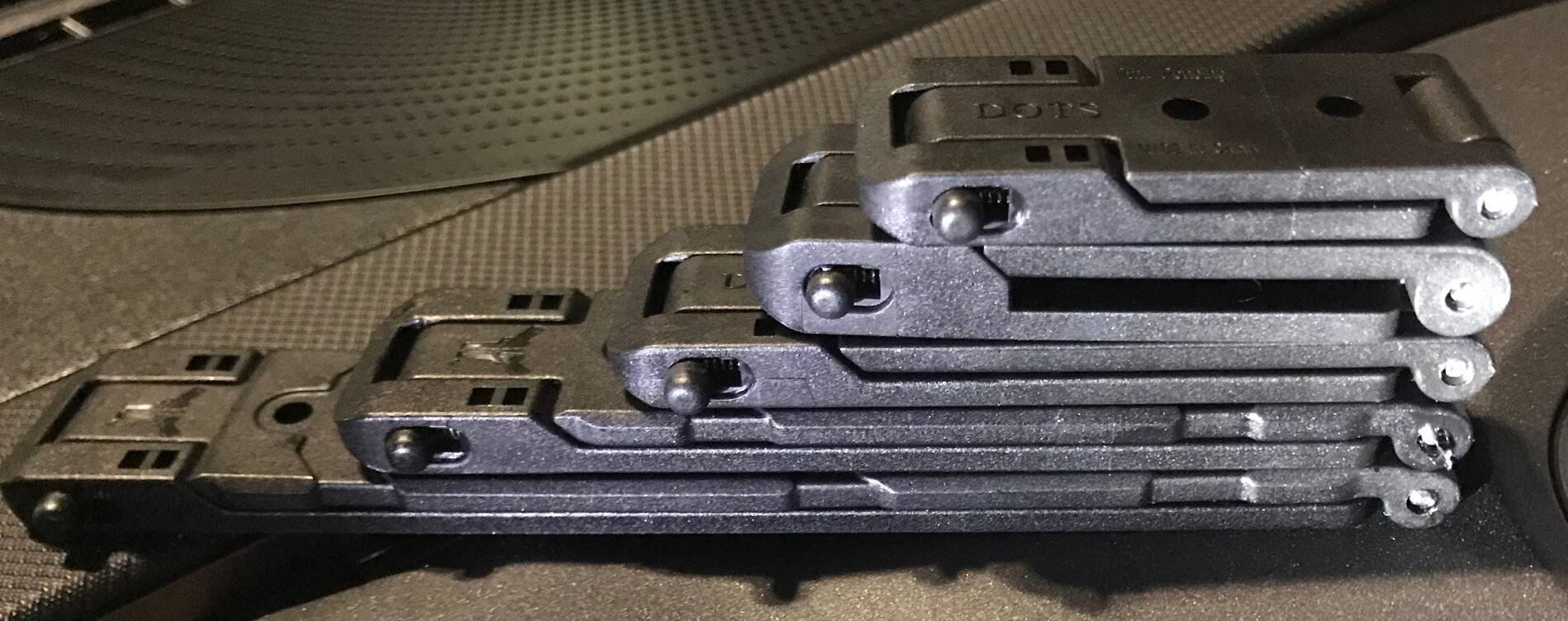

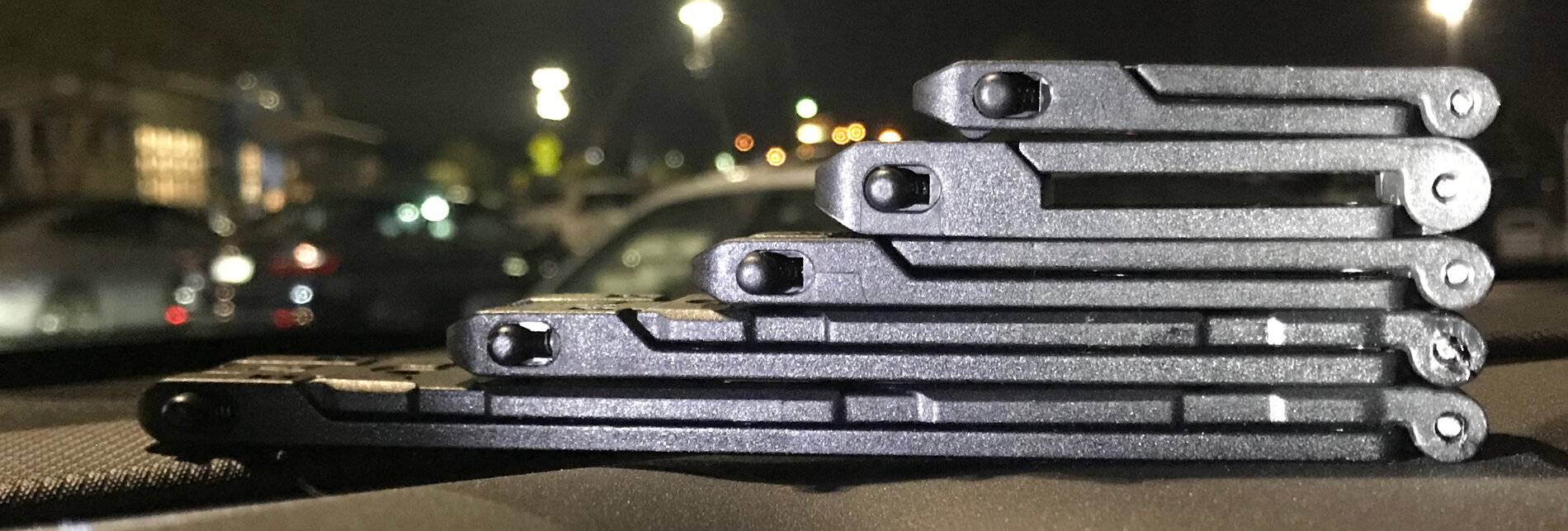

Sizes pictured are ML•1 standard depth (DOTS), ML•1-1/2 standard depth (DOTS), ML•2 with 4 mm depth (DOTS), ML•3-1/2 standard depth (Blade-Tech MOLLE-Lok "Short"), and ML•5 standard depth (Blade-Tech MOLLE-Lok "Long").

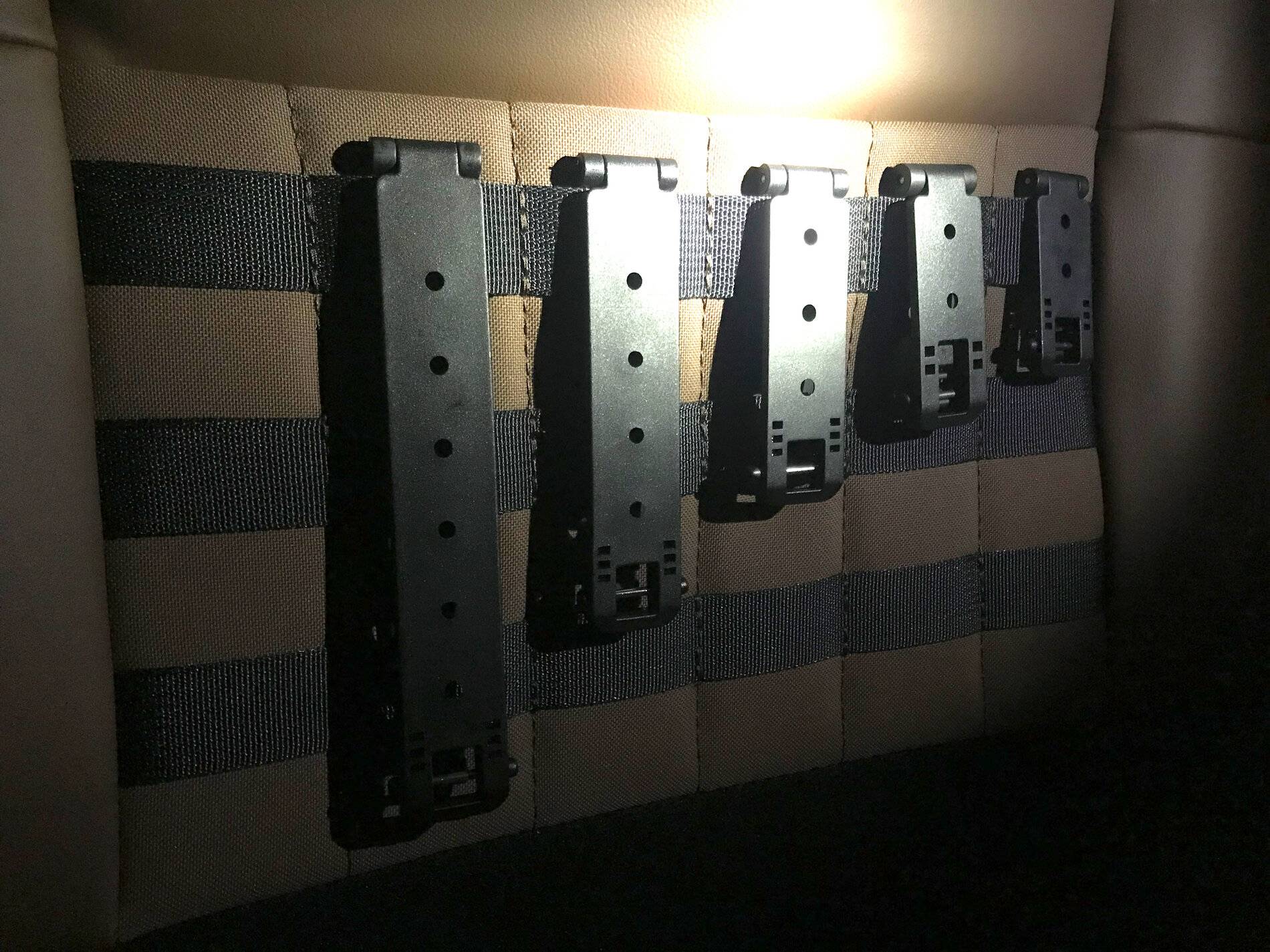

Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7412


Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7413


The vehicle is a 2021 Bronco Sport Badlands edition.

Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7414

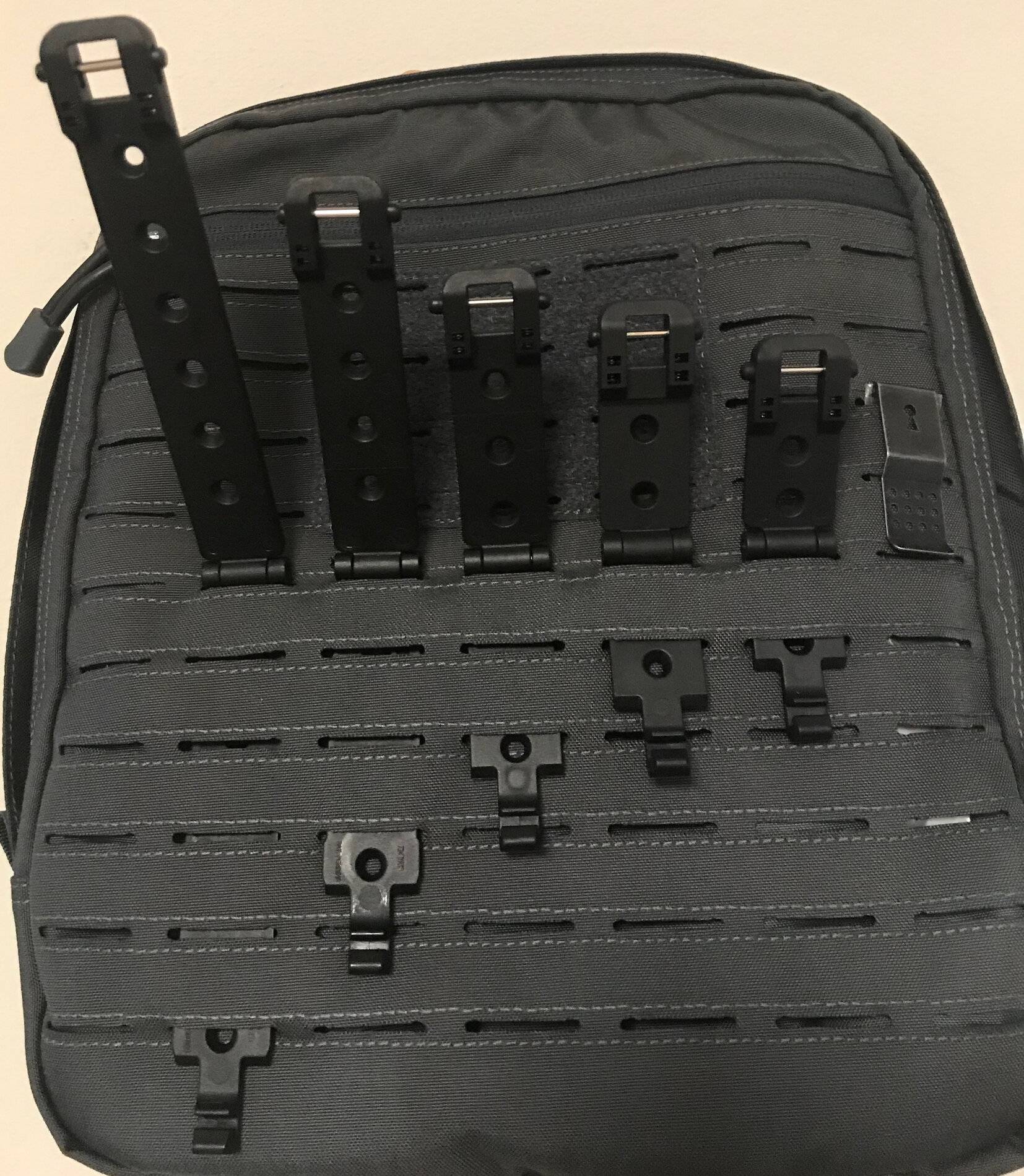

For cross reference, also pictured are that same series of MOLLE-Lok connectors on a Direct Action Gear Ghost Mark II®, specifically the front panel on the 3.5l detachable pouch. Direct Action uses a laser-cut MOLLE panel, so the vertical and horizontal spacing is standard MOLLE, but the cross-pieces aren't discrete runs of webbing, they're cut from a single sheet of Cordura® nylon.

Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7430


MOLLE-Lok connectors sourced from Index Thermoplastics and Blade-Tech Industries, and are a mix of the Blade-Tech branded MOLLE-Lok Gen 3 and DOTS branded MOLLE-Lok models. My understanding is that Blade-Tech is a licensee of the DOTS design.

I didn't have any ML•2 standard depth connectors, and didn't take photos of ML•1-1/2 with 6 mm depth connectors, nor ML•1-1/2_to_ML•2 adjustable with 6mm depth or 12 mm depth connector variants (usually used with duty belts).

I also didn't work the connectors through past the hinge for the photos, but there was sufficient space to do so if done carefully. Typically this would be done so that the MOLLE-Lok connector remains anchored to the surface (in this case the seat-back), and the attached bag is released to slip-free of the pointed-end.

I'm game to grab additional photos if desired.

TL;DR: MOLLE webbing in the Ford Bronco Sport is a six-column-wide, five-row-tall configuration. Positive attachment can be achieved with ML•1, ML•3, and ML•5 connector lengths, and attachment with some vertical slop can be achieved using ML•1-1/2, ML•2, and ML•3-1/2 lengths.

Disclosure: I have no sponsor affiliation with Ford, Blade-Tech Industries, DOTS, Index Thermoplastics, or Direct Action Gear. I simply like their products.

PS: I have no sponsor affiliation with Sparrows Lockpicks either, if you're wondering about the object in the right-most of the bag photo. ;-)
Sponsored


OP
OP

VirtualJMills

Badlands
Well-Known Member
First Name
Jason
Joined
Sep 2, 2021
Threads
3
Messages
260
Reaction score
277
Location
California, US
Vehicle(s)
2021 Bronco Sport
I have never dealt with any of this kind of equipment. What is the purpose?

MOLLE is an evolution of (M)ALICE / PALS, which is an equipment attachment scheme used within the US (and some other countries) .Mil organizations.

MOLLE-Lok connectors are one of a number of methods for connecting MOLLE compatible items together, in the case of the Bronco Sport, the rear of the front seats in most trim levels include a basic 6 x 5 MOLLE panel.

You'll find other connectors including flexible plastic, single or multi-layer webbing, and even tongue depressors (I kid you not!).

The idea is that you can attach whatever MOLLE compatible gear you'd like, in the arrangement you prefer, to that panel.

Ford offers some co-branded storage/organization items, but •anything• made to be MOLLE compatible, and within the size (and weight) constraints of the panel on the back of the seat, •should• work.

I'll post a few examples once I get the photos uploaded later this evening.

OP
OP

VirtualJMills

Badlands
Well-Known Member
First Name
Jason
Joined
Sep 2, 2021
Threads
3
Messages
260
Reaction score
277
Location
California, US
Vehicle(s)
2021 Bronco Sport
Here are two practical examples, as well as a shot showing MOLLE-Lok connectors threaded past the hinge-point:

A Vanquest FTIM Gen 2® (or equivalent geometry FAT•Pack®) IFAK bag (Individual First-Aid Kit / Trauma Kit) and a Vanquest HYDRA® oversized water bottle holder (1 litre). The former is MOLLE compatible, but requires connectors, the latter is both MOLLE compatible, •and• has on-board MOLLE connectors made from double-thickness webbing.

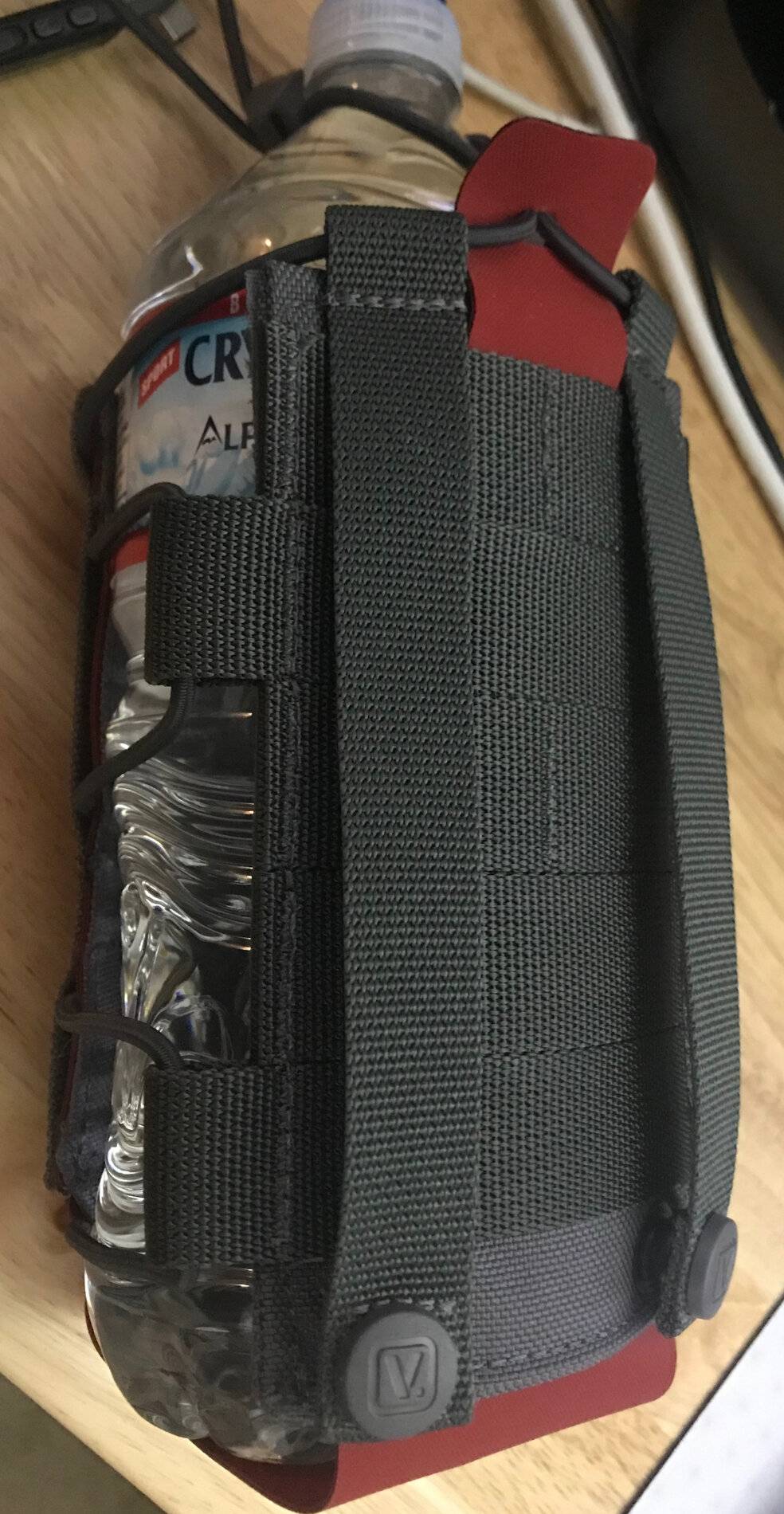

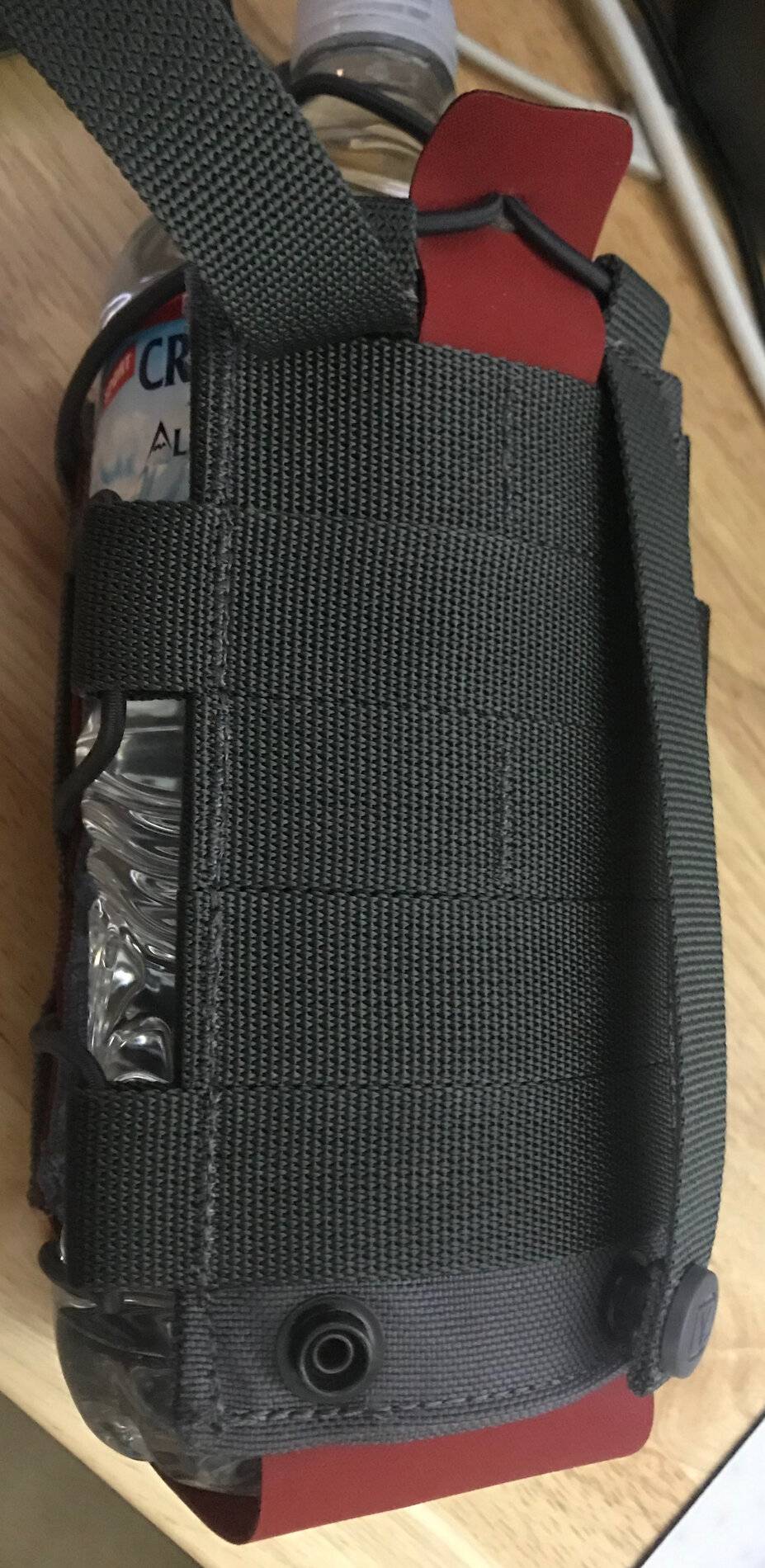

First, the bottle holder with built-in MOLLE connectors (two-column, five-row configuration), and the holder mounted:
Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7438


Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7439

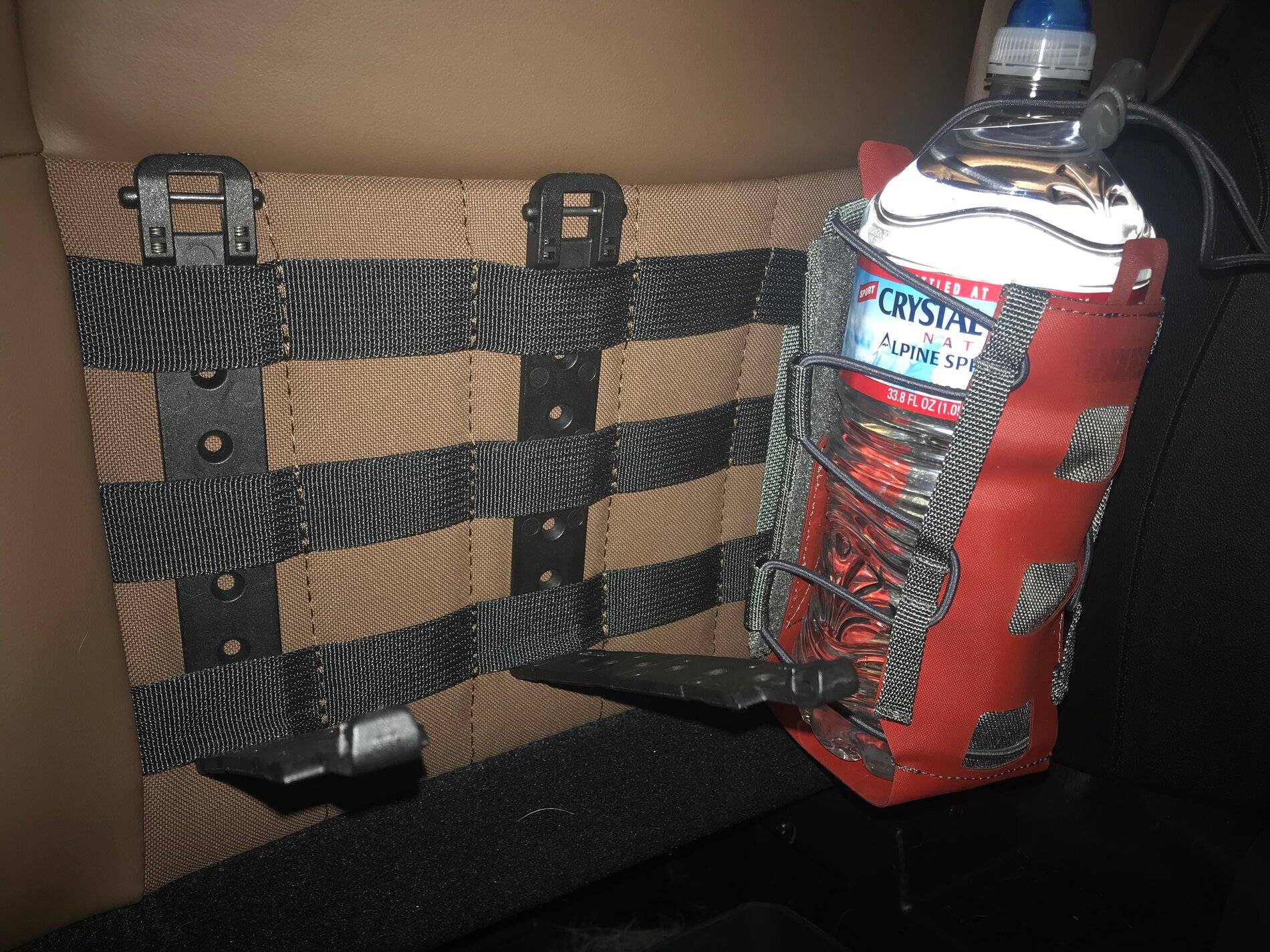

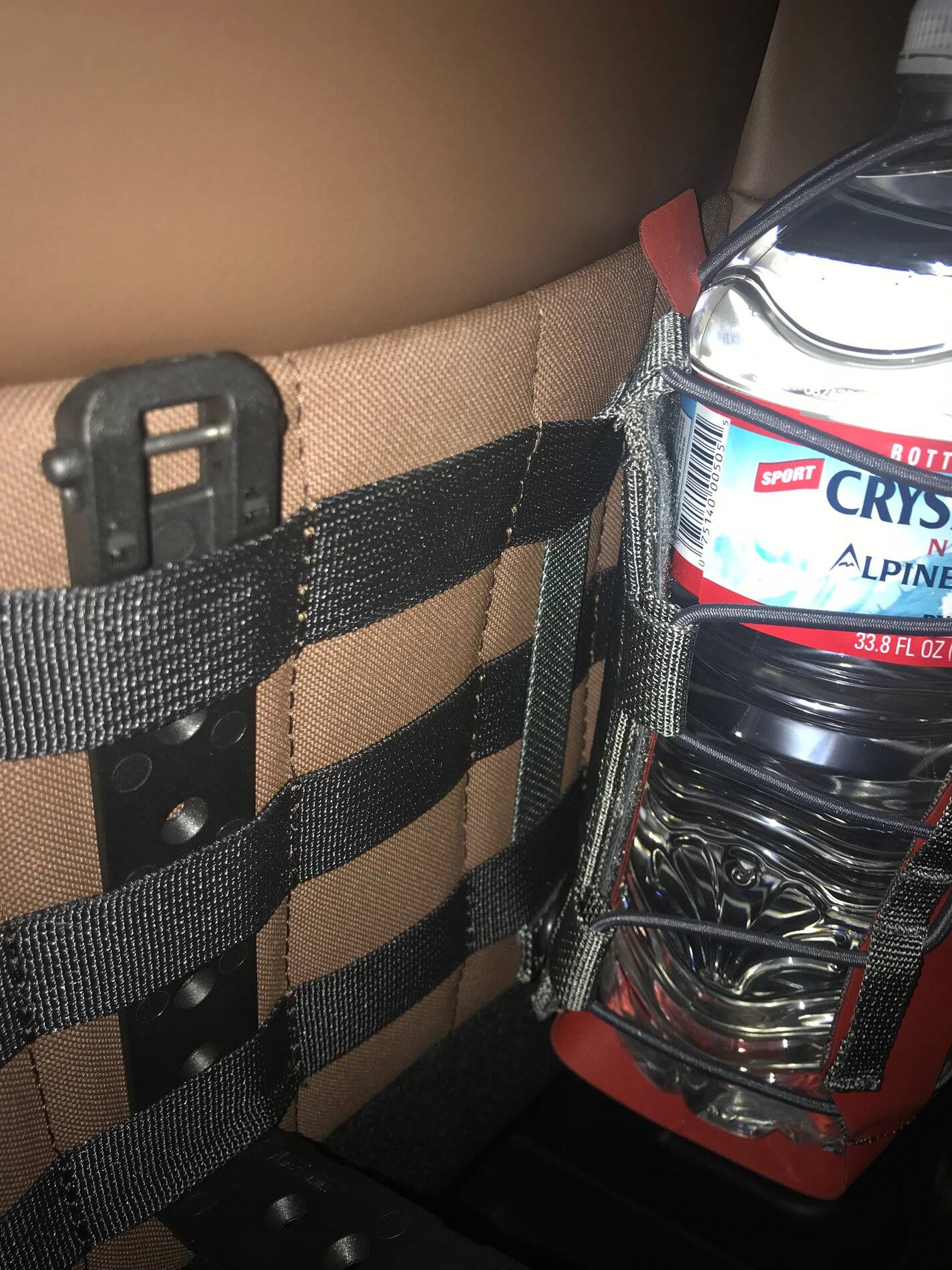

Then the bottle holder with MOLLE-Lok connectors installed (three-column, five-row configuration) past the hinge-point in preparation for mounting the bag:

Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7441


Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7440

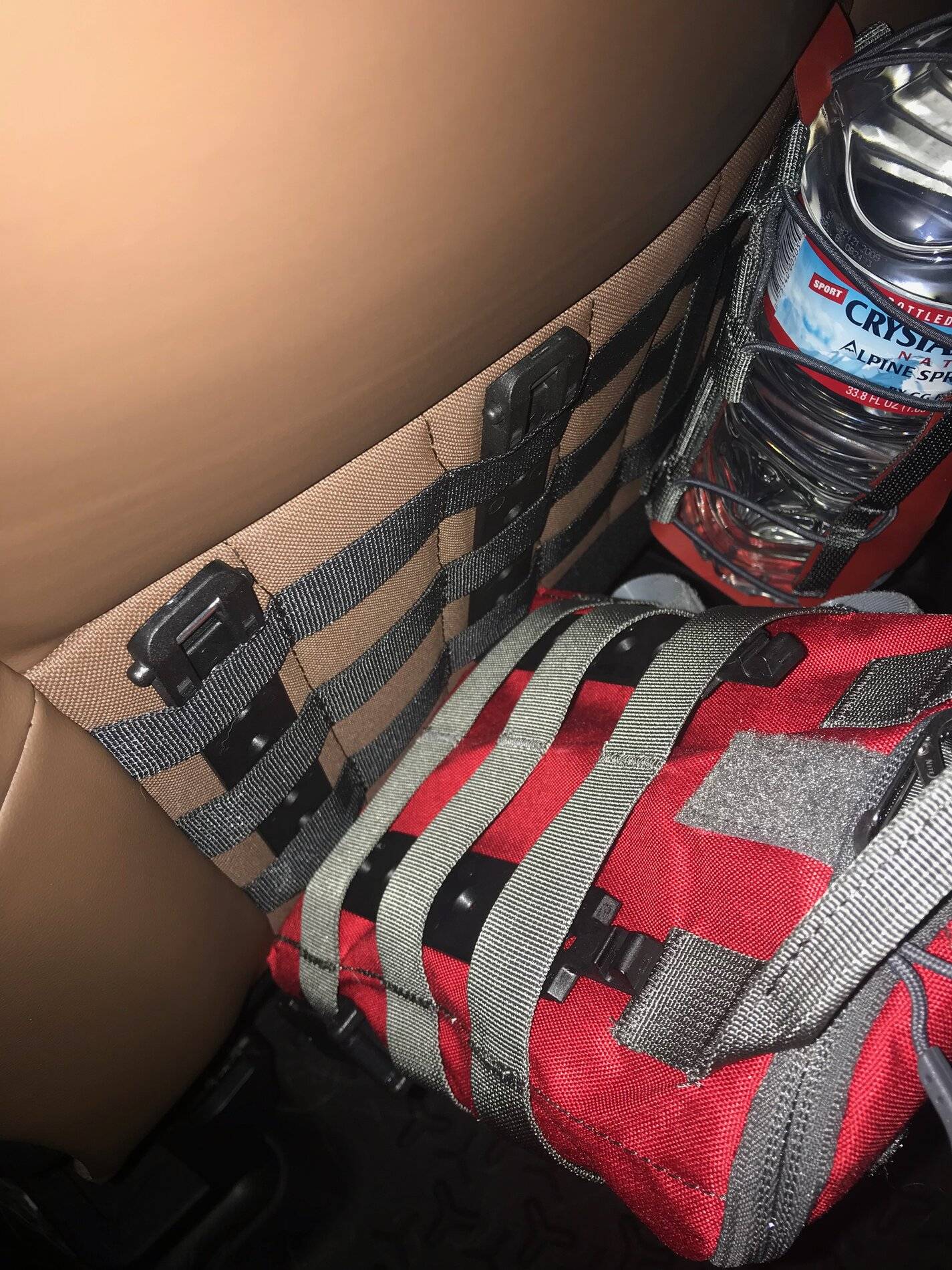

Then the bag threaded-onto the "fixed location" MOLLE-Lok tangs:

Ford Bronco Sport MOLLE Web (back of front row seats) Sizing Reference Pictures using MOLLE-Lok® connectors IMG_7442

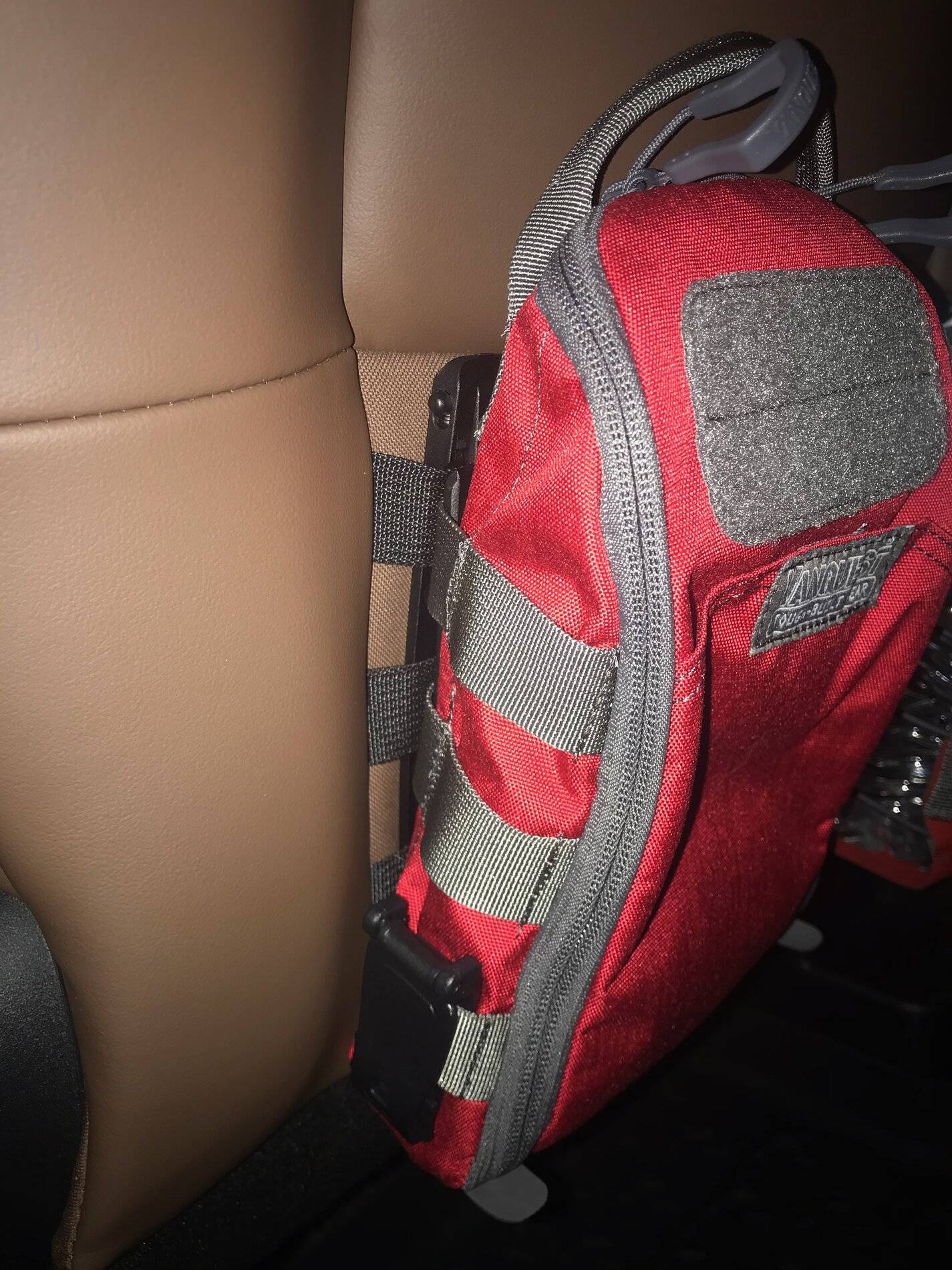

Then finally with the MOLLE-Loks clipped-shut. Deployment of the bag just involves flipping the two MOLLE-Lok latches and pulling upwards/outwards on the bag's handle. In this use-case, the MOLLE-Lok connectors stay attached to the vehicle seat.
