Moisture in headlights?

Weston52

Big Bend
Well-Known Member
First Name
Weston
Joined
Apr 28, 2021
Messages
79
Reaction score
117
Location
Atlanta
Vehicle(s)
67 F100, 79 VW Bus, 04 Solara

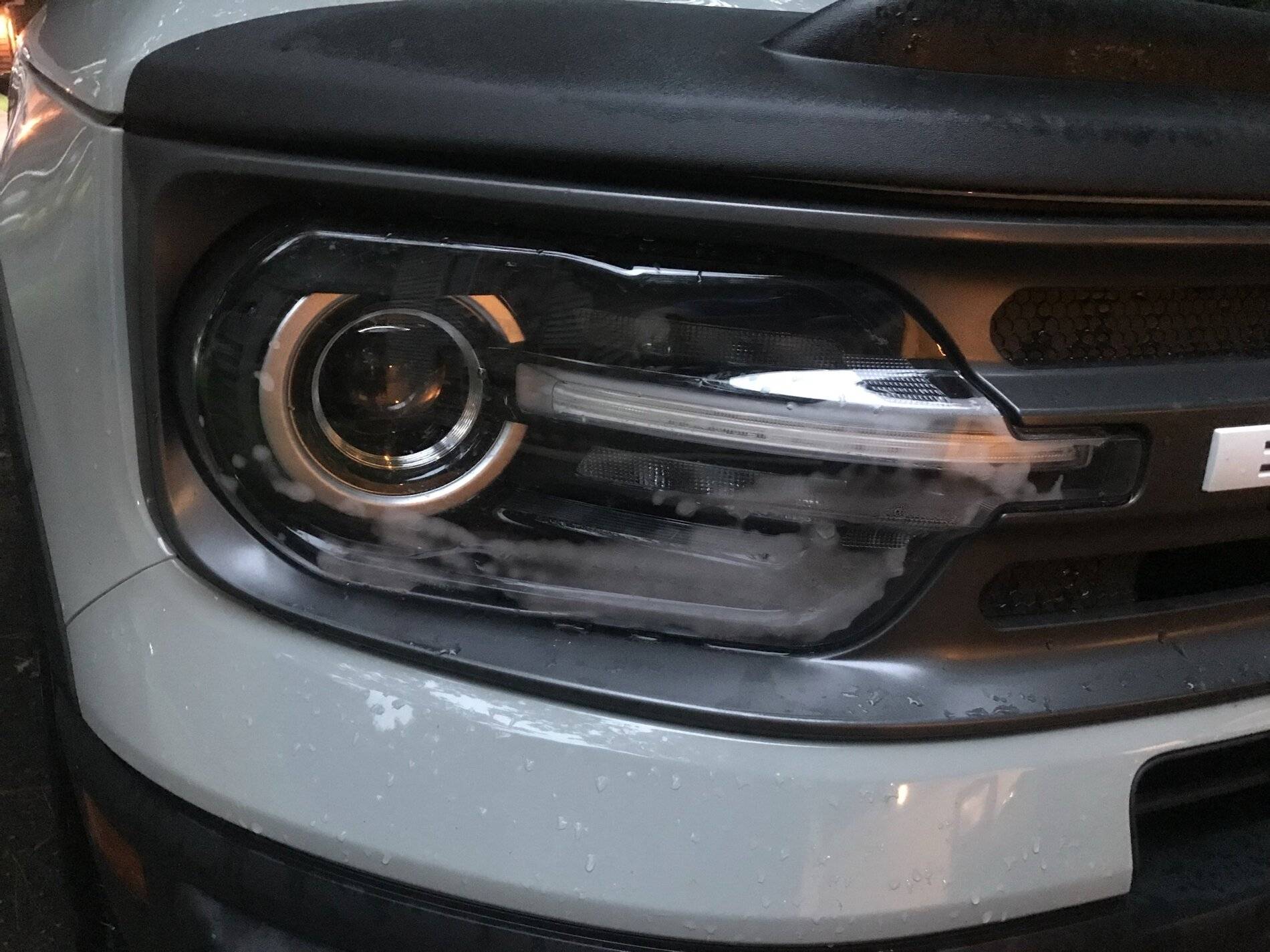

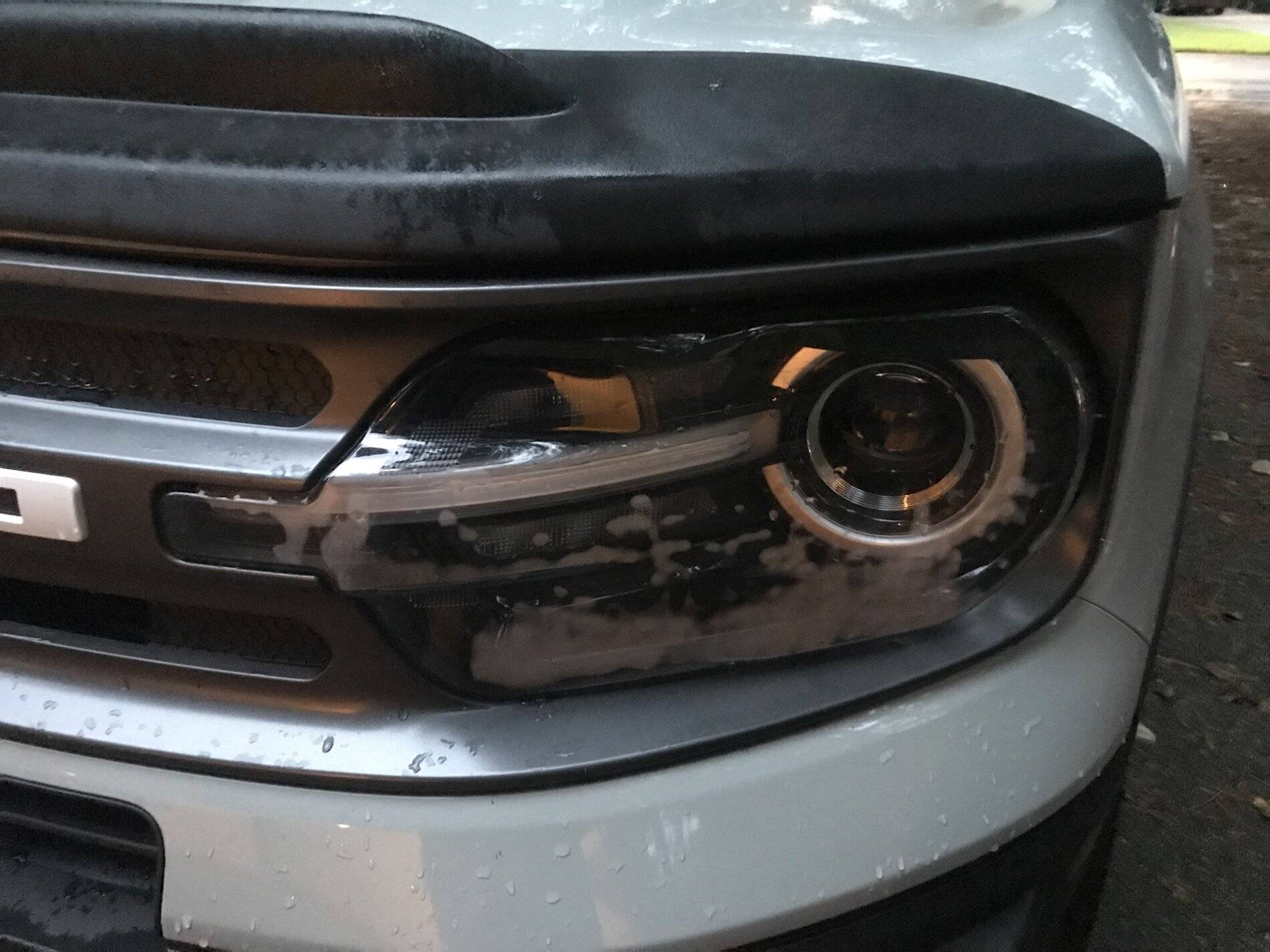

My son borrowed my BB with about 5,000 miles the other day and sent me the attached pics of moisture in both headlights. Having ignored some moisture in a Prius headlight a few years ago led to a $800 replacement so I’m a little sensitive to this!
I found a few thoughts on this in this forum and the F150 forum that seemed to say it was normal and that the headlights actually had vent fans. That would all be new to me. Do any of you have a similar condition or further thoughts?
Advertisement



dejones64

Big Bend
Well-Known Member
First Name
Dan
Joined
Aug 23, 2021
Messages
72
Reaction score
76
Location
MN
Vehicle(s)
Lancer, BS BB
That seems like a lot of moisture, I've not seen that much before. Are these LED? Did your Prius have LED?

OP
OP
Weston52

Weston52

Big Bend
Well-Known Member
First Name
Weston
Joined
Apr 28, 2021
Messages
79
Reaction score
117
Location
Atlanta
Vehicle(s)
67 F100, 79 VW Bus, 04 Solara
I assume these are LED. The Prius was HDI or something like that but definitely not LED.


max the dog

Badlands
Member
First Name
warren
Joined
May 9, 2021
Messages
23
Reaction score
15
Location
maine
Vehicle(s)
1989 L8000, 2003 Excursion, 2001 F350
My son borrowed my BB with about 5,000 miles the other day and sent me the attached pics of moisture in both headlights. Having ignored some moisture in a Prius headlight a few years ago led to a $800 replacement so I’m a little sensitive to this!
I found a few thoughts on this in this forum and the F150 forum that seemed to say it was normal and that the headlights actually had vent fans. That would all be new to me. Do any of you have a similar condition or further thoughts?
I have the Badlands, less than 1200 miles, moisture in both headlight. I wonder if that is why the left cracked? Dealer took pictures said "no sign of bird strike, stone or anything. Sent pics to Ford they denied any warranty claim. My ins. is out $1500 plus install.


vxarctic

Outer Banks
Well-Known Member
Joined
Jun 18, 2021
Messages
98
Reaction score
102
Location
California
Vehicle(s)
Bronco Sport
I have the Badlands, less than 1200 miles, moisture in both headlight. I wonder if that is why the left cracked? Dealer took pictures said "no sign of bird strike, stone or anything. Sent pics to Ford they denied any warranty claim. My ins. is out $1500 plus install.
Doesn't the headlights have fans to stop mositure from building up? Could the fans be broken?


AndyMac204

Base
Well-Known Member
First Name
Andy
Joined
Jun 27, 2021
Messages
146
Reaction score
208
Location
Canada
Vehicle(s)
2021 Bronco Sport Base
that seems like ALOT of moisture. i haven't seen any in mine.


Fossil

Badlands
Well-Known Member
First Name
Ernie
Joined
Aug 20, 2020
Messages
383
Reaction score
576
Location
ohio
Vehicle(s)
Raptor, SVT Mustang, SHO,
seems like a vent fan would draw outside air into the housing.
filtered air hopefully, might get dirty inside.

btw I believe the fan is to cool the LED heat sink

OP
OP
Weston52

Weston52

Big Bend
Well-Known Member
First Name
Weston
Joined
Apr 28, 2021
Messages
79
Reaction score
117
Location
Atlanta
Vehicle(s)
67 F100, 79 VW Bus, 04 Solara
I have the Badlands, less than 1200 miles, moisture in both headlight. I wonder if that is why the left cracked? Dealer took pictures said "no sign of bird strike, stone or anything. Sent pics to Ford they denied any warranty claim. My ins. is out $1500 plus install.
Reason for denial?


tooloko

Big Bend
New Member
First Name
javier juarez
Joined
May 17, 2021
Messages
3
Reaction score
3
Location
mexico cancun
Vehicle(s)
bronco

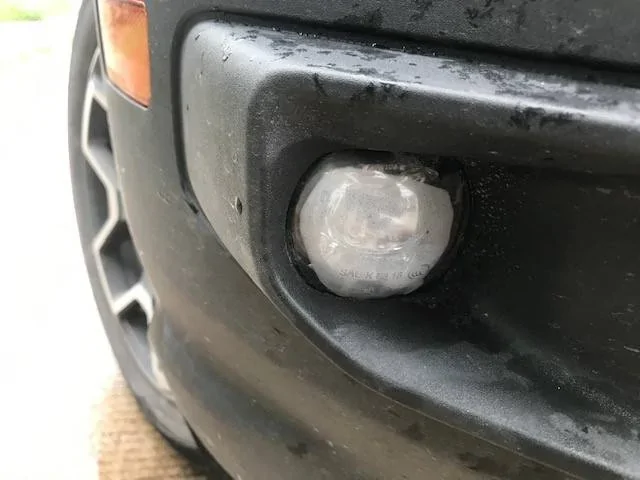

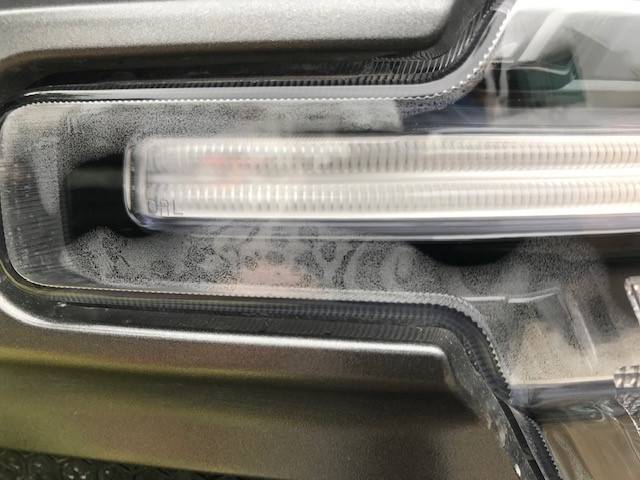

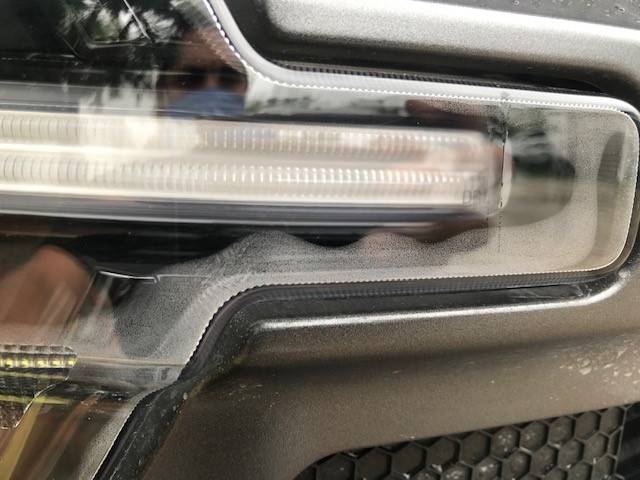

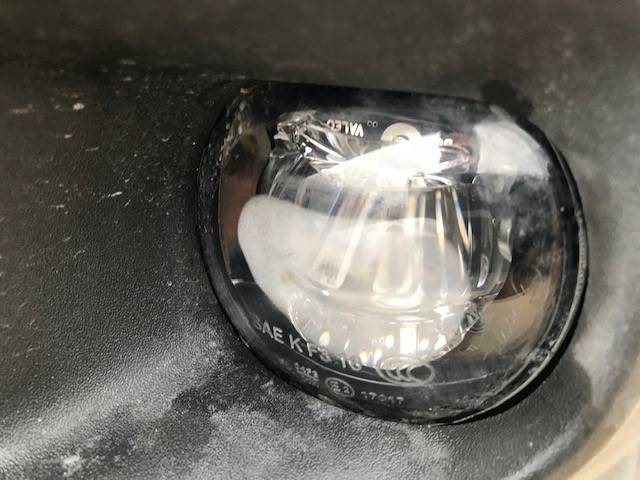

The dealer and Ford Motor Company said: "It´s normal, a regular condition", always when it´s raining it will happens... You didn´t buy a submarine it happens in all broncos, it also depends of your geographical zone and the weather, that´s "all off road"
delantero der 2.jpg
delantero izq 2.jpg
neblinero der 1.jpg
neblinero izq 1.jpg


ChefDank

Badlands
Well-Known Member
First Name
Nick
Joined
Apr 3, 2021
Messages
280
Reaction score
279
Location
New York
Vehicle(s)
2021 Ford Bronco Sport
The dealer and Ford Motor Company said: "It´s normal, a regular condition", always when it´s raining it will happens... You didn´t buy a submarine it happens in all broncos, it also depends of your geographical zone and the weather, that´s "all off road"
delantero der 2.jpg
delantero izq 2.jpg
neblinero der 1.jpg
neblinero izq 1.jpg
🤷‍♂️ I've had some pretty hard rain storms and some real foggy mornings; no condensation in mine

OP
OP
Weston52

Weston52

Big Bend
Well-Known Member
First Name
Weston
Joined
Apr 28, 2021
Messages
79
Reaction score
117
Location
Atlanta
Vehicle(s)
67 F100, 79 VW Bus, 04 Solara
The dealer and Ford Motor Company said: "It´s normal, a regular condition", always when it´s raining it will happens... You didn´t buy a submarine it happens in all broncos, it also depends of your geographical zone and the weather, that´s "all off road"
delantero der 2.jpg
delantero izq 2.jpg
neblinero der 1.jpg
neblinero izq 1.jpg
I’m thinking this rather flippant response is correct. The moisture condition I first reported happened to be after the Ida rains. Today I noticed after a dry spell of several days the lights are completely free of any moisture. It would appear that they aren’t sealed in the traditional sense.


Zolutar

Outer Banks
Well-Known Member
First Name
Trevor
Joined
Mar 11, 2020
Messages
102
Reaction score
93
Location
Sea to Sky, BC, Canada
Vehicle(s)
2017 Escape Titaniuim, 2021 Bronco Sport OB+
If you read the warranty on condensation in the headlights or taillights, there has to be enough for water droplets to run down. I went through this with one with my escapes. the rear tail lights condensed and streaked (among other leaking issues thus why we eventually traded it for the Bronco). Every time it was denied as "normal function" though the last time at the end of warranty period where it actually was enough to make streaks they were ready to replace it.
My other and current escape has light misting occasionally, similar to the pics in this thread in the tail lights but nothing like the one I ditched.

The headlights and tail lights are not SEALED units. They do have vents by design to compensate for humidity changes etc.

What i see in the pics above is completely considered normal by Ford. Annoying and frustrating yes, but not enough to be considered a defect.
I live in the pacific northwest and when the rains start, I expect to see a bit of this, but we have not so far, even in the spring when it was still wet.
