Diode Dynamics is excited to introduce our Stage Series SSC1 LED Fog Light Kit for 2021 Ford Bronco!

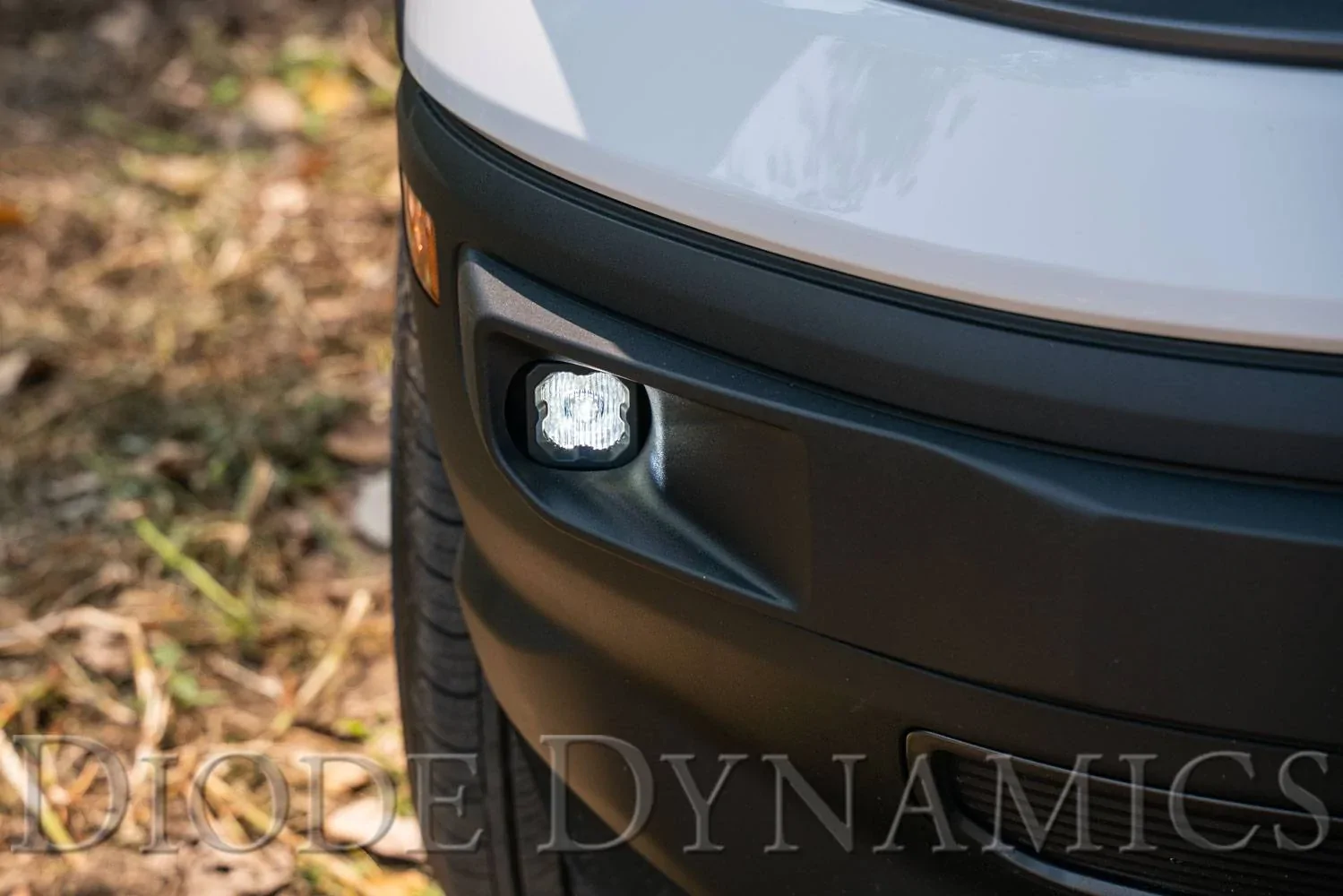

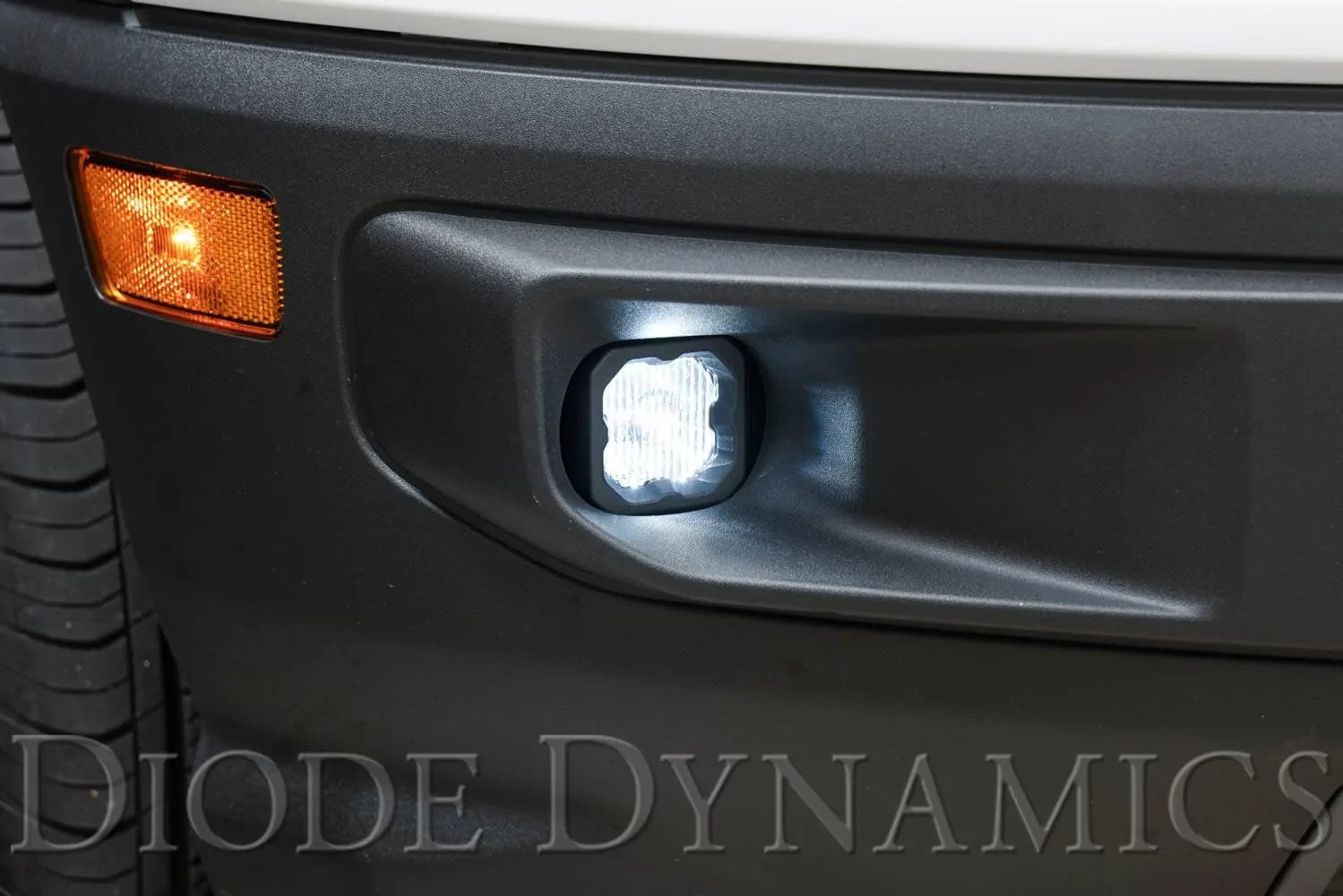

Upgrade the fog lights on your 2021 Ford Bronco Sport with our SSC1 LED Fog Light Kit! Featuring custom-engineered TIR optics combined with an Osram Boost HX 20W LED chip, this is the ONLY kit on the market to provide SAE-compliant, road-legal light output! With the included custom bracket with bezel, the SSC1 Fog Light Kit has a clean, factory-style appearance, only much brighter!

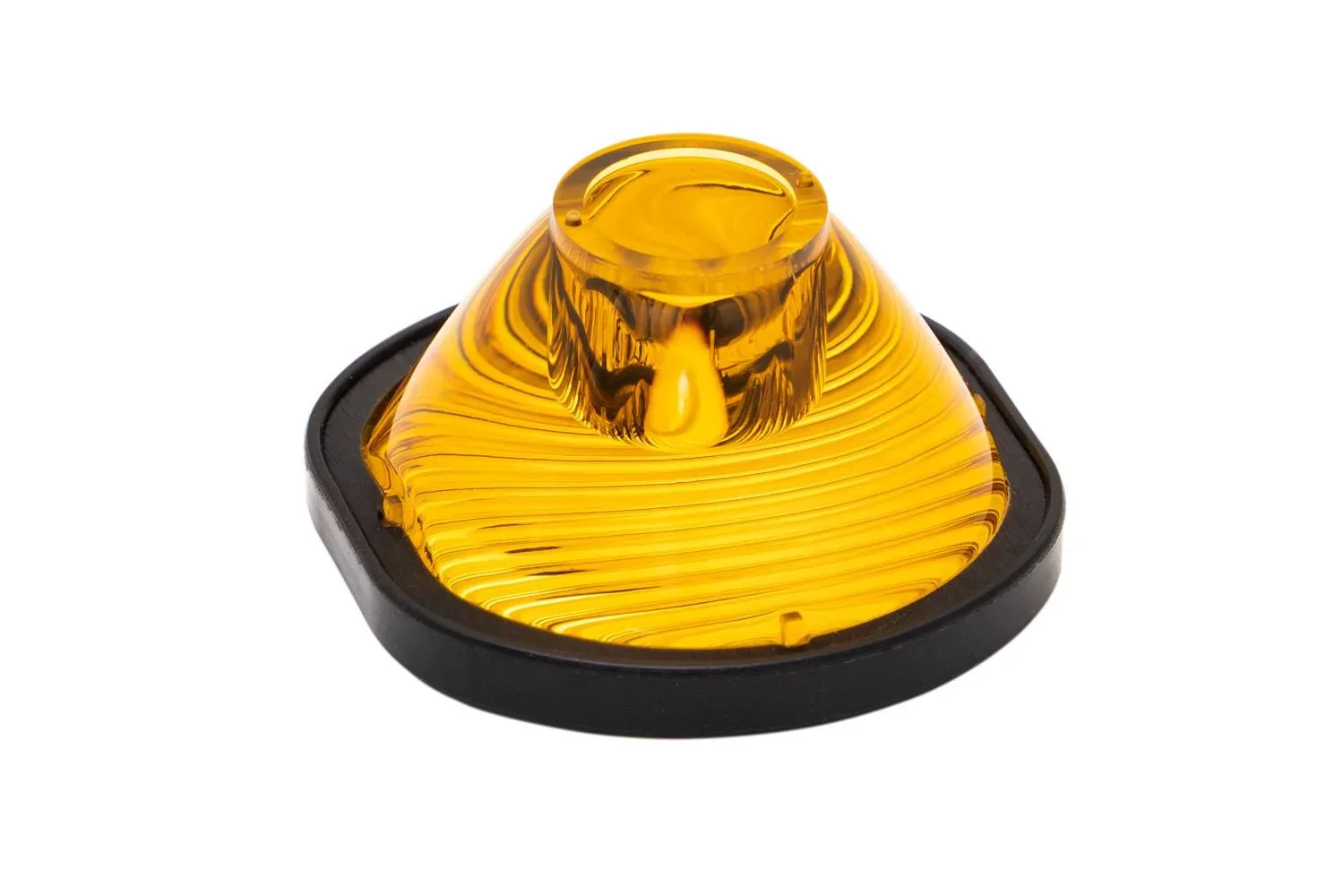

Focused: Most LED pods on the market, even certain premium options, use outdated technology like reflectors or simple lenses that lose light internally and to glare. By comparison, our custom-engineered total internal reflection (TIR) optic in the SSC1 collects all of the light from the LED chips, drastically reducing wasted light and improving total efficiency.


From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series C1 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SSC1 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.


SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

  • SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. When installed as a pair and aimed in accordance with your state's regulations, it meets the SAE J583 standard as a Foglamp for legal on-road use, and will fully illuminate the area in front of your vehicle.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.


Backlight Functionality. The Stage Series C1 LED Pod includes a distinctive backlight feature, in a brilliant amber color. The SSC1's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find in other single-LED pods on the market. This allows you to double the functionality of your setup, by adding an accent light as well as a main beam!

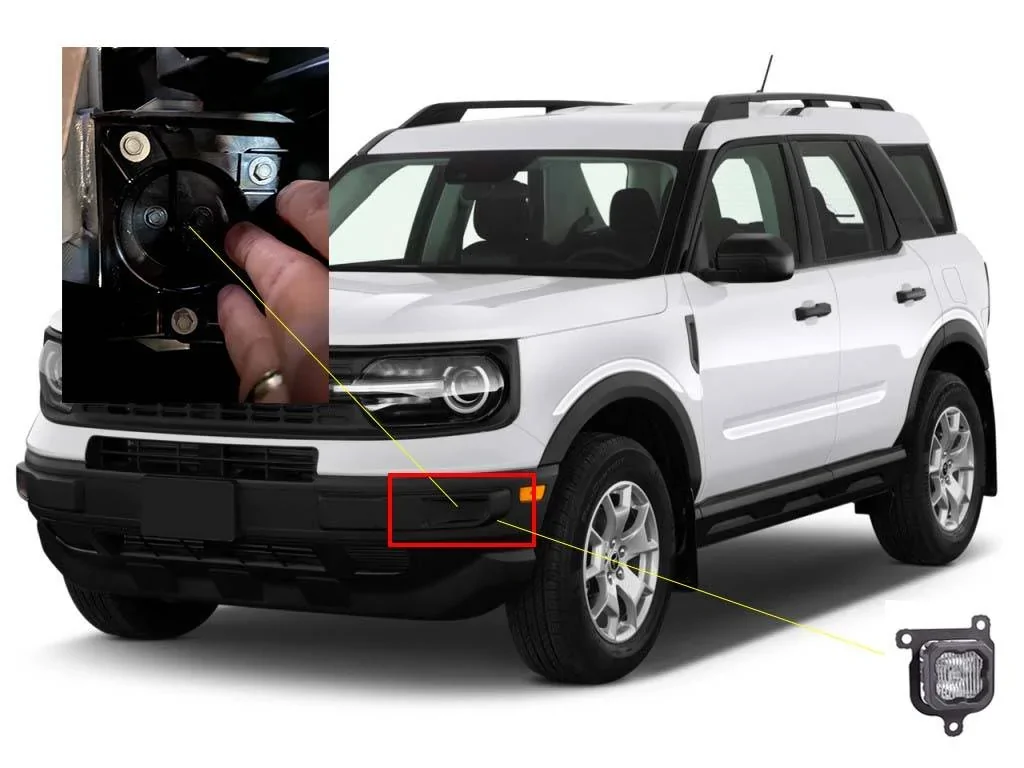

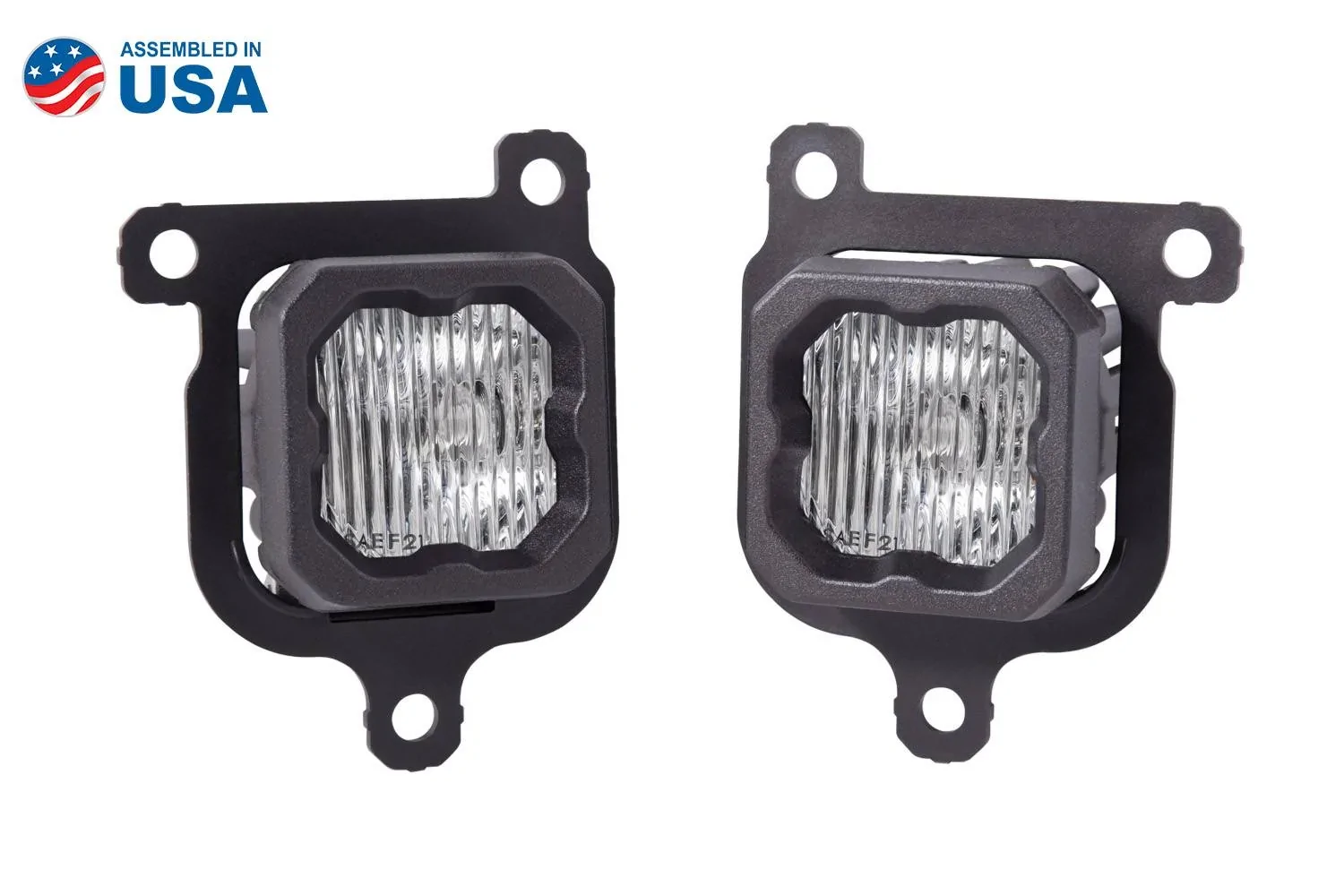

Plug and Play. Thanks to custom-molded brackets, the SSC1 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Two H11-size DT adapter wires are included with the kit, allowing you to connect the lights to your factory bulb sockets - no additional wiring needed!

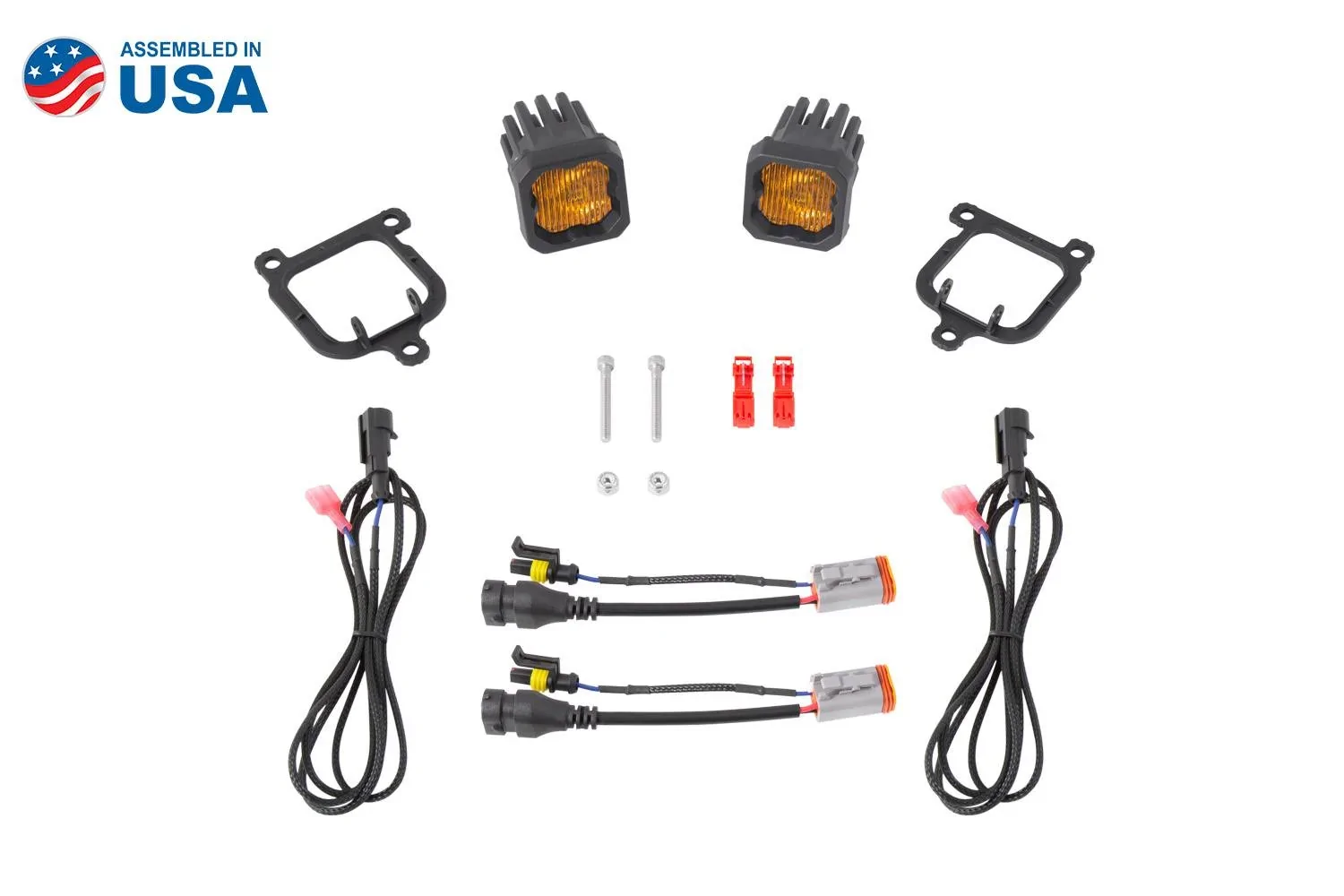

Each kit will include:
  • Two (2) SSC1 standard LED pods
  • Two (2) T-taps
  • Two (2) H11 DT 4-Pin adapters
  • Two (2) Type FBS brackets
  • Mounting hardware
Note: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.


Proven Reliability: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.


If you have any questions, please don't hesitate to post, PM, or email [email protected].

PM us for the free-shipping code (U.S. forum members only)

Thanks for looking,
John C.
Diode Dynamics
Advertisement


OP
OP
Diode Dynamics
First Name
John C.
Joined
Jul 14, 2021
Messages
22
Reaction score
21
Location
St. Louis, Missouri
Website
www.diodedynamics.com
Vehicle(s)
Ford Bronco
Why would you want amber? Wouldn't it be less bright?
The main beam is offered in 3000K selective yellow or 6000K cool white on the SSC1 LED pod apart of this kit.

The selective yellow is great for high contrast in poor weather or a distinctive look on the road.

The amber color output is an additional backlight feature that functions as an additional running light when the main beam isn't in use.

When it comes to raw output. The 6000K cool white is going to be the higher performance option compared to 3000K selective yellow.

John C.
Diode Dynamics


Desert Bronco.

Badlands
Well-Known Member
First Name
Mitchell
Joined
Sep 29, 2021
Messages
57
Reaction score
45
Location
Mojave Desert
Vehicle(s)
F-150, Schwinn Beach Cruiser,
Why would you want amber? Wouldn't it be less bright?
When I was in France about 12 years ago they all drove around with amber fog lights and harassed non French tagged vehicles ( —--) . I guess that was their thing. Also sort of nice if your trying to find friends at a campground and either you or them have amber lights and it’s pitch dark. Easier to spot then just regular lights cool lights. Ditto for early morning and dusk runs in the dunes or out in the desert hightailing it, running ambers?


VirtualJMills

Badlands
Well-Known Member
First Name
Jason
Joined
Sep 2, 2021
Messages
232
Reaction score
223
Location
California, US
Vehicle(s)
2021 Bronco Sport
When I was in France about 12 years ago they all drove around with amber fog lights and harassed non French tagged vehicles ( —--) . I guess that was their thing. Also sort of nice if your trying to find friends at a campground and either you or them have amber lights and it’s pitch dark. Easier to spot then just regular lights cool lights. Ditto for early morning and dusk runs in the dunes or out in the desert hightailing it, running ambers?
Specifically, those were selective-yellow, but usually achieved with incandescent lamps and selective-yellow filters. Really really inefficient.

Europe also have "lampes de ville" (City Lights) which are not quite DRLs, they're usually a separate smaller lamp that illuminates the main headlamp reflector-buckets off-center, so they glow rather than shine.


Reklussloth

Base
Well-Known Member
First Name
Colton
Joined
Jul 4, 2021
Messages
282
Reaction score
382
Location
Texas
Vehicle(s)
2021 bronco sport
Why would you want amber? Wouldn't it be less bright?

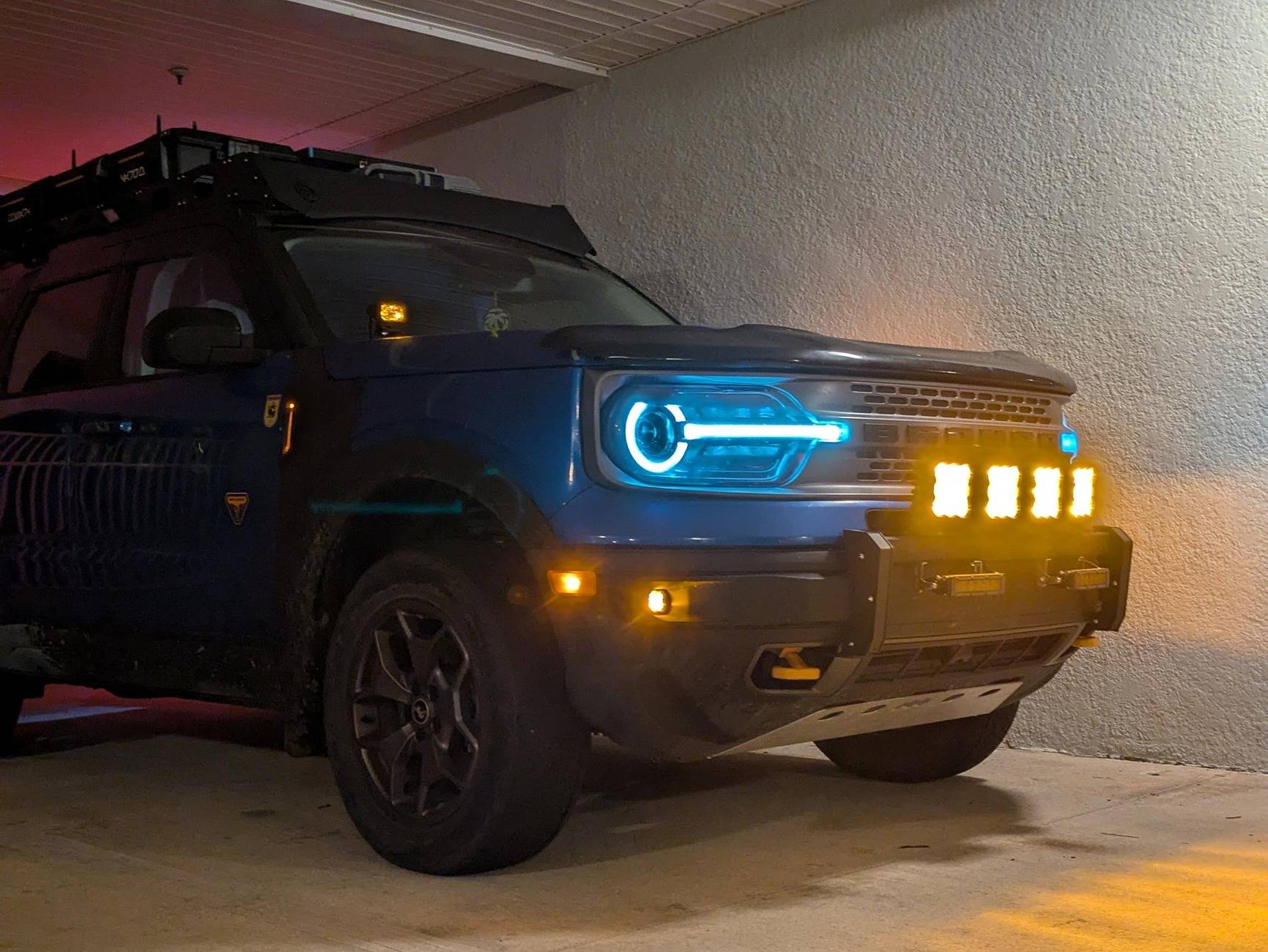

The contrast dd speaks of in fancy terms- amber light is typically better in heavy fog, dust, etc... the pod set up on my nudge bar is outer 2 off road inner two amber - south texas (near the coast) has a lot of fog and a lot of dust lol

OP
OP
Diode Dynamics
First Name
John C.
Joined
Jul 14, 2021
Messages
22
Reaction score
21
Location
St. Louis, Missouri
Website
www.diodedynamics.com
Vehicle(s)
Ford Bronco
Each kit will include:
  • Two (2) SSC1 standard LED pods
  • Two (2) T-taps
  • Two (2) H11 DT 4-Pin adapters
  • Two (2) Type FBS brackets
  • Mounting hardware
Note: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
- I will need additional wiring and switches because I’m not upgrading existing fogs but starting from scratch !
Oh really ? So what am I missing?
Hey guys!

Sorry for the misunderstanding. If you're Bronco Sport is not equipped with fog lamps from the factory. This kit will work with your vehicle, however, you will need an additional wiring harness.

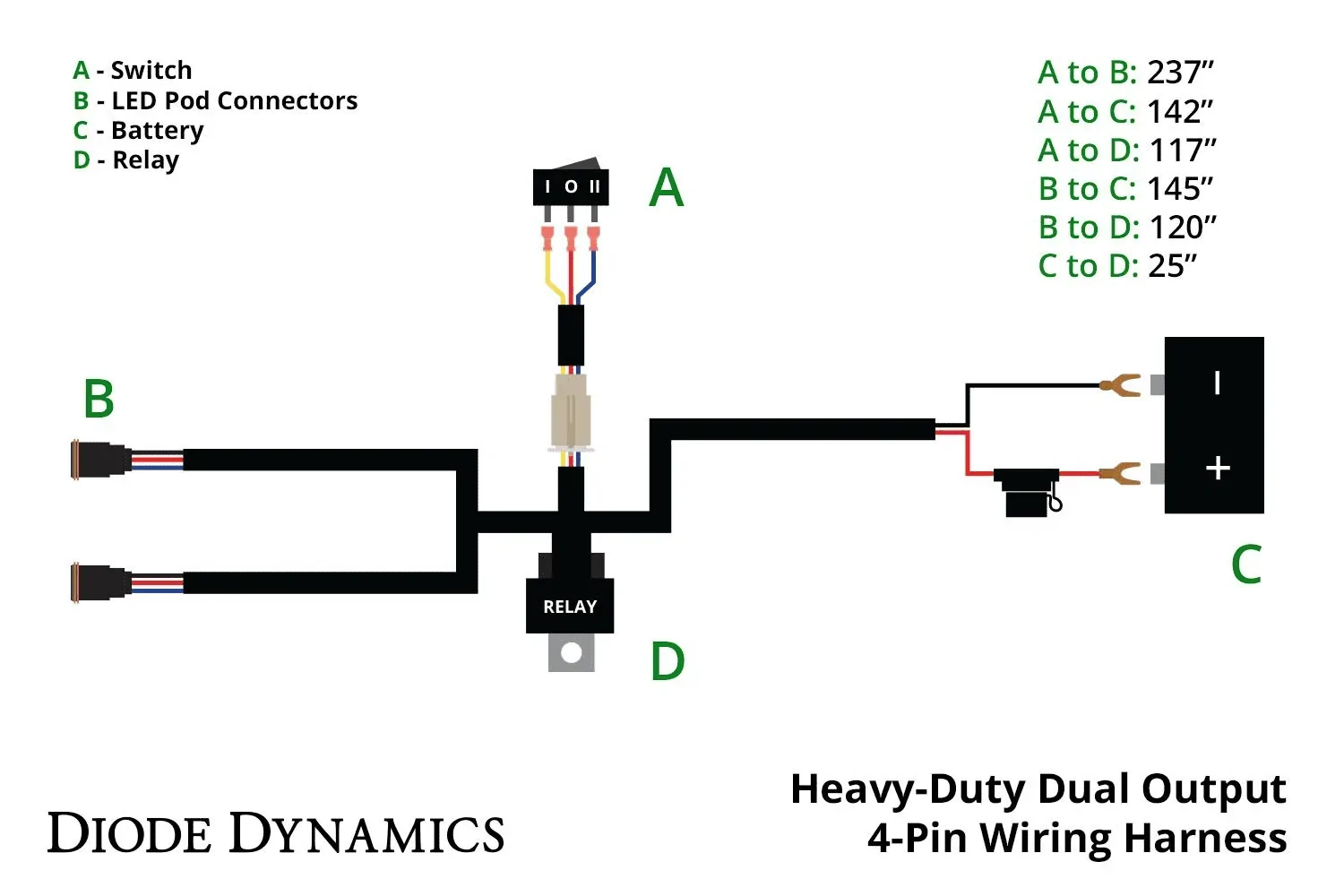

The additional wiring harness required is our Heavy Duty Dual Output 4-pin Wiring Harness. You simply will need to plug in the DT connector to the back of your SSC1 LED pods, obtain power and ground, and route your toggle switch through your firewall into the cab of your Bronco Sport.



https://www.diodedynamics.com/heavy-duty-dual-output-4-pin-wiring-harness.html

If you have additional questions, I'll be glad to help.

Otherwise, please go ahead and give us a call at 314-205-3033 Monday-Friday 10 a.m.- 5 p.m. CST, or shoot us an email at [email protected], and our service team would be happy to help!

John C.
Diode Dynamics
