BRONCO SPORT BADLANDS TRAIL RIG CONCEPT

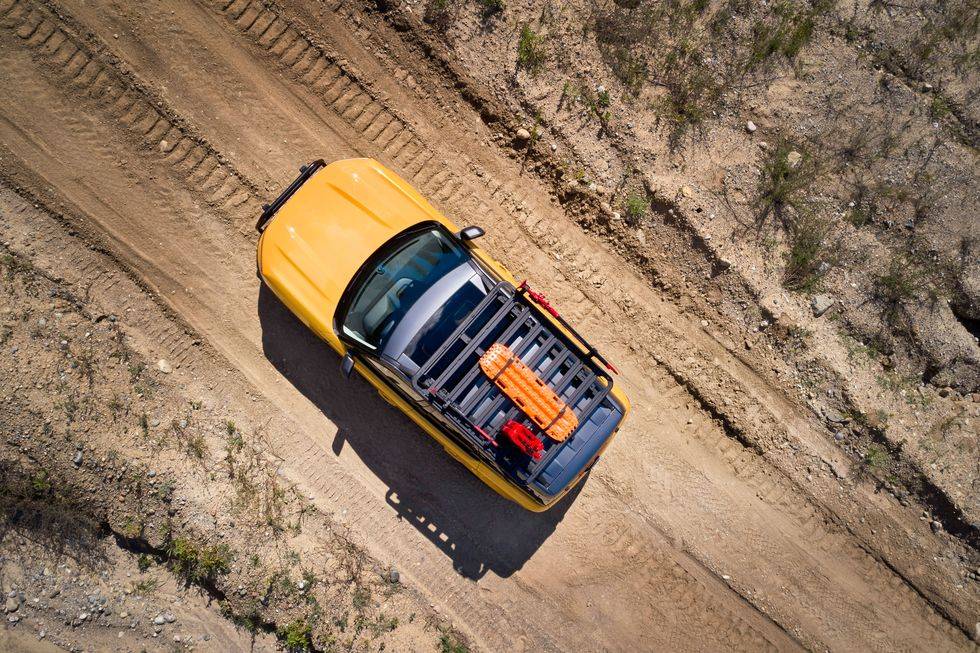

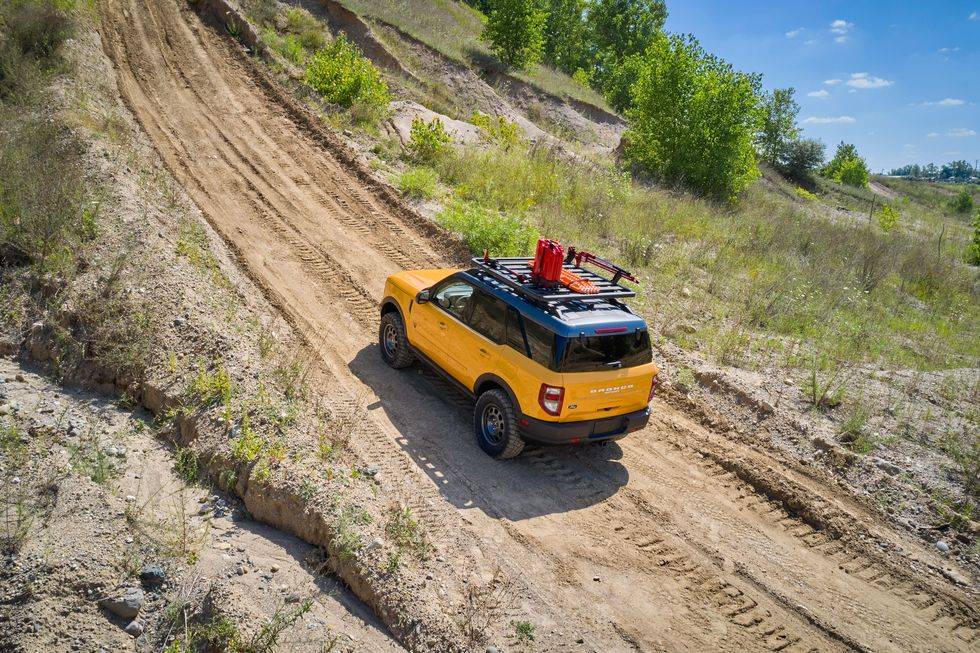

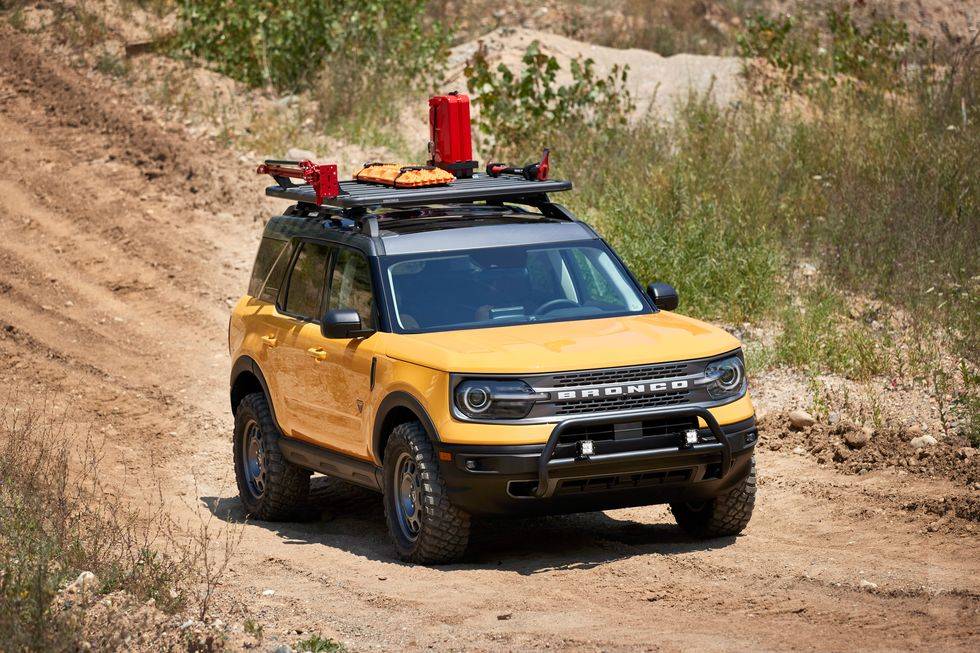

For adventurers looking to elevate their off-road trekking in a small, rugged 4x4, the Bronco Sport Trail Rig amps up the Badlands series model by adding 31-inch BFGoodrich™ Mud-Terrain T/A®KM3 tires, a one-inch lift kit, plus Ford Performance by RIGID LED off-road lights mounted to a front nudge bar. On top, a Yakima LockNLoad Platform roof rack and off-road gear mounts are designed to carry gear like a high-lift jack kit, Ford Performance recovery boards and jerry cans.

BUILD SPECIFICATIONS:

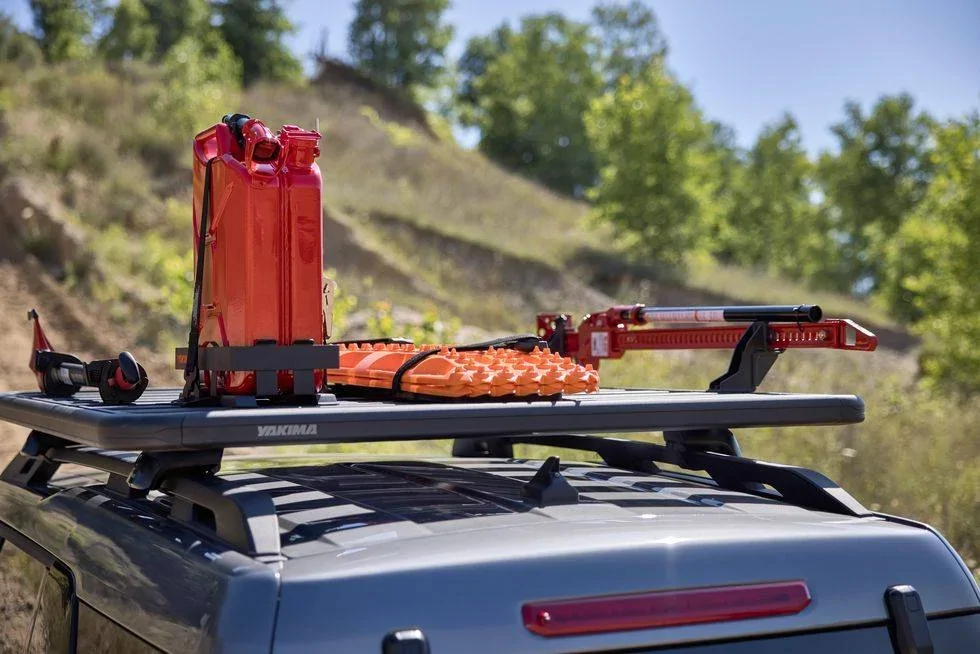

• Yakima LockNLoad Platform roof rack​
• Yakima LockNLoad recovery/off-road gear mounts​
• Yakima HD Bar crossbars​
• Yakima LockNLoad high-lift jack and axe holders​
• Ford Performance recovery boards, jerry cans.​

CONCEPT CUSTOM PARTS AND ADVENTURE GEAR SHOWN:
• 31-inch BFGoodrich Mud-Terrain T/A KM3 tires (2.5 inches wider than stock)​
• Aftermarket one-inch lift kit​
• Front nudge bar​
• Ford Performance by RIGID LED off-road lights​
• Jerry can, high-lift jack and axe.​

LEASE INFO (ACCESSORIES):
• Leased Broncos and Bronco Sports can pick up accessories on a residual basis, so lessees will pay a small amount up front for add-ons and then just return them with the vehicle at the end of the lease.​





















VIDEO


Last edited:

Slickrock

Badlands
Well-Known Member
First Name
Slick
Joined
Apr 11, 2020
Messages
160
Reaction score
167
Location
SoCal
Vehicle(s)
Honda Ridgeline
Also good pics of what the grey roof would look like IRL. Hmm....


txbronc

Badlands
Well-Known Member
First Name
Chris
Joined
Jul 20, 2020
Messages
66
Reaction score
57
Location
Magnolia
Vehicle(s)
Mazda Cx-9
Wonder if the lift is required to fit the 31"s on it....


Petes

Badlands
Active Member
First Name
Petes
Joined
Jul 27, 2020
Messages
43
Reaction score
80
Location
Southern California
Vehicle(s)
Jeep Cherokee Limited
Will the 31 inch tires and lift be offered from the factory. Almost like a mini Sasquatch Package?


JamesT

Badlands
Well-Known Member
First Name
James
Joined
Jul 16, 2020
Messages
160
Reaction score
157
Location
Seattle
Vehicle(s)
Ford Focus, GMC Canyon, Fiat Spider 124
Good to know it can take the lift and the wider tires!!! :D
So if i understand this correctly, the Trail Rig has an extra one-inch lift (since the BL already has a one-inch) plus 31 inch tires while the Off-Roadeo Support has the 31 inch tires on the existing one-inch lift. Is that correct?

Not being an off-roader (yet), do you have a preference? Just interested.


txbronc

Badlands
Well-Known Member
First Name
Chris
Joined
Jul 20, 2020
Messages
66
Reaction score
57
Location
Magnolia
Vehicle(s)
Mazda Cx-9
So if i understand this correctly, the Trail Rig has an extra one-inch lift (since the BL already has a one-inch) plus 31 inch tires while the Off-Roadeo Support has the 31 inch tires on the existing one-inch lift. Is that correct?

Not being an off-roader (yet), do you have a preference? Just interested.

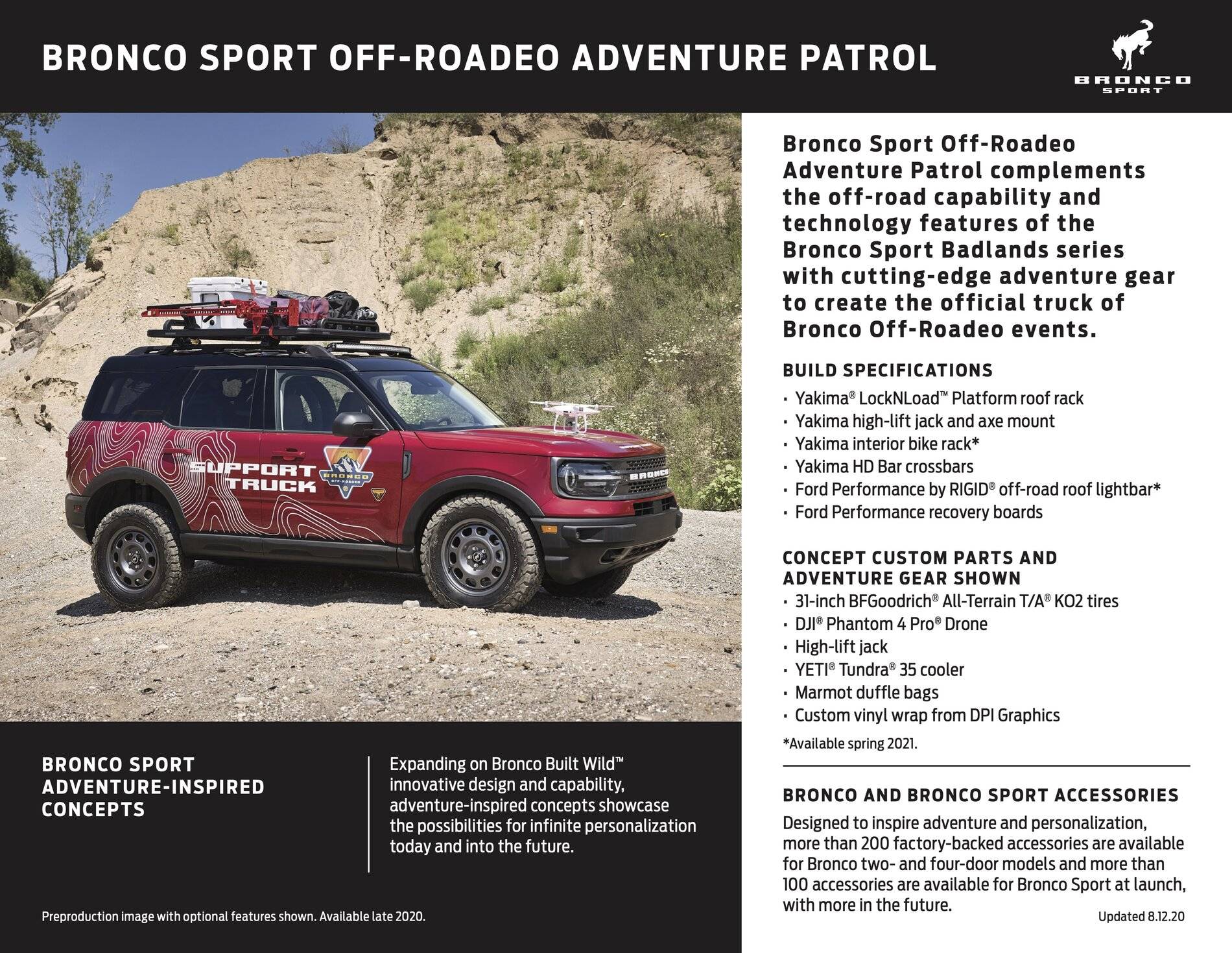

So after looking at each one carefully (each concept) it appears the 31"s fit without the lift. Per the description on the Patrol concept. It has the 31”s with no lift.


Washburn

Badlands
Well-Known Member
Joined
Jul 23, 2020
Messages
142
Reaction score
130
Location
NC USA
Vehicle(s)
2010 Ford Escape Limited AWD / 2005 BMW 330Ci ZHP / 2014 Mazda6 Touring
So anyone know the exact tire specs for the 31" ?

I know the largest offered stock is 235/65/17 which is a 29", correct? (Falken Wildpeaks).
Would be REALLY cool if 31" can be fitted without any mods, but we need the exact spec of those tires... Doesn't seem to be listed anywhere; just the diameter of 31"


Slickrock

Badlands
Well-Known Member
First Name
Slick
Joined
Apr 11, 2020
Messages
160
Reaction score
167
Location
SoCal
Vehicle(s)
Honda Ridgeline
So anyone know the exact tire specs for the 31" ?

I know the largest offered stock is 235/65/17 which is a 29", correct? (Falken Wildpeaks).
Would be REALLY cool if 31" can be fitted without any mods, but we need the exact spec of those tires... Doesn't seem to be listed anywhere; just the diameter of 31"
Sounds like it's an aftermarket 1" lift...


Washburn

Badlands
Well-Known Member
Joined
Jul 23, 2020
Messages
142
Reaction score
130
Location
NC USA
Vehicle(s)
2010 Ford Escape Limited AWD / 2005 BMW 330Ci ZHP / 2014 Mazda6 Touring
So after looking at each one carefully (each concept) it appears the 31"s fit without the lift. Per the description on the Patrol concept. It has the 31”s with no lift.
I was going by this. I hope that's correct... the description sure doesn't mention the lift.


erik1220

Member
First Name
Erik
Joined
Aug 8, 2020
Messages
8
Reaction score
6
Location
Connecticut
Vehicle(s)
'18 Chrysler 300S, '89 Toyota MR2, '09 Altima
What size is the roof rack in this image? I see Yakima provides a few different sizes. Curious what the largest roof tray I could put on the Sport would be. Does anyone have roof dimensions?


Grove_LA

Badlands
Member
First Name
Colin
Joined
Jan 2, 2020
Messages
15
Reaction score
18
Location
Southern California
Vehicle(s)
2010 F150
So if i understand this correctly, the Trail Rig has an extra one-inch lift (since the BL already has a one-inch) plus 31 inch tires while the Off-Roadeo Support has the 31 inch tires on the existing one-inch lift. Is that correct?

Not being an off-roader (yet), do you have a preference? Just interested.
I think the badlands sits higher than the other trims except the first edition but I don’t remember ever reading about a standard lift on any trim
