I haven’t seen any usefull info on this subject, so im going to have my baby bronco go under the knife professionally later today and upload photos of the job & will try to provide as much detail as possible. FYI I have the Bronco Sport Big Bend (6 Speaker),

*UPDATE* Pictures Below!





Advertisement


Last edited:

Megakatx

Big Bend
Well-Known Member
First Name
Gerardo
Joined
Jan 5, 2021
Messages
94
Reaction score
121
Location
Durham, nc
Vehicle(s)
Bronco Sport
Nice, if you install the sub woofer in the oem place please send all the info... size, required wiring, etc .
I do also have a BB. Thank you in advance.


Gcshaffer

Base
Member
First Name
Geoffrey
Joined
Feb 2, 2021
Messages
15
Reaction score
19
Location
Florida
Vehicle(s)
Bronco sport 2021
I haven’t seen any usefull info on this subject, so im going to have my baby bronco go under the knife professionally later today and upload photos of the job & will try to provide as much detail as possible. FYI I have the Bronco Sport Big Bend (6 Speaker),
Looking forward to it.

OP
OP
jlmazzola

jlmazzola

Big Bend
Member
First Name
JL
Joined
Apr 22, 2021
Messages
13
Reaction score
36
Location
Vancouver, BC Canada
Vehicle(s)
Ford Bronco Sport
Nice, if you install the sub woofer in the oem place please send all the info... size, required wiring, etc .
I do also have a BB. Thank you in advance.
I haven’t seen any usefull info on this subject, so im going to have my baby bronco go under the knife professionally later today and upload photos of the job & will try to provide as much detail as possible. FYI I have the Bronco Sport Big Bend (6 Speaker),
I haven’t seen any usefull info on this subject, so im going to have my baby bronco go under the knife professionally later today and upload photos of the job & will try to provide as much detail as possible. FYI I have the Bronco Sport Big Bend (6 Speaker),
I've attached the pics! Hope it helps someone!

OP
OP
jlmazzola

jlmazzola

Big Bend
Member
First Name
JL
Joined
Apr 22, 2021
Messages
13
Reaction score
36
Location
Vancouver, BC Canada
Vehicle(s)
Ford Bronco Sport

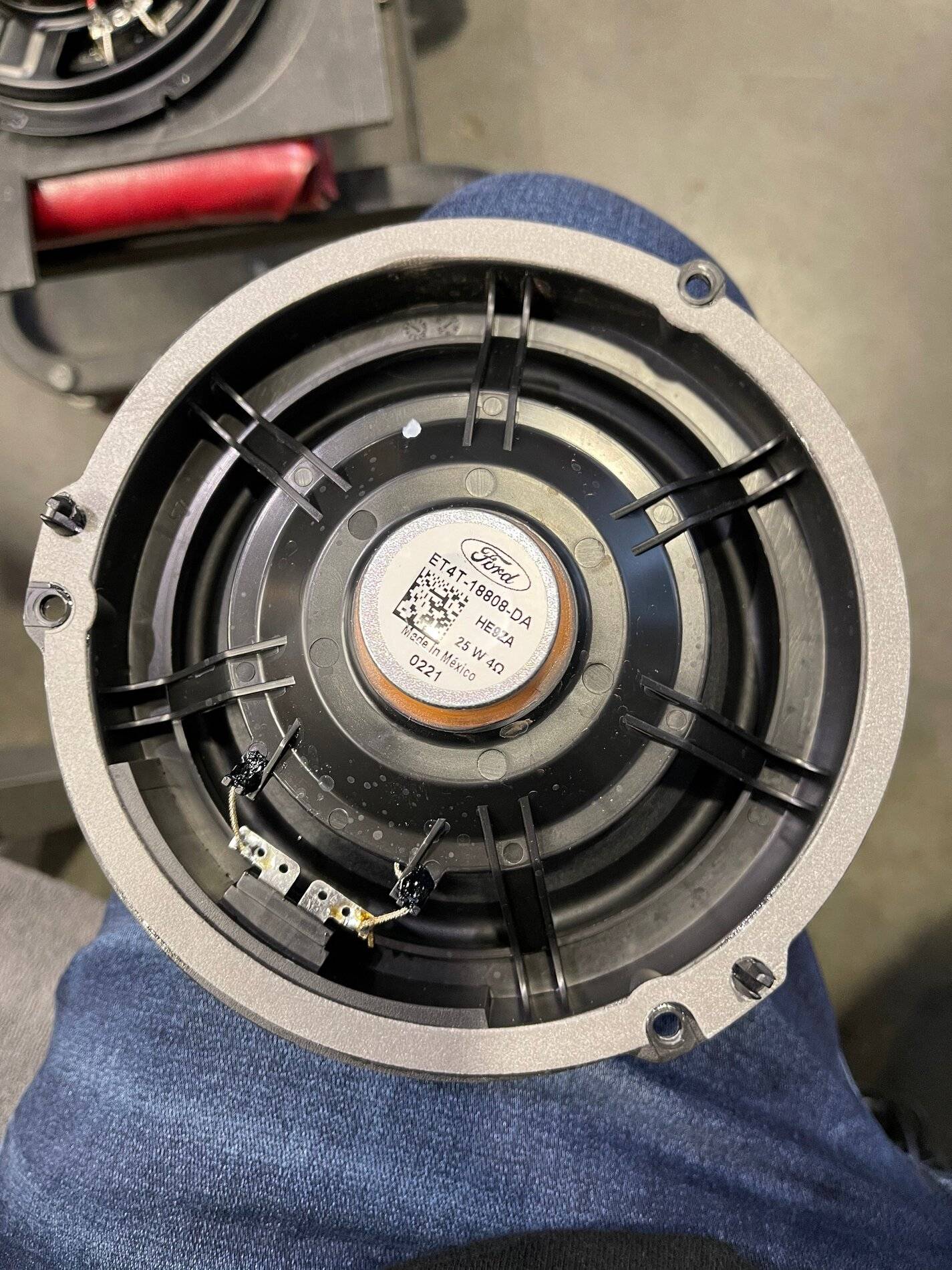

So in case your wondering we just upgraded all speakers to the following. Using only the factory radio.

Alpine R-Series 6.5" 100 Watts RMS at 4 Ohms 2-Way Coaxial Speakers with H.A.M.R. - Pair (RS652)

Changing to a coax speaker meant I got to also keep and use the factory tweeters in the upper dash.

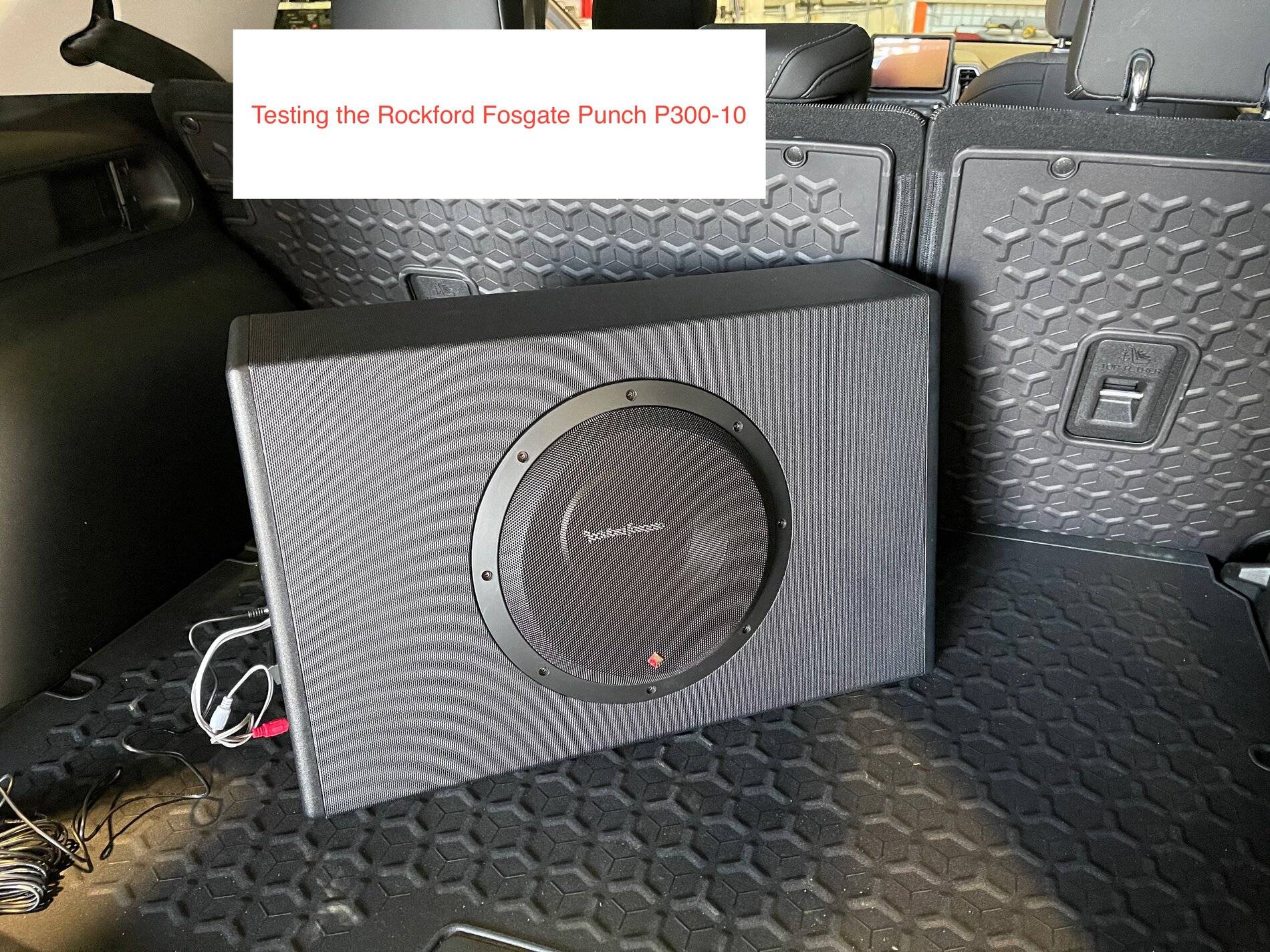

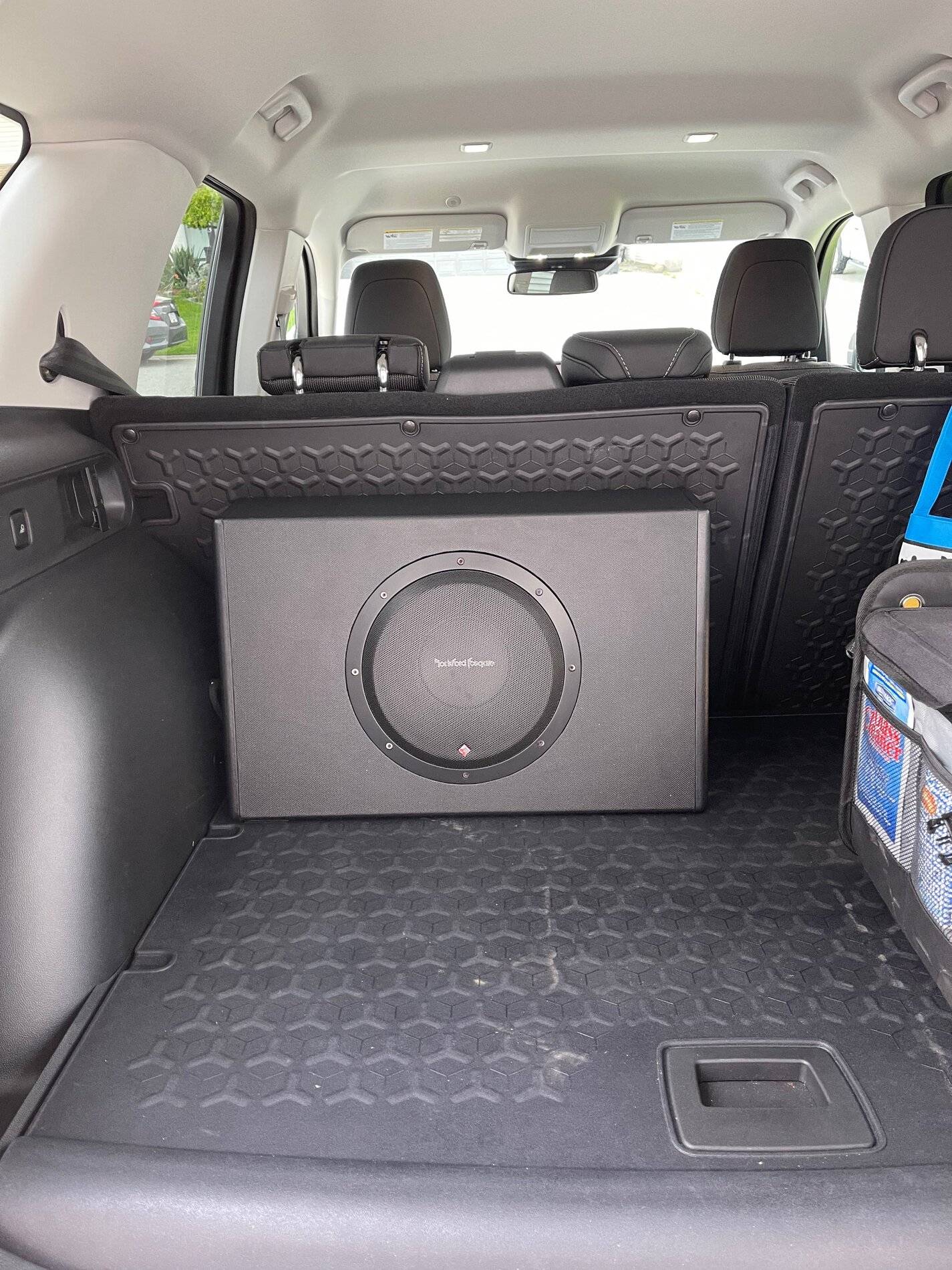

The sub of choice for me was Rockford Fosgate Punch P300-10 which was absolutely awesome.

OP
OP
jlmazzola

jlmazzola

Big Bend
Member
First Name
JL
Joined
Apr 22, 2021
Messages
13
Reaction score
36
Location
Vancouver, BC Canada
Vehicle(s)
Ford Bronco Sport
Nice, if you install the sub woofer in the oem place please send all the info... size, required wiring, etc .
I do also have a BB. Thank you in advance.
Unfortunately the OEM place was only an 8 inch speaker area TOPS and really doesn't have enough room for anything great.


Megakatx

Big Bend
Well-Known Member
First Name
Gerardo
Joined
Jan 5, 2021
Messages
94
Reaction score
121
Location
Durham, nc
Vehicle(s)
Bronco Sport
Unfortunately the OEM place was only an 8 inch speaker area TOPS and really doesn't have enough room for anything great.
Nice details, nice pictures, the oem location for the sub woofer is on the left side rear seat right?


wilbur_xmas

Outer Banks
Well-Known Member
First Name
Will
Joined
Mar 23, 2021
Messages
59
Reaction score
76
Location
Bay Area, CA
Vehicle(s)
2021 Bronco Sport
@jlmazzola Thanks so much for being the guinea pig and providing all these details!

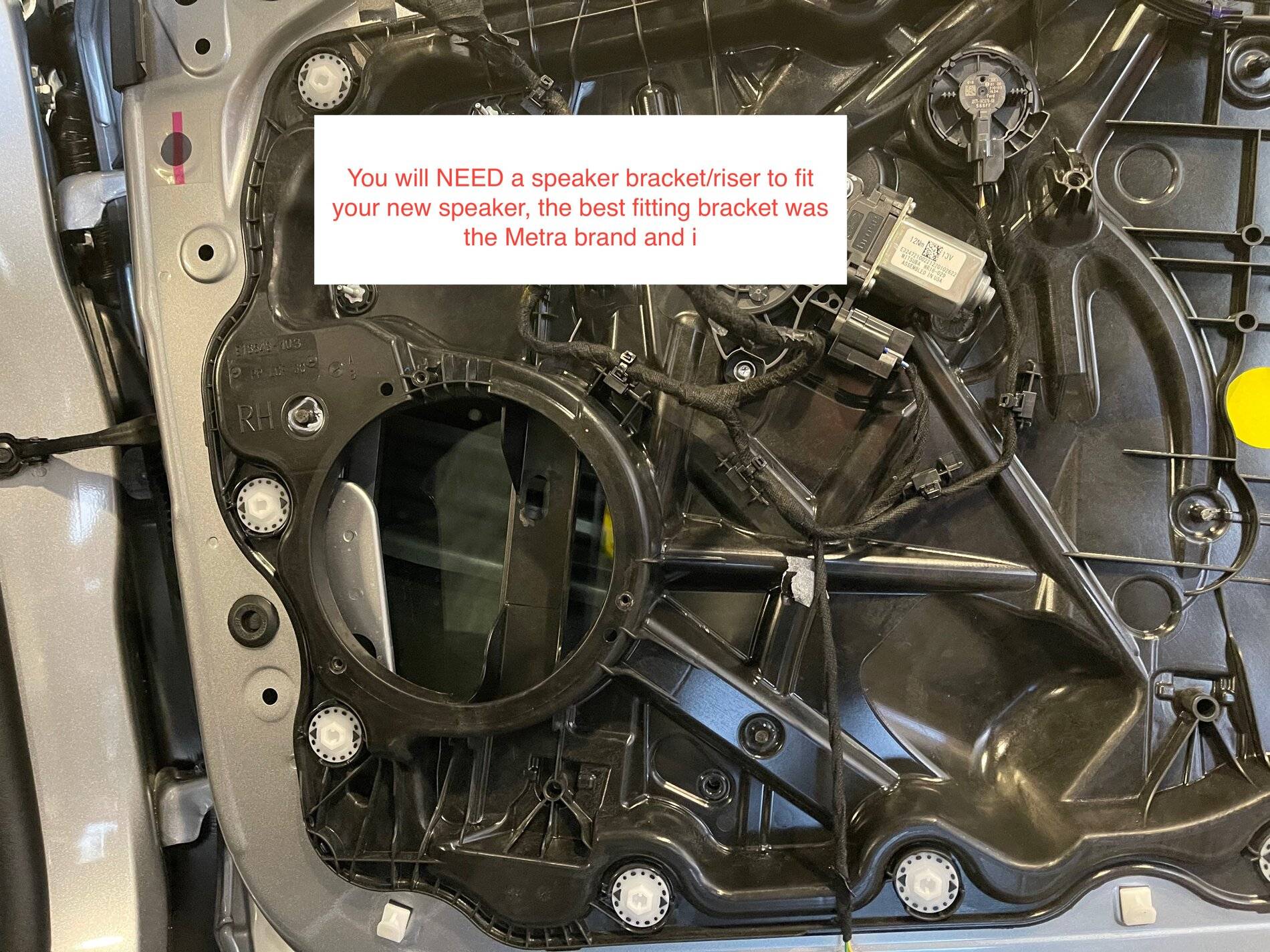

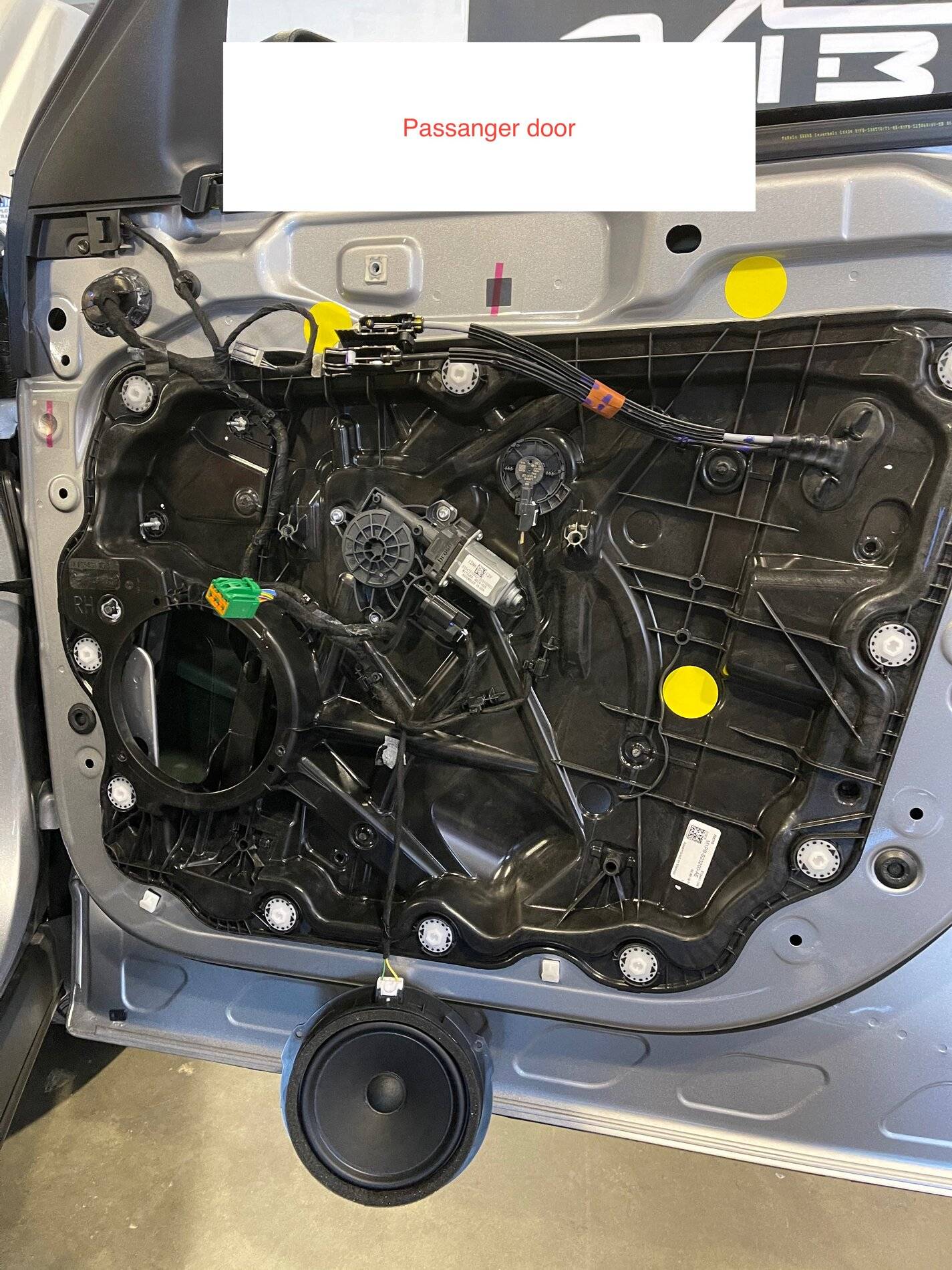

Just to confirm, if I wanted to swap out the four door speakers for something better all I would need is four 6.5" speakers and two Metra 6.5" 82-7400 speaker adapters (for the front doors)?

OP
OP
jlmazzola

jlmazzola

Big Bend
Member
First Name
JL
Joined
Apr 22, 2021
Messages
13
Reaction score
36
Location
Vancouver, BC Canada
Vehicle(s)
Ford Bronco Sport
@jlmazzola Thanks so much for being the guinea pig and providing all these details!

Just to confirm, if I wanted to swap out the four door speakers for something better all I would need is four 6.5" speakers and two Metra 6.5" 82-7400 speaker adapters (for the front doors)?
Thats right!


Big Brody

Badlands
Active Member
First Name
Todd
Joined
Feb 25, 2021
Messages
32
Reaction score
49
Location
Denver
Vehicle(s)
Bronco Sport Badlands
Great write up! This is something I want to do when I get my vehicle back. How does the new set up sound? Could you elaborate on why you did not like the sound of the spare tire sub?

Did the wiring already exist in right rear of the cargo area for the sub?

OP
OP
jlmazzola

jlmazzola

Big Bend
Member
First Name
JL
Joined
Apr 22, 2021
Messages
13
Reaction score
36
Location
Vancouver, BC Canada
Vehicle(s)
Ford Bronco Sport
Great write up! This is something I want to do when I get my vehicle back. How does the new set up sound? Could you elaborate on why you did not like the sound of the spare tire sub?

Did the wiring already exist in right rear of the cargo area for the sub?
Thank you, so the Rockville 8 inch sub in the spare tire area was more fault to the sub itself. It was barley noticeable, the one I really wanted was the JBL BassHub 12 inch sub but It was out of stock everywhere.

My new setup is outstanding with the Alpine Type R speakers. The Rockford sub I went with is also phenomenal, very happy I don’t have tons of vibration/ratteling.

The wiring for the factory sub was NOT there either.


Tim XXX

Badlands
Member
First Name
Tim
Joined
Mar 21, 2021
Messages
7
Reaction score
6
Location
Palm Coast
Vehicle(s)
2021 Ford Bronco Sport
I’ve got the B&O in my Badlands, but I’d like more sound for sure. I’ve been waiting to see if anyone was changing out their factory set up. Hopefully more people will chime in with their mods and convince me to move forward, lol


BroncoBell

Outer Banks
New Member
Joined
Apr 27, 2021
Messages
2
Reaction score
1
Location
Nashville
Vehicle(s)
Bronco Sport
I’m absolutely interested in replacing the speakers in my OB w/o the OB package. Quick questions:

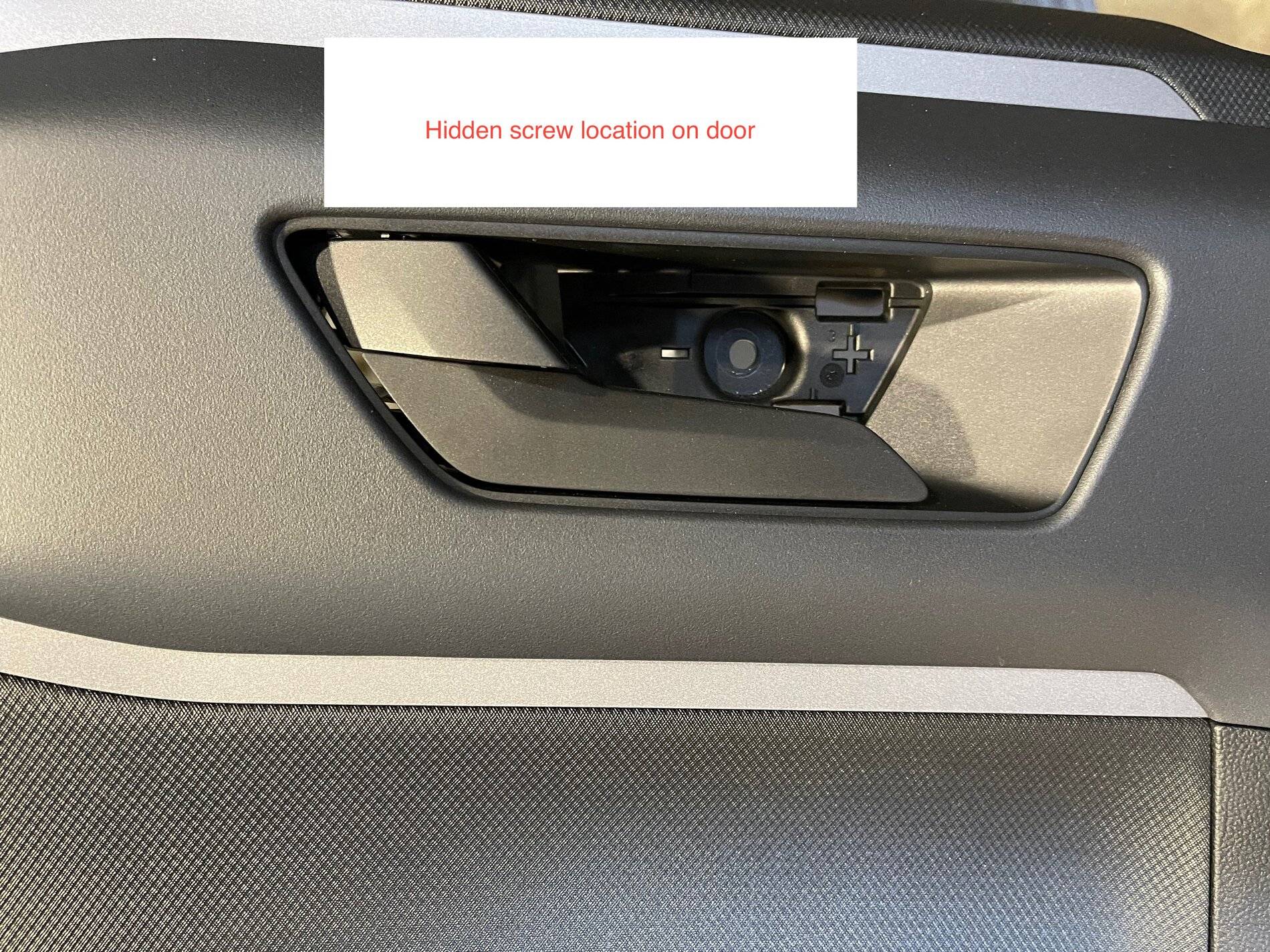

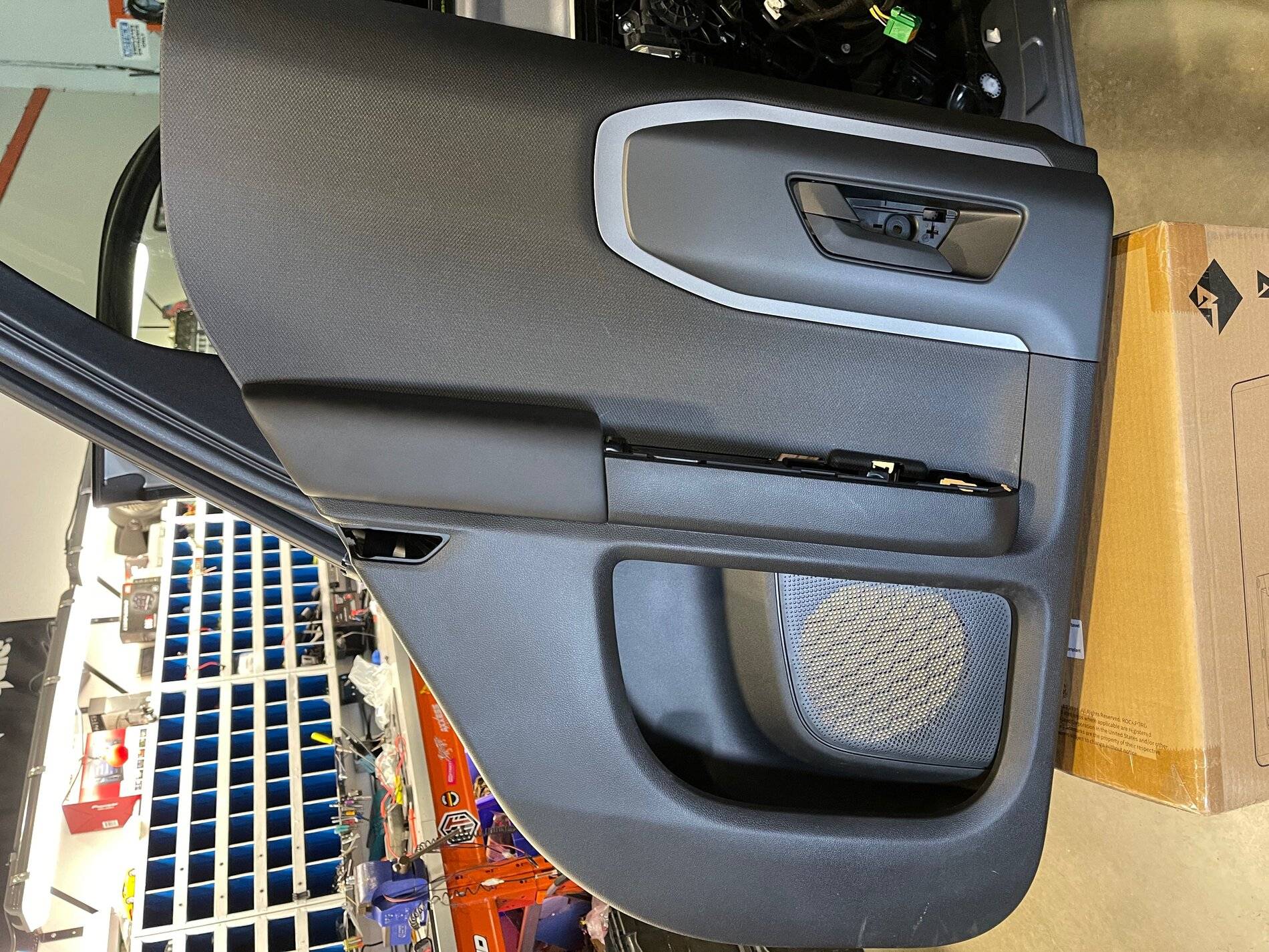

1 - do you have to remove the whole door panel, or can you just pop off the speaker grill? Did the panels easily pop off, or was there a struggle? When you popped the panels back on, were they tight?

2 - what color speaker wire was used to tap into the sub? And did you tap into the front or back speakers?
