Cargo Baskets Have Officially Entered The Age Of Illumination.

Ford Bronco Sport Cargo basket evolution: lighting attached 1


Ford Bronco Sport Cargo basket evolution: lighting attached 2


Ford Bronco Sport Cargo basket evolution: lighting attached 3


Ford Bronco Sport Cargo basket evolution: lighting attached 4


Ford Bronco Sport Cargo basket evolution: lighting attached 5


Ford Bronco Sport Cargo basket evolution: lighting attached 6


Ford Bronco Sport Cargo basket evolution: lighting attached 7


Ford Bronco Sport Cargo basket evolution: lighting attached 8


Ford Bronco Sport Cargo basket evolution: lighting attached 9


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210618_165513037~2
Alfredo,
You got way to much time on your hands........ :crackup:

But that is damn good work!!

OP
OP
Alfredo

Alfredo

Base
Well-Known Member
First Name
Alfredo
Joined
Apr 20, 2021
Threads
14
Messages
154
Reaction score
281
Location
33897
Vehicle(s)
2021 Ford bronco Sport
Alfredo,
You got way to much time on your hands........ :crackup:

But that is damn good work!!
You're absolutely right, I have way too much time on my hands (retired), since I lost my sweetheart 3 years ago to cancer, this vehicle has become my new sweetheart for the time being.


Geelloo90042

Badlands
Well-Known Member
First Name
Angelo
Joined
Aug 2, 2020
Threads
8
Messages
155
Reaction score
187
Location
Los Angeles
Vehicle(s)
2021 Ford Bronco Sport-Badlands
Do you have a picture of your light controls for all that? What are you using? Is it like a hub to turn on different zones it do you have separate rocker switches for each ? Looks really cool



OP
OP
Alfredo

Alfredo

Base
Well-Known Member
First Name
Alfredo
Joined
Apr 20, 2021
Threads
14
Messages
154
Reaction score
281
Location
33897
Vehicle(s)
2021 Ford bronco Sport
Do you have a picture of your light controls for all that? What are you using? Is it like a hub to turn on different zones it do you have separate rocker switches for each ? Looks really cool

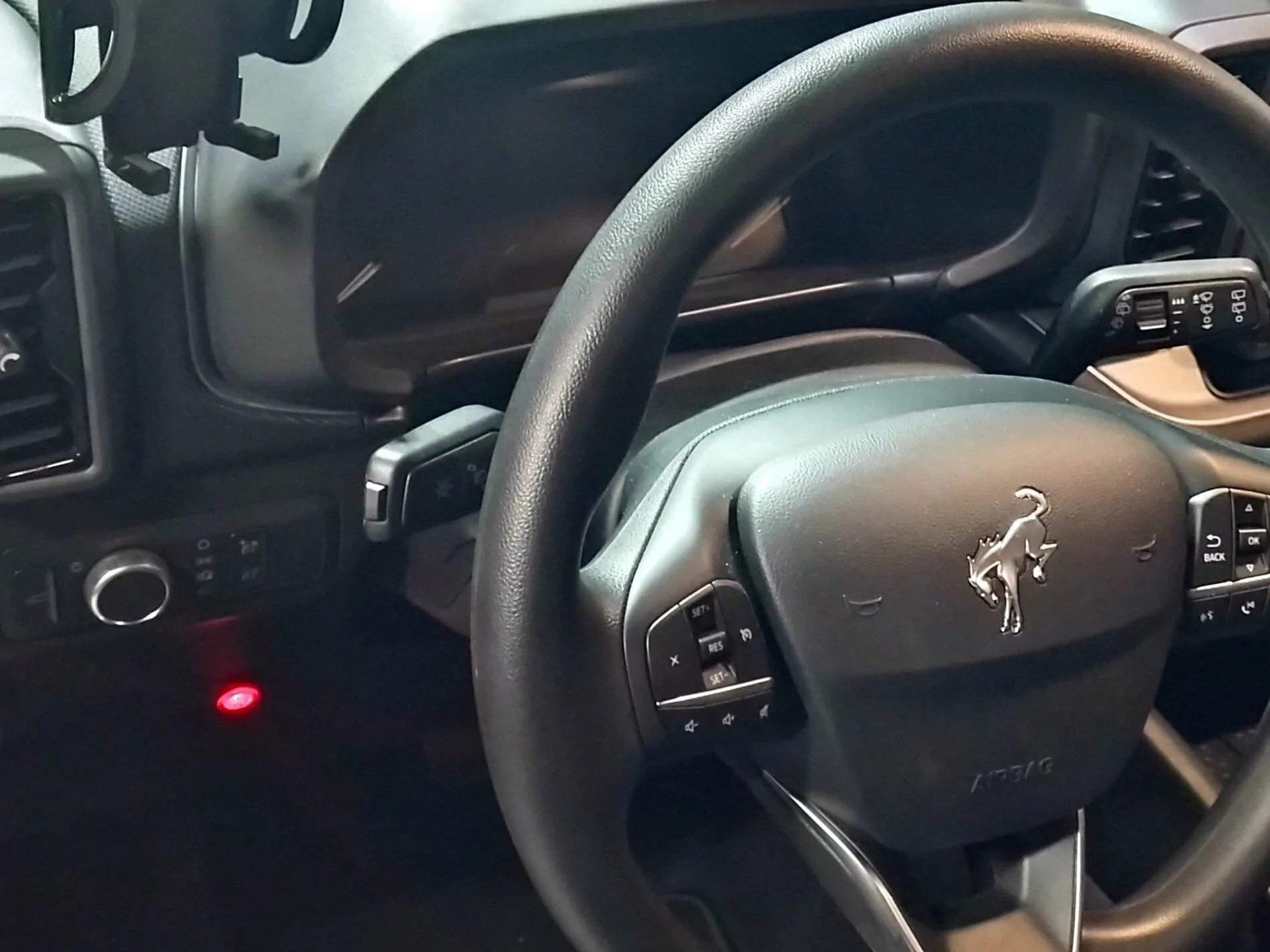

Two switches control all the off road lights, one controls the lights on the vehicle itself, the other controls the lights on the cargo basket. The switch for the cargo basket resides in the engine compartment for the moment, until my body is ready to contort like a pretzel again installing it in the cab, the battery has to come out in order to get access to the grommet on the fire wall. That battery is not easy to remove, it will fight you all the way. A ready made wiring harnesses will greatly simplify installation. Looking at a bank of rocker switches on line, that would be cool for finishing the project. Had to take a deep breath before drilling a hole in my brand new vehicle lower dash.

Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210703_153815892

Last edited:
OP
OP
Alfredo

Alfredo

Base
Well-Known Member
First Name
Alfredo
Joined
Apr 20, 2021
Threads
14
Messages
154
Reaction score
281
Location
33897
Vehicle(s)
2021 Ford bronco Sport
How did you route wires to the lights?

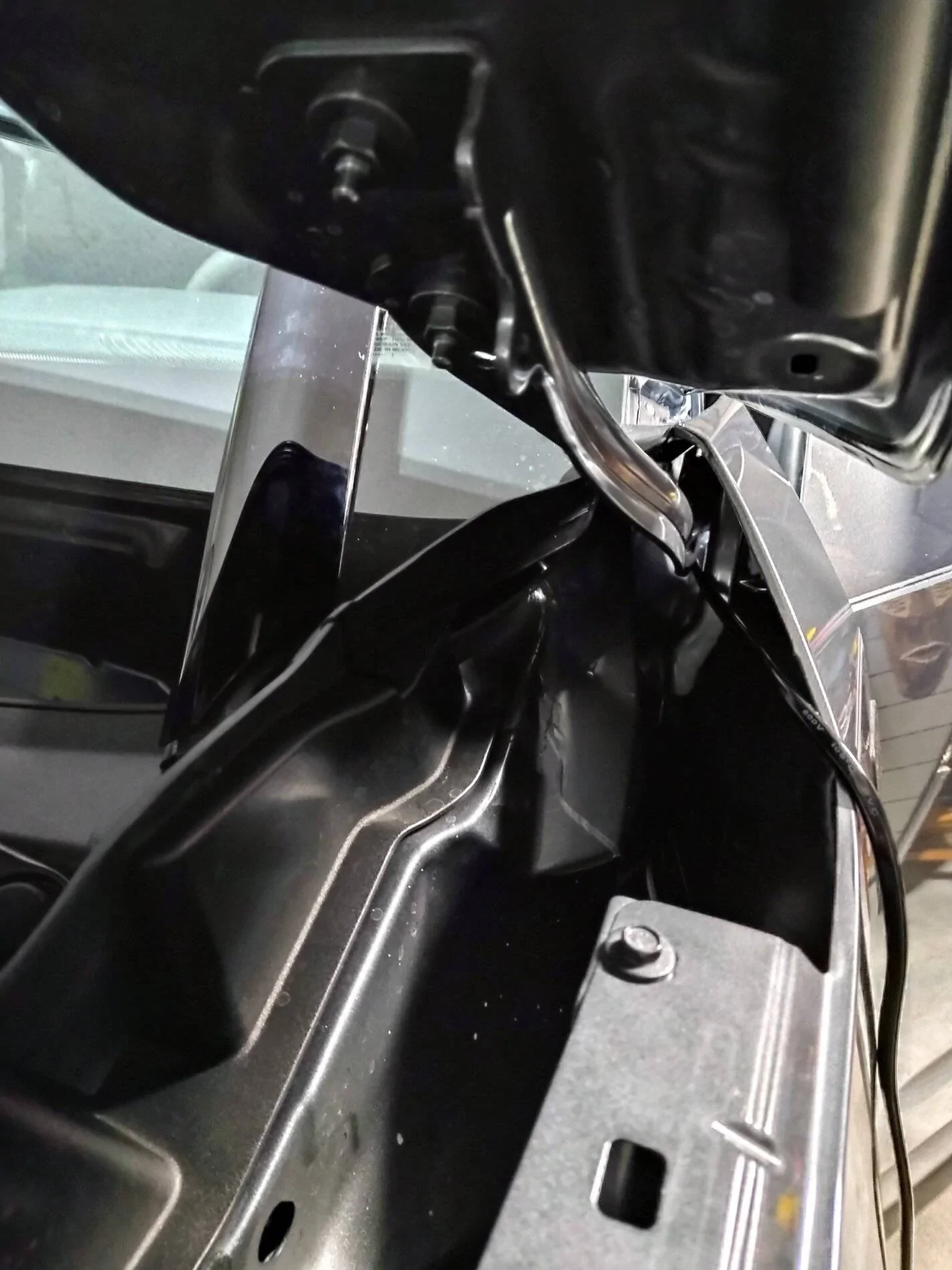

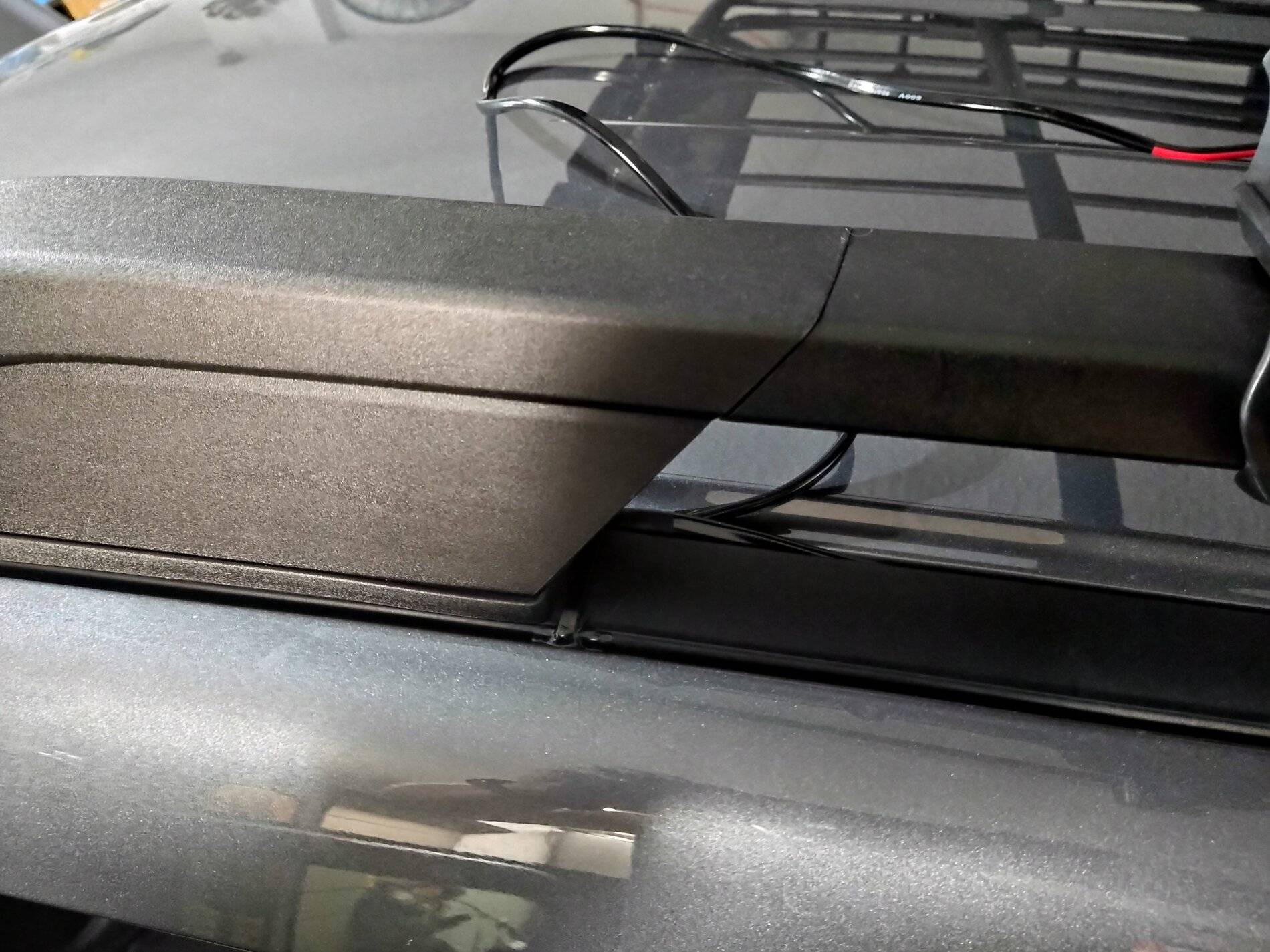

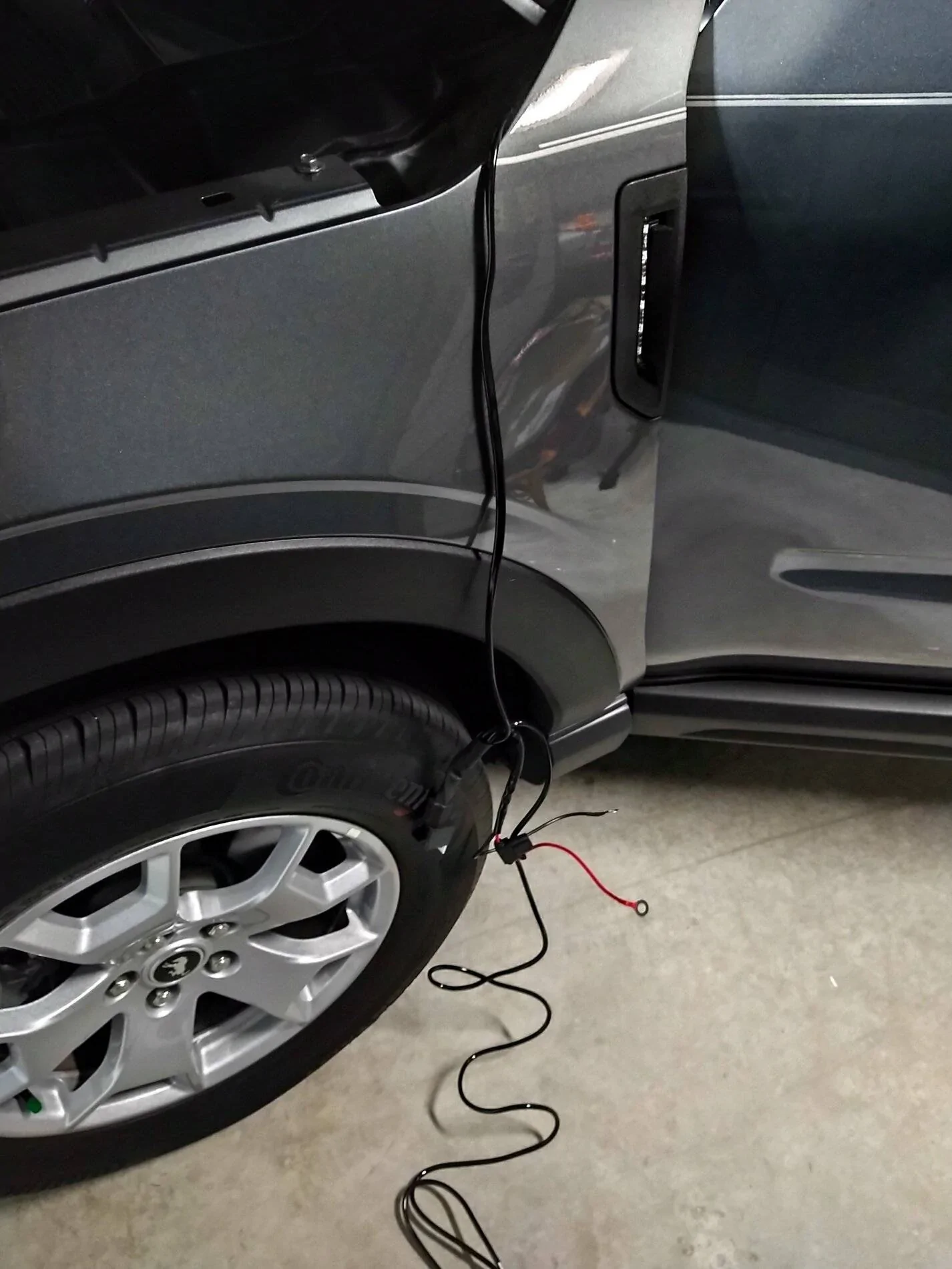

You have to remove the black trimming on the A pillar I believe they call it. carefully rout the wire harness up the pillar, there is plenty of space under the roof rail trimming to hide the wire under.

Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072825688


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072855159


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072921077


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_074013741


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_074318181


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072304499


Dan.Bronco

Outer Banks
Well-Known Member
First Name
Dan
Joined
Apr 1, 2021
Threads
3
Messages
79
Reaction score
228
Location
Seattle
Vehicle(s)
Bronco Sport outer banks
You have to remove the black trimming on the A pillar I believe they call it. carefully rout the wire harness up the pillar, there is plenty of space under the roof rail trimming to hide the wire under.

Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072825688


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072855159


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072921077


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_074013741


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_074318181


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072304499
You have to remove the black trimming on the A pillar I believe they call it. carefully rout the wire harness up the pillar, there is plenty of space under the roof rail trimming to hide the wire under.

Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072825688


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072855159


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072921077


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_074013741


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_074318181


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072304499
after the two bolts to remove the a Pilar cover, does the panel just pop off? What angle? I was having trouble removing mine for the wires for my light bar.

thanks for all your help so far, basket looks awesome btw.

OP
OP
Alfredo

Alfredo

Base
Well-Known Member
First Name
Alfredo
Joined
Apr 20, 2021
Threads
14
Messages
154
Reaction score
281
Location
33897
Vehicle(s)
2021 Ford bronco Sport
after the two bolts to remove the a Pilar cover, does the panel just pop off? What angle? I was having trouble removing mine for the wires for my light bar.

thanks for all your help so far, basket looks awesome btw.

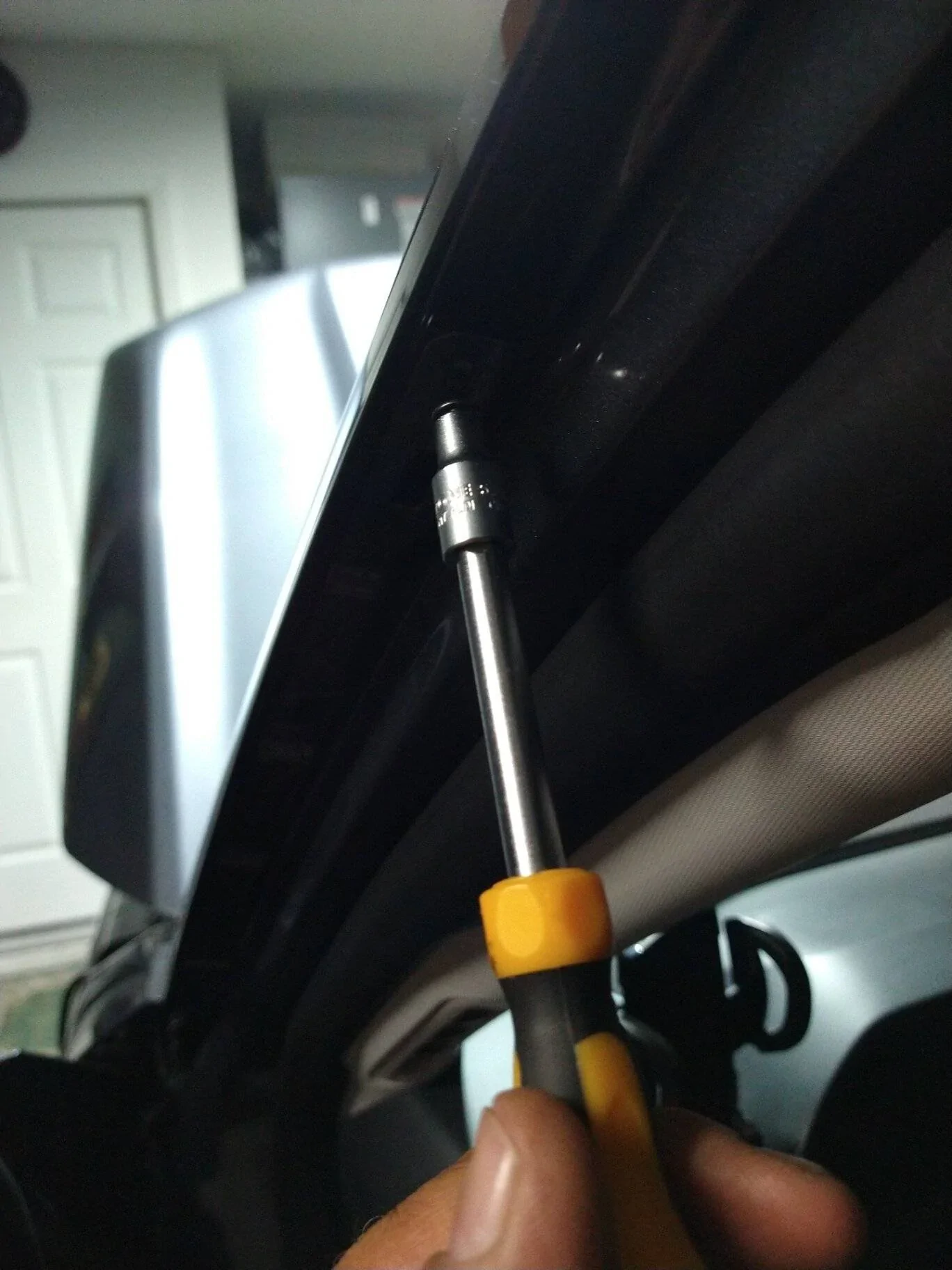

Thanks. After removing the two screws and the cover, there are three white push retainers holding the black trim in place, you can see them, and they pop straight out. Once the first retainer is popped, the rest will follow easily. A plastic tool for this purpose will help and yes these panels and trim pieces can be stubborn and pop with a heart stopping loud crack. Carefully route the wire away from the hood hinge which is nearby. Good luck.

Last edited:


OP
OP
Alfredo

Alfredo

Base
Well-Known Member
First Name
Alfredo
Joined
Apr 20, 2021
Threads
14
Messages
154
Reaction score
281
Location
33897
Vehicle(s)
2021 Ford bronco Sport
Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210703_153815892

[/QUOTE]

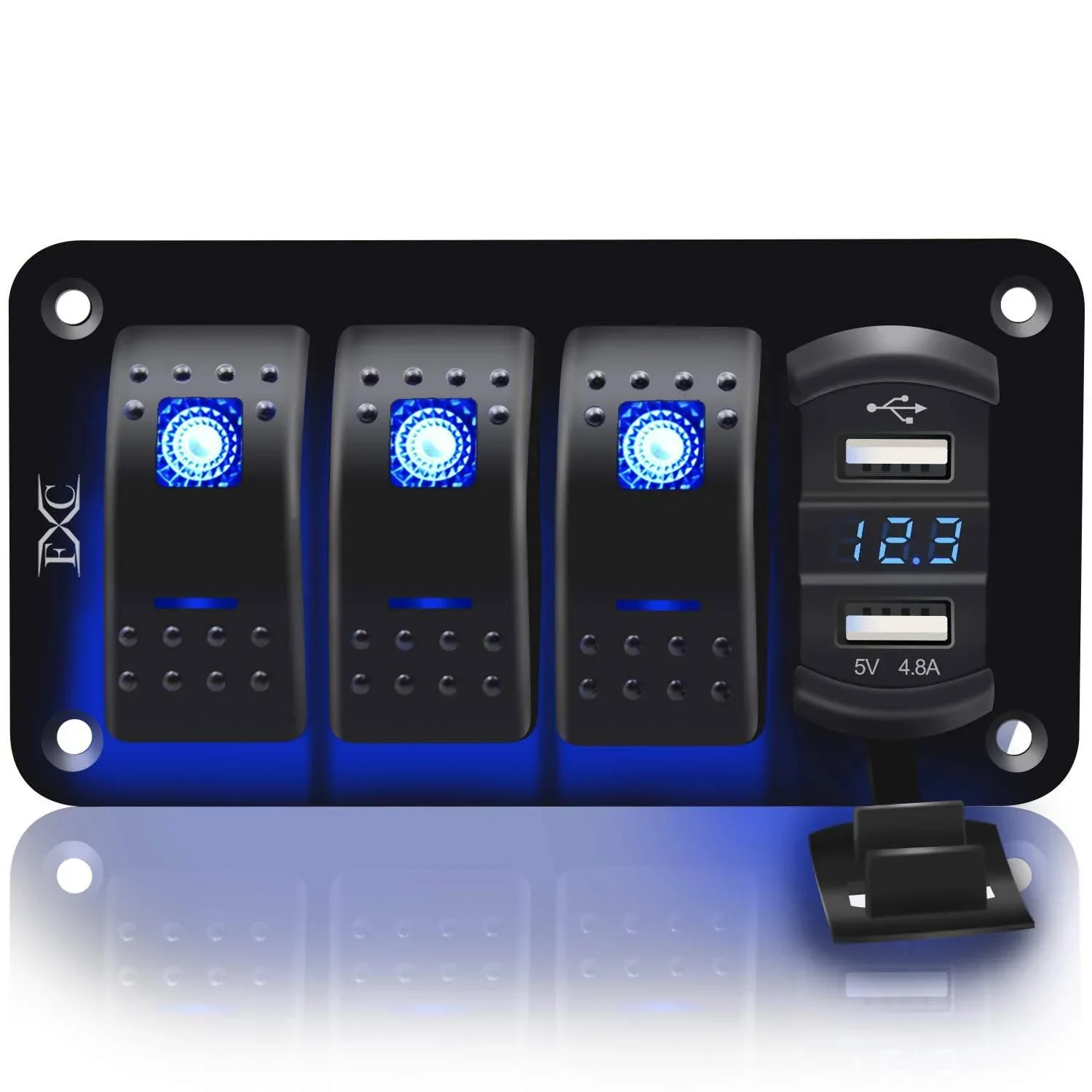

Geelloo90042 picked my curiosity when he mentioned gang switches, which I have not thought of, found this on Amazon. It can only fit in the area below the headlights switch panel. This is one of those projects that will require self isolation to mentally prepare to cut a big square hole in my lower dash.

Two switches control all the off road lights, one controls the lights on the vehicle itself, the other controls the lights on the cargo basket. The switch for the cargo basket resides in the engine compartment for the moment, until my body is ready to contort like a pretzel again installing it in the cab, the battery has to come out in order to to get access to the grommet on the fire wall. That battery is not easy to remove, it will fight you all the way. A ready made wiring harnesses will greatly simplify installation. Next will be a gang rocker switch panel for future projects. I Took a deep breath before drilling a hole in my brand new vehicle lower dash.

Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210703_153815892
Ford Bronco Sport Cargo basket evolution: lighting attached 61fMGwdFjWL._SL1500_

Last edited:

Tucsonight

Badlands
New Member
First Name
Robert
Joined
Jan 25, 2022
Threads
0
Messages
2
Reaction score
3
Location
Tucson, AZ
Vehicle(s)
2021 Bronco Sport
You have to remove the black trimming on the A pillar I believe they call it. carefully rout the wire harness up the pillar, there is plenty of space under the roof rail trimming to hide the wire under.

Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072825688


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072855159


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072921077


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_074013741


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_074318181


Ford Bronco Sport Cargo basket evolution: lighting attached IMG_20210629_072304499
WOW - thank you for the detailed install information -- it looks great. QUESTION: Do you get any glare or hood reflection in your windshield from the roof lights? I've experienced that on my truck which is outfitted with a roof mounted light bar. THANKS!

OP
OP
Alfredo

Alfredo

Base
Well-Known Member
First Name
Alfredo
Joined
Apr 20, 2021
Threads
14
Messages
154
Reaction score
281
Location
33897
Vehicle(s)
2021 Ford bronco Sport
WOW - thank you for the detailed install information -- it looks great. QUESTION: Do you get any glare or hood reflection in your windshield from the roof lights? I've experienced that on my truck which is outfitted with a roof mounted light bar. THANKS!
I haven't had the chance to test them off road, but in my driveway, I haven't noticed any glare on the hood.


Warpious

Badlands
Well-Known Member
Joined
Nov 5, 2021
Threads
14
Messages
411
Reaction score
518
Location
Texas
Website
www.floracreekplace.com
Vehicle(s)
'08 Merc Mariner, 2012 Mustang (R.I.P), 2022 BS BL
Okay I'm about to ask a really dumb question as someone who's new to HID and additional lighting, how much more do they illuminate compared to the normal headlights fog lights etc? Higher up on the road or brighter overall etc?
