BL Sasquatch AUX Switches Wiring Guide?

[ELCouz]

I am curious if Ford has detailed electrical plan for the four AUX switches?

I am planning to receive the sasquatch soon, just to know what I can install on each...

Sponsored



[Bluebaru]

I am curious if Ford has detailed electrical plan for the four AUX switches?

I am planning to receive the sasquatch soon, just to know what I can install on each...

Not exactly from Ford but from Bronco Nation and Melissa Clark. This might help. https://thebronconation.com/news/bronco-sport-sasquatch-auxiliary-switches-how-to-use-t.21841/



[Escape2Bronco]

Not exactly from Ford but from Bronco Nation and Melissa Clark. This might help. https://thebronconation.com/news/bronco-sport-sasquatch-auxiliary-switches-how-to-use-t.21841/

So this is very similar to the full size. It pre-runs wires to the front bumper, front cowl, and A pillar.



[jkernitzki]

So this is very similar to the full size. It pre-runs wires to the back, front bumper, front cowl, and A pillar.

Not to the back, unfortunately. Bumper, roof, left & right cowl.



[Escape2Bronco]

Not to the back, unfortunately. Bumper, roof, left & right cowl.

You are correct. My picture understanding skills are beginning to diminish!



[ELCouz]

Not exactly from Ford but from Bronco Nation and Melissa Clark. This might help. https://thebronconation.com/news/bronco-sport-sasquatch-auxiliary-switches-how-to-use-t.21841/

Wow thanks! Very useful!



[ELCouz]

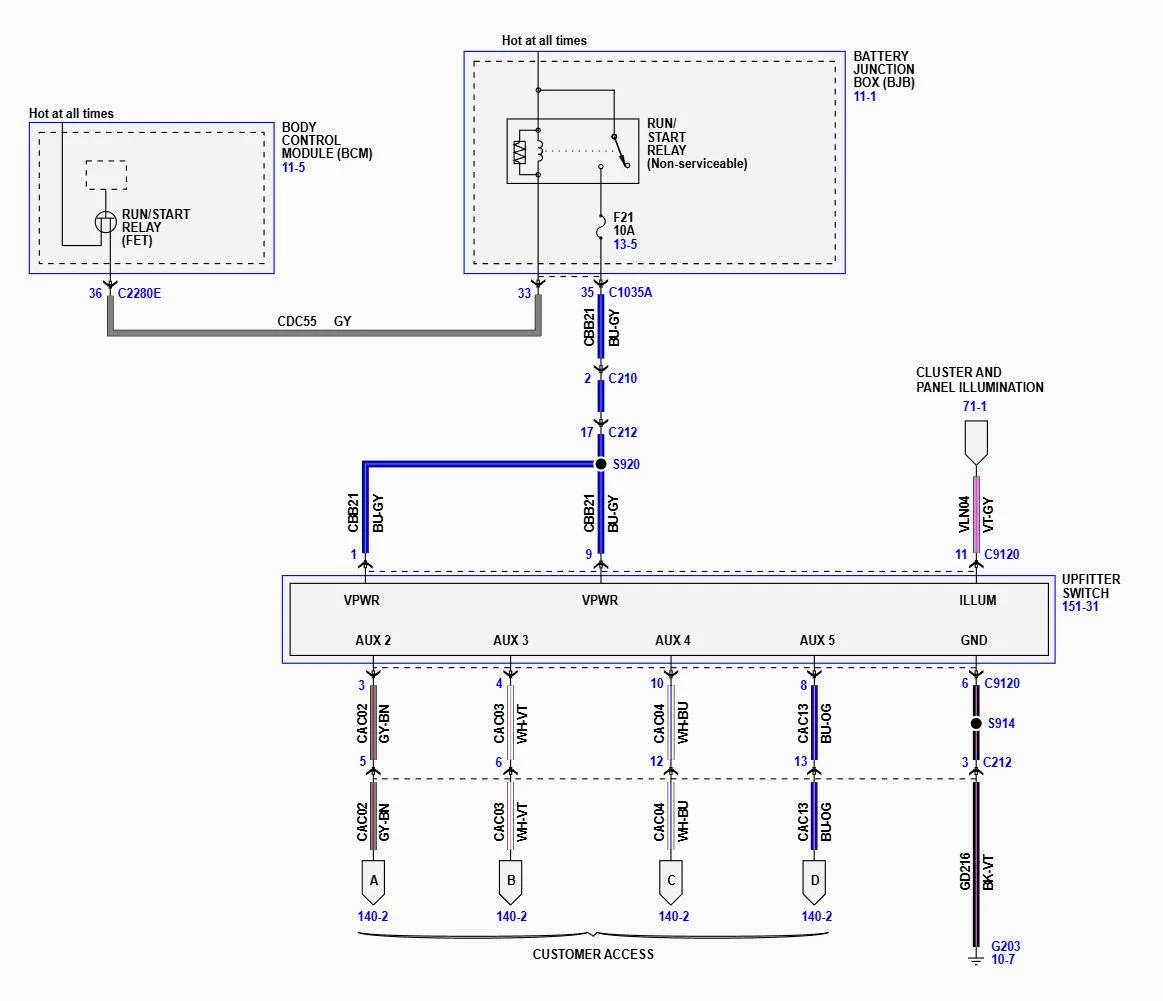

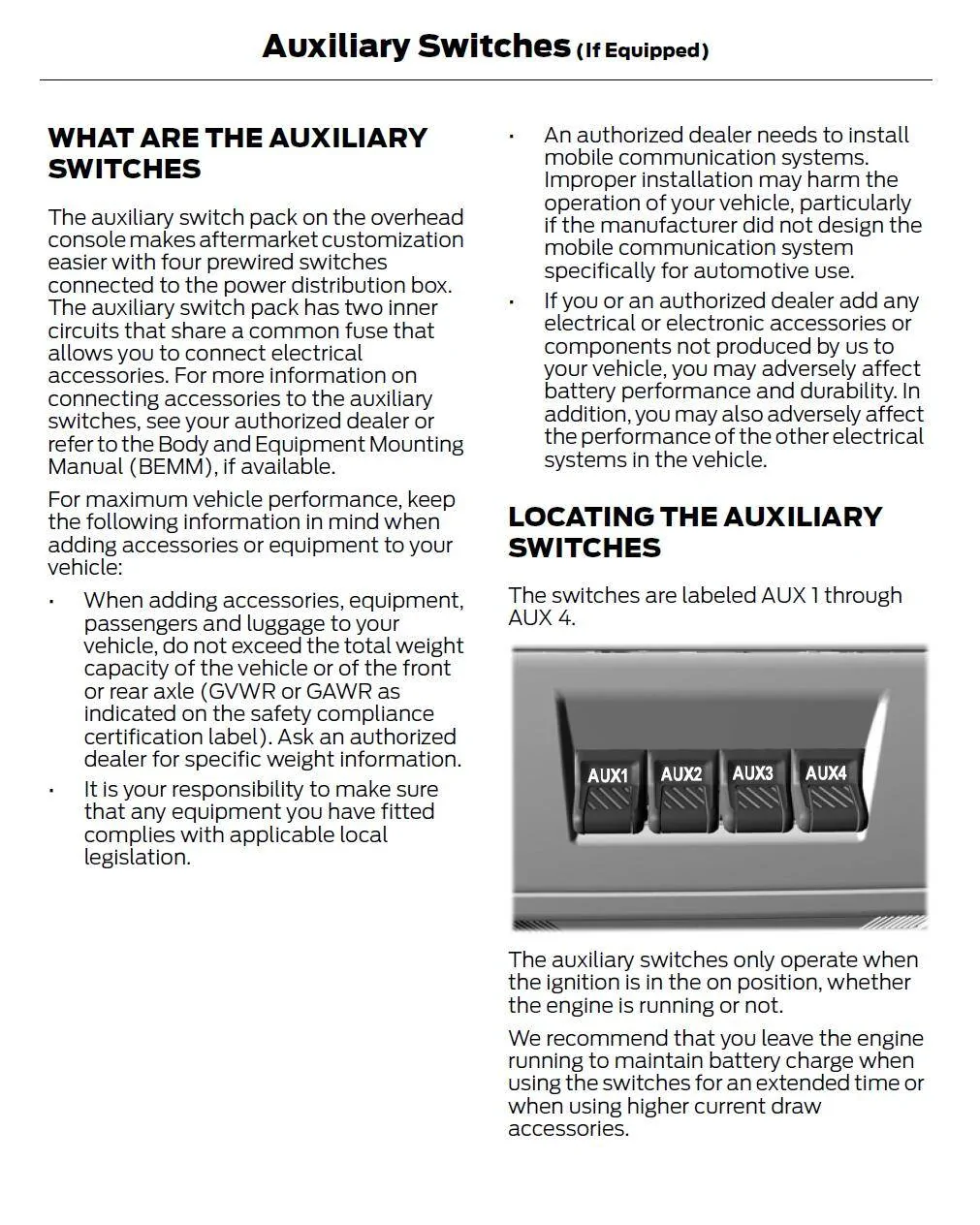

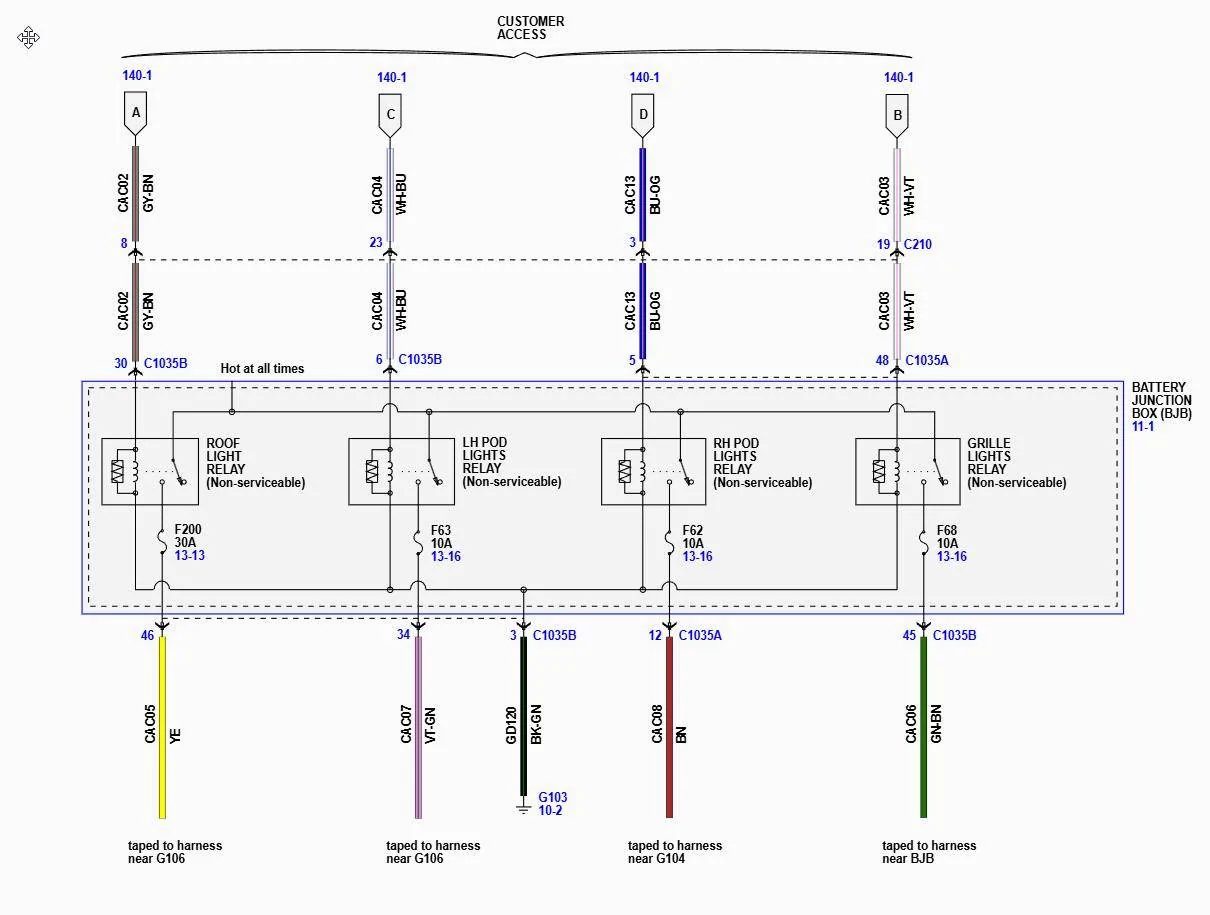

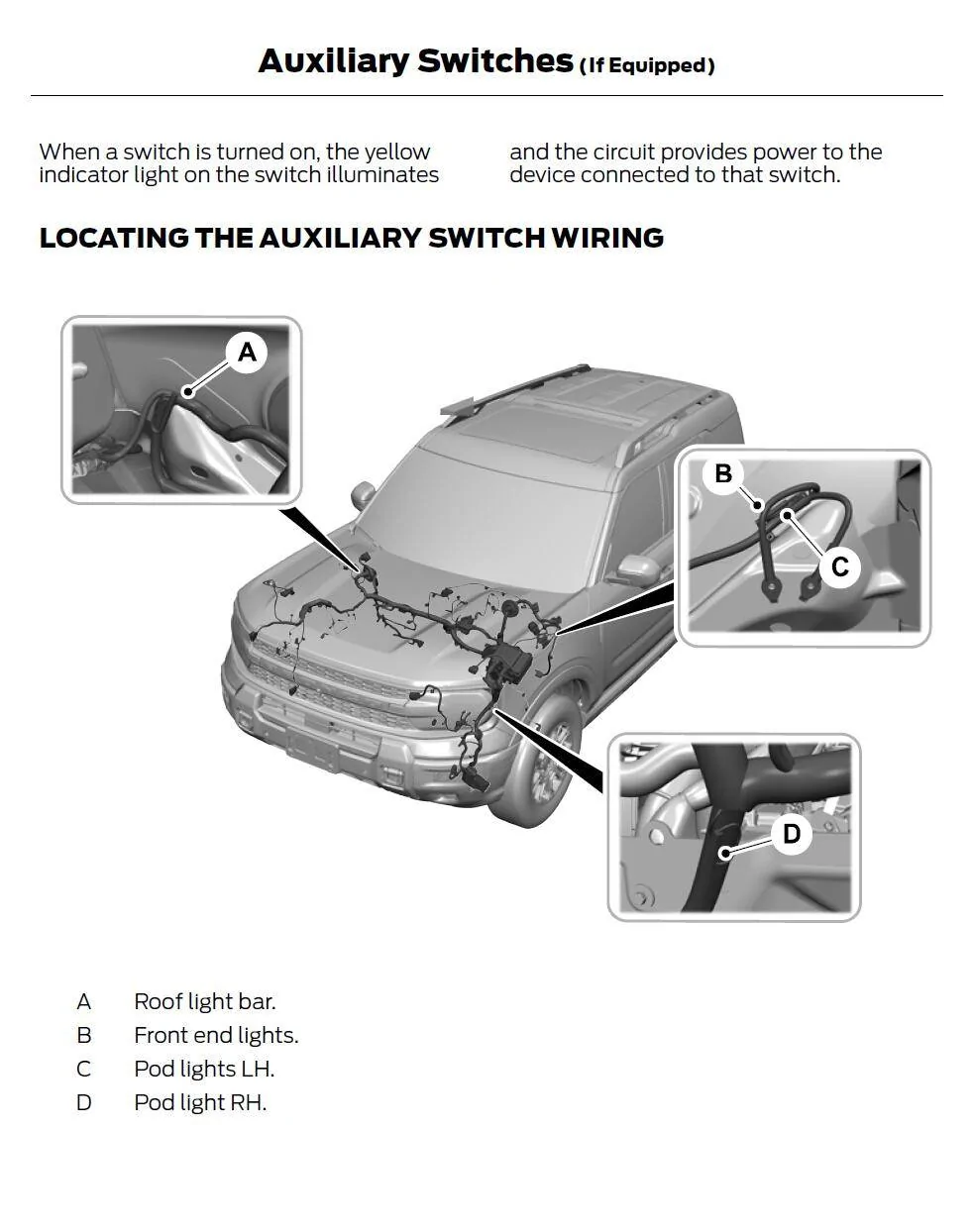

I was reading the manual and I found the complete section for the Sasquatch.

May that be useful for another sasquatch owner



[jkernitzki]

I just wish there were circuits running to the rear as well.



[Dude]

I was reading the manual and I found the complete section for the Sasquatch.

Way to go Ford !!!



[ELCouz]

Hmmm I am installing the lights... I can't find a single one of them ... anyone with a sasquatch can point them with a real picture?

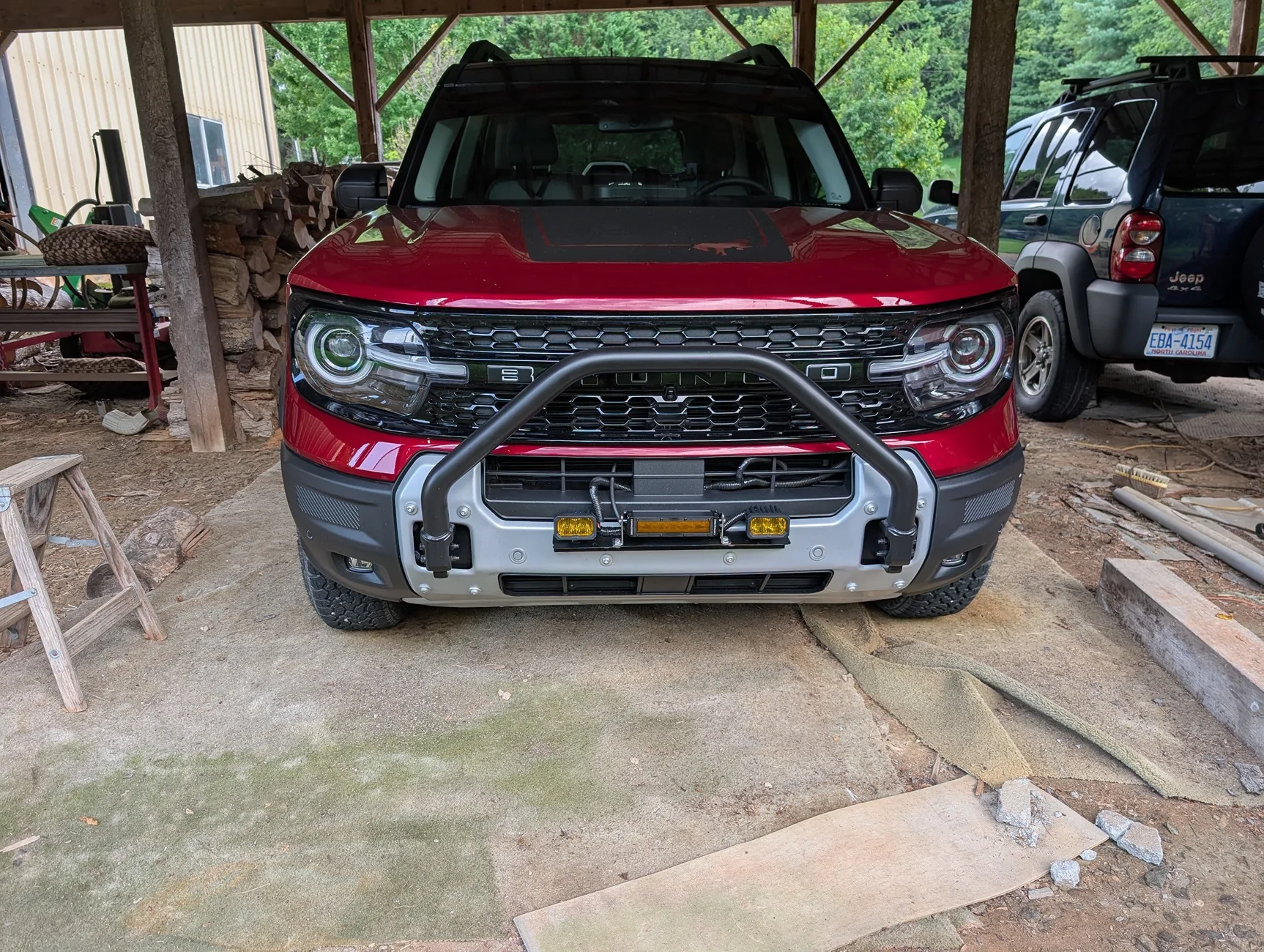

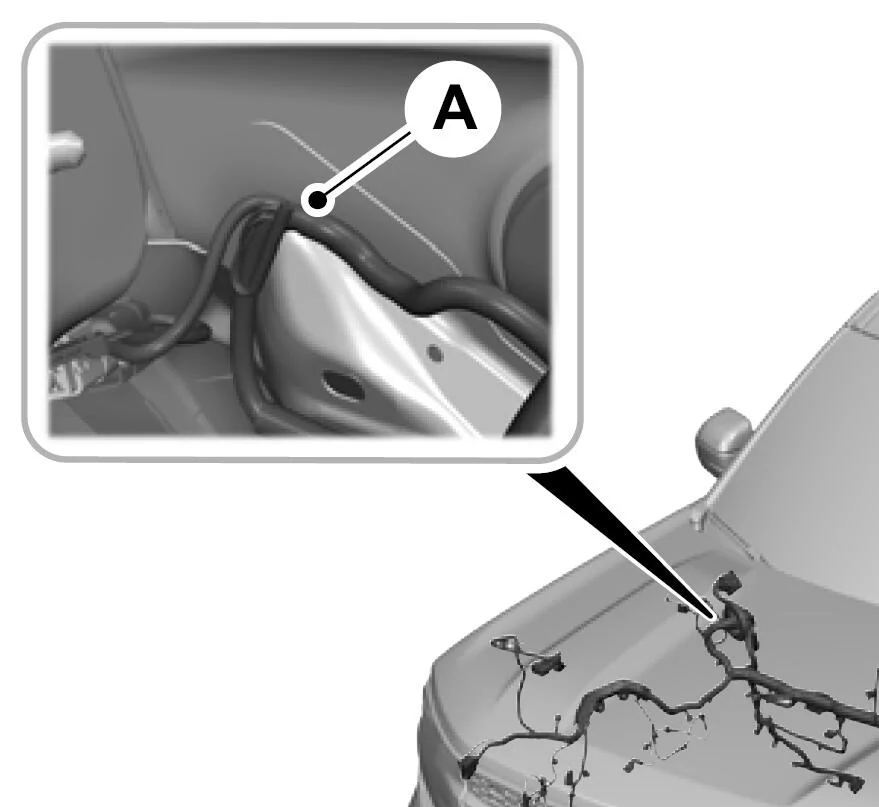

I am trying to find A (AUX1) for the front led bar I can't find that dandling wire in spot A...

Is that spot inside the firewall ? If so that would suck hard



[ELCouz]

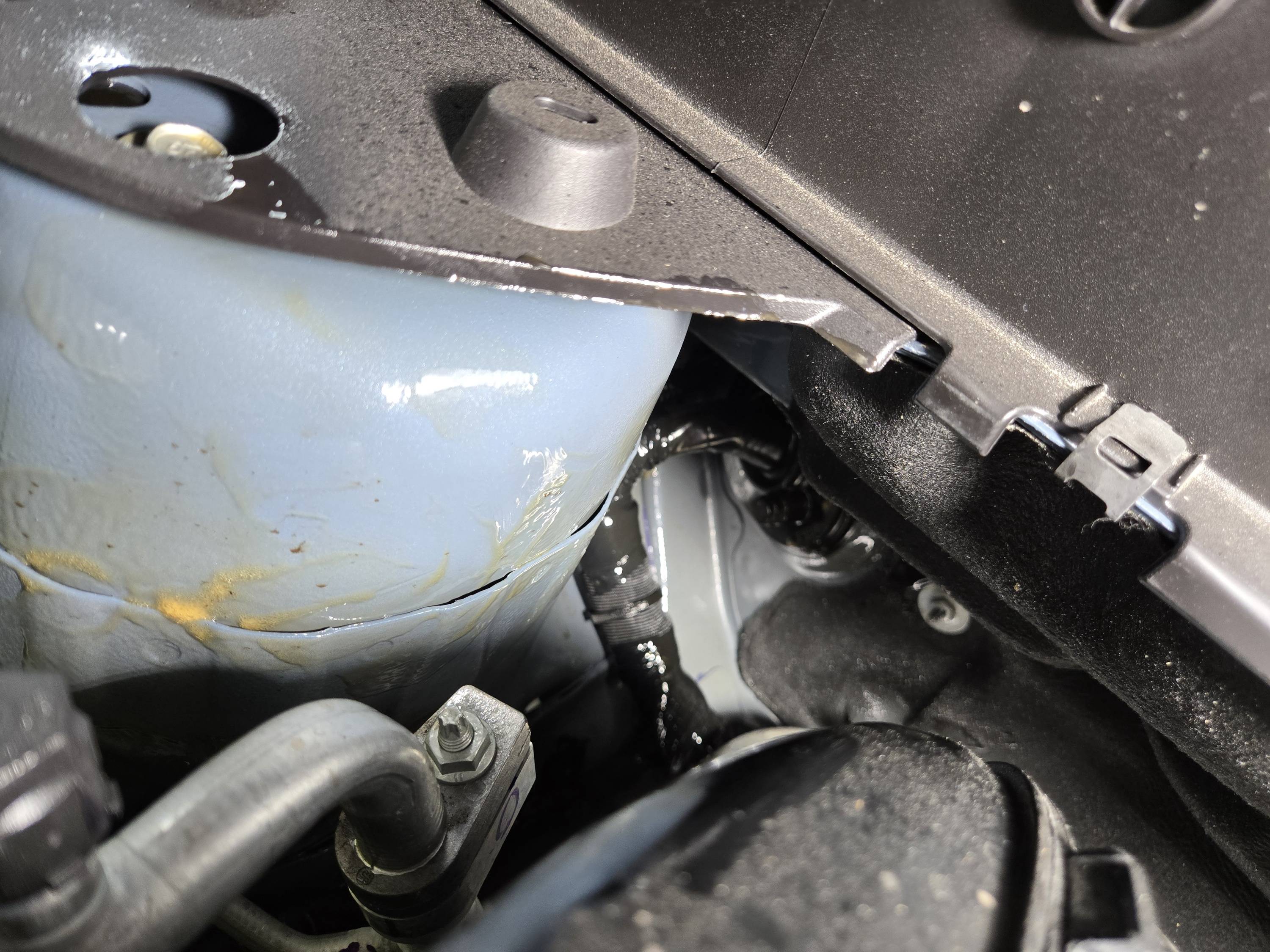

I don't see anything there looks like Spot A



[ELCouz]

Did you pop off the liner?
There is a post on this forum with specific instructions

what liner? inside? wheel fender liners?

I'll try to find the post



[ELCouz]

what liner? inside? wheel fender liners?

I'll try to find the post

oh the bronco nation one


Finding these weren’t so easy. D is located in the engine bay as expected but A-C are actually located in the wheel well behind the liner. The diagram without any explanation was challenging on my part, I spent some time searching and hoping that it was not where it turned out to be. To a lesser extent, Ford substituted letters for the auxiliary numbers, but our assumption was A=Aux 1, etc.

Our liner is plastic, and we were able to remove a couple of the securing clips and by carefully folding it back to expose the wires, we did not have to completely remove the liner but we did have to remove both front tires. (Use jack stands and extreme caution when working in this area!) After completing the connection, we were easily able to pass the wires up and into the engine bay to connect to the battery.

dang I passed through that text a while ago oops... also wheel wells why ?!!?
