I'm starting this build journal to keep track of everything I'm doing and maybe give other people some ideas.

Here are my build specs:

2022 Badlands
Area 51
Tow Package
235/65/17 Wildpeak AT3 tires

Ford Bronco Sport Badlands - Overland Build IMG_1009 (2)_LI


The main item I've been working on is a drawer system for the back, the dimensions are 41x26x12. That should give me just enough room to put my recovery boards behind the drawers. The reason I chose this size is because it allows me to fit everything I need in the drawers including larger items like my stove & propane tanks and enough room for my cooler to sit on top.

it's not quite done but some progress pictures:

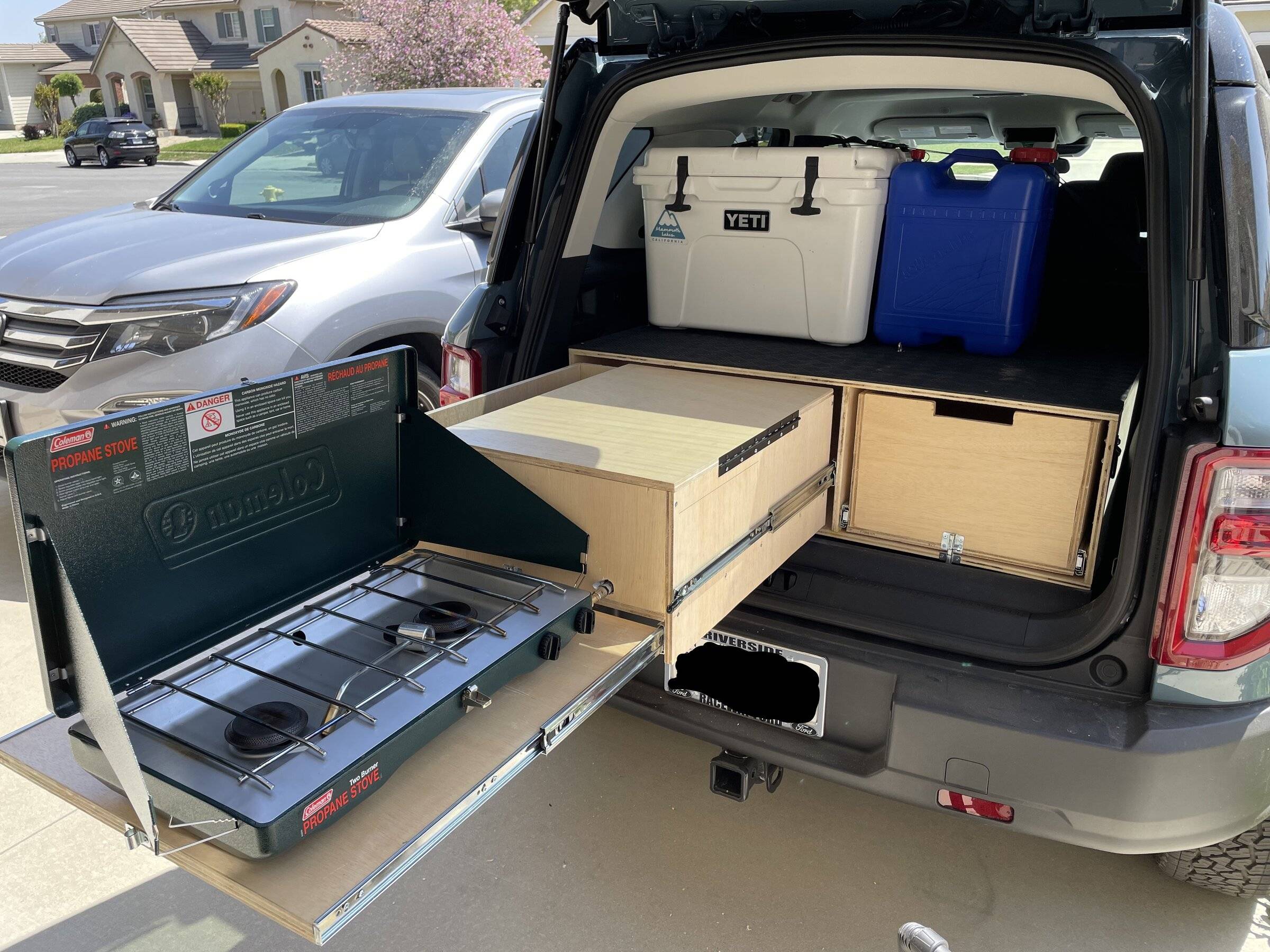

Ford Bronco Sport Badlands - Overland Build drawer-system.JPEG


One side was designed to have a pull out work area and wide enough to fit my camping stove.

Ford Bronco Sport Badlands - Overland Build IMG_1048.JPEG

Ford Bronco Sport Badlands - Overland Build IMG_1049.JPEG


Tie down anchors for securing it, I did one on each corner:

Ford Bronco Sport Badlands - Overland Build IMG_1051.JPEG


I'm currently covering the top with a thin layer of rubber, not sure how much I'll like it but I can always remove and sand.

Next things on my list:
Cover the pull out work area in something fire resistant.
Building in some partitions to organize my camping and biking gear
Assemble and mount a smittybilt overland gen2 RTT (currently sitting in my garage)
Sponsored


OP
OP
notabumblebee

notabumblebee

Badlands
Member
Joined
Mar 21, 2022
Threads
3
Messages
22
Reaction score
38
Location
California
Vehicle(s)
2022 BroncoSport
Looks great!
Here is mine, it's worked out great.
Ford Bronco Sport Badlands - Overland Build PXL_20211113_120651326-1
Ford Bronco Sport Badlands - Overland Build PXL_20211203_071739985
Ford Bronco Sport Badlands - Overland Build PXL_20211224_225919786
I was watching your build thread with a lot of interest! Turned out fantastic!

What leg did you use at the of the pull out? I'm still debating using a piano hinge to attach a 20x24 extension to my work area. I left a two inch gap for that extension or a expanding leg.


Escape2Bronco

Badlands
Well-Known Member
First Name
Steve
Joined
Oct 9, 2021
Threads
5
Messages
2,957
Reaction score
3,949
Location
Wisconsin
Vehicle(s)
2013 Lexus, 2022 Bronco Sport, 2023 Heritage 2 dr
Much nicer than my “camping kitchen” I made 40 years ago. Kept all my crap in it locked up on the picnic table rather than in tubs etc in the tent. Hopefully you will get lots of enjoyment out of it like I did mine.


ctrabbit25

Outer Banks
Well-Known Member
First Name
Carlos
Joined
Aug 18, 2021
Threads
13
Messages
81
Reaction score
385
Location
Austin, tx
Vehicle(s)
Bronco sport
I was watching your build thread with a lot of interest! Turned out fantastic!

What leg did you use at the of the pull out? I'm still debating using a piano hinge to attach a 20x24 extension to my work area. I left a two inch gap for that extension or a expanding leg.

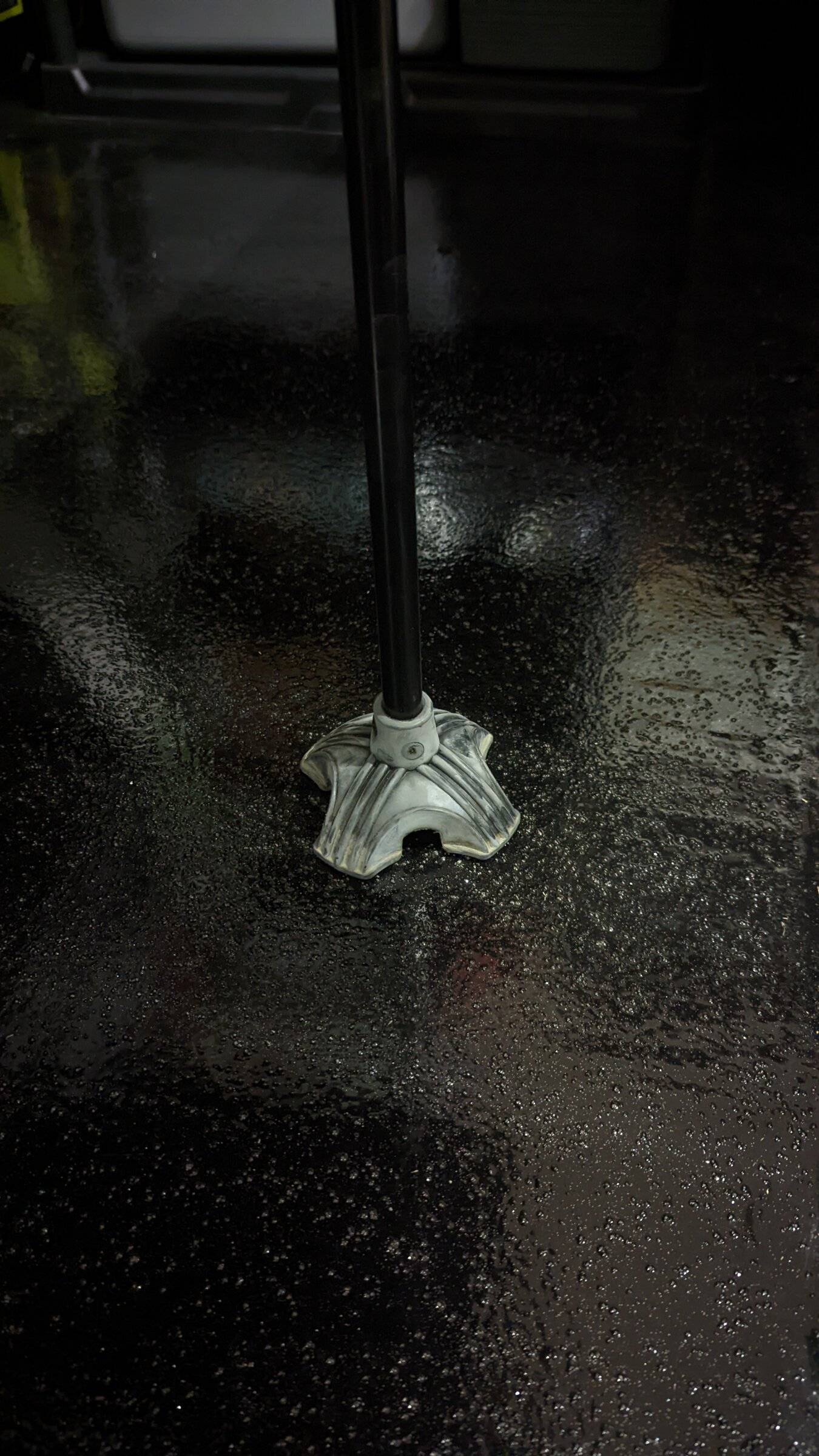

My leg was an after thought I added right before the first trip I used the kitchen and I haven't upgraded it since. It's just a tension rod with a cane foot attached that can be screwed on or removed when packing up, but it works! It stores with the stove.
Ford Bronco Sport Badlands - Overland Build PXL_20220408_054717289
Ford Bronco Sport Badlands - Overland Build PXL_20220408_054725992

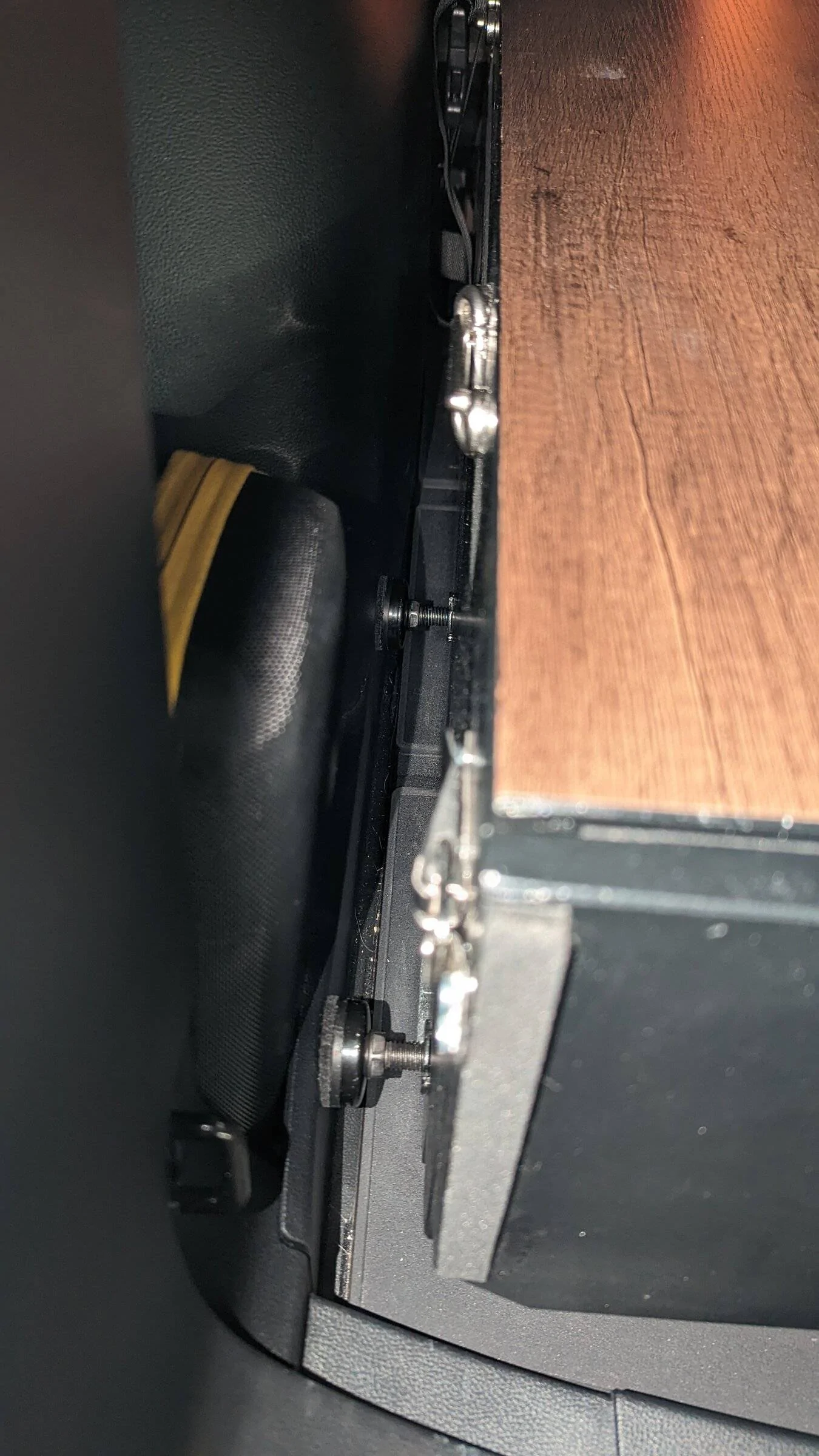

I would suggest adding adjustable feet on the side to fix sliding back and forth if you go off roading. I recently added those and it really helps.
Ford Bronco Sport Badlands - Overland Build PXL_20220408_054516882



AndyMac204

Base
Well-Known Member
First Name
Andy
Joined
Jun 27, 2021
Threads
12
Messages
879
Reaction score
1,535
Location
Canada
Vehicle(s)
2021 Bronco Sport Base / 1988 Dodge Power Ram w150
awesome work, well done and well thought out. your rotopax on the 1/4 glass....is it pretty solid? any concerns about glass breaking?
awesome rig.


AndyMac204

Base
Well-Known Member
First Name
Andy
Joined
Jun 27, 2021
Threads
12
Messages
879
Reaction score
1,535
Location
Canada
Vehicle(s)
2021 Bronco Sport Base / 1988 Dodge Power Ram w150
also, you're gonna love the smittybuilt RTT. i'd say prob the best one out there.


ctrabbit25

Outer Banks
Well-Known Member
First Name
Carlos
Joined
Aug 18, 2021
Threads
13
Messages
81
Reaction score
385
Location
Austin, tx
Vehicle(s)
Bronco sport
awesome work, well done and well thought out. your rotopax on the 1/4 glass....is it pretty solid? any concerns about glass breaking?
awesome rig.
Thanks!

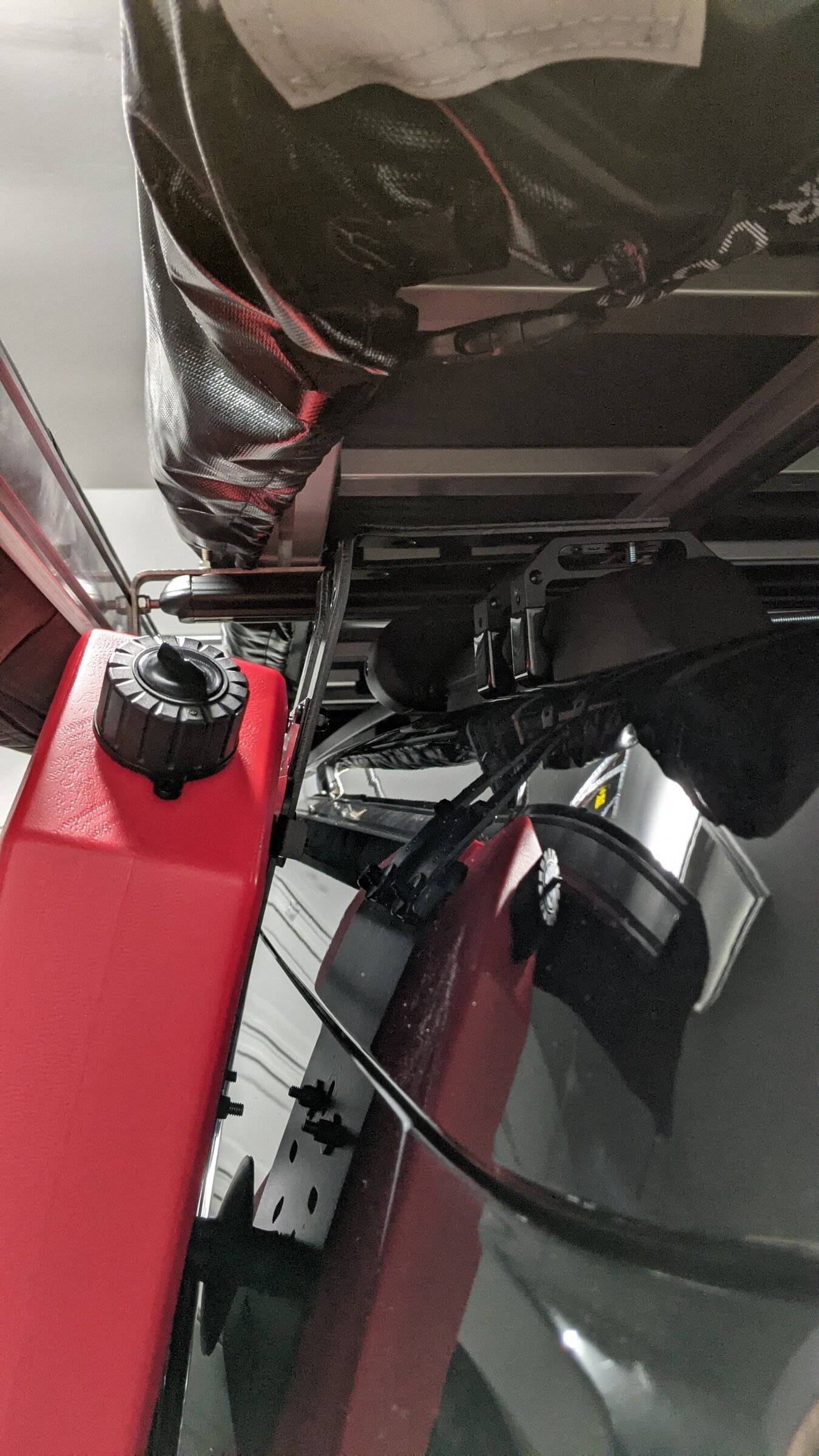

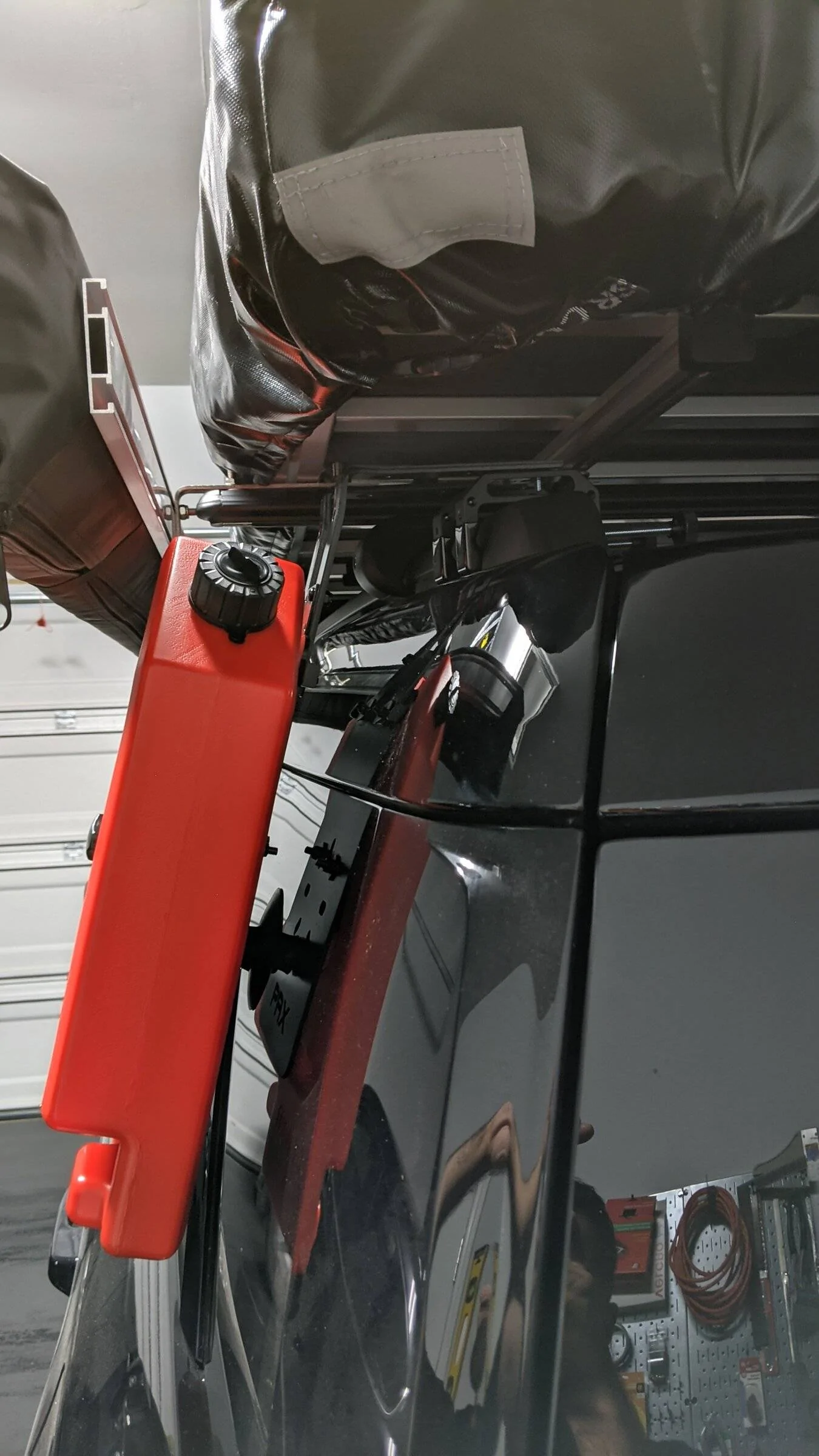

Here is a close up of the bracket for the rotopax. It's been on the car for over 6 months and used many times. It's never moved even off-road and it's also easy to take off to use and fill. No concerns it's been great.
Ford Bronco Sport Badlands - Overland Build PXL_20211112_065458875.NIGHT
Ford Bronco Sport Badlands - Overland Build PXL_20211112_065525224

OP
OP
notabumblebee

notabumblebee

Badlands
Member
Joined
Mar 21, 2022
Threads
3
Messages
22
Reaction score
38
Location
California
Vehicle(s)
2022 BroncoSport
Thanks!

Here is a close up of the bracket for the rotopax. It's been on the car for over 6 months and used many times. It's never moved even off-road and it's also easy to take off to use and fill. No concerns it's been great.
Ford Bronco Sport Badlands - Overland Build PXL_20211112_065458875.NIGHT
Ford Bronco Sport Badlands - Overland Build PXL_20211112_065525224
Where did you get the mount? That's exactly what I've been looking for!



ctrabbit25

Outer Banks
Well-Known Member
First Name
Carlos
Joined
Aug 18, 2021
Threads
13
Messages
81
Reaction score
385
Location
Austin, tx
Vehicle(s)
Bronco sport
Where did you get the mount? That's exactly what I've been looking for!
I technically made it here are the parts
RotopaX RX-TN Toyota and Nissan Truck Plate https://www.amazon.com/dp/B008S9QSJM/ref=cm_sw_r_apan_i_TPHW3FVYJY8M7WYQNCYV?_encoding=UTF8&psc=1
CAMVATE Extended Size C Clamp with 1/4" & 3/8" Mounting Points For Photographic Accessories https://www.amazon.com/dp/B08L4C23LY/ref=cm_sw_r_apan_i_M6W8AR5CRA0EZXVQQYHH?_encoding=UTF8&psc=1
HSTECH (4 Pcs) Black French Fry Suction Cup Feet Compatible with Industrial Commercial French Fry Cutter https://www.amazon.com/dp/B08J42YLTQ/ref=cm_sw_r_apan_i_WMFDJDCZW1X3VCFD4XPR?_encoding=UTF8&psc=1
And some heavy steel L brackets

OP
OP
notabumblebee

notabumblebee

Badlands
Member
Joined
Mar 21, 2022
Threads
3
Messages
22
Reaction score
38
Location
California
Vehicle(s)
2022 BroncoSport
A couple of updates:

Rubber mat added to the top and finally mounted in the BS.

Ford Bronco Sport Badlands - Overland Build IMG_1067_LI

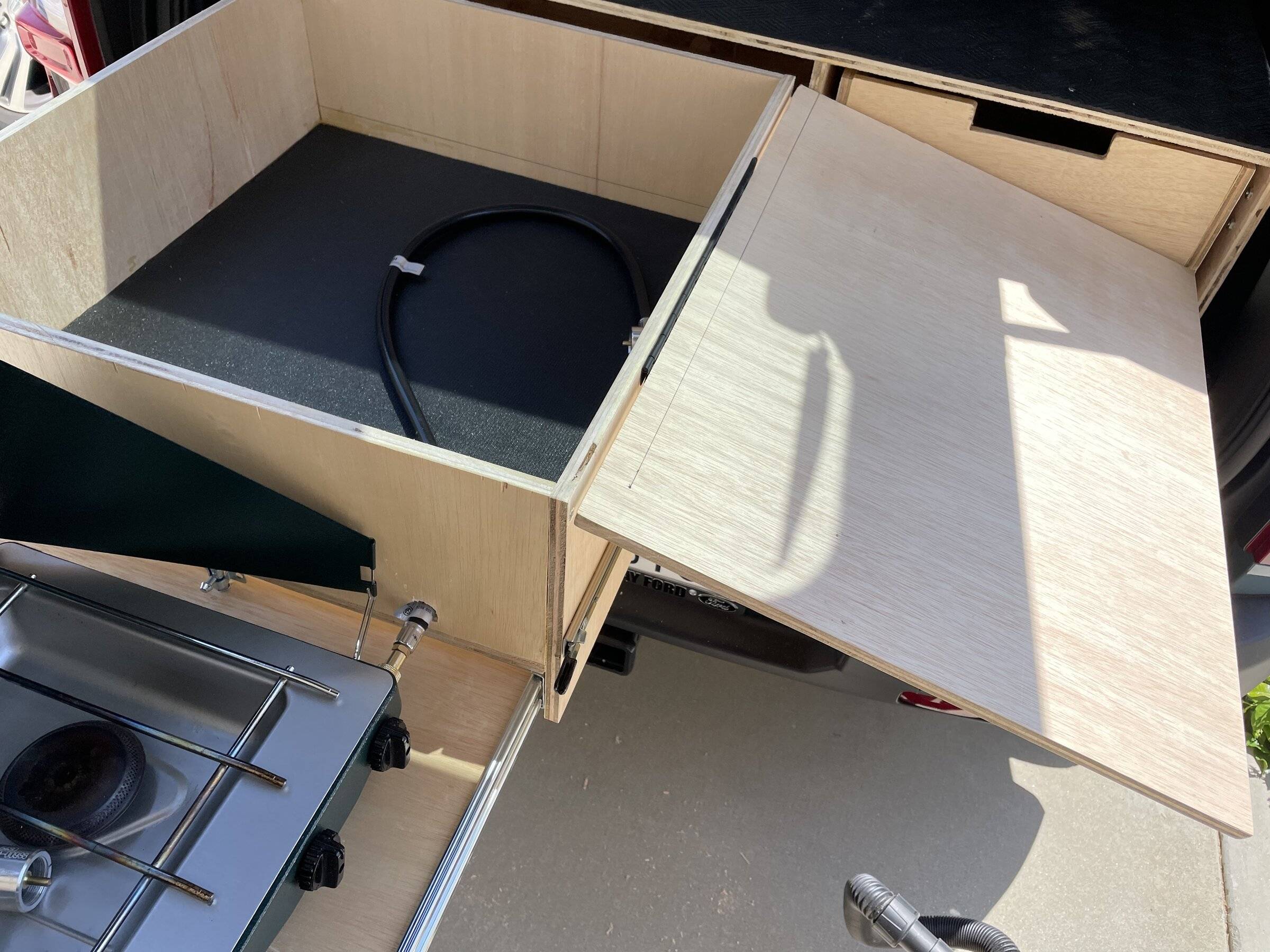

Work area added to the top of the galley drawer, on a piano hinge.
