Aftermarket Speakers

CHasd307

Big Bend
New Member
First Name
Robert
Joined
Mar 23, 2021
Messages
2
Reaction score
0
Location
Wyoming
Vehicle(s)
2021 Ford Bronco Sport
Im wondering if anyone knows the Speaker sizes in a 2021 Ford Bronco Sport Big Bend Edition





Advertisement



MuddyBoots

Badlands
Well-Known Member
First Name
Derek
Joined
Dec 30, 2020
Messages
211
Reaction score
153
Location
New England
Vehicle(s)
Bronco Sport Badlands
The Bronco Sport is based off of the Ford Escape so I think, but I am definitely NOT sure, that speakers that fit in the 2021 Escape will fit in the Bronco Sport. According to Crutchfield that means it could possibly fit round 6 3/4" speakers in the doors. Definitely could be wrong, and warrants additional research to find out.

I tried calling Ford Marketing once to ask them if that was true, and the person that answered didn't know, and said she would pass me along to the parts department. Well, instead of parts she forwarded me to the company that handles Ford's tire rebate program. That person was very confused when I started asking all about speaker sizes and placements. I didn't bother calling back to try to get to get to the right department.


f.sancho4

Base
New Member
Joined
Jan 13, 2021
Messages
2
Reaction score
0
Location
Houston, TX
Vehicle(s)
2021 Ford Bronco Sport
Wtf. The EXACT same thing happened to me a few months back. I called and the rep said, "Yeah, the audio layout diagram is right here, just search this *** on Ford's website". So I did and when I couldn't find it she said, "Well, I can see it here. I guess it's just not available to consumers yet". Then I asked if she could email a copy and she said nope and said that she would connect me to the parts department and I ended up talking to someone in the tire rebate program. It was just frustrating and haven't tried again. Maybe I'll give them another call today lol.


Excape

Outer Banks
Well-Known Member
First Name
Reg
Joined
Feb 13, 2020
Messages
374
Reaction score
419
Location
TN
Vehicle(s)
Colorado

SunZmSpark

Big Bend
Active Member
Joined
Feb 24, 2021
Messages
40
Reaction score
72
Location
46237
Vehicle(s)
2021 Bronco Sport
Im wondering if anyone knows the Speaker sizes in a 2021 Ford Bronco Sport Big Bend Edition
The door speakers are 6.5". I replaced mine with Focal 165CA1 speakers and they sound great! https://www.amazon.com/Focal-165CA1-Speaker-2-Way-Inverted/dp/B007C70EP0/ref=psdc_10980771_t1_B007T7F3MM

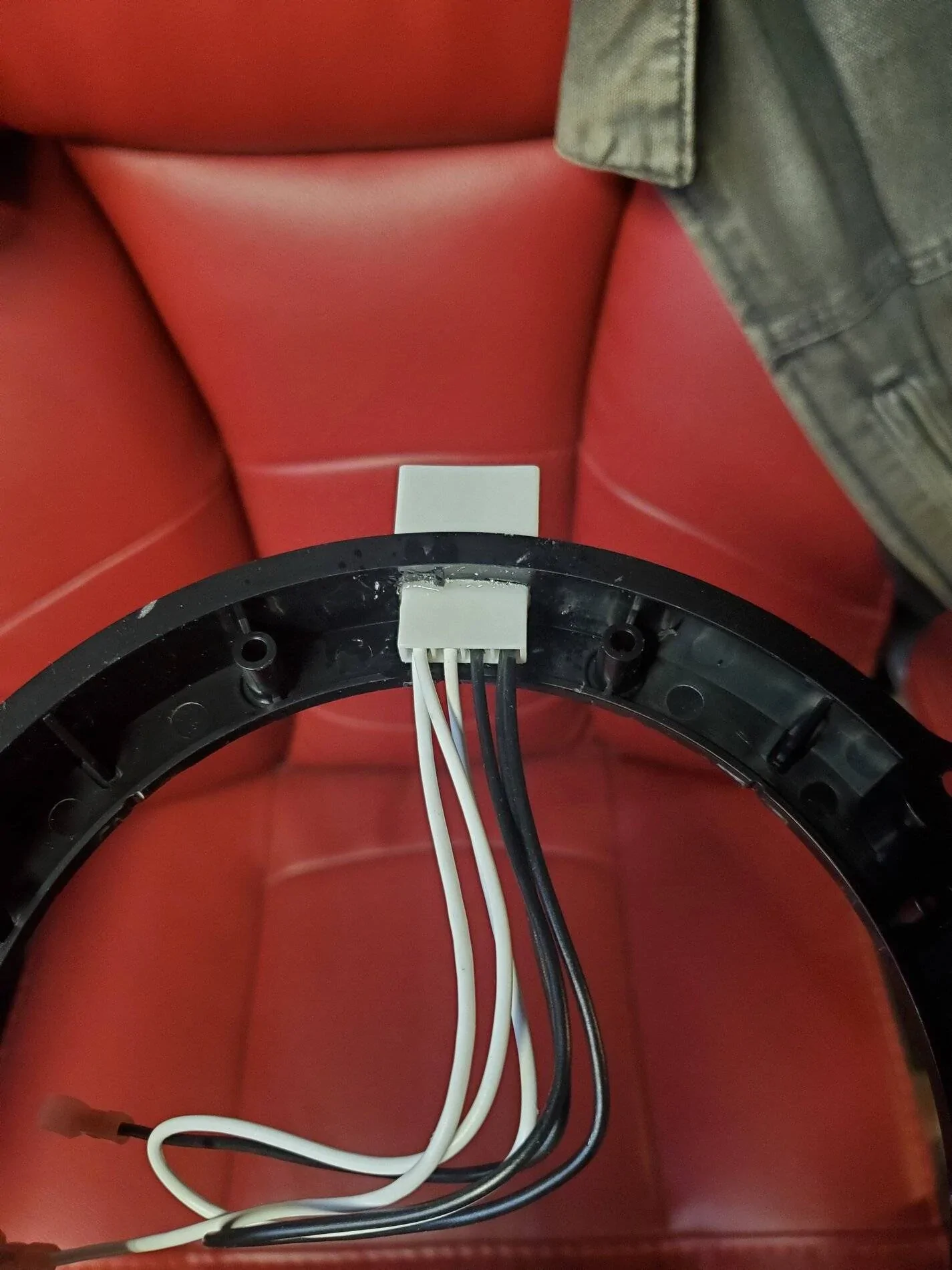

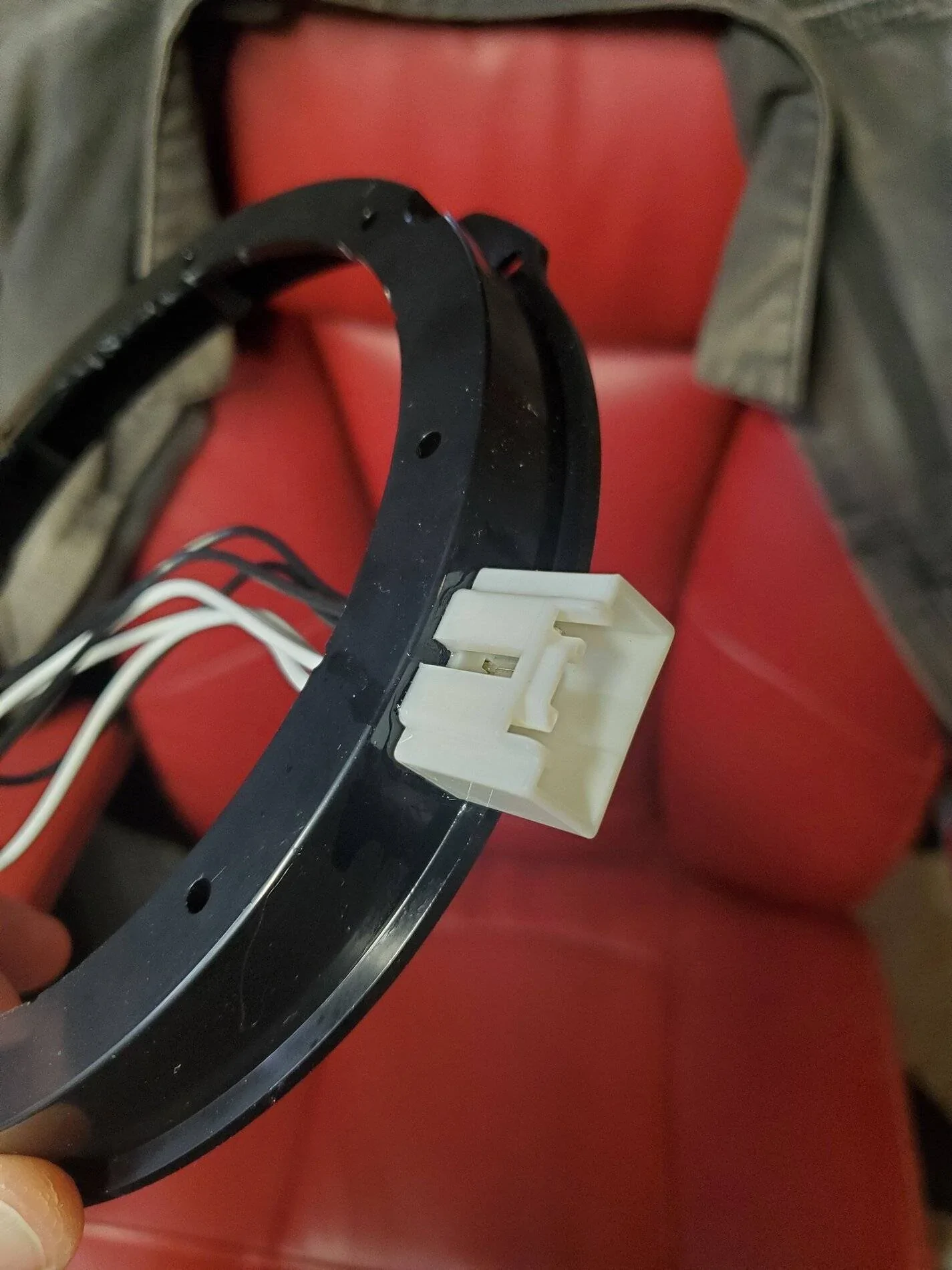

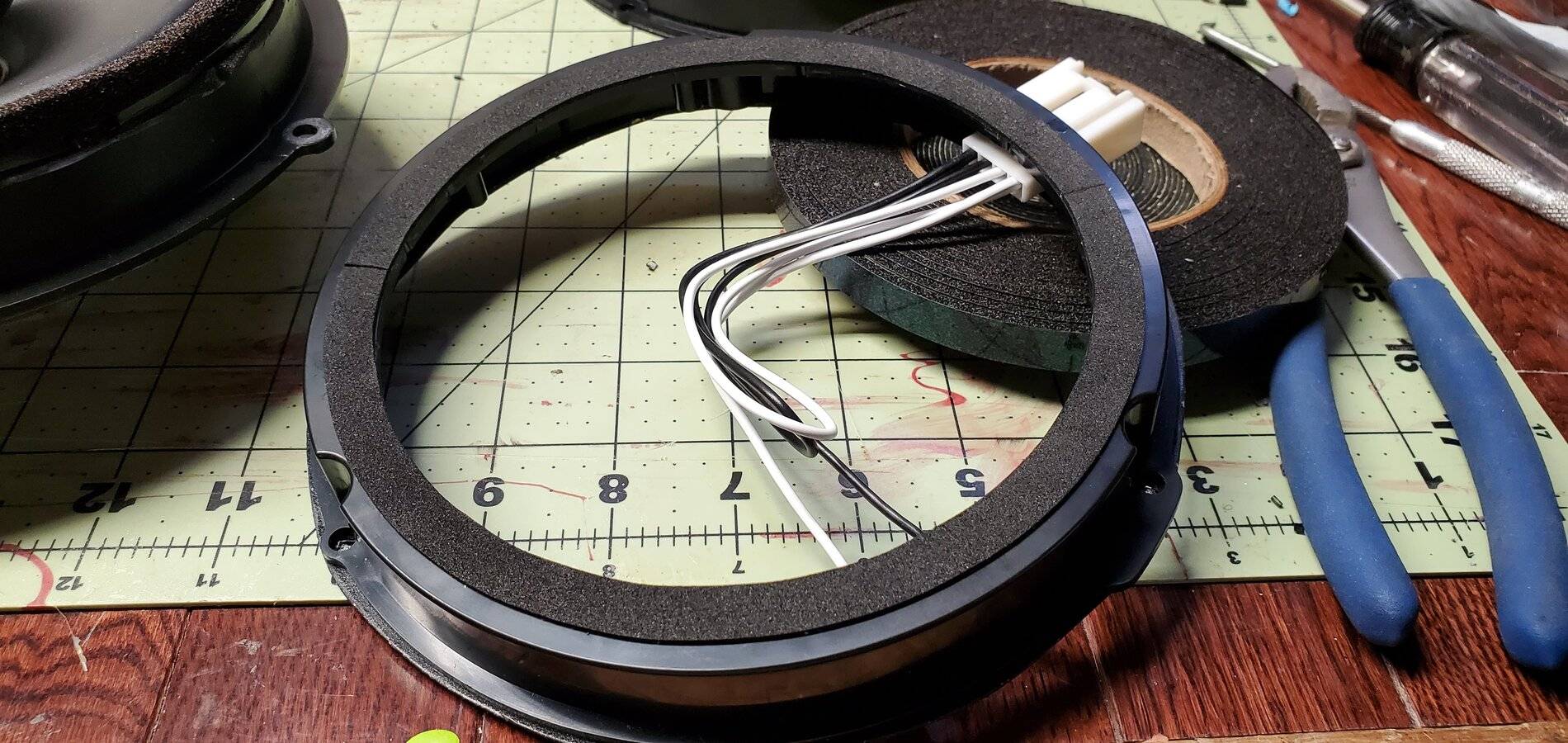

You will need a spacer to raise them from the door panel. Something like this will work https://www.amazon.com/Metra-82-7400-Speaker-Infiniti-Vehicles/dp/B0194MS420/ref=sr_1_3?dchild=1&keywords=metra+6.5+speaker+adapter+nissan&qid=1623751704&sr=8-3

The tweeters in the dash are 1" (I left mine installed).


saucey360

Base
New Member
First Name
Justin
Joined
Jul 10, 2021
Messages
4
Reaction score
4
Location
Ventura County
Vehicle(s)
Bronco Sport
The door speakers are 6.5". I replaced mine with Focal 165CA1 speakers and they sound great! https://www.amazon.com/Focal-165CA1-Speaker-2-Way-Inverted/dp/B007C70EP0/ref=psdc_10980771_t1_B007T7F3MM

You will need a spacer to raise them from the door panel. Something like this will work https://www.amazon.com/Metra-82-7400-Speaker-Infiniti-Vehicles/dp/B0194MS420/ref=sr_1_3?dchild=1&keywords=metra+6.5+speaker+adapter+nissan&qid=1623751704&sr=8-3

The tweeters in the dash are 1" (I left mine installed).
6.5 for front and back? How long did the instal take you. How was the bass on those speakers, was also looking at the alpines. Was thinking of also doing one of those small hideaway subs but not sure they could fit under the driver or the passenger seat because of this little hump.


SunZmSpark

Big Bend
Active Member
Joined
Feb 24, 2021
Messages
40
Reaction score
72
Location
46237
Vehicle(s)
2021 Bronco Sport
6.5 for front and back? How long did the instal take you. How was the bass on those speakers, was also looking at the alpines. Was thinking of also doing one of those small hideaway subs but not sure they could fit under the driver or the passenger seat because of this little hump.
Yes, they're both 6.5. It wasn't too hard to do, but you definitely need adapters to bring the speakers forward in the doors. It's amazing how lightweight the factory speakers are. I would say it probably took a couple of hours to complete. I spent more time taking off and putting on the door panels. The sound improvement all-around was much better (highs and lows). I'm not a booming bass-head so the low-end was great for me. I actually had to turn the bass down a bit. However, if you're really into bass, you'll need a sub (I don't think any 6.5 can reach the lows of a sub).

I was also considering the 6.5 Alpine R-Series speakers (always loved their sound) but decided to give the Focals a try. I've heard a lot of great things about them over the years and I'm not disappointed. These speakers also look interesting, but I'm not sure about their sound quality. They're a direct replacement so no adapters would be necessary. https://powerbassusa.com/us/en/products/mobile-audio/OE652-FD-Coaxial-OEM-Replacement-Speaker-FORD-Lincoln/

Not sure if there's enough room under the front seats for a hide-away sub, but I would love to hear if someone has successfully installed one.

Last edited:

saucey360

Base
New Member
First Name
Justin
Joined
Jul 10, 2021
Messages
4
Reaction score
4
Location
Ventura County
Vehicle(s)
Bronco Sport
Yes, they're both 6.5. It wasn't too hard to do, but you definitely need adapters to bring the speakers forward in the doors. It's amazing how lightweight the factory speakers are. I would say it probably took a couple of hours to complete. I spent more time taking off and putting on the door panels. The sound improvement all-around was much better (highs and lows). I'm not a booming bass-head so the low-end was great for me. I actually had to turn the bass down a bit. However, if you're really into bass, you'll need a sub (I don't think any 6.5 can reach the lows of a sub).

I was also considering the 6.5 Alpine R-Series speakers (always loved their sound) but decided to give the Focals a try. I've heard a lot of great things about them over the years and I'm not disappointed. These speakers also look interesting, but I'm not sure about their sound quality. They're a direct replacement so no adapters would be necessary. https://powerbassusa.com/us/en/products/mobile-audio/OE652-FD-Coaxial-OEM-Replacement-Speaker-FORD-Lincoln/

Not sure if there's enough room under the front seats for a hide-away sub, but I would love to hear if someone has successfully installed one.
I saw someone post about those powerbass speakers, would be nice for the convenience, just not familiar with the brand . I swear I saw someone had fit one under the passenger seat it just stuck out a little but it must have been I. The fb groups


Reklussloth

Base
Well-Known Member
First Name
Colton
Joined
Jul 4, 2021
Messages
83
Reaction score
78
Location
Texas
Vehicle(s)
2021 bronco sport
I saw someone post about those powerbass speakers, would be nice for the convenience, just not familiar with the brand . I swear I saw someone had fit one under the passenger seat it just stuck out a little but it must have been I. The fb groups

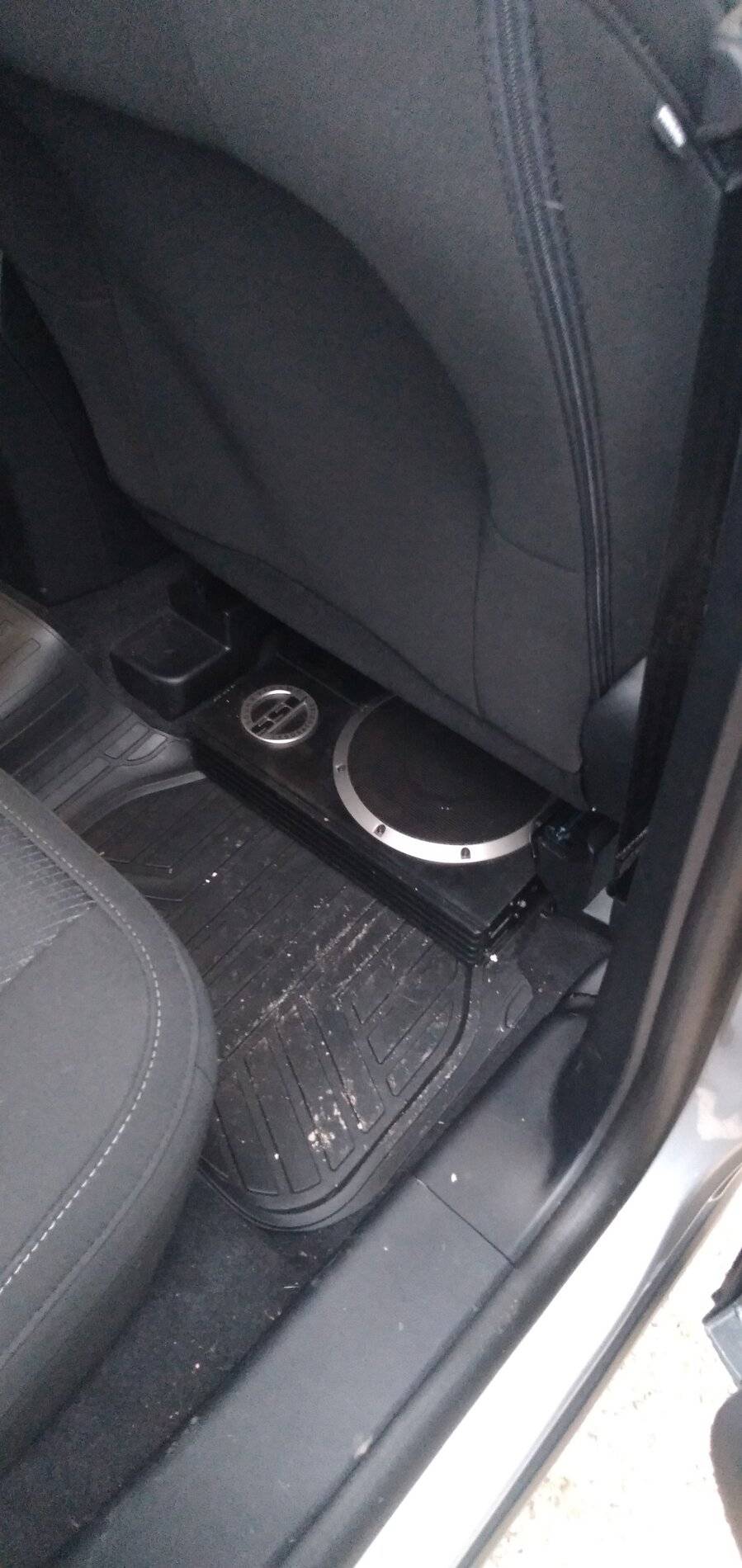

Ive got a low pro 8 ... i can unhook and check if it fits?


Reklussloth

Base
Well-Known Member
First Name
Colton
Joined
Jul 4, 2021
Messages
83
Reaction score
78
Location
Texas
Vehicle(s)
2021 bronco sport

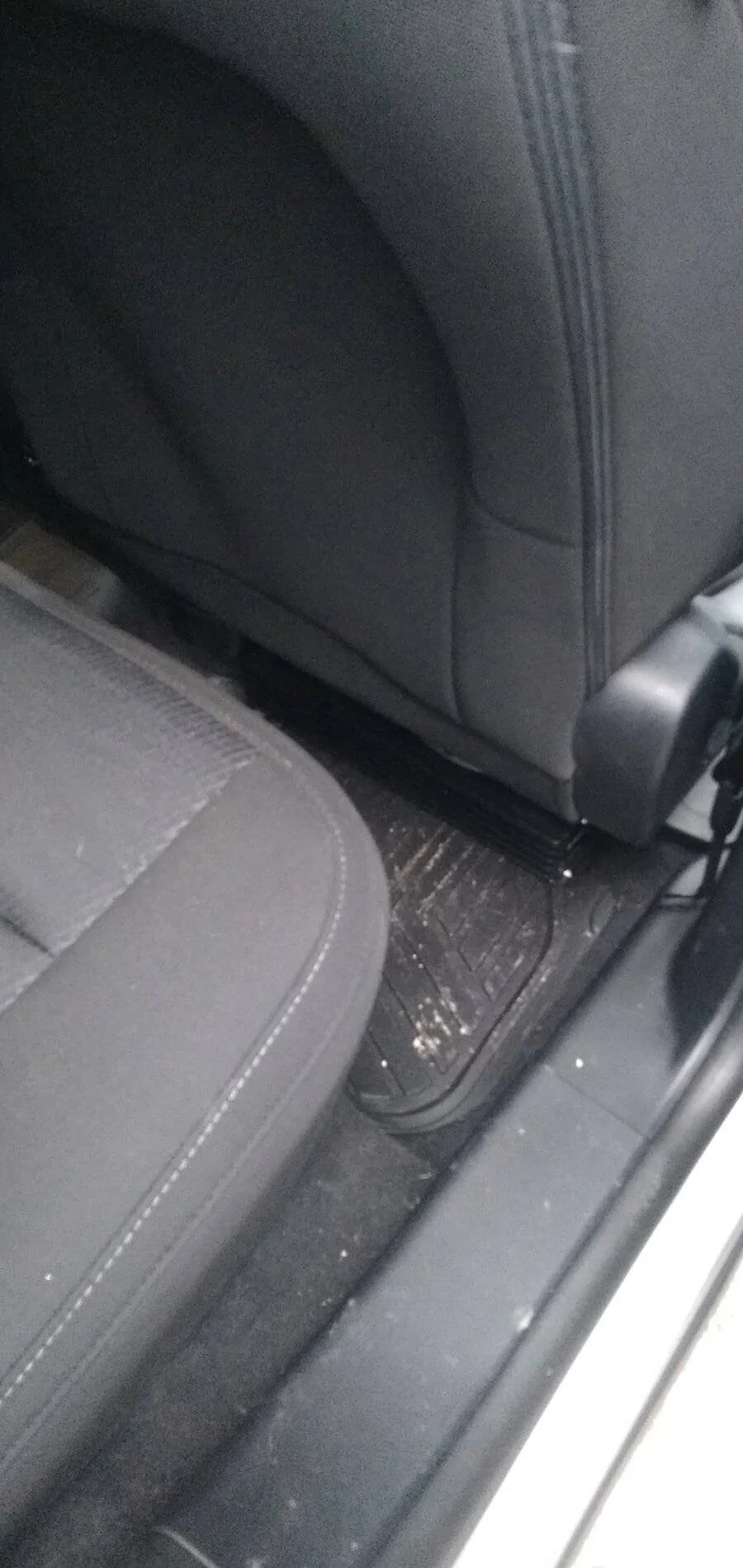

Seat full back. Full forward and about 1/2 way.... problem is there is a little blower down there .... ove never even noticed but it could be ac/hea related...







saucey360

Base
New Member
First Name
Justin
Joined
Jul 10, 2021
Messages
4
Reaction score
4
Location
Ventura County
Vehicle(s)
Bronco Sport
Seat full back. Full forward and about 1/2 way.... problem is there is a little blower down there .... ove never even noticed but it could be ac/hea related...
Thank you, much appreciated. I may potentially try this as I rarely have anyone ride in my back seat and I use the seats down for cargo space far too much to have one in the trunk .
