A Pillar Wiring

Curtsbronco

Badlands
Active Member
First Name
Curt
Joined
Jul 25, 2022
Threads
4
Messages
39
Reaction score
65
Location
Tulsa
Vehicle(s)
Dual Sport Family. Badlands and Big Bend.

Bucko

Outer Banks
Well-Known Member
First Name
Kevin
Joined
Mar 16, 2023
Threads
52
Messages
2,460
Reaction score
3,613
Location
Gainesville
Vehicle(s)
2023 Ford Bronco Sport Outer Banks Area51
Nice vid!


Scott_Anderson_

Badlands
Well-Known Member
First Name
Scott
Joined
Mar 17, 2023
Threads
0
Messages
46
Reaction score
76
Location
Arkansas
Vehicle(s)
2021 Badlands Cactus Gray
OP
OP
Curtsbronco

Curtsbronco

Badlands
Active Member
First Name
Curt
Joined
Jul 25, 2022
Threads
4
Messages
39
Reaction score
65
Location
Tulsa
Vehicle(s)
Dual Sport Family. Badlands and Big Bend.
Thanks for sharing this. Is that brush guard on the Badlands RC?

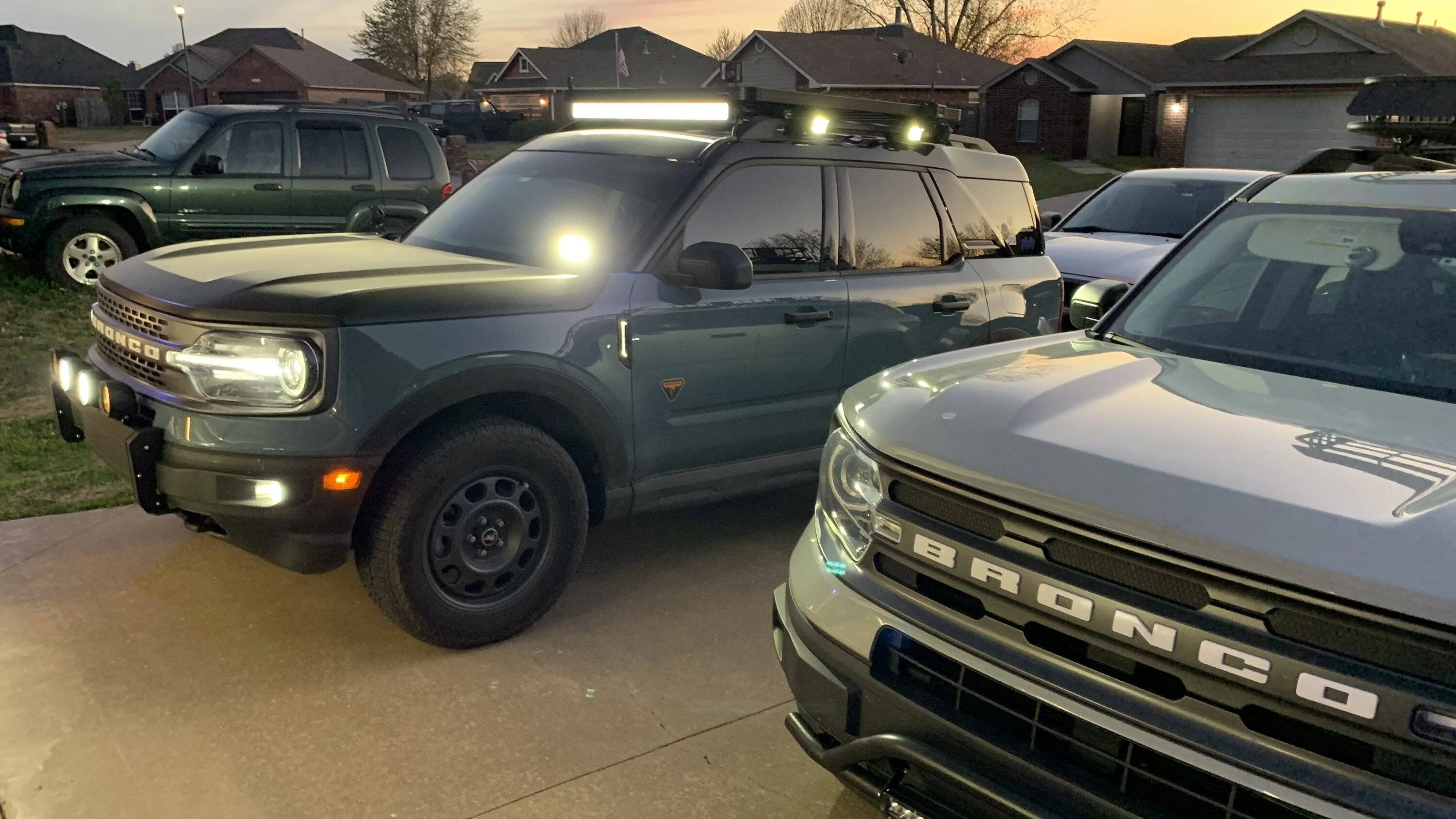

On the Badlands, it's the Rally Innovations light bar. On our Big Bend (right) I've got the Ford Ranger Lifts nudge bar.



OP
OP
Curtsbronco

Curtsbronco

Badlands
Active Member
First Name
Curt
Joined
Jul 25, 2022
Threads
4
Messages
39
Reaction score
65
Location
Tulsa
Vehicle(s)
Dual Sport Family. Badlands and Big Bend.

ryan_socal

Badlands
Member
First Name
Ryan
Joined
Apr 6, 2025
Threads
1
Messages
20
Reaction score
50
Location
Los Angeles
Vehicle(s)
2025 Bronco Sport
Sorry for being dense.. can you help me understand how that fits?

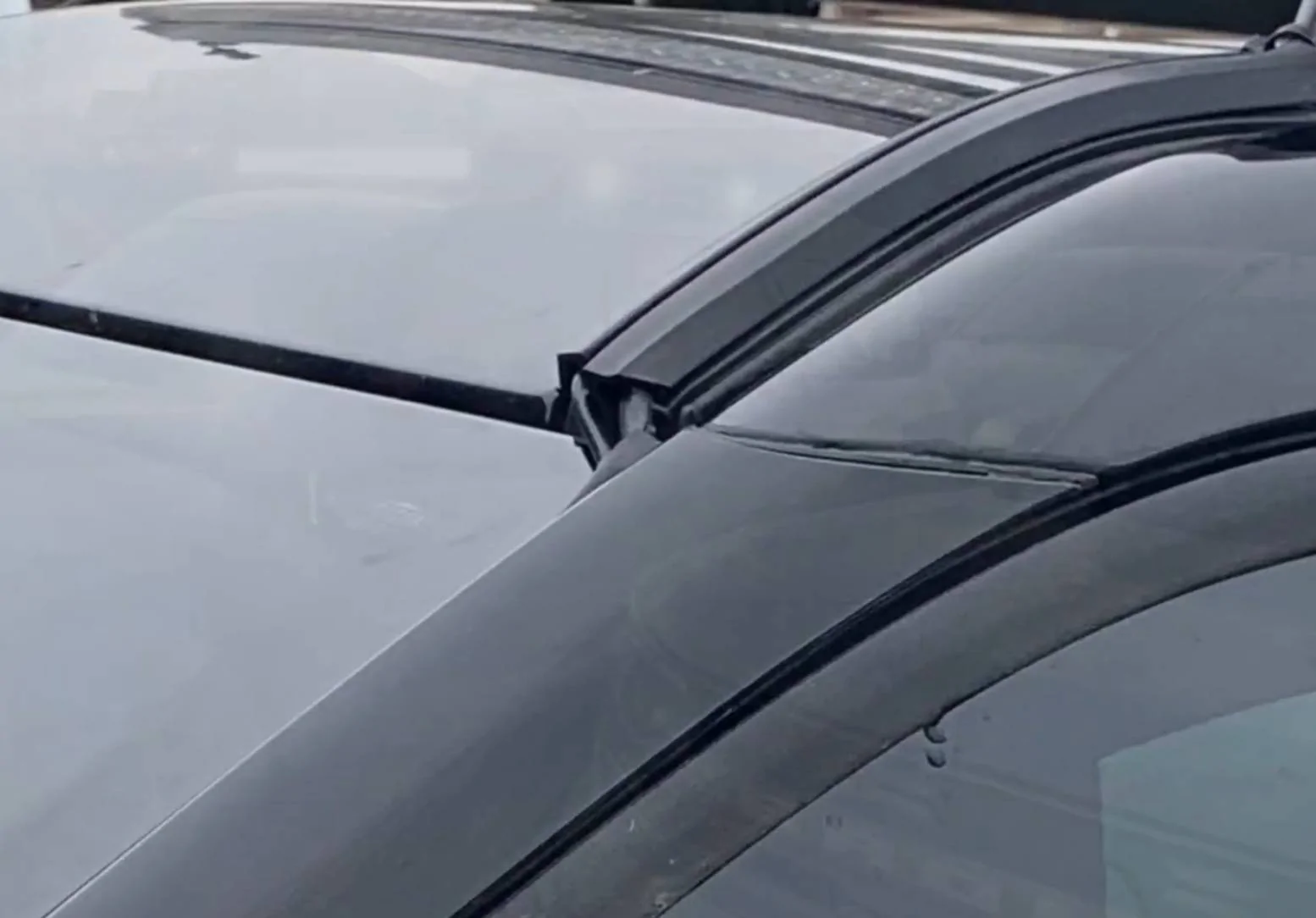

At the end of your video, it looks like you tucked the power and coax cables under the cover and weather stripping for the roof rack channel. The channel cover looks flush and neat, like OEM. Is the KC wire hider installed at that point? Does it perhaps replace the inboard or outboard weather strip? Or replace the whole channel cover? Did you have to remove the channel cover and/or weather stripping?

Ford Bronco Sport A Pillar Wiring IMG_2074

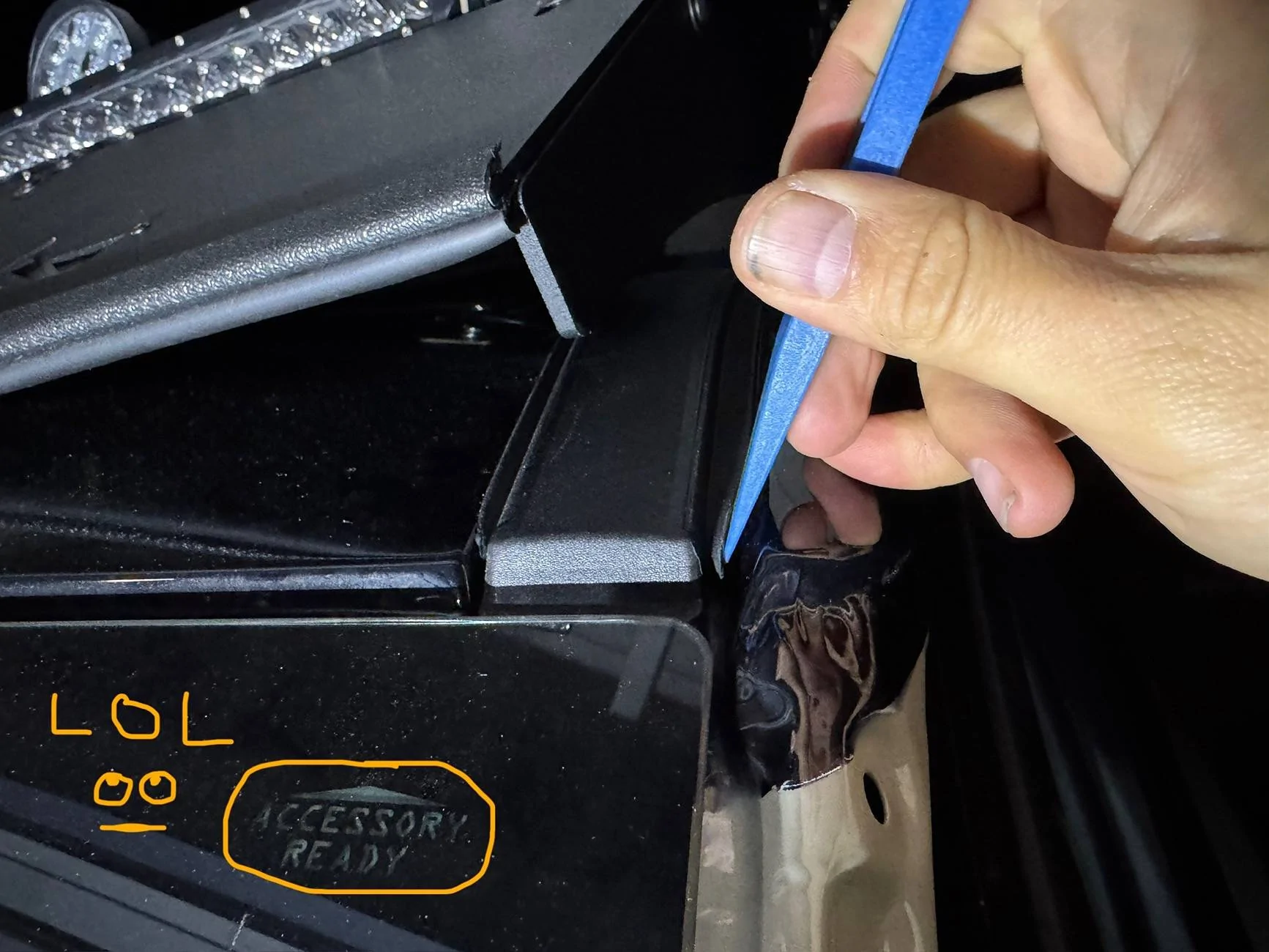

My roof rack channel cover on a ā€˜25 badlands looks different, probably because I’m not quite understanding which part in your video is the wire hider. LOL at ā€œaccessory readyā€.
Ford Bronco Sport A Pillar Wiring IMG_2067


Side note for future readers.. careful with the top trim snap insert. It was stubborn as Curt and others pointed out. I broke mine and will have to replace it :(

Last edited:
  • Like
Reactions: Me3
OP
OP
Curtsbronco

Curtsbronco

Badlands
Active Member
First Name
Curt
Joined
Jul 25, 2022
Threads
4
Messages
39
Reaction score
65
Location
Tulsa
Vehicle(s)
Dual Sport Family. Badlands and Big Bend.
Sorry for being dense.. can you help me understand how that fits?

At the end of your video, it looks like you tucked the power and coax cables under the cover and weather stripping for the roof rack channel. The channel cover looks flush and neat, like OEM. Is the KC wire hider installed at that point? Does it perhaps replace the inboard or outboard weather strip? Or replace the whole channel cover? Did you have to remove the channel cover and/or weather stripping?

Ford Bronco Sport A Pillar Wiring IMG_2074


My roof rack channel cover on a ā€˜25 badlands looks different, probably because I’m not quite understanding which part in your video is the wire hider. LOL at ā€œaccessory readyā€.
Ford Bronco Sport A Pillar Wiring IMG_2067


Side note for future readers.. careful with the top trim snap insert. It was stubborn as Curtis and others pointed out. I broke mine and will have to replace it :(

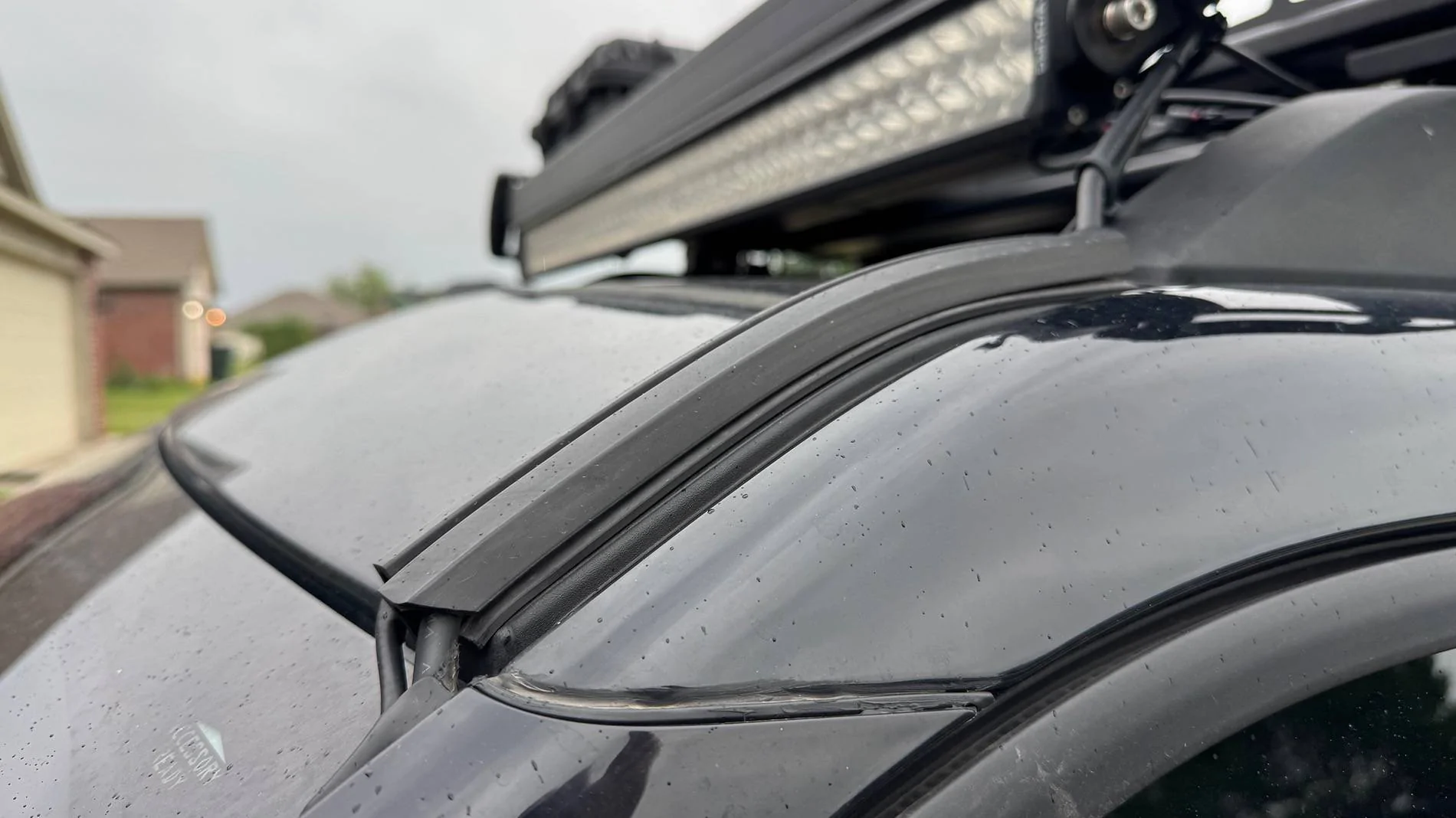

Not being dense! 🤣 I wasn’t real obvious on the rest of the wire routing, and just took a couple of pictures for clarity. Probably should have added a bit at the end of that video. I attached the wire hider to the molding. I was never sure how well or if it could be removed, and I usually opt to go a route that can be undone if necessary (limited holes, permanent mods, etc.).

I’ve got a few more dents, pin stripes, miles and stickers since I did the video, so it all fits - and from a distance looks pretty ok. šŸ˜‰

I’m sure there are many that would love to know if you can route under that molding. I would.
Ford Bronco Sport A Pillar Wiring IMG_3145
Ford Bronco Sport A Pillar Wiring IMG_3146


Dude

Badlands
Well-Known Member
Joined
Sep 20, 2022
Threads
97
Messages
3,810
Reaction score
4,087
Location
Arizona
Vehicle(s)
2022 Bronco Sport Badlands

ryan_socal

Badlands
Member
First Name
Ryan
Joined
Apr 6, 2025
Threads
1
Messages
20
Reaction score
50
Location
Los Angeles
Vehicle(s)
2025 Bronco Sport
Not being dense! 🤣 I wasn’t real obvious on the rest of the wire routing, and just took a couple of pictures for clarity. Probably should have added a bit at the end of that video. I attached the wire hider to the molding. […]
Ford Bronco Sport A Pillar Wiring IMG_3145
Oooh I see it now! Thanks a bunch. I will do the same. Iā€˜m also avoiding irreversible mods, for the most part, and I won’t mind having the wire hider sit on top of the OEM trim. Looks great in your installation.

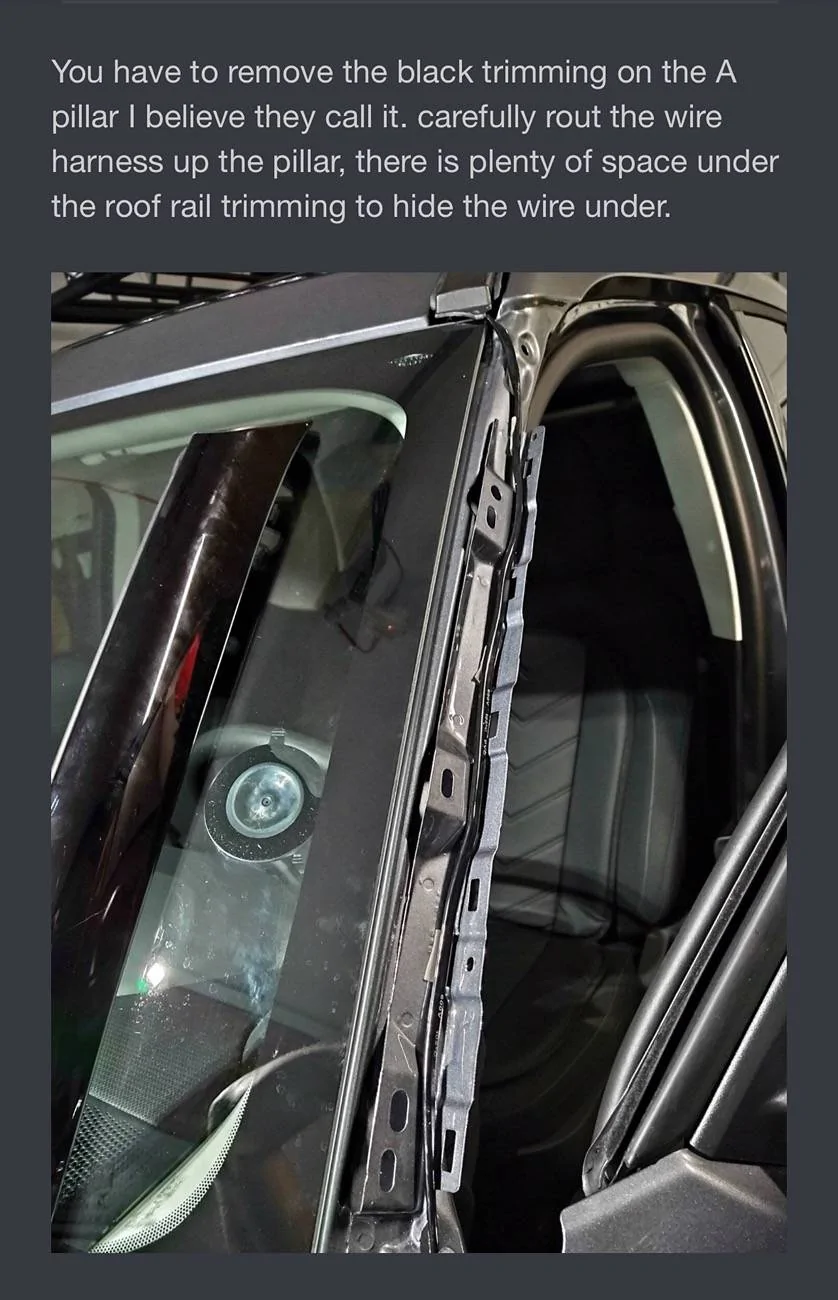

Good point! I saw that too after following the breadcrumb Curt helpfully provided at the top of this thread, but I didn’t see any detail about how Alfredo did that. I suppose I or someone could ask him in that thread.

For now, I’m going with wire hider route since thatā€˜ll be easier to work with long term, avoids leaving a gap in the rain channel weather stripping, and looks good to me.



Trist0n

First Edition
Well-Known Member
Joined
Oct 24, 2023
Threads
16
Messages
114
Reaction score
247
Location
The Moon
Vehicle(s)
2021 First Edition // 2022 Outer Banks + OB

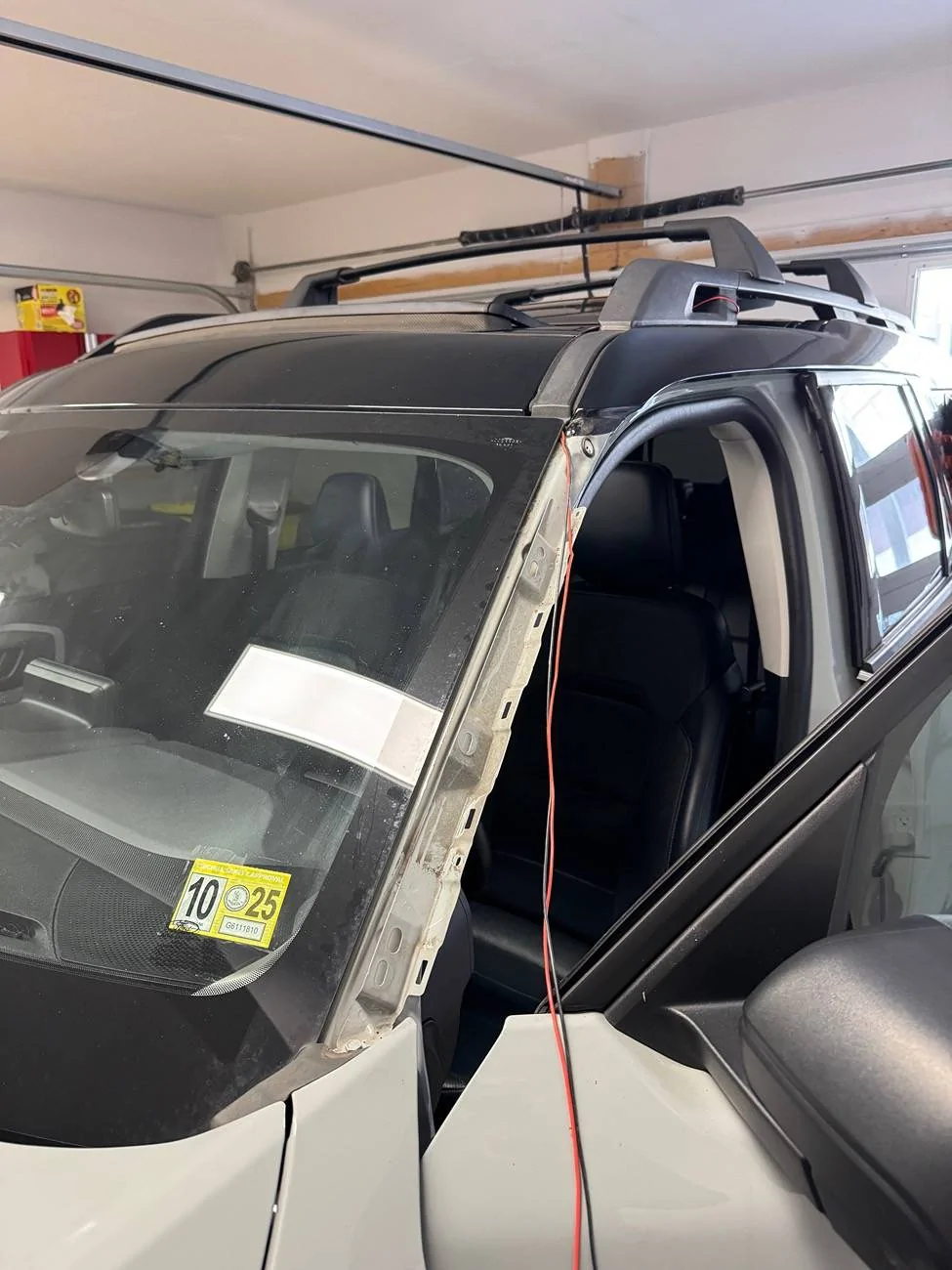

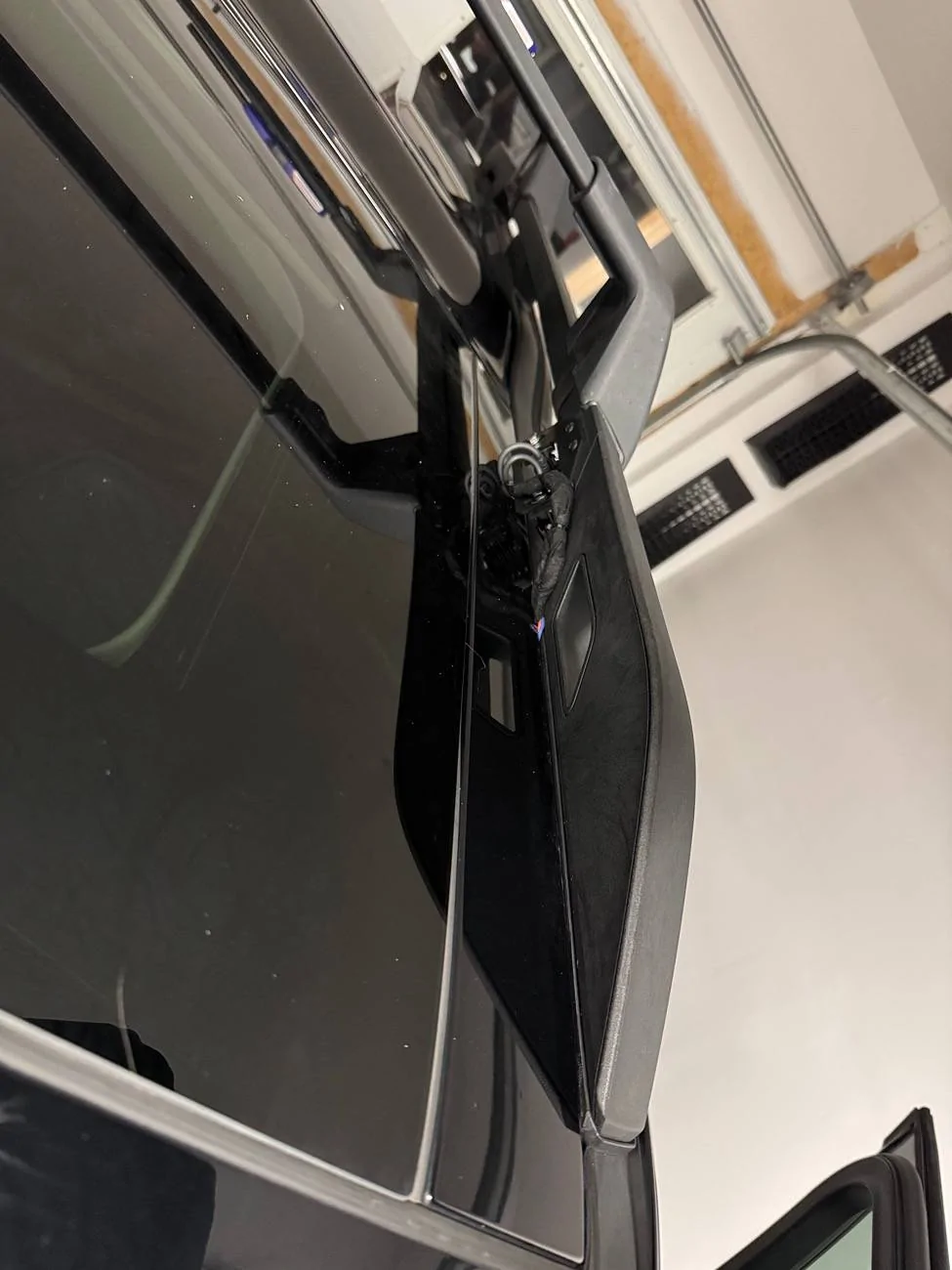

For others that attempt this, I actually found it really easy to use a plastic spudger and tuck the wires both under the corner of the windshield and under the weather stripping. Additionally since I run roof lights on both sides, it’s easy to run to the other side of the roof across the top of the windshield. Will depend on your wire gauge of course, I used the smallest I could get away with specifically so I could tuck them. Be realistic with the amp draw requirements

Ford Bronco Sport A Pillar Wiring IMG_4205

Ford Bronco Sport A Pillar Wiring IMG_4212

OP
OP
Curtsbronco

Curtsbronco

Badlands
Active Member
First Name
Curt
Joined
Jul 25, 2022
Threads
4
Messages
39
Reaction score
65
Location
Tulsa
Vehicle(s)
Dual Sport Family. Badlands and Big Bend.
For others that attempt this, I actually found it really easy to use a plastic spudger and tuck the wires both under the corner of the windshield and under the weather stripping. Additionally since I run roof lights on both sides, it’s easy to run to the other side of the roof across the top of the windshield. Will depend on your wire gauge of course, I used the smallest I could get away with specifically so I could tuck them. Be realistic with the amp draw requirements

Ford Bronco Sport A Pillar Wiring IMG_4205

Ford Bronco Sport A Pillar Wiring IMG_4212
Nicely done! Wasn't quite an option since I have the light bar, side lights (separate switch) and antenna coax I was trying to run, but the lower gauge wire w/o insulation gives you a cleaner install.

Not gonna lie - kinda suprised by the activity on my 2 year old thread today!


Trist0n

First Edition
Well-Known Member
Joined
Oct 24, 2023
Threads
16
Messages
114
Reaction score
247
Location
The Moon
Vehicle(s)
2021 First Edition // 2022 Outer Banks + OB
Nicely done! Wasn't quite an option since I have the light bar, side lights (separate switch) and antenna coax I was trying to run, but the lower gauge wire w/o insulation gives you a cleaner install.

Not gonna lie - kinda suprised by the activity on my 2 year old thread today!
The threads where people actually get creative and some actual mods are my favorite to see activity on!


ryan_socal

Badlands
Member
First Name
Ryan
Joined
Apr 6, 2025
Threads
1
Messages
20
Reaction score
50
Location
Los Angeles
Vehicle(s)
2025 Bronco Sport
For others that attempt this, I actually found it really easy to use a plastic spudger and tuck the wires both under the corner of the windshield and under the weather stripping. […]
Aha! I see how you got it under the roof channel strip now. Was it hard to pop the wires out through the weather stripping under the roof rack attachment point? Did you seal the weather strip at that point? Looks great, like a pro installation. By the way, I've read countless pages of your posts and very much appreciate all the work you’ve put into sharing things here!

I’m running 14 AWG for my main light bar and 16 AWG for a set of 4 round spots on top. I had a lot of trouble squeezing these thick bois out of the top of the A pillar trim which still doesn’t sit perfectly flush at the top. Tried tucking them under the corner of the windshield but they didn’t fit.

[…] Not gonna lie - kinda suprised by the activity on my 2 year old thread today!
I hope you don’t mind. Since you cleared up the question of how you routed along the roof trim, maybe we should stop here and not grow this into an uber thread about all possible solutions. It’s just.. you did a great job with the video and crediting Alfredo’s prior work.

Another by-the-way.. Rally Innovations wasn’t on my radar for BS stuff until you mentioned your front bumper light bar.

Last edited:
OP
OP
Curtsbronco

Curtsbronco

Badlands
Active Member
First Name
Curt
Joined
Jul 25, 2022
Threads
4
Messages
39
Reaction score
65
Location
Tulsa
Vehicle(s)
Dual Sport Family. Badlands and Big Bend.
I hope you don’t mind. Since you cleared up the question of how you routed along the roof trim, maybe we should stop here and not grow this into an uber thread about all possible solutions. It’s just.. you did a great job with the video and crediting Alfredo’s prior work.

Another by-the-way.. Rally Innovations wasn’t on my radar for BS stuff until you mentioned your front bumper light bar. I reached out to them about R&D for a similar bar to fit the new ā€˜25 badlands steel bumper and will be working with them soon.
Not at all! I'm glad it's been useful. The youtube video increments viewers periodically, but not a lot of feedback, so never know.

Rally Innovations has been one of the few 3rd parties to actually do much for the Sports, so glad they are still pursuing it. Hope you enjoy your '25.... they've got some nice adds. I really like that new Desert Sand color, but not enough to make a change.
